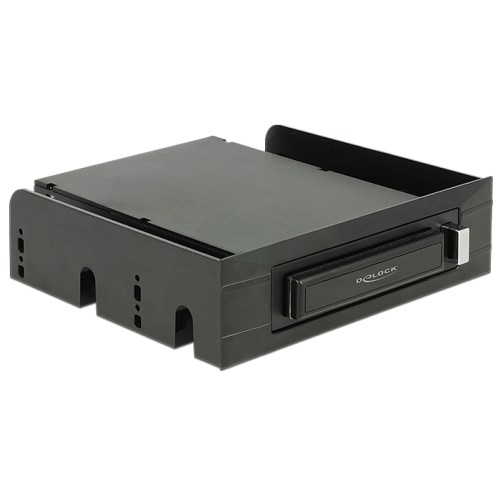

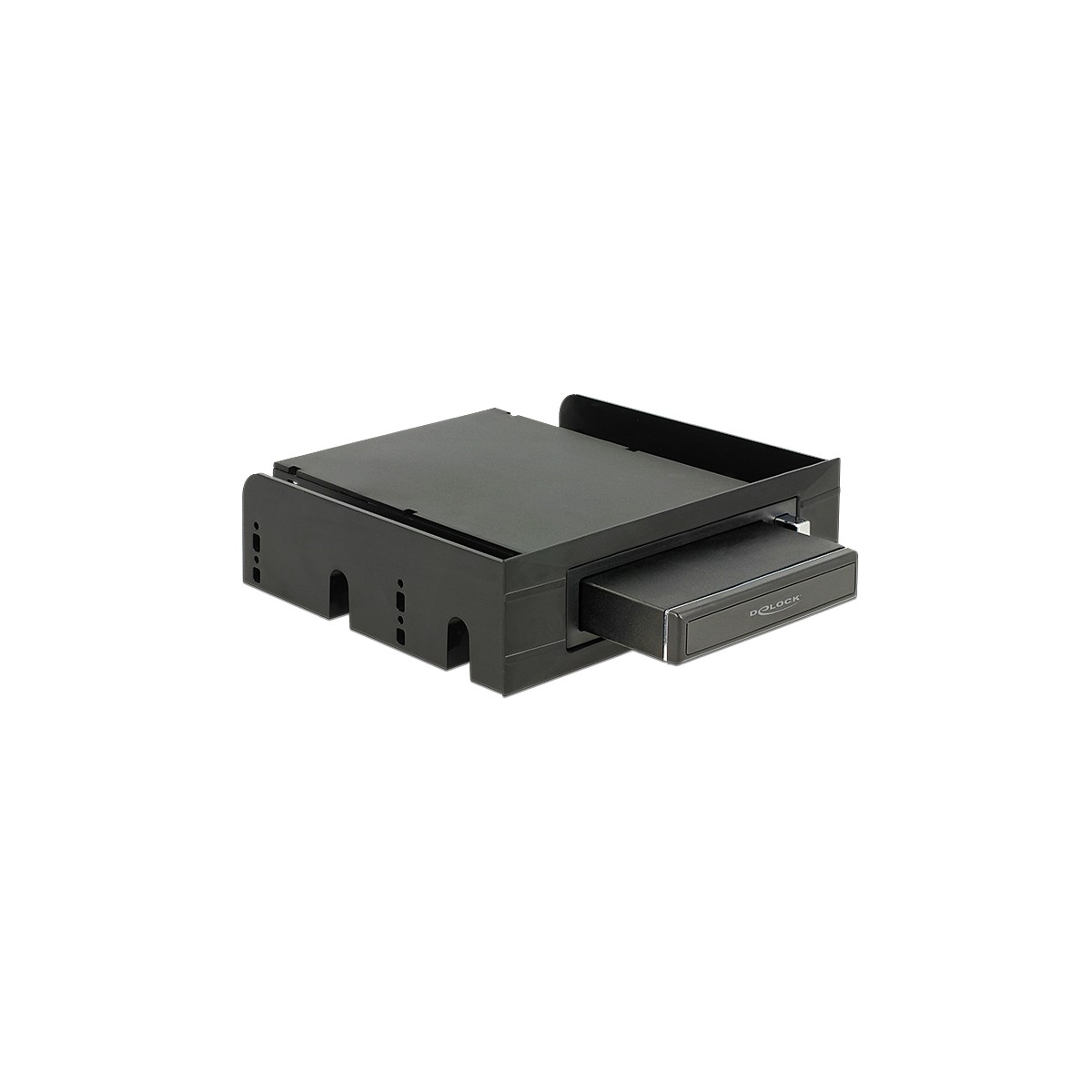

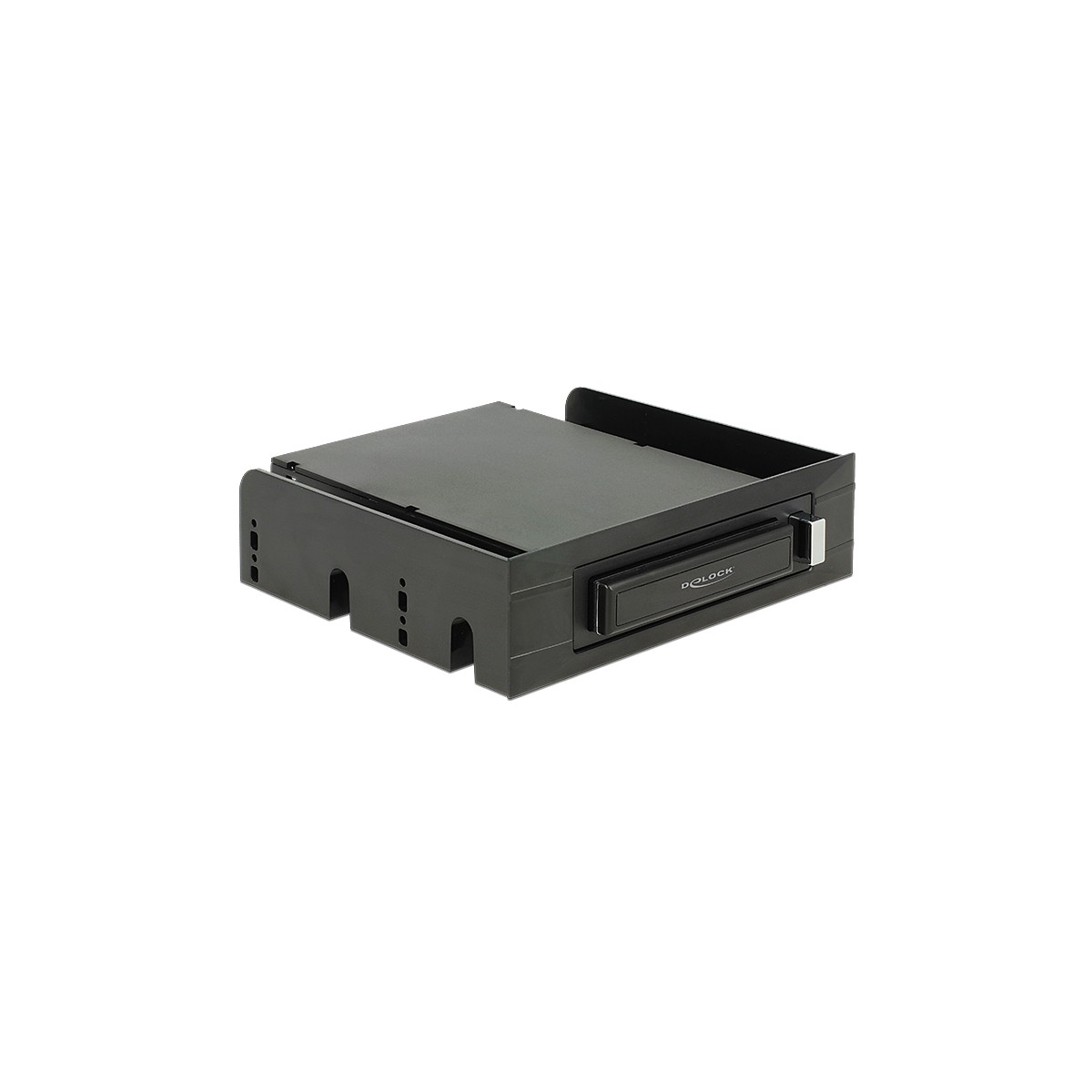

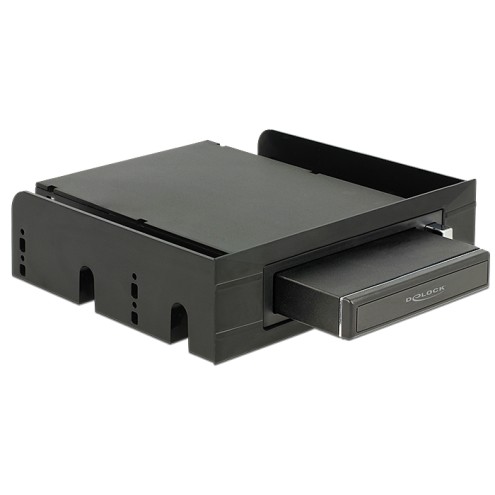

Delock 3.5″ / 5.25″ Mobile Rack for 2.5″ SATA hard drives and SSDs

Description
This Delock mobile rack can be installed into the 3.5″ or 5.25″ bay of the computer. It includes an enclosure for 2.5″ SATA hard disks or SSDs, which can be operated either directly in the mobile rack via SATA or externally via USB.

Please Note
When purchasing the optional 2.5″ enclosure item 47226, multiple hard drives or SSDs can be easily replaced.

Specification
• Mobile rack for installation into a 3.5″ or 5.25″ bay
• For internal connection via SATA or external via USB 3.0
• 2.5″ enclosure:
internal:
1 x SATA 22 pin male
external:
1 x SATA 22 pin female
1 x USB 3.0 Type Micro-B female
• 3.5″ frame:
internal:
1 x SATA 22 pin male
backside:
1 x SATA 7 pin female
1 x 4 pin power connector
• Suitable for 2.5″ SATA HDD / SSD:
HDD height up to 9.5 mm
SATA HDD / SSD up to 6 Gb/s
HDD / SSD up to 2 TB
• Eject button on the 3.5″ frame
• Data transfer rate:
USB 3.0 up to 5 Gb/s
SATA up to 6 Gb/s
• LED indicator for power and access
• Dimensions (LxWxH):
2.5″ enclosure ca. 131.5 x 80 x 16.5 mm
3.5″ mobile rack ca. 165 x 102 x 25.2 mm
5.25″ installation frame ca. 139 x 148 x 42 mm
• Cable data:
1 x cable USB 3.0 Type Micro-B male to USB 3.0 Type-A male ca. 60 cm
(incl. connector)
1 x cable SATA 7 pin male to SATA 7 pin male ca. 54 cm (incl. connector)
1 x power cable 4 pin female to 4 pin male ca. 13.5 cm (incl. connector)

System requirements
• Windows 7/7-64/8/8-64/8.1/8.1-64/10/10-64
• PC with a free 3.5″ or 5.25″ bay and a free SATA port
• PC or laptop with a free USB Type-A port for the 2.5″ enclosure

Package content

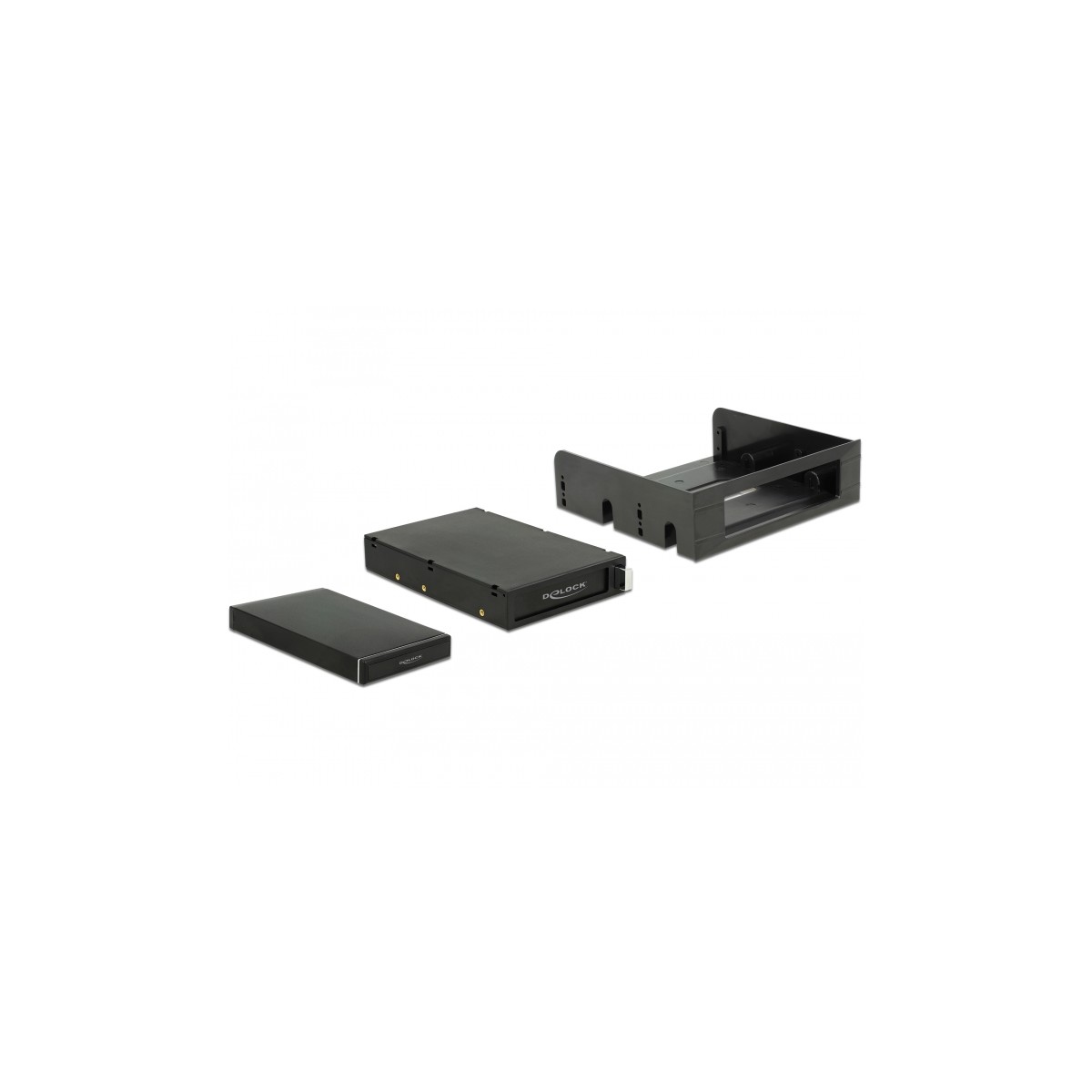

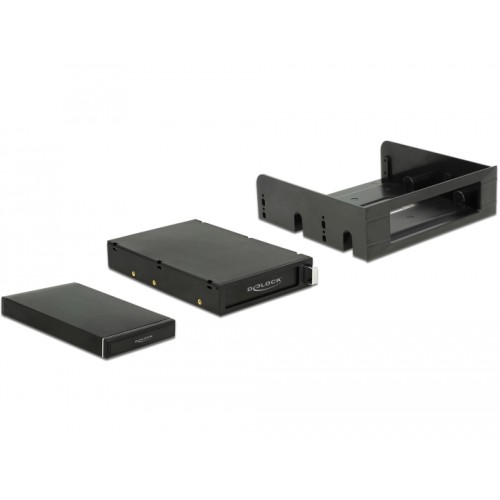

• 2.5″ enclosure
• 3.5″ mobile rack
• 5.25″ installation frame

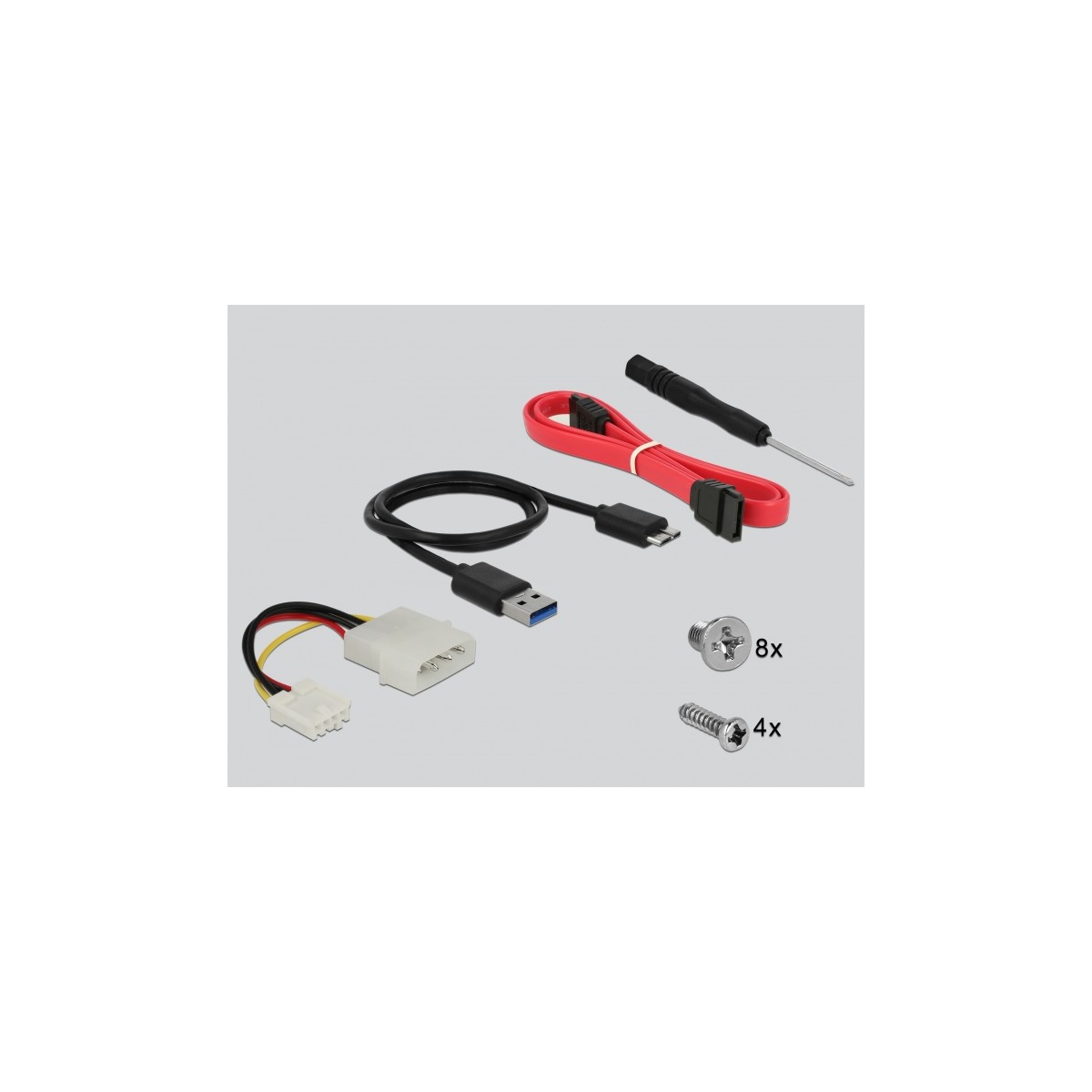

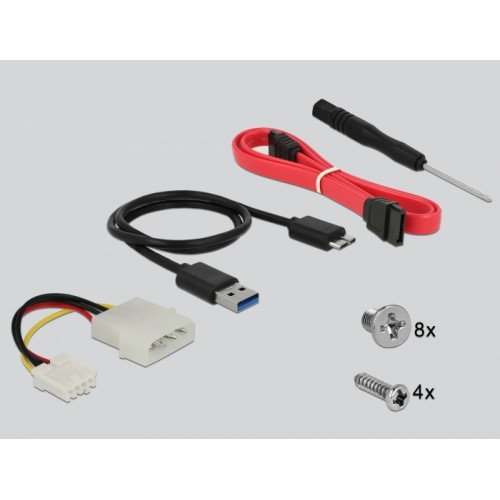

• Micro USB 3.0 to USB 3.0-A cable
• 7 pin SATA cable
• 4 pin power cable
• Screwdriver
• Screws
• User manual
