Description

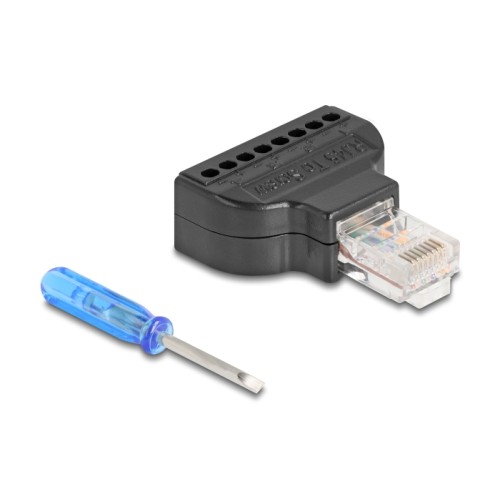

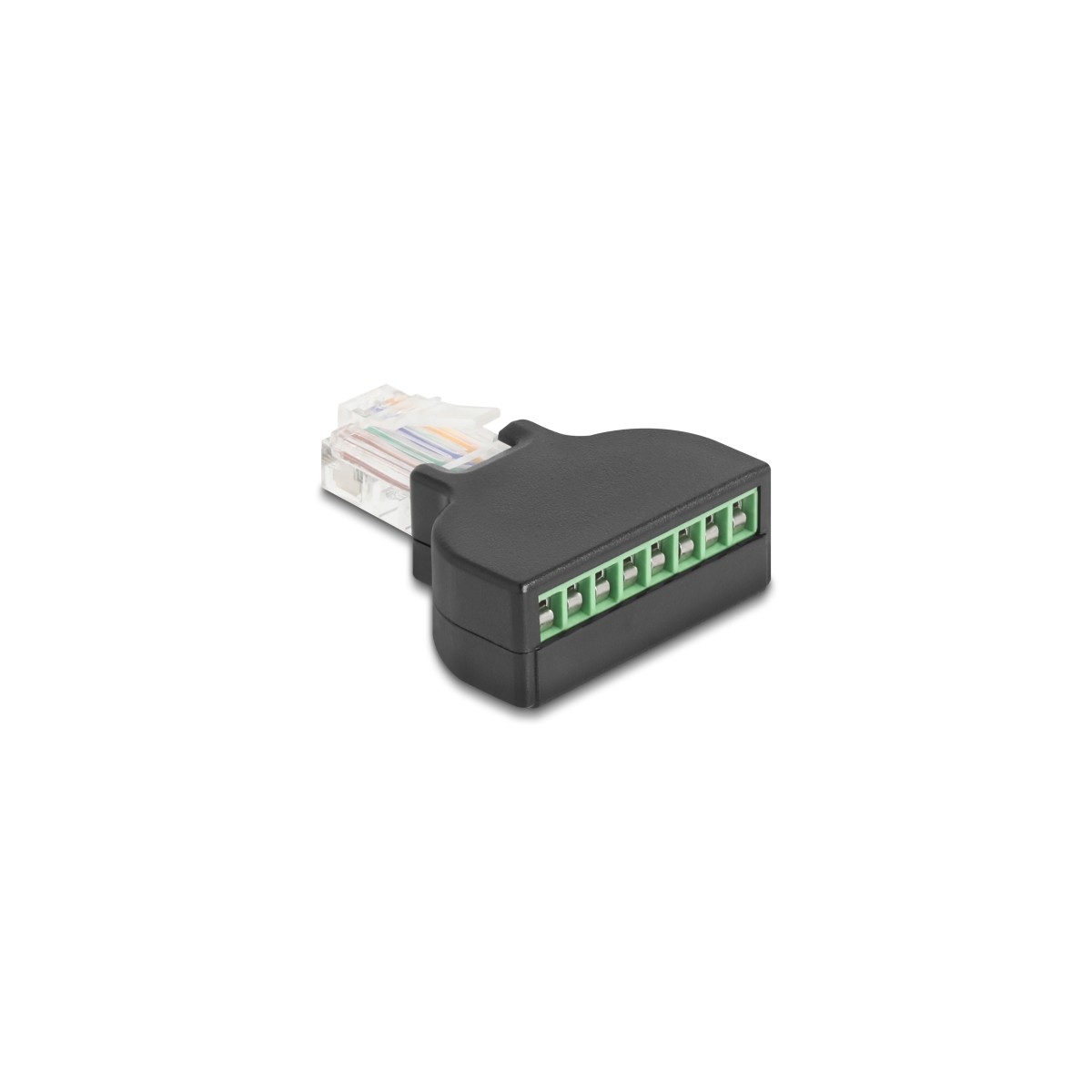

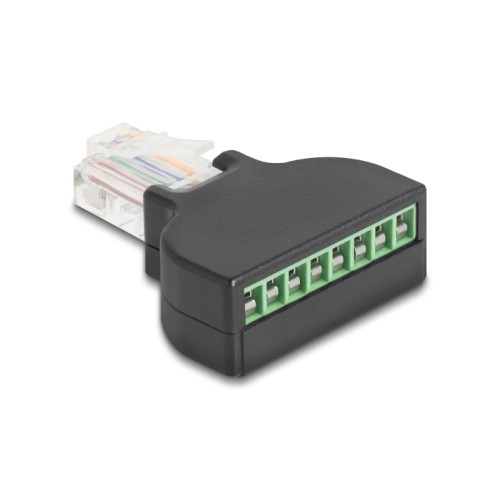

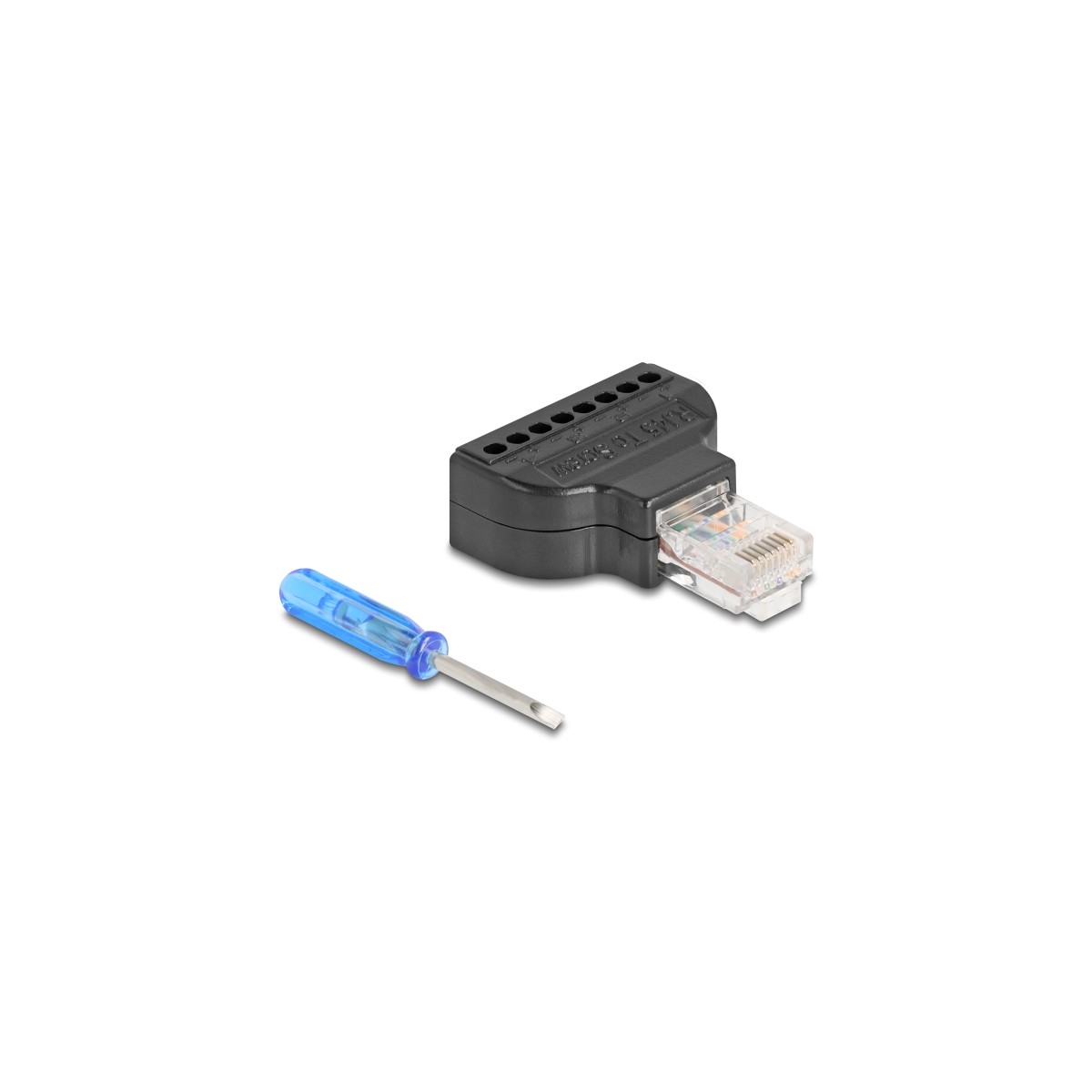

This adapter by Delock can be used to connect various network devices. Strands with stripped ends can be connected via the terminal block.
With screwdriver
A suitable screwdriver is included in the package to facilitate installation and securely fasten the wires in the terminal block.
Specification
• Connectors:
1 x RJ45 plug
1 x 8 pin terminal block
• Cat.5e specification
• Pin assignment: 1:1
• Pitch: 2.54 mm
• Useable for a cable gauge from 28 to 14 AWG
• Current: max. 2 A
• Operating temperature: -40 °C ~ 70 °C
• Dimensions (LxWxH): ca. 37 x 32 x 16 mm
System requirements
Package content
• Adapter
• Screwdriver
This adapter by Delock can be used to connect various network devices. Strands with stripped ends can be connected via the terminal block.
With screwdriver
A suitable screwdriver is included in the package to facilitate installation and securely fasten the wires in the terminal block.
Specification
• Connectors:
1 x RJ45 plug
1 x 8 pin terminal block
• Cat.5e specification
• Pin assignment: 1:1
• Pitch: 2.54 mm
• Useable for a cable gauge from 28 to 14 AWG
• Current: max. 2 A
• Operating temperature: -40 °C ~ 70 °C
• Dimensions (LxWxH): ca. 37 x 32 x 16 mm
System requirements
Package content
• Adapter
• Screwdriver
