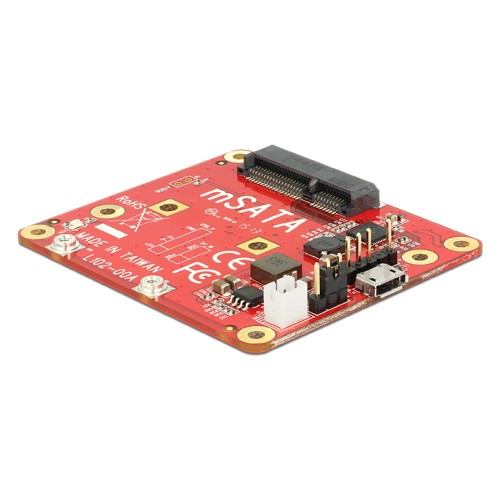

Delock Converter Raspberry Pi USB Micro-B female / USB pin header mSATA 6 Gb/s
62648
Nuovo
Description

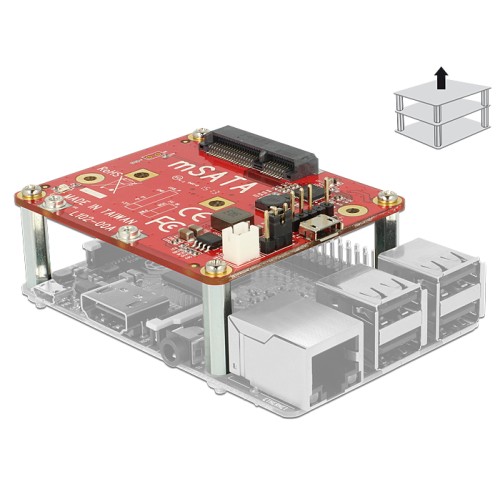

This converter by Delock enables you to connect you mSATA module via the Micro USB port or the USB pin header connector to your Raspberry Pi.
Specification
• Connector:
1 x USB 2.0 Type Micro-B female
1 x 5 pin USB 2.0 pin header (4 pins connected)
1 x 2 pin power connector
1 x mSATA 6 Gb/s slot (full size)
• Chipset: Renesas D720231A
• Supports ATA/ATAPI Packet command set and LBA 48 addressing mode
• Compliant with OHCI 1.0a and EHCI 0.95
• Jumper for setting the power supply via USB or 2 pin power connector
• LED indicator for activity
• Dimensions (LxWxH): ca. 65 x 56 x 12 mm
• OS independent, no driver installation necessary
System requirements
• A free USB port
• USB connection cables

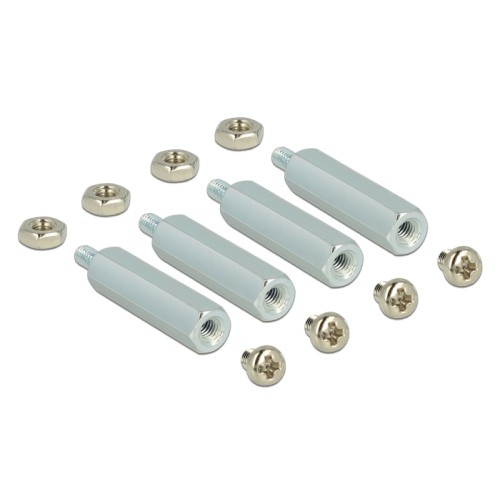

Package content
• Converter
• 2 x screw for mSATA module
• 4 x screw
• 4 x nut
• 4 x standoff
• User manual
This converter by Delock enables you to connect you mSATA module via the Micro USB port or the USB pin header connector to your Raspberry Pi.
Specification
• Connector:
1 x USB 2.0 Type Micro-B female
1 x 5 pin USB 2.0 pin header (4 pins connected)
1 x 2 pin power connector
1 x mSATA 6 Gb/s slot (full size)
• Chipset: Renesas D720231A
• Supports ATA/ATAPI Packet command set and LBA 48 addressing mode
• Compliant with OHCI 1.0a and EHCI 0.95
• Jumper for setting the power supply via USB or 2 pin power connector
• LED indicator for activity
• Dimensions (LxWxH): ca. 65 x 56 x 12 mm
• OS independent, no driver installation necessary
System requirements
• A free USB port
• USB connection cables
Package content
• Converter
• 2 x screw for mSATA module
• 4 x screw
• 4 x nut
• 4 x standoff
• User manual
Nuovo
4043619626489
