Description

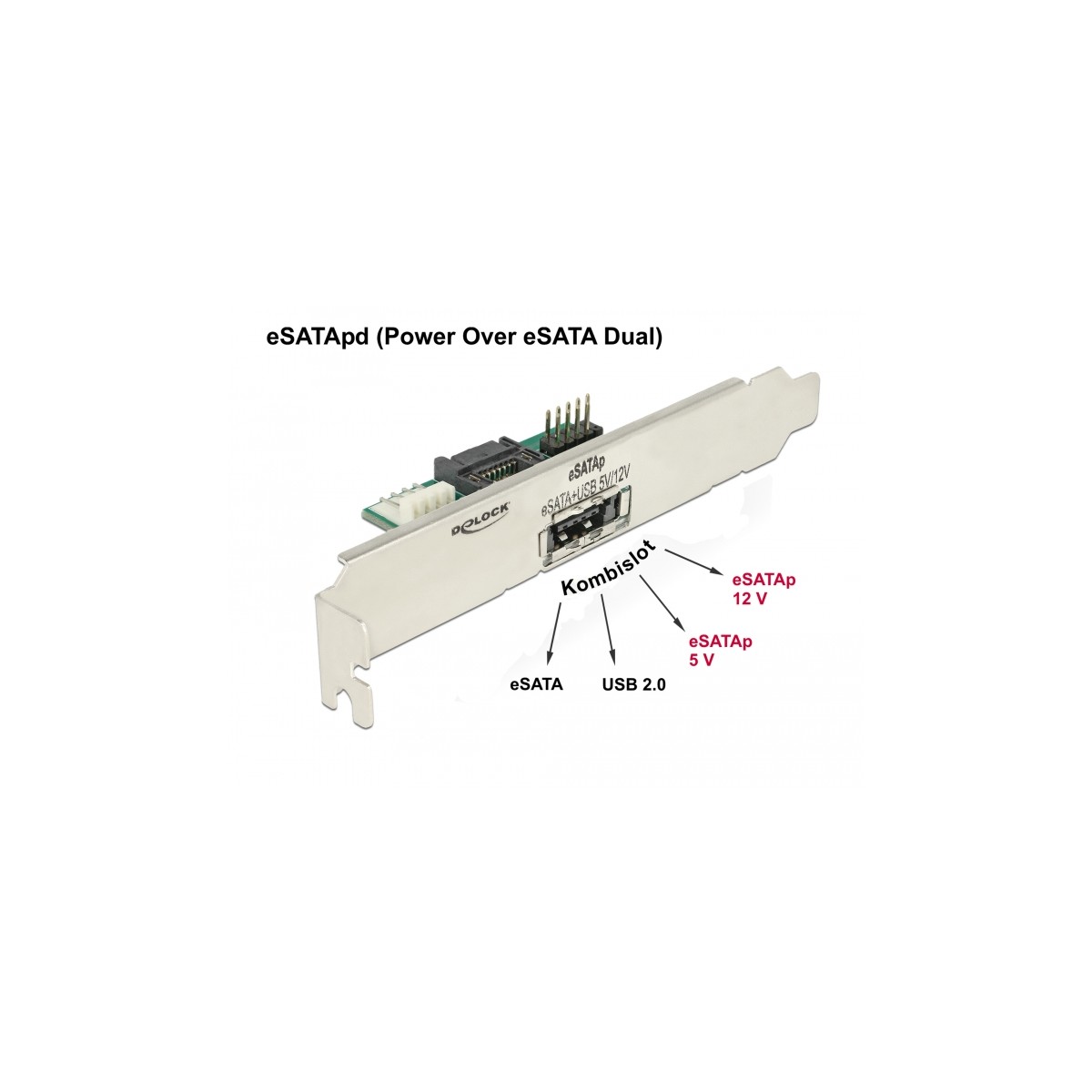

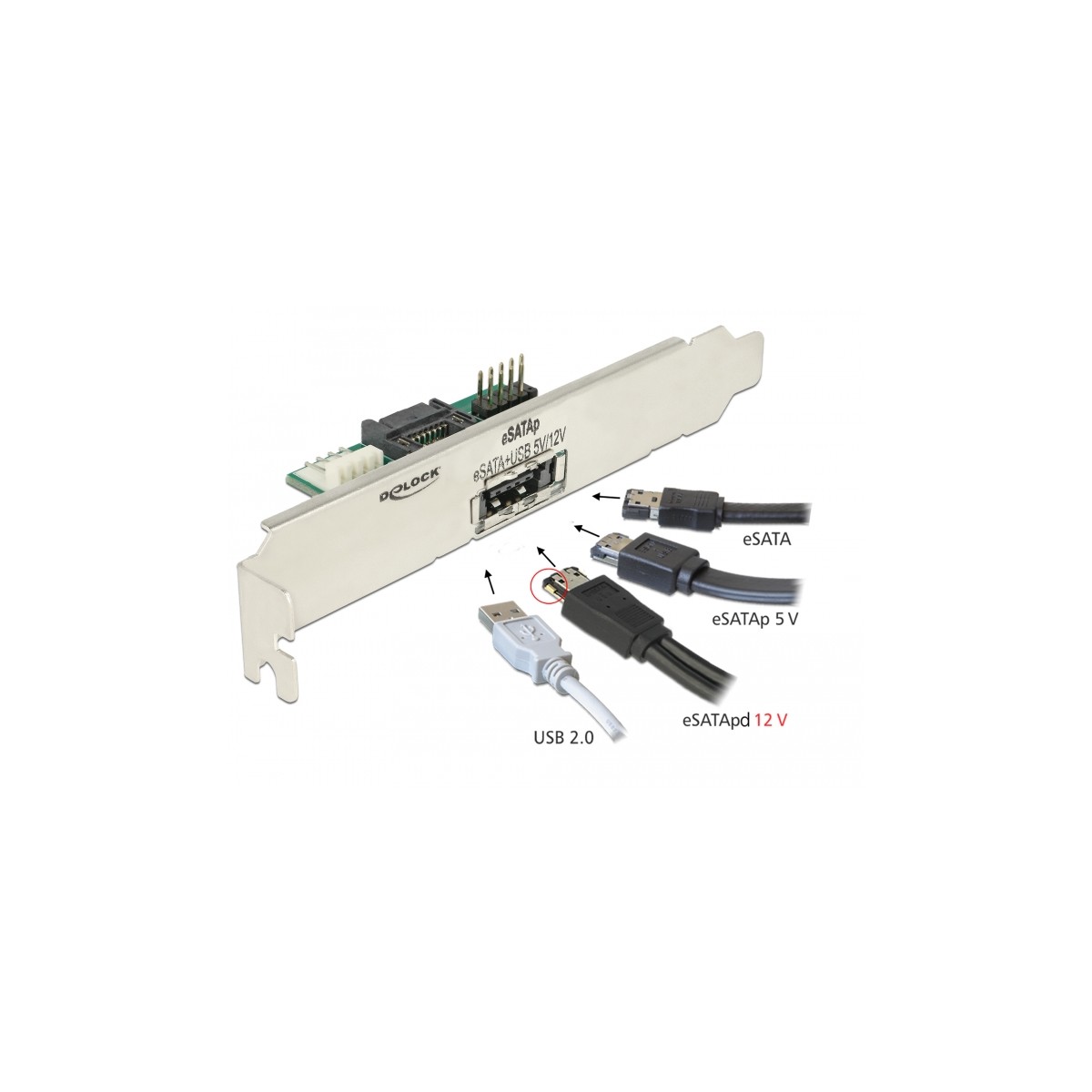

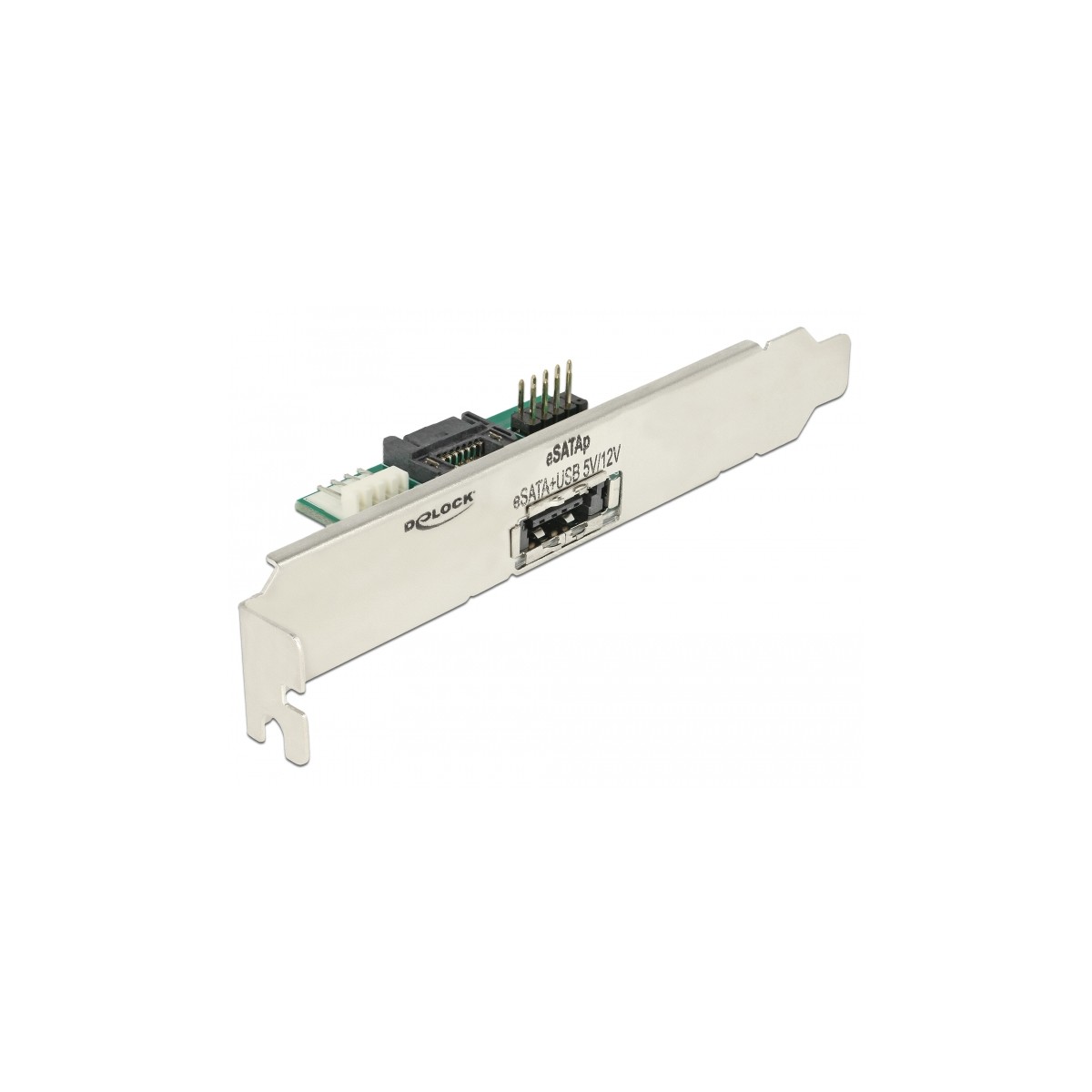

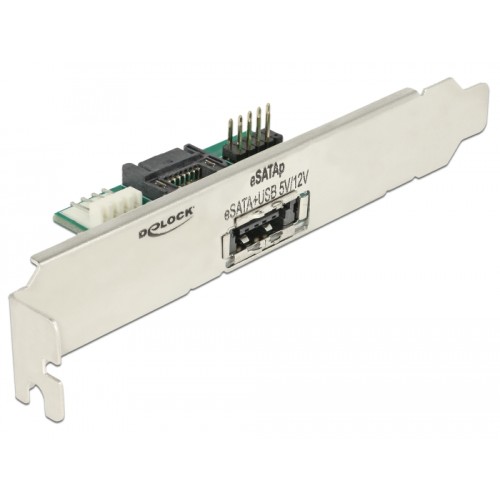

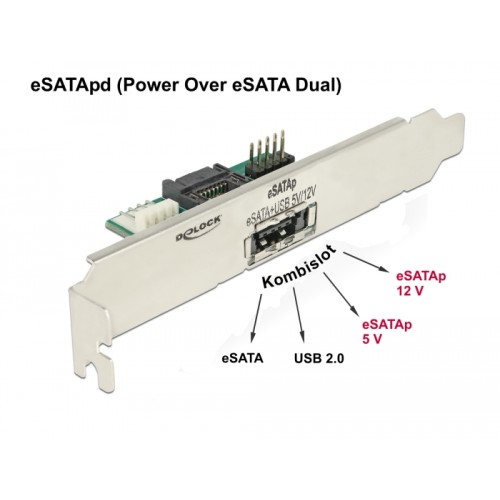

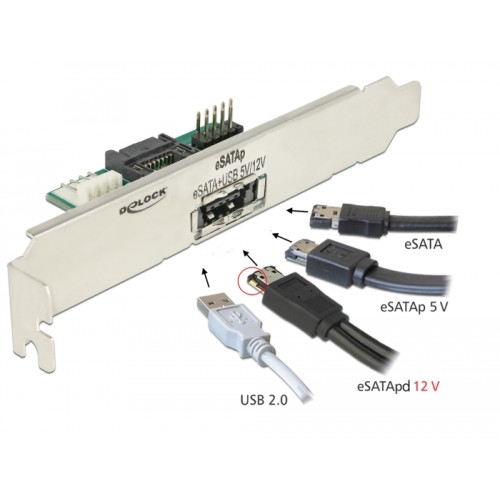

With this slot bracket by Delock a PC can be extended by one external Power Over eSATA port. Thus, different devices with eSATApd, eSATAp, eSATA or standard USB interface can be connected. The eSATApd port provides a voltage supply of 5 V and 12 V, therefore a 2.5″ and 3.5″ hard drive can be connected by using special Delock products like e.g. eSATApd cable. The included cables are for internal connection.
Specification
• Connectors:
internal:
1 x 4 pin Floppy male
1 x SATA 7 pin plug
1 x 9 pin USB 2.0 pin header male
external:
1 x eSATApd male
• Voltage: eSATApd 5 V and 12 V
System requirements
• PC with one free slot
• Power supply with one free 4 pin floppy power connector
• Motherboard with a free 7 pin SATA plug
• Motherboard with a free 9 pin USB 2.0 pin header male

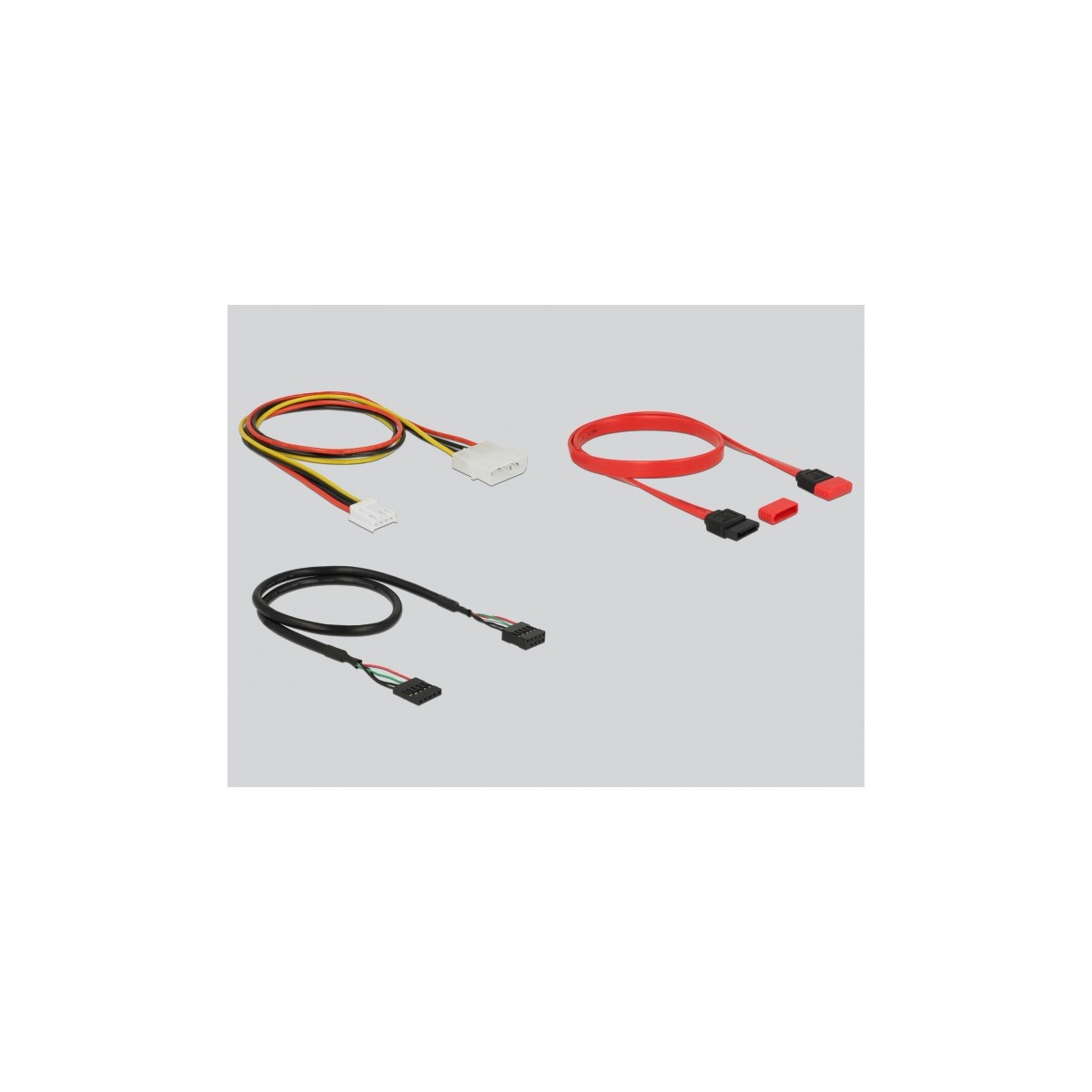

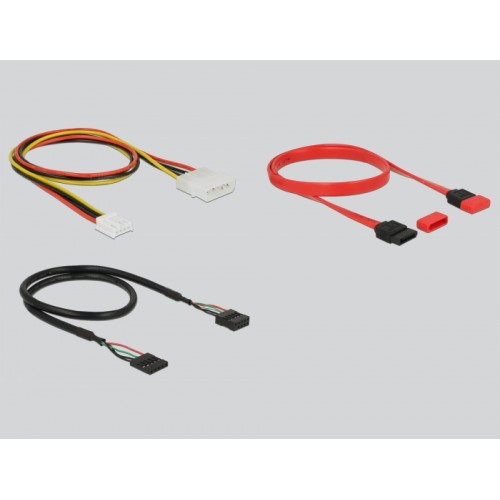

Package content
• Slot bracket eSATApd
• Floppy power cable, length ca. 49 cm
• SATA data cable, length ca. 49 cm
• USB pin header female cable, length ca. 46 cm
With this slot bracket by Delock a PC can be extended by one external Power Over eSATA port. Thus, different devices with eSATApd, eSATAp, eSATA or standard USB interface can be connected. The eSATApd port provides a voltage supply of 5 V and 12 V, therefore a 2.5″ and 3.5″ hard drive can be connected by using special Delock products like e.g. eSATApd cable. The included cables are for internal connection.
Specification
• Connectors:
internal:
1 x 4 pin Floppy male
1 x SATA 7 pin plug
1 x 9 pin USB 2.0 pin header male
external:
1 x eSATApd male
• Voltage: eSATApd 5 V and 12 V
System requirements
• PC with one free slot
• Power supply with one free 4 pin floppy power connector
• Motherboard with a free 7 pin SATA plug
• Motherboard with a free 9 pin USB 2.0 pin header male
Package content
• Slot bracket eSATApd
• Floppy power cable, length ca. 49 cm
• SATA data cable, length ca. 49 cm
• USB pin header female cable, length ca. 46 cm
Nuovo
4043619639212
