Description

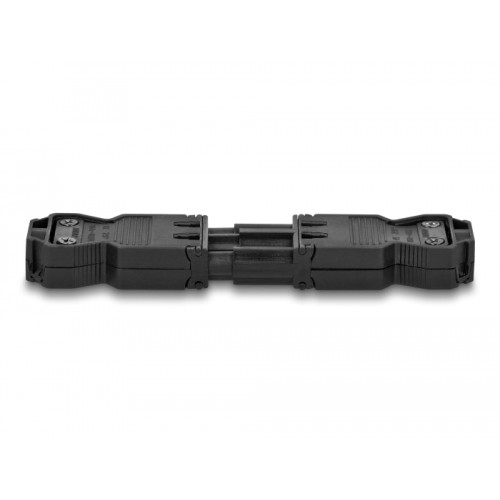

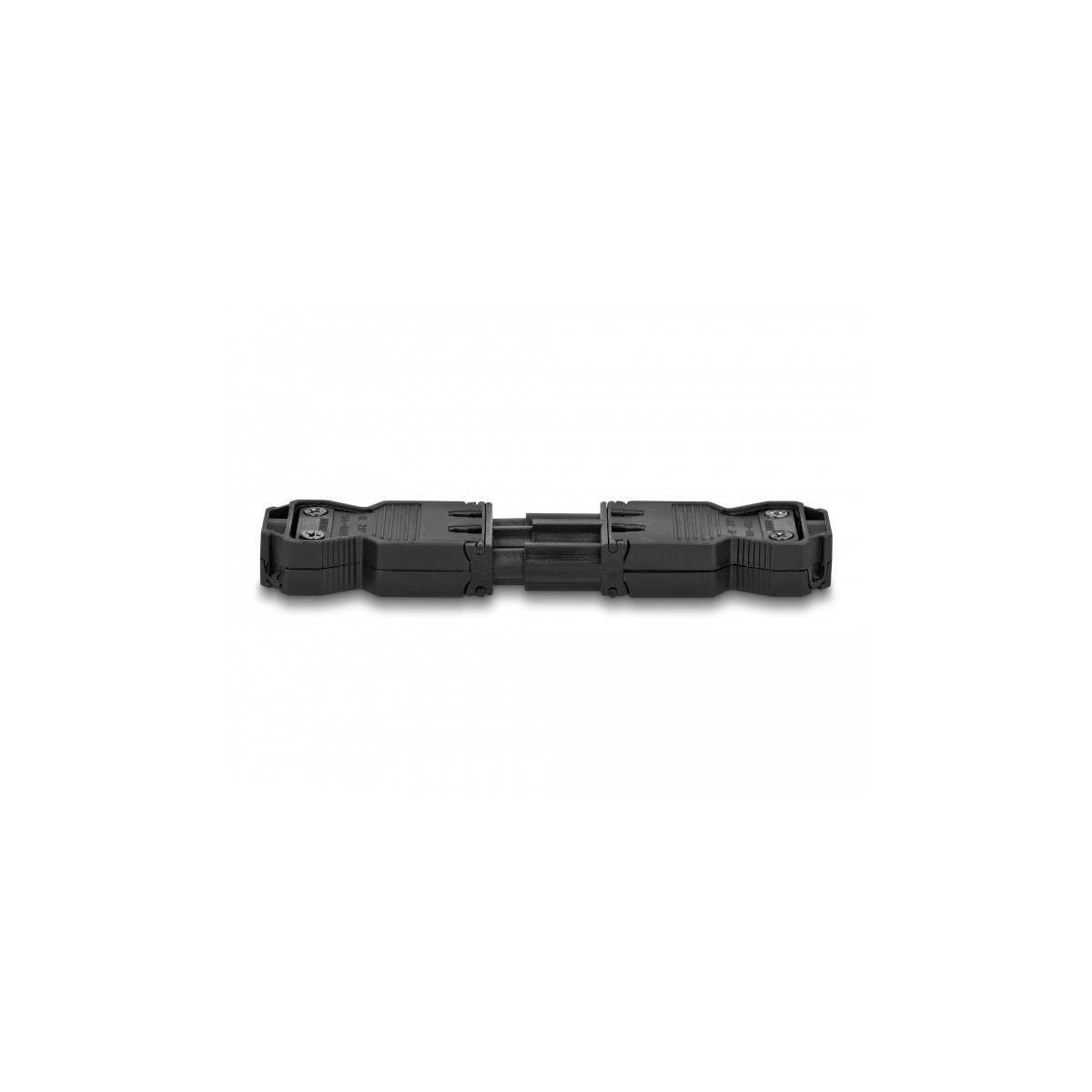

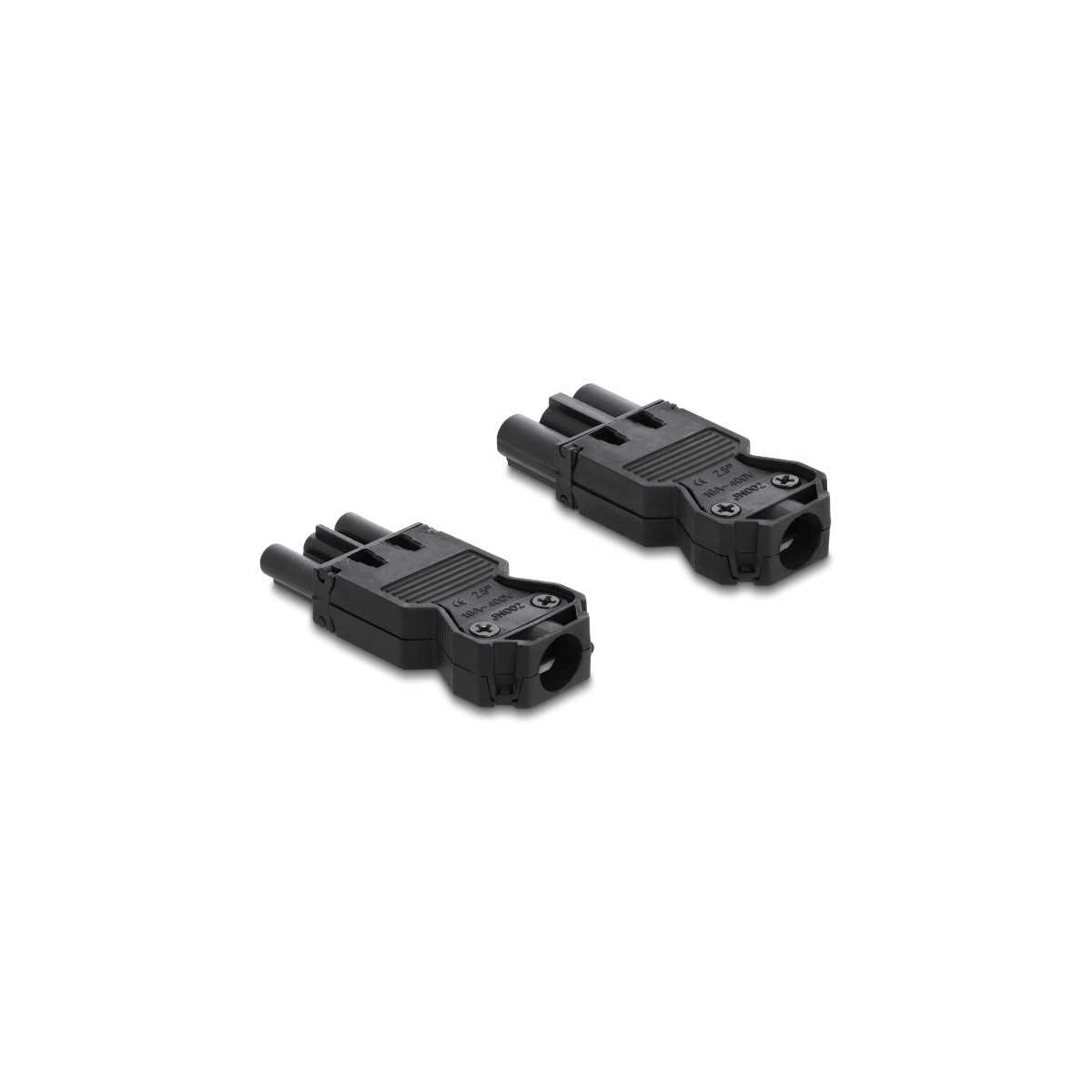

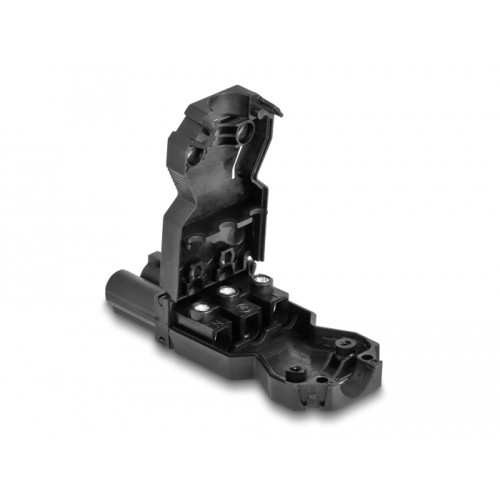

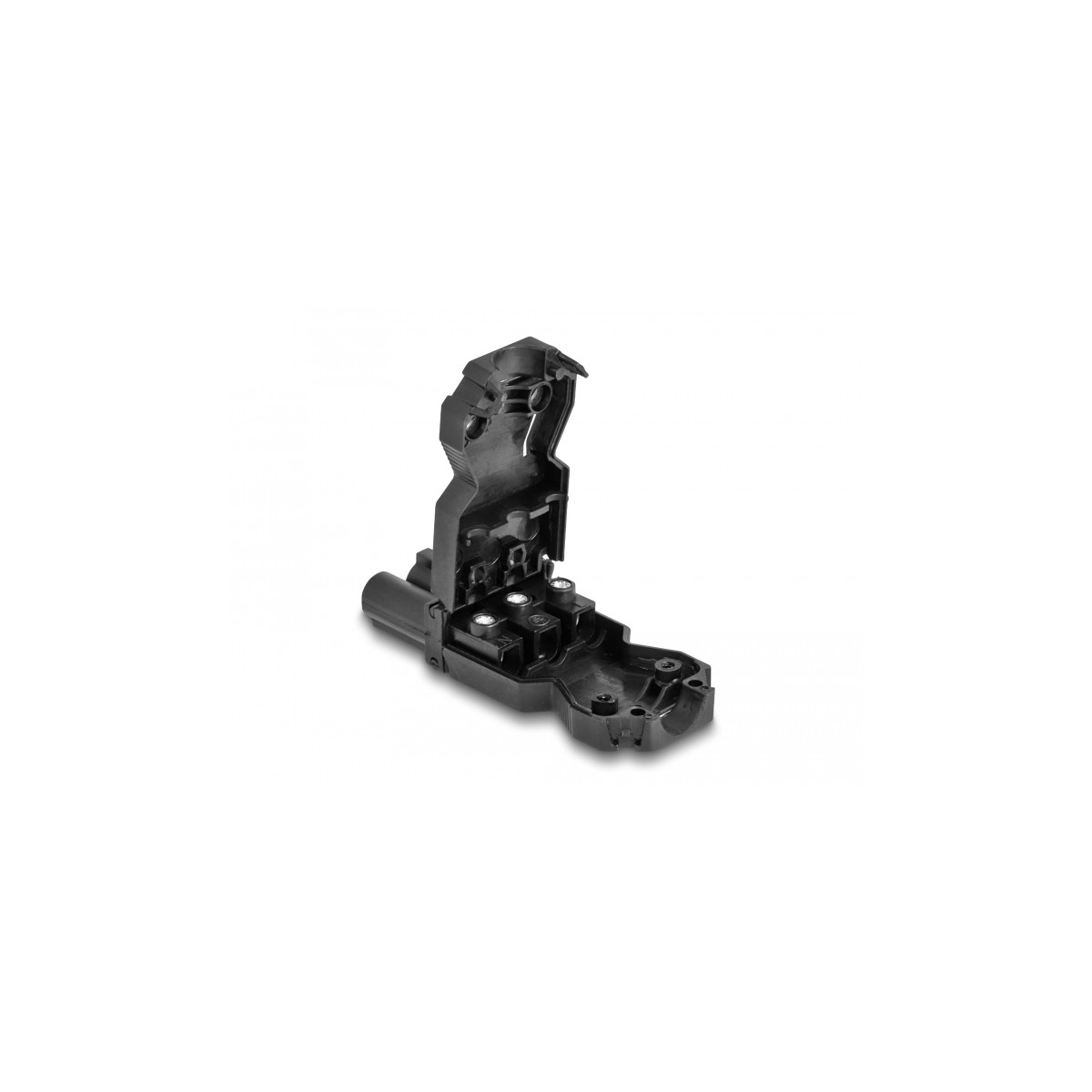

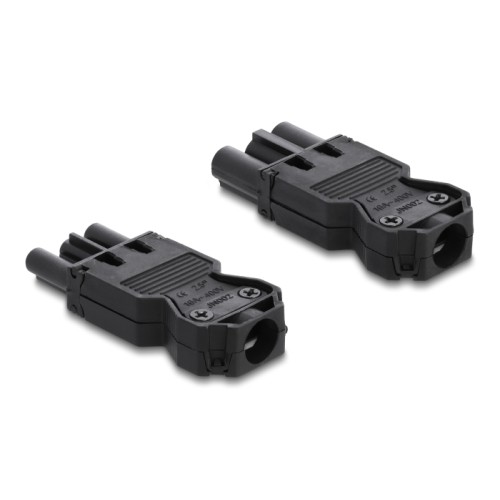

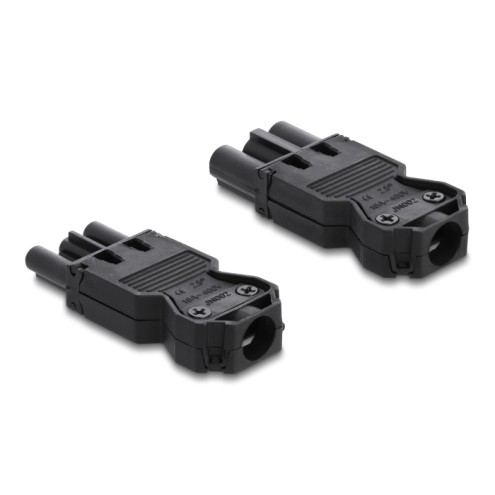

This installation connector set by Delock includes a plug and a socket. It is used for safe connection of two cables. Plug and socket are protected against contact. The included locking slide also prevents unintentional disconnection of the connector. The screw terminals inside are marked with P, N and L.
Specification
• Connectors:
female:
1 x GST18/3 female
3 x screw terminal for PE, N, L
male:
1 x GST18/3 male
3 x screw terminal for PE, N, L
• Rated current: 16.0 A / 250 V~
• Material: ABS
• Terminal cross section (solid): 0.75 mm², 2.5 mm²
• Terminal cross section (fine-stranded): 0.75 mm²
• Cable diameter: ca. 10.5 mm
• Dimensions (LxWxH): ca. 70 x 29 x 13 mm
• Colour: black
System requirements
Package content
• 1 set installation connector
• Locking slide
This installation connector set by Delock includes a plug and a socket. It is used for safe connection of two cables. Plug and socket are protected against contact. The included locking slide also prevents unintentional disconnection of the connector. The screw terminals inside are marked with P, N and L.
Specification
• Connectors:
female:
1 x GST18/3 female
3 x screw terminal for PE, N, L
male:
1 x GST18/3 male
3 x screw terminal for PE, N, L
• Rated current: 16.0 A / 250 V~
• Material: ABS
• Terminal cross section (solid): 0.75 mm², 2.5 mm²
• Terminal cross section (fine-stranded): 0.75 mm²
• Cable diameter: ca. 10.5 mm
• Dimensions (LxWxH): ca. 70 x 29 x 13 mm
• Colour: black
System requirements
Package content
• 1 set installation connector
• Locking slide
