Description

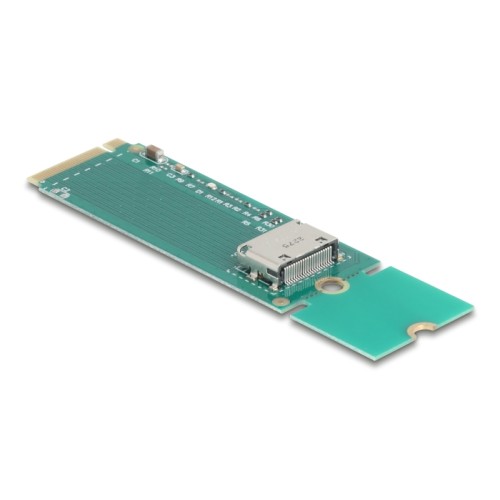

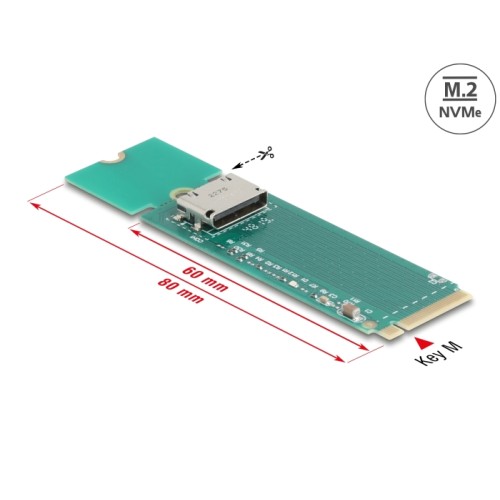

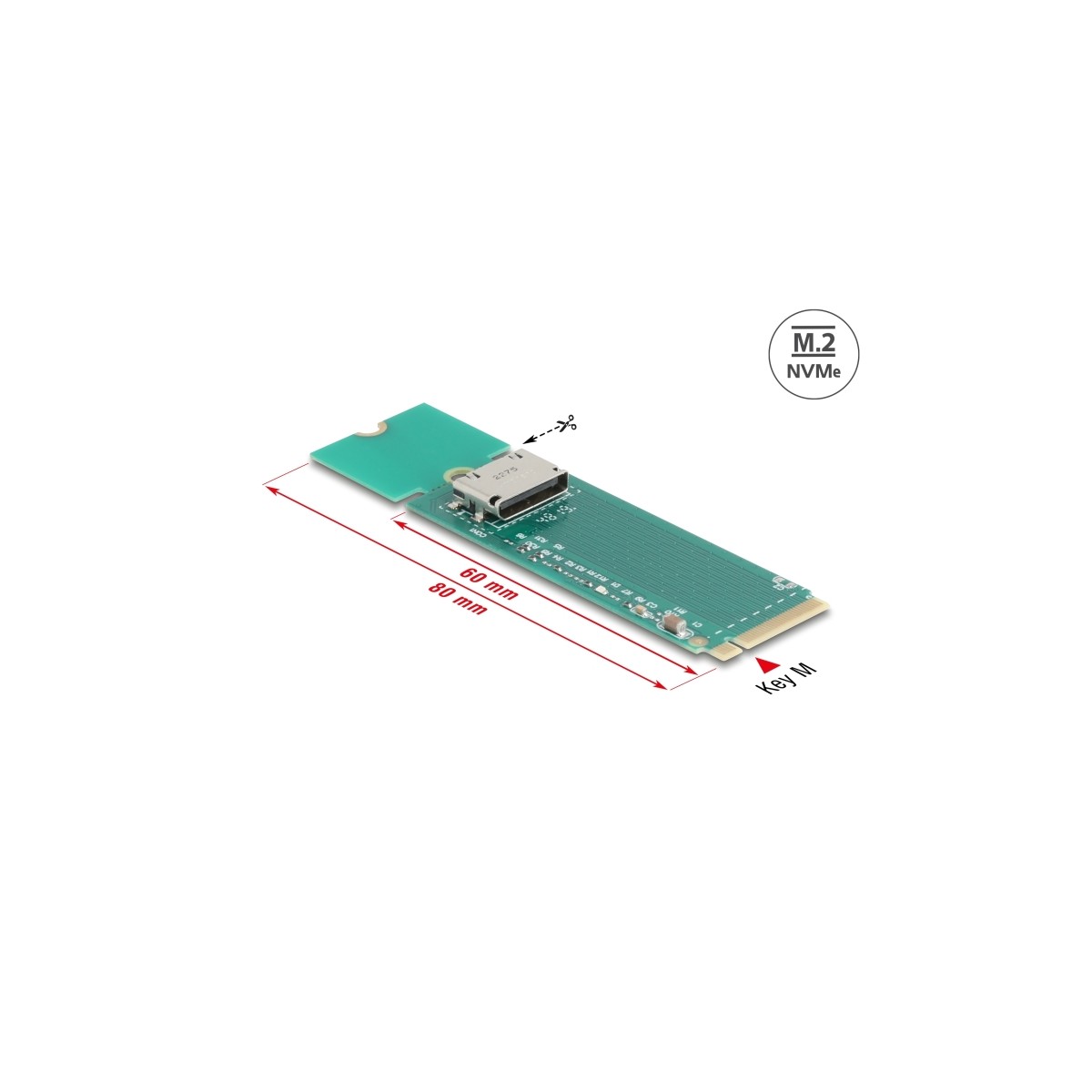

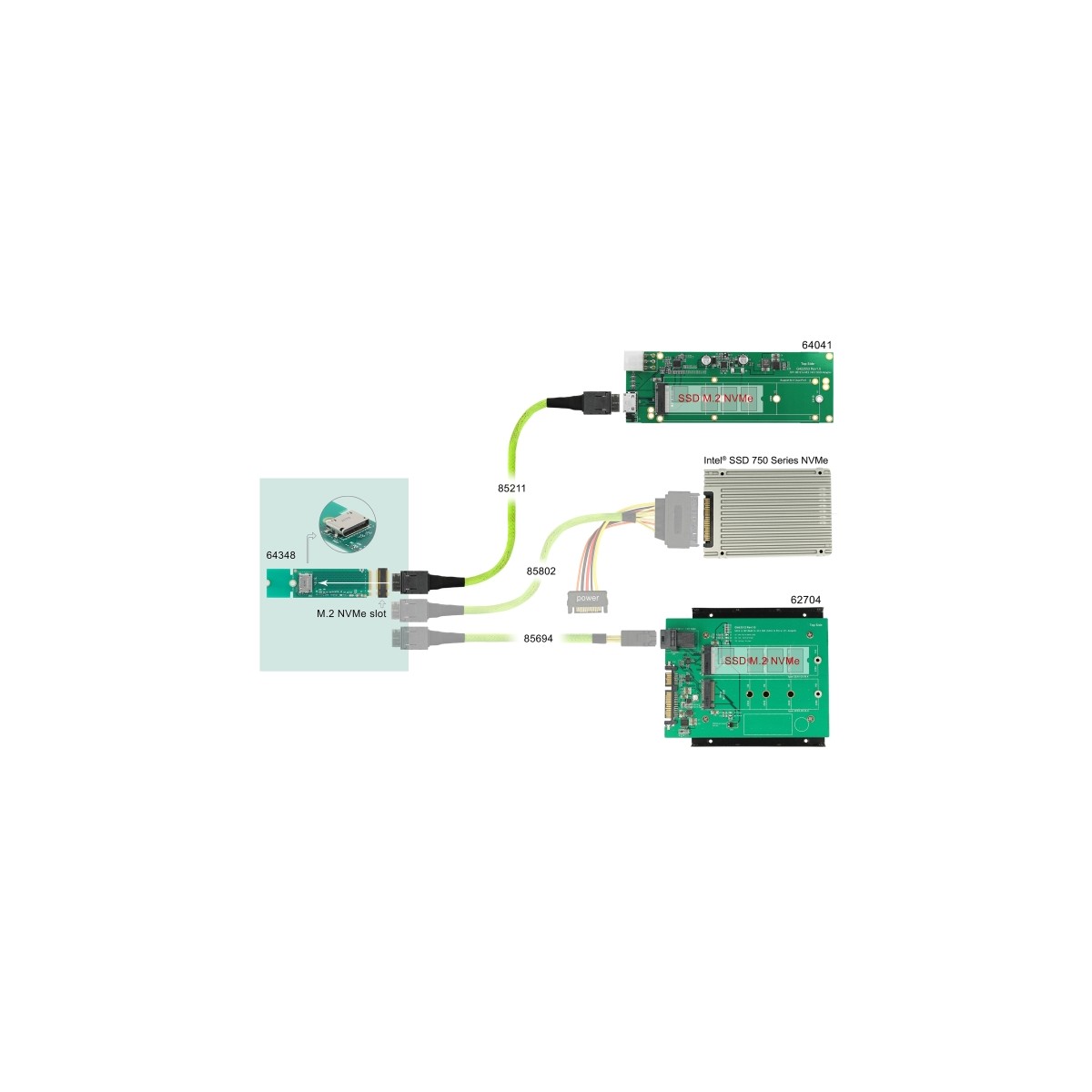

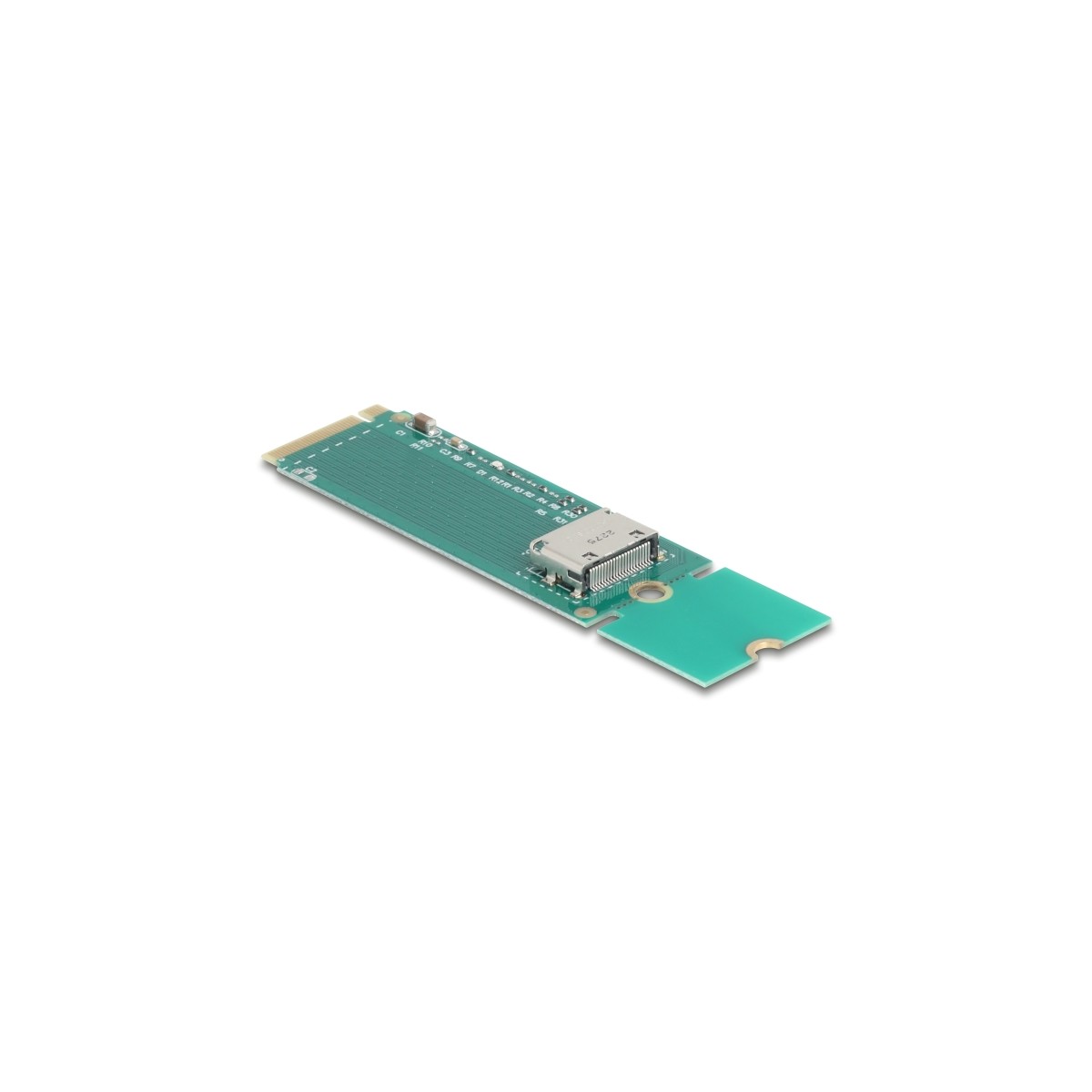

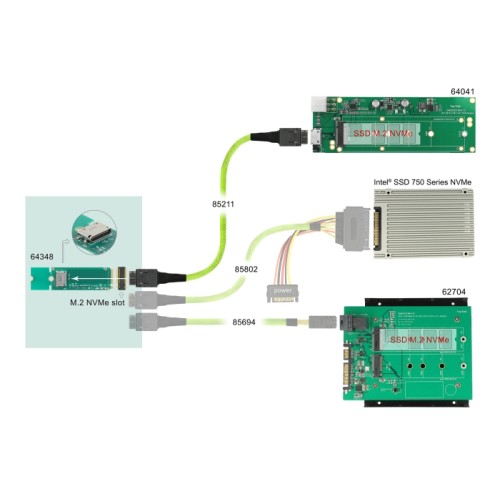

This converter by Delock expands the system by one OcuLink SFF-8612 interface. It can be connected e.g. one SSD by using an optional cable. The converter transmits PCI Express signals using the NVMe protocol. Through the predetermined breaking point, the length can be shortened from 80 mm to 60 mm.
Specification
• Connectors:
1 x M.2 key M male
1 x OCuLink SFF-8612 female
• Interface: PCIe x4 Rev. 4.0
• Form factor: M.2 2280 (2260)
• Suitable for M.2 slot with key M based on PCIe
• 1 x LED indicator
• Bootable, ex UEFI version 2.3.1
• Supports NVM Express (NVMe)
• Operating temperature: -20 °C ~ 80 °C
• Storage temperature: -40 °C ~ 85 °C
• Humidity: 5 ~ 90 %
• Dimensions (LxWxH): ca. 80 x 22 x 5 mm
System requirements
Package content
• Converter M.2 to SFF-8612
• User manual
This converter by Delock expands the system by one OcuLink SFF-8612 interface. It can be connected e.g. one SSD by using an optional cable. The converter transmits PCI Express signals using the NVMe protocol. Through the predetermined breaking point, the length can be shortened from 80 mm to 60 mm.
Specification
• Connectors:
1 x M.2 key M male
1 x OCuLink SFF-8612 female
• Interface: PCIe x4 Rev. 4.0
• Form factor: M.2 2280 (2260)
• Suitable for M.2 slot with key M based on PCIe
• 1 x LED indicator
• Bootable, ex UEFI version 2.3.1
• Supports NVM Express (NVMe)
• Operating temperature: -20 °C ~ 80 °C
• Storage temperature: -40 °C ~ 85 °C
• Humidity: 5 ~ 90 %
• Dimensions (LxWxH): ca. 80 x 22 x 5 mm
System requirements
Package content
• Converter M.2 to SFF-8612
• User manual
