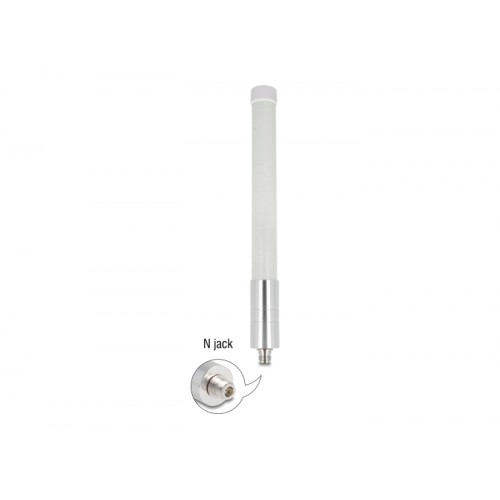

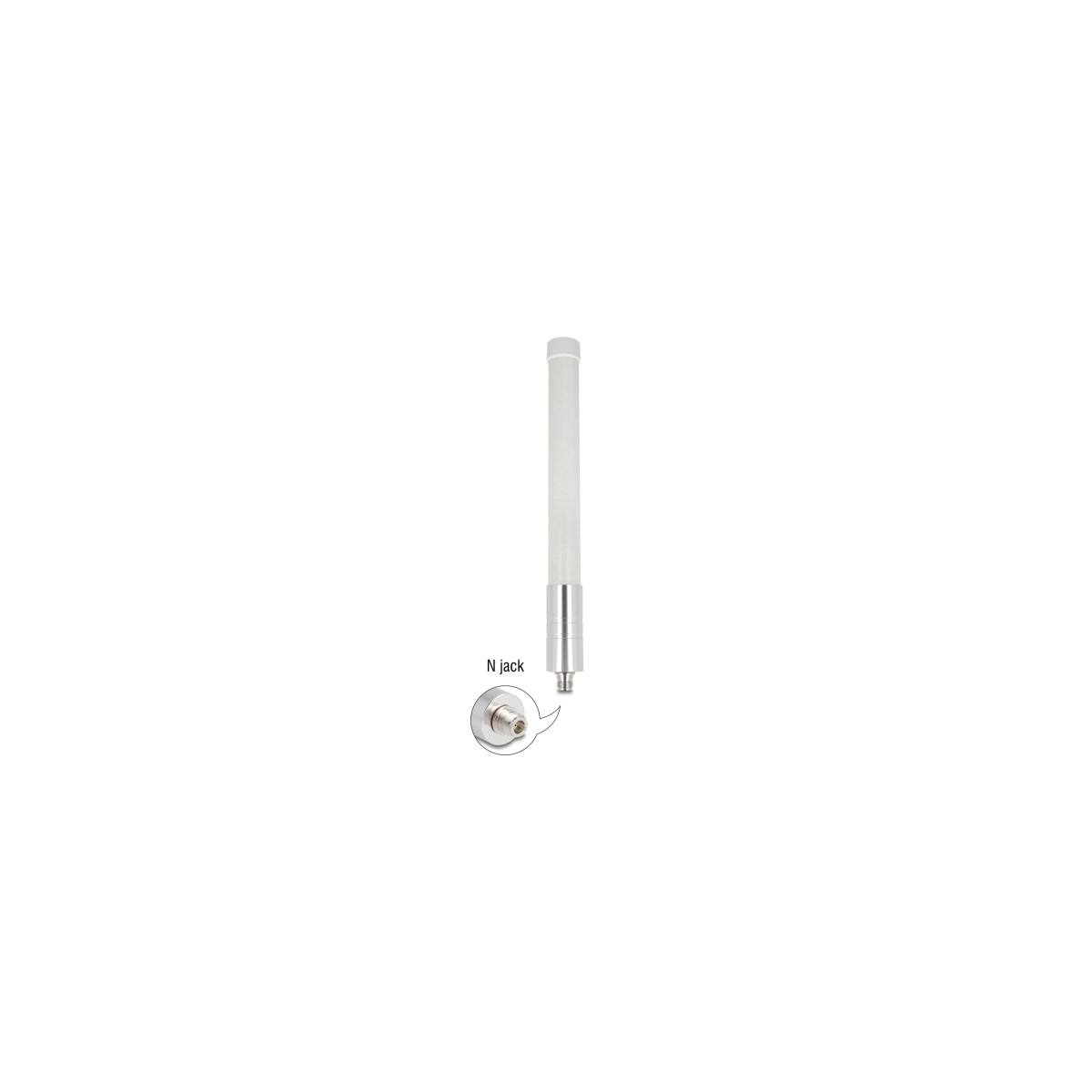

Delock 4G / WiFi 2.4 GHz Antenna N jack 3 dBi 33.3 cm omnidirectional fixed wall and pole mounting outdoor white
12653
Description
This antenna by Delock allows the usage of different LTE, GSM and UMTS bands outside. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
Specification
• Connector: 1 x N jack
• Frequency range:
698 - 960 MHz
1710 - 2700 MHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• VSWR: < 2.0
• Polarisation: vertical
• HBW horizontal beamwidth: 360°
• VBW vertical beamwidth: 70°
• Transmission power: max. 50 W
• Operating temperature: -40 °C ~ 80 °C
• Housing material: GFRP
• Colour: white
• Dimensions (LxD): ca. 333 x 32 mm
• Weight: ca. 357 g
System requirements
• Device with a free N port
Package content
• LTE antenna

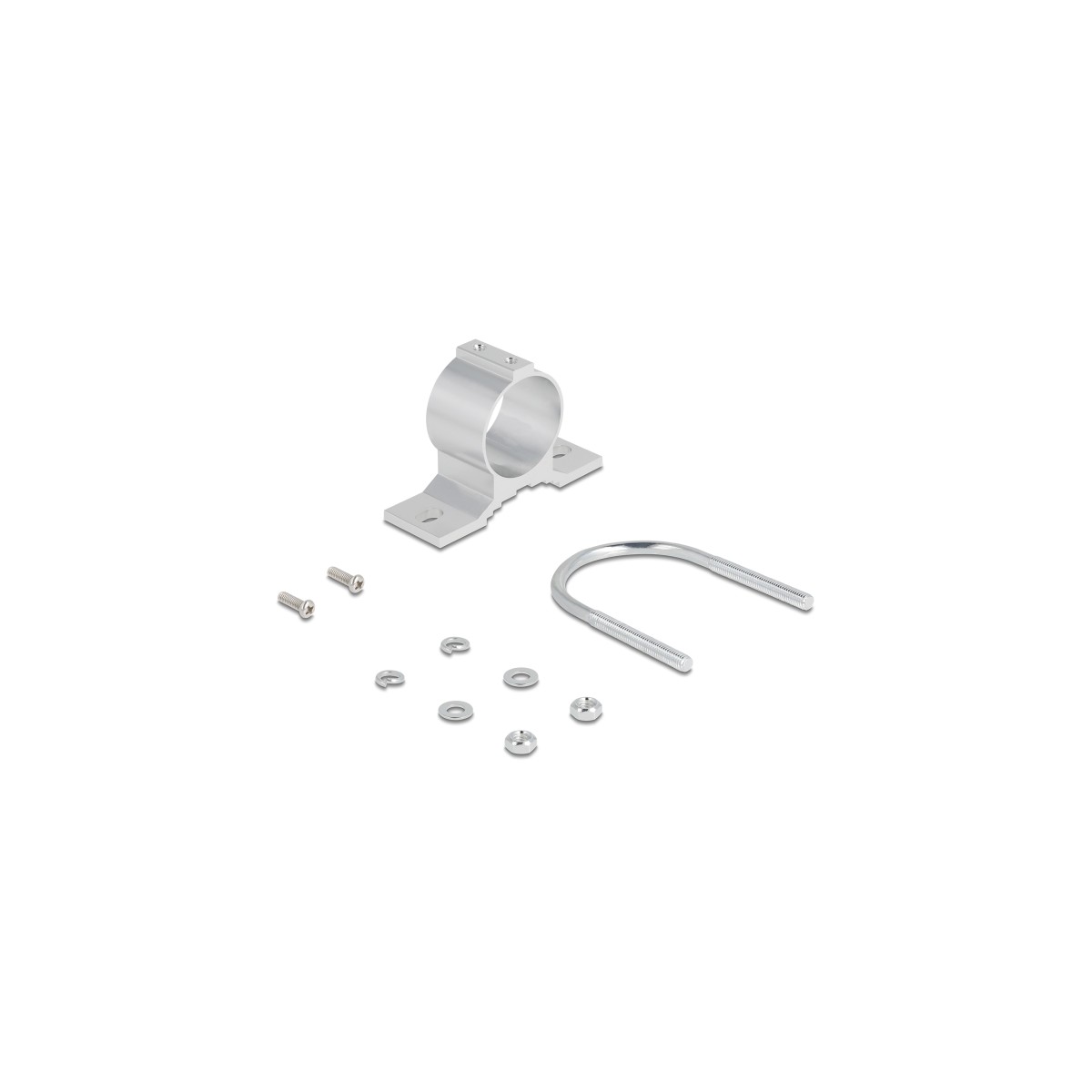

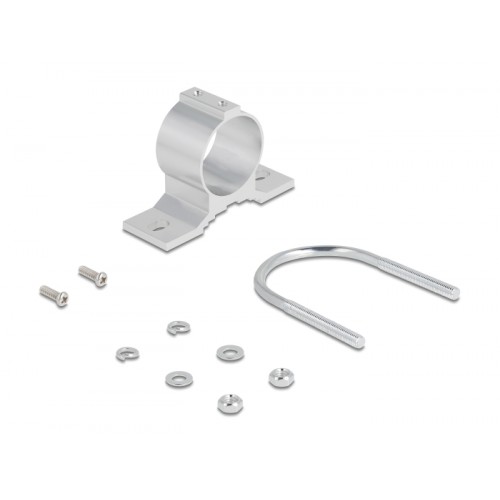

• Wall mounting bracket
• Pole mounting kit
