Description

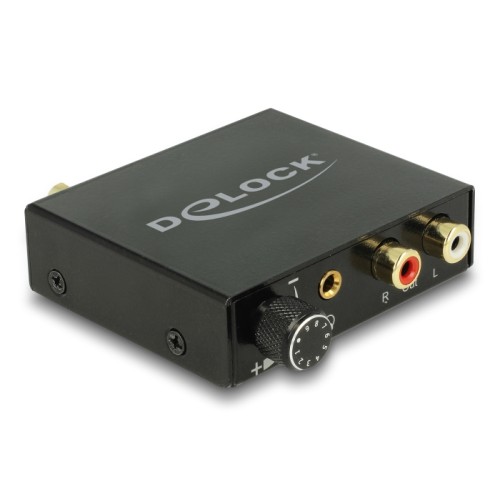

The digital audio converter (DAC) by Delock converts a digital audio signal into an analogue stereo signal. For example a DVD or Blu-ray player can be connected to the input of the device and the signal can be supplied via optical TOSLINK or via S/PDIF coaxial connection. At the output port, the audio signal is transmitted via the RCA connection. Additionally, a headphone jack and volume control are integrated.
Specification

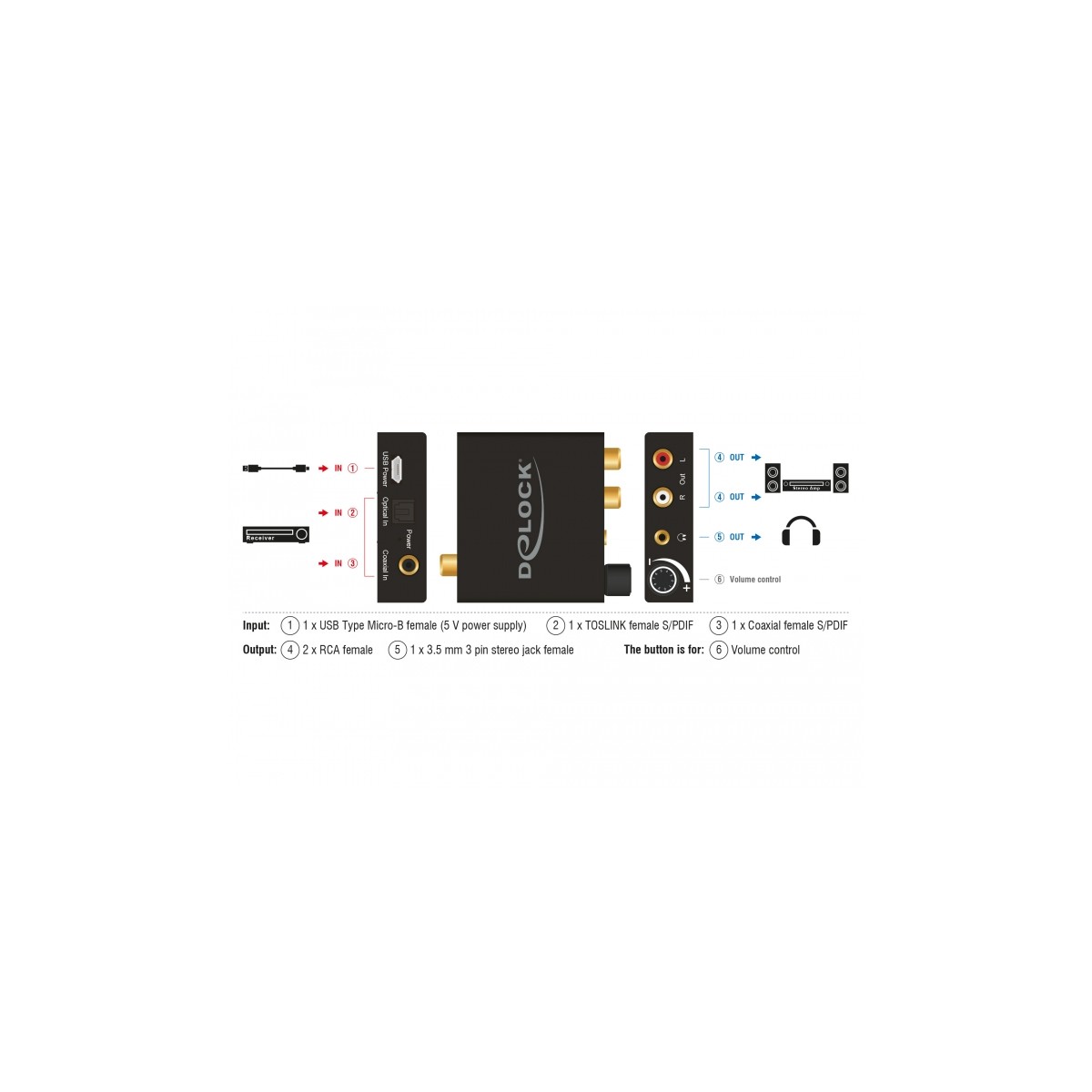

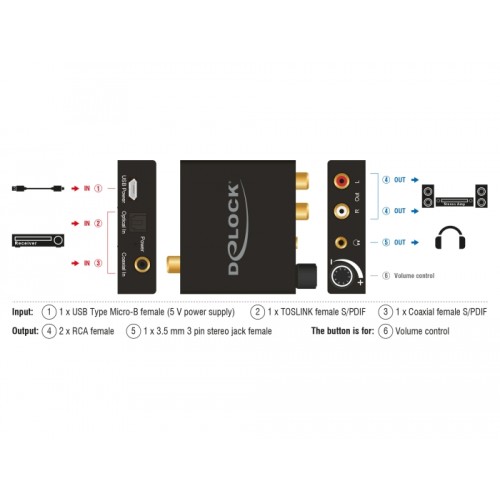

• Connectors:

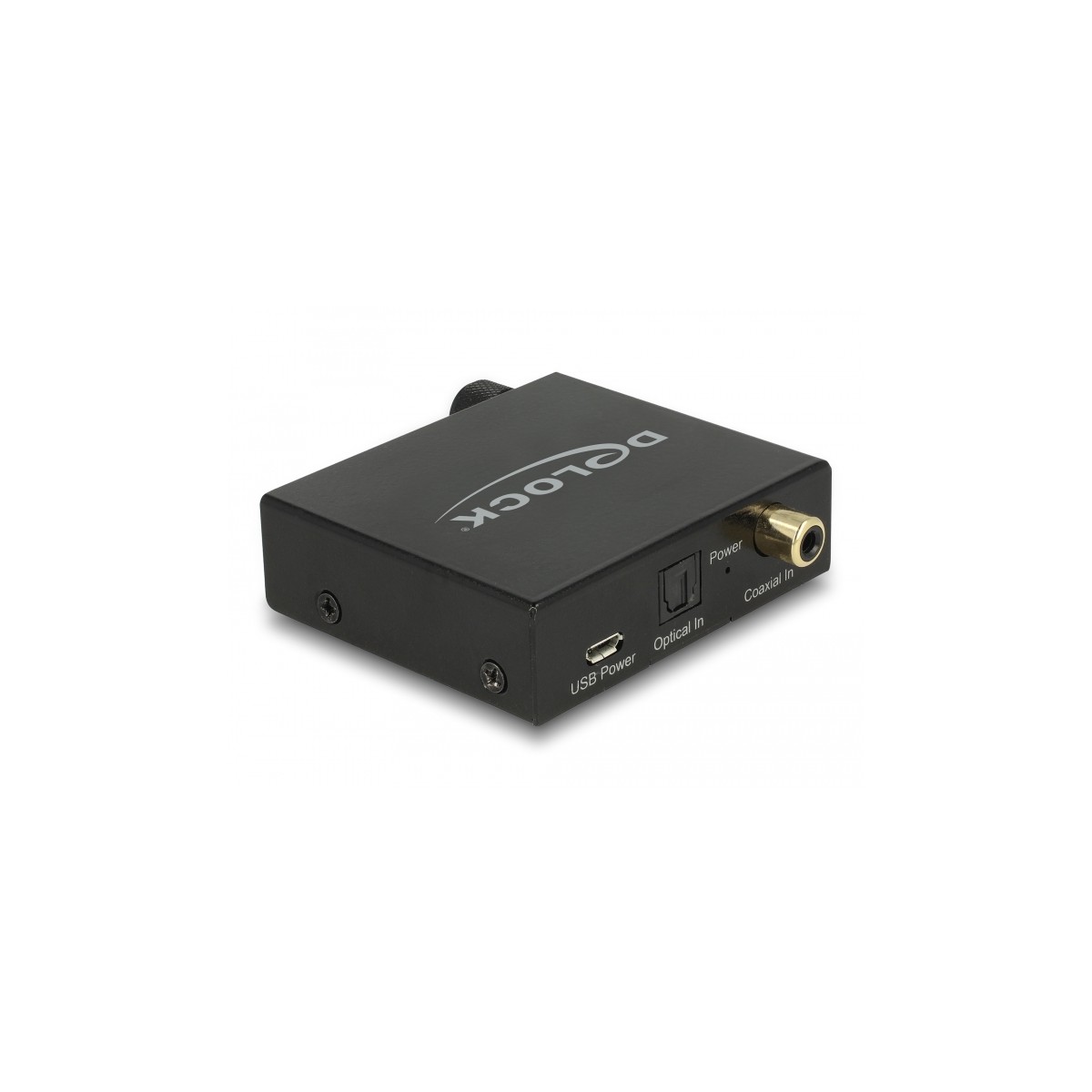

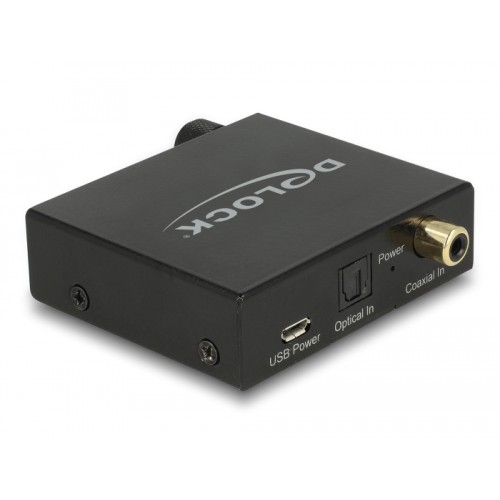

Input:
1 x TOSLINK female S/PDIF
1 x Coaxial female S/PDIF
1 x USB Type Micro-B female (5 V power supply)

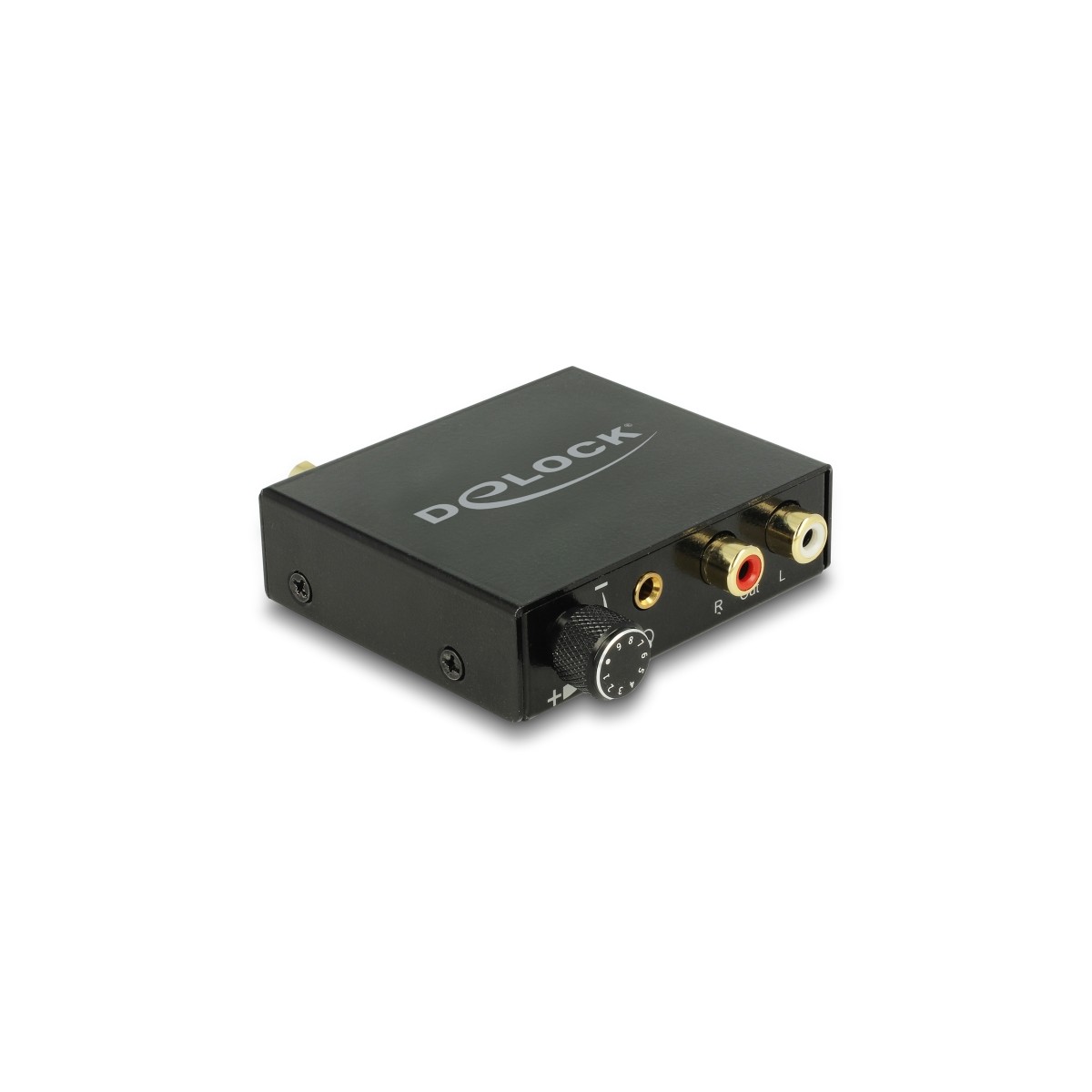

Output:
2 x RCA female
1 x 3.5 mm 3 pin stereo jack female
• Frequency response: 20 Hz - 20 kHz +/- 0.2 dB
• Signal-to-noise ratio (SNR): ca. 105 dB
• Supported sample rates: 32 / 44.1 / 48 / 96 / 192 kHz
• Bit rate 16 - 24 Bit
• Volume control
• Output power: max. 0.3 W total
• Metal housing
• Colour: black
• Dimensions (LxWxH): ca. 70 x 60 x 20 mm
System requirements
• Digital audio signal
• Power source with a free USB Type-A female port
Package content
• Converter digital > analogue

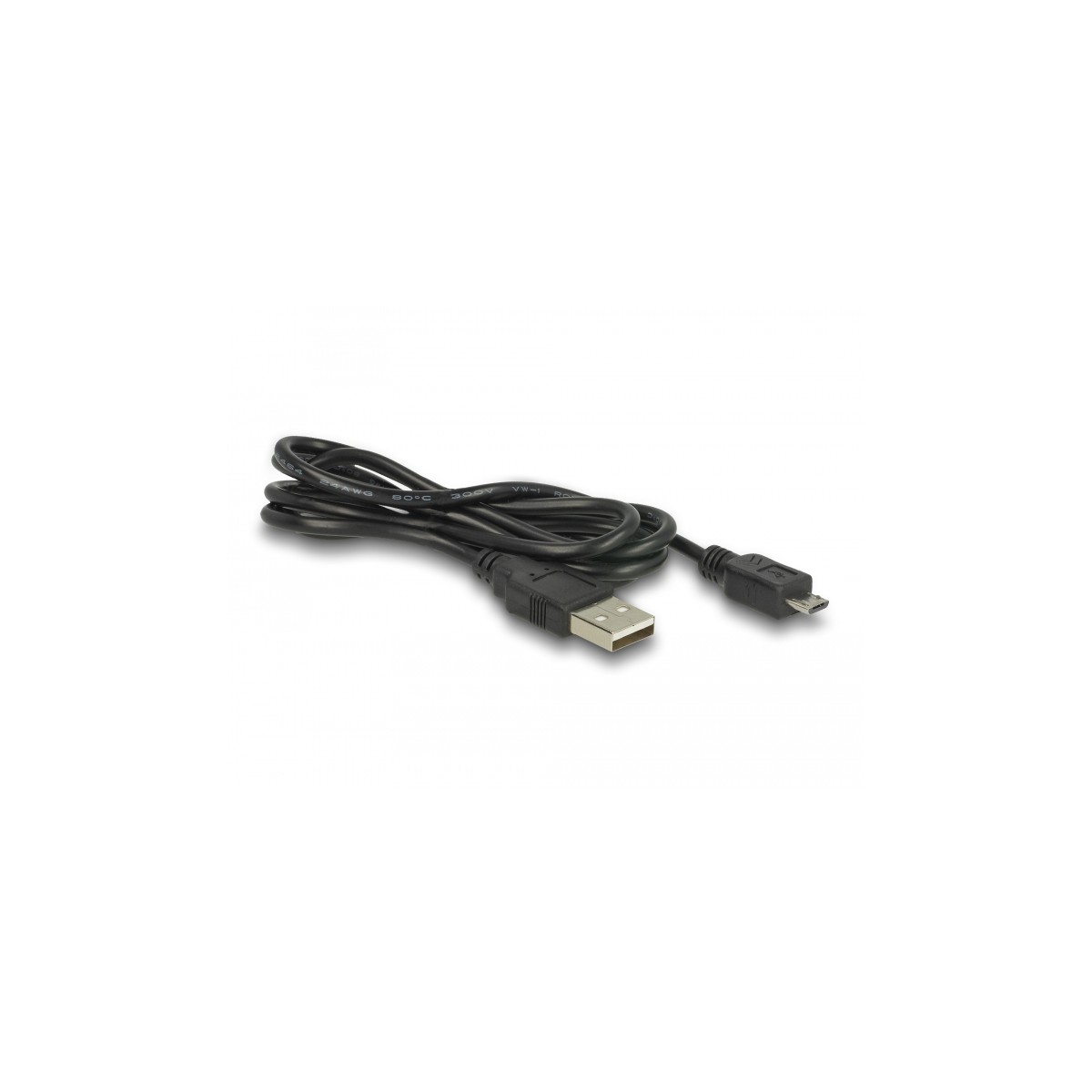

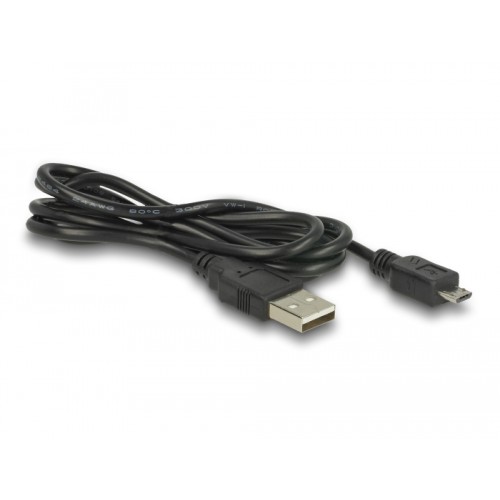

• USB Type-A to Type Micro-B cable, length ca. 100 cm
• User manual
