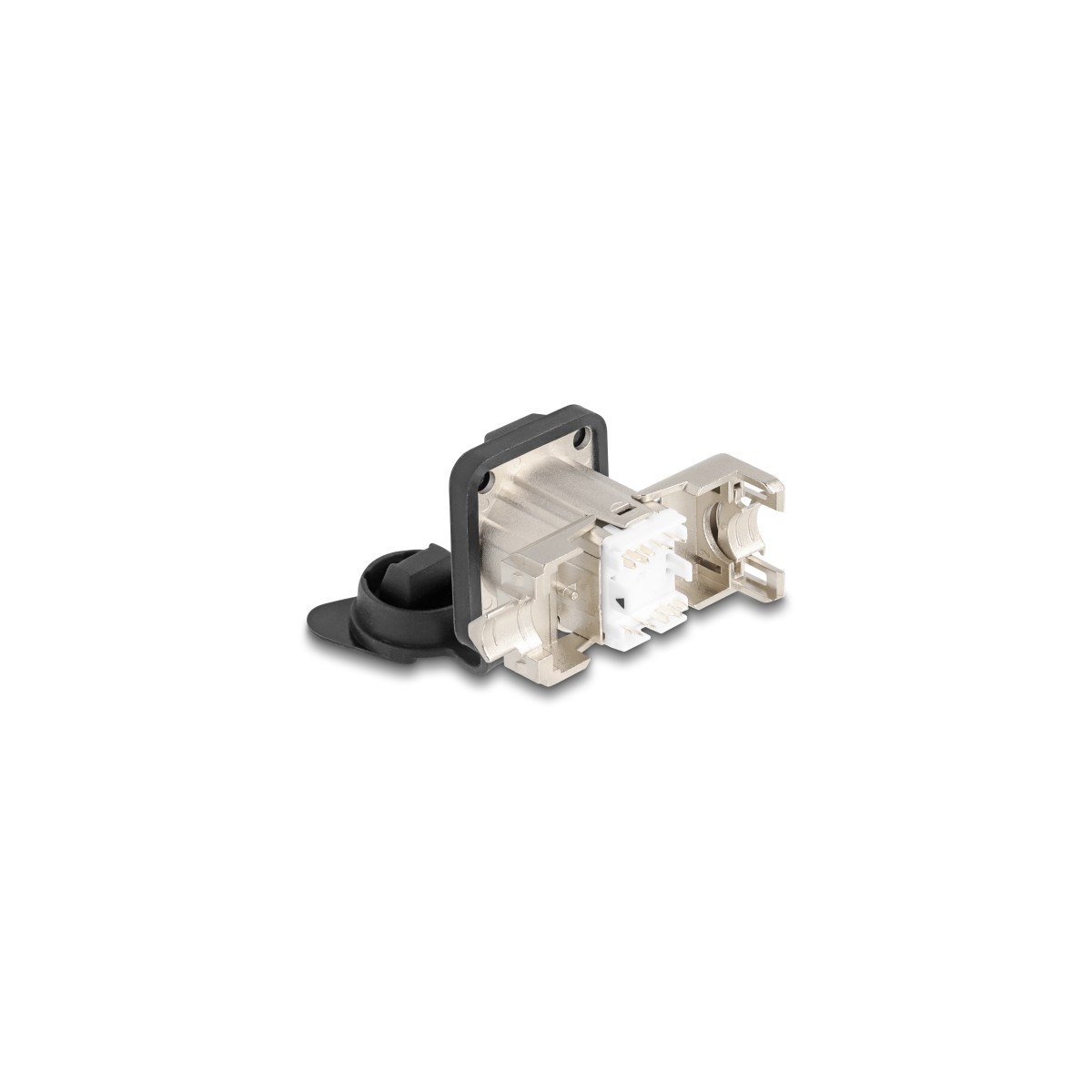

Delock D-Type RJ45 built-in connector with LSA connection Cat.6A STP with protective cap IP66 dust and waterproof
67063
Nuovo
Description
This RJ45 built-in conenctor with D-shaped metal flange by Delock can be used for panel mounting and for installation in a housing.
IP66 dust and waterproof
The module offers increased protection against dirt and moisture when the protective cap is closed.
Special features
• Countersink for cylinder screws
Specification
• Connectors:
1 x RJ45 jack
1 x LSA
• Cat.6A specification
• For D-type ports with 24 x 19 mm

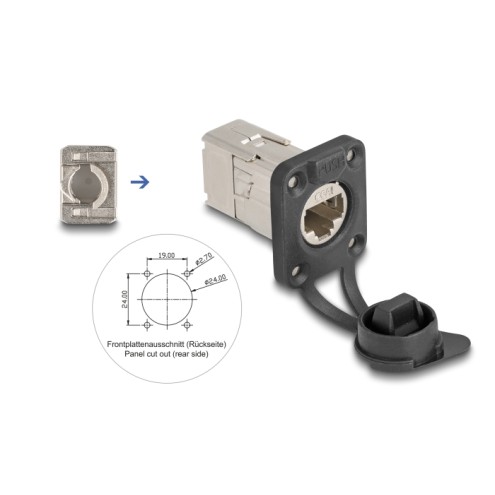

• Panel cut-out (diameter): ca. 24 mm
• Four mounting holes for screw fastening
• For solid or stranded wire (26 - 22 AWG)
• TIA-568A/B pinout
• Shielded (STP)
• With protection cap
• Protection class: IP66
• Operating temperature: -10 °C ~ 60 °C
• Material: metal / plastic
• Colour: silver
• Dimensions (LxWxH): ca. 43.1 x 32.6 x 27.6 mm
System requirements
Package content
• D-Type module
• Cable manager
• Zip-tie
• 4 x screw
• 4 x washer
