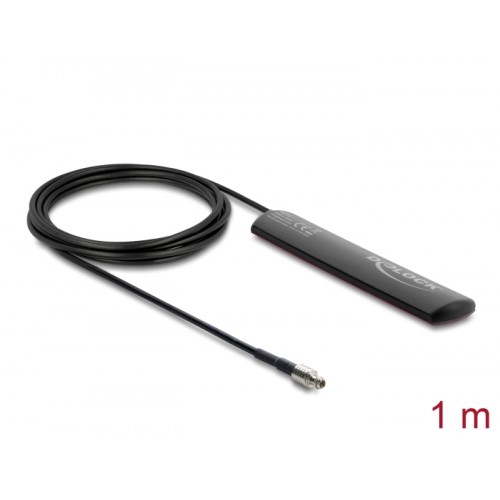

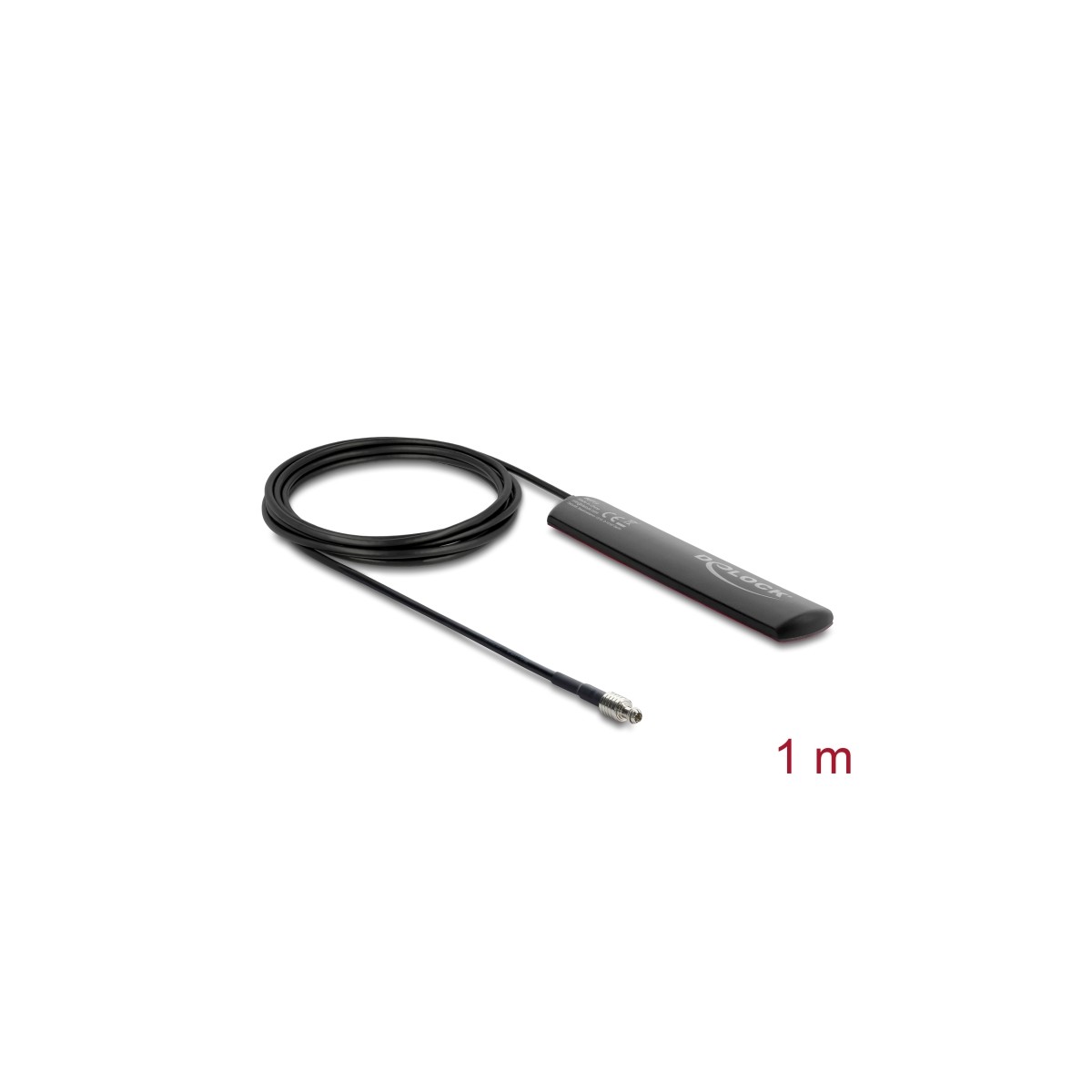

Delock LTE Antenna TS9 plug 1.5 dBi omnidirectional fixed with connection cable RG-174 1 m adhesive mounting outdoor black
90711
Description
This LTE antenna can be installed indoors and can be used for reception of different bands. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee and Z-Wave.
Specification
• Connector: 1 x TS9 plug
• LTE band: 1-10, 12-20, 23, 25-30, 33-41, 43, 44
• Frequency range:
698 - 960 MHz
1710 - 2700 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4GHz, ZigBee, Z-Wave, DECT, SRD
• Antenna gain: 1.5 dBi
• Impedance: 50 Ohm
• VSWR: < 2.5
• Operating temperature: -40 °C ~ 75 °C
• Housing material: ABS UV resistant
• Cable type: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 0.93 dB @ 800 MHz per meter
• Cable length: ca. 1 m
• Dimensions (LxWxH): ca. 115 x 22 x 7 mm
System requirements
• Device with one free TS9 port
Package content
• LTE antenna
This LTE antenna can be installed indoors and can be used for reception of different bands. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee and Z-Wave.
Specification
• Connector: 1 x TS9 plug
• LTE band: 1-10, 12-20, 23, 25-30, 33-41, 43, 44
• Frequency range:
698 - 960 MHz
1710 - 2700 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4GHz, ZigBee, Z-Wave, DECT, SRD
• Antenna gain: 1.5 dBi
• Impedance: 50 Ohm
• VSWR: < 2.5
• Operating temperature: -40 °C ~ 75 °C
• Housing material: ABS UV resistant
• Cable type: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 0.93 dB @ 800 MHz per meter
• Cable length: ca. 1 m
• Dimensions (LxWxH): ca. 115 x 22 x 7 mm
System requirements
• Device with one free TS9 port
Package content
• LTE antenna
