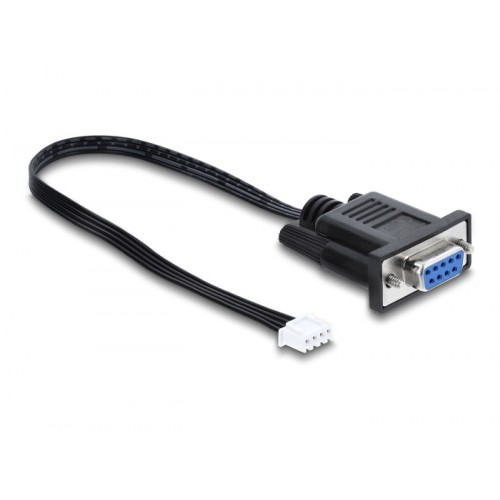

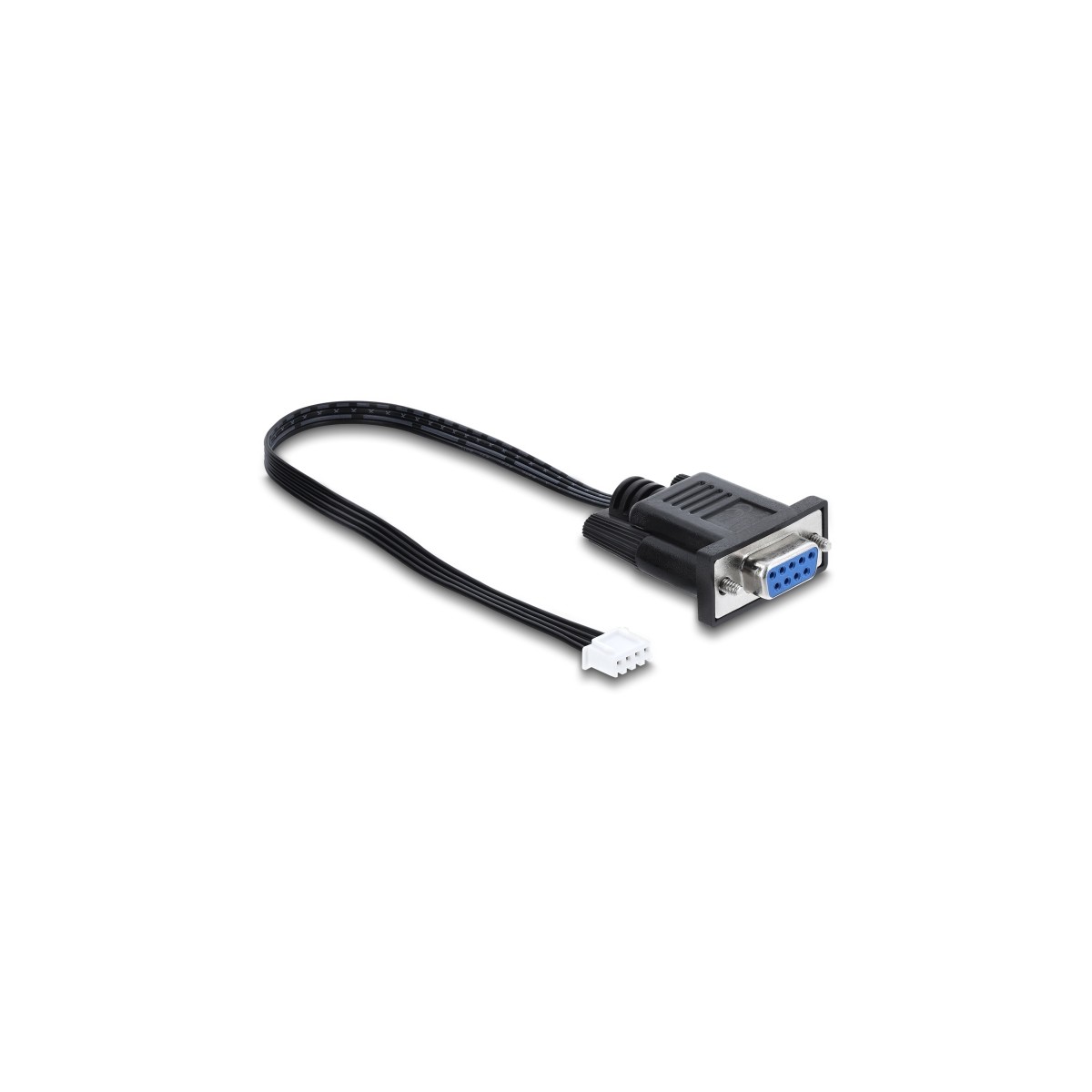

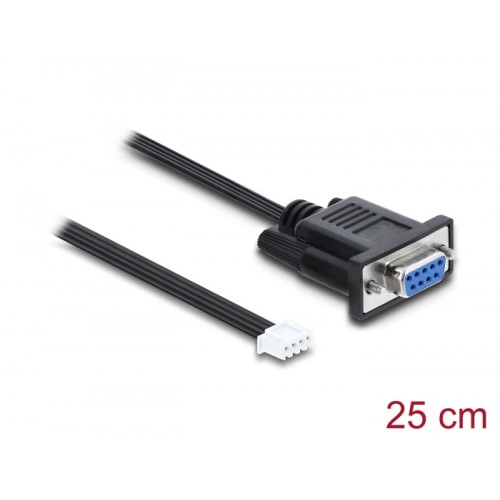

Delock Serial RS-232 Connection Cable D-Sub 9 female to JST XH 4 pin header female 25 cm
91290
Description
This serial cable by Delock enables reliable data transmission via RS-232 interfaces. It is ideal for industrial control systems such as PLCs, microcontroller boards and serial devices
Please Note
Different applications need different pin assignments.
Specification
• Connectors:
1 x serial RS-232 D-Sub 9 pin female with screws
1 x JST XH 4 pin header female
• Cable gauge: 24 AWG
• Pitch: 2.54 mm
• Pin assignment:
JST XH 4 pin pin header female to D-Sub 9 pin RS-232 female
pin 1 - pin 5 GND
pin 2 - pin 2 RXD
pin 3 - pin 3 TXD
pin 4 - pin 1 DCD
• Material: PVC
• Colour: black

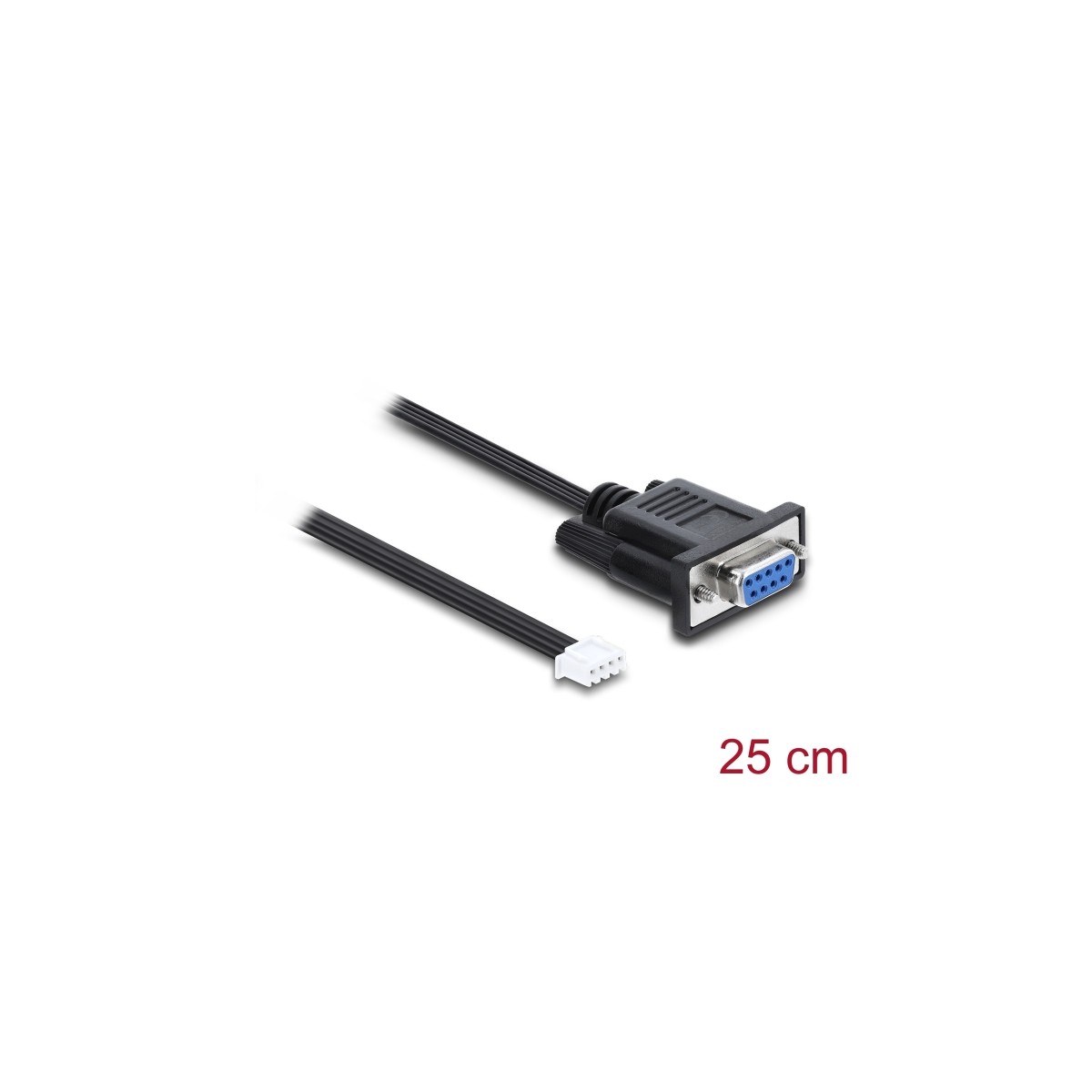

• Cable length without connectors: ca. 25 cm
System requirements
Package content
• Serial cable
This serial cable by Delock enables reliable data transmission via RS-232 interfaces. It is ideal for industrial control systems such as PLCs, microcontroller boards and serial devices
Please Note
Different applications need different pin assignments.
Specification
• Connectors:
1 x serial RS-232 D-Sub 9 pin female with screws
1 x JST XH 4 pin header female
• Cable gauge: 24 AWG
• Pitch: 2.54 mm
• Pin assignment:
JST XH 4 pin pin header female to D-Sub 9 pin RS-232 female
pin 1 - pin 5 GND
pin 2 - pin 2 RXD
pin 3 - pin 3 TXD
pin 4 - pin 1 DCD
• Material: PVC
• Colour: black
• Cable length without connectors: ca. 25 cm
System requirements
Package content
• Serial cable
4043619912902
