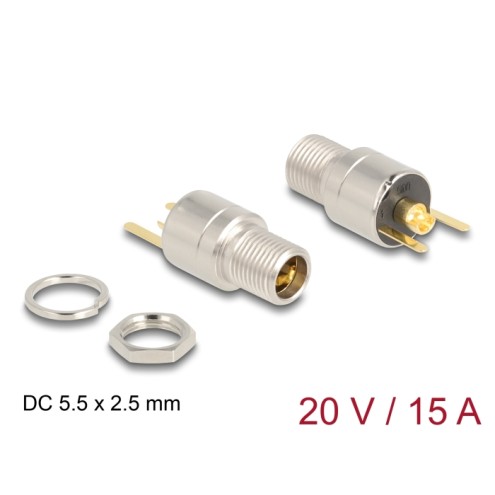

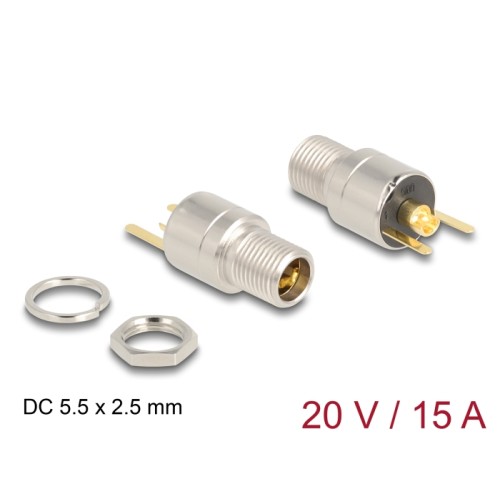

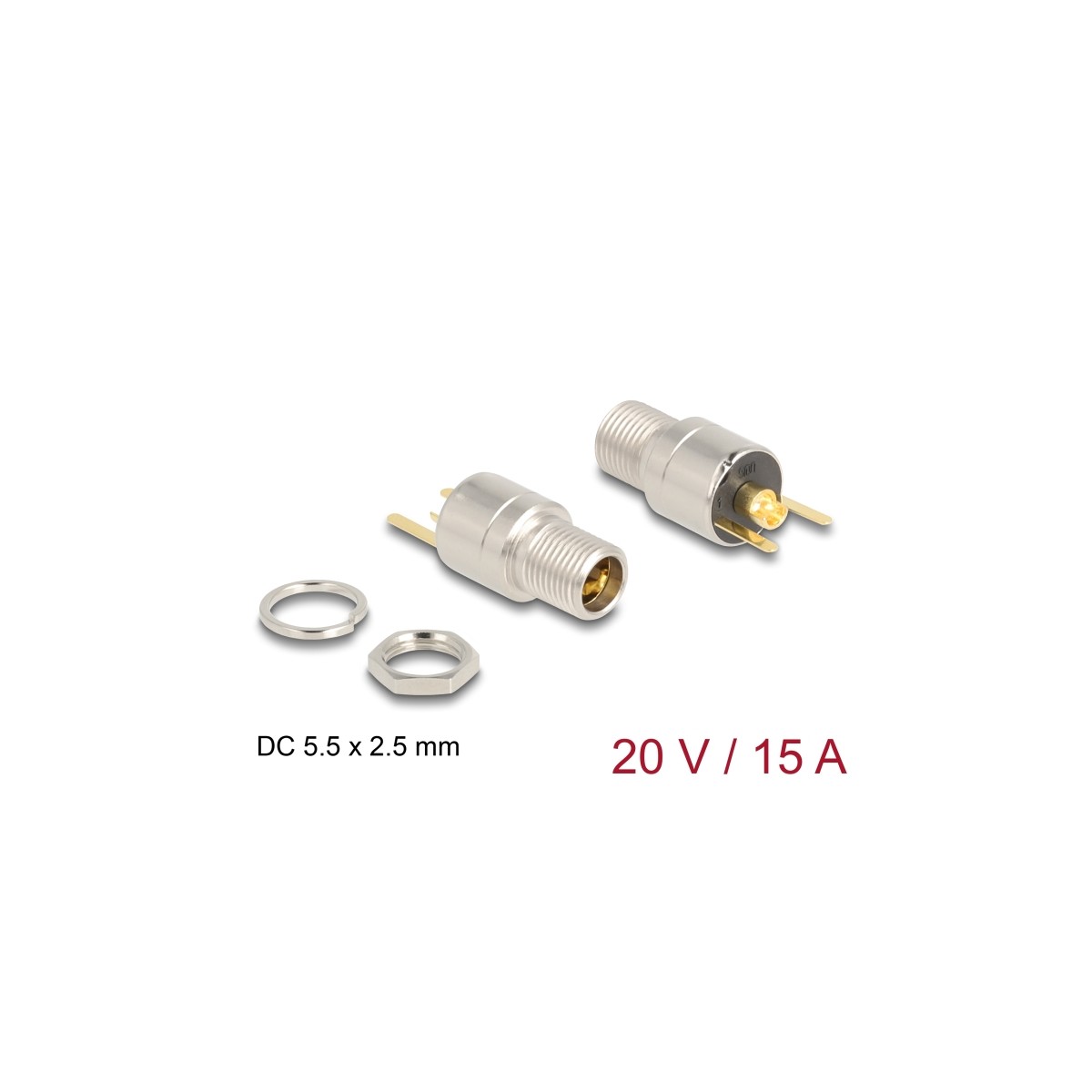

Delock Connector DC 5.5 x 2.5 mm female bulkhead soldering version - round 20 V / 15 A
90192
Nuovo
Description
This DC female bulkhead by Delock can be installed or cabled in a housing or a device in order to supply it with power.
Specification
• Connectors:
1 x DC 5.5 x 2.5 x 12.0 mm female
2 x solder connection
• Suitable for DC pin length: 9.5 mm / 12 mm
• Operating voltage: 20 V DC
• Current: max. 15 A
• Round base
• Thread type: M8*P0.75
• Mounting depth: ca. 17.1 mm
• Visible height when installed: ca. 8.5 mm
• Nickel-plated connector
• Soldering pin: gold plated
Specification of power connector
• Dimensions:
inside: ø ca. 2.5 mm
outside: ø ca. 5.5 mm
depth: ca. 12.0 mm
System requirements
Package content
• DC female bulkhead
This DC female bulkhead by Delock can be installed or cabled in a housing or a device in order to supply it with power.
Specification
• Connectors:
1 x DC 5.5 x 2.5 x 12.0 mm female
2 x solder connection
• Suitable for DC pin length: 9.5 mm / 12 mm
• Operating voltage: 20 V DC
• Current: max. 15 A
• Round base
• Thread type: M8*P0.75
• Mounting depth: ca. 17.1 mm
• Visible height when installed: ca. 8.5 mm
• Nickel-plated connector
• Soldering pin: gold plated
Specification of power connector
• Dimensions:
inside: ø ca. 2.5 mm
outside: ø ca. 5.5 mm
depth: ca. 12.0 mm
System requirements
Package content
• DC female bulkhead
