Description

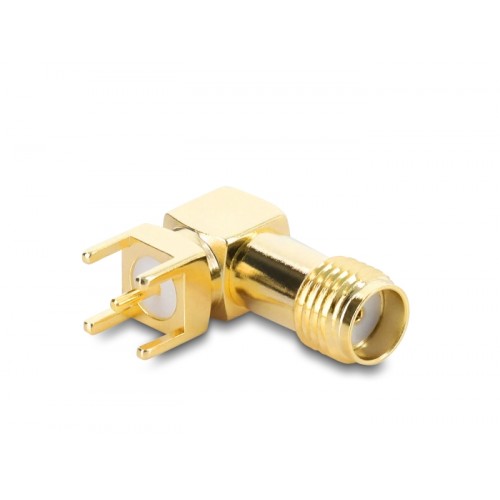

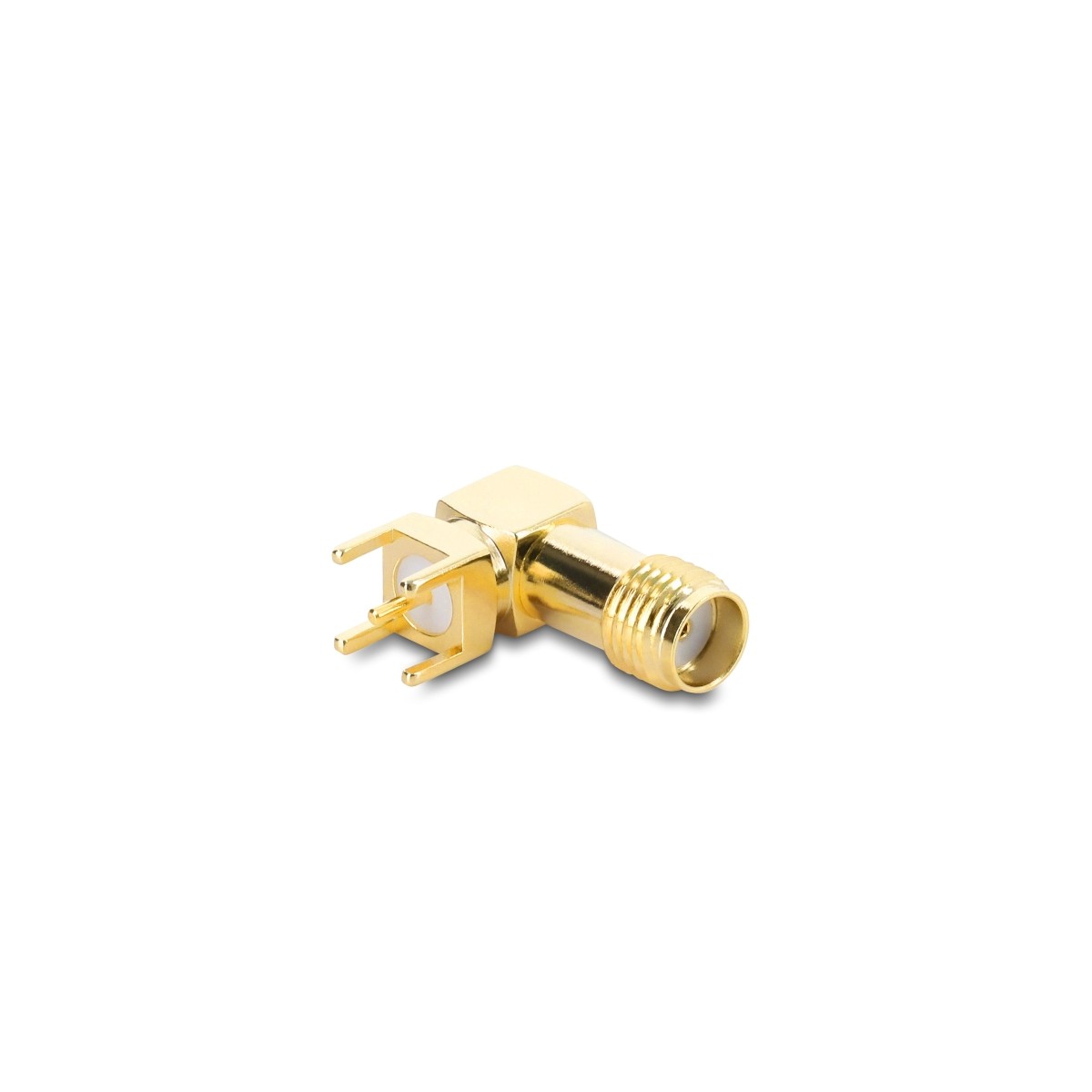

This jack by Delock is suitable for soldering on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.
Specification
• Connector: 1 x SMA Jack 90°
• Frequency range: DC - 6 GHz
• VSWR: < 1.5
• Insulator: PTFE
• Isolation Resistance: > 500 MOhm
• Withstand Voltage: DC 1000V / 50Hz
• Impedance: 50 Ohm
• Mating cycles: > 500
• Thread type: 1/4" - 36 UNS - 2A
• Thread length: ca. 5 mm
• Mounting type: through-hole mounting
• Soldering: 5 solder joint
• Housing: cupper gold plated
• Operating temperature: -55 °C ~ 165 °C
• Dimensions (LxHxW): 17,0 x 13,0 x 6 mm
System requirements
• Suitable board for mounting the SMA connector
Package content
• SMA Jack
This jack by Delock is suitable for soldering on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.
Specification
• Connector: 1 x SMA Jack 90°
• Frequency range: DC - 6 GHz
• VSWR: < 1.5
• Insulator: PTFE
• Isolation Resistance: > 500 MOhm
• Withstand Voltage: DC 1000V / 50Hz
• Impedance: 50 Ohm
• Mating cycles: > 500
• Thread type: 1/4" - 36 UNS - 2A
• Thread length: ca. 5 mm
• Mounting type: through-hole mounting
• Soldering: 5 solder joint
• Housing: cupper gold plated
• Operating temperature: -55 °C ~ 165 °C
• Dimensions (LxHxW): 17,0 x 13,0 x 6 mm
System requirements
• Suitable board for mounting the SMA connector
Package content
• SMA Jack
4043619674107
