Description

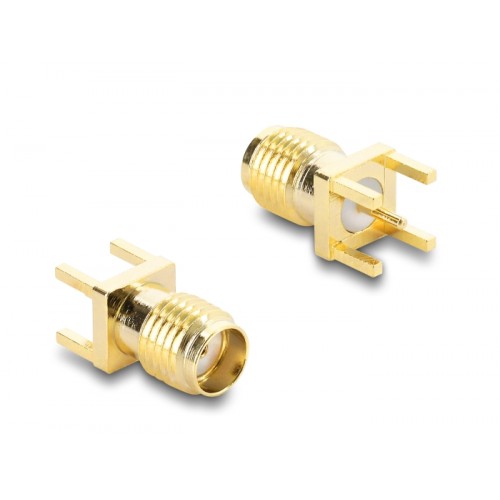

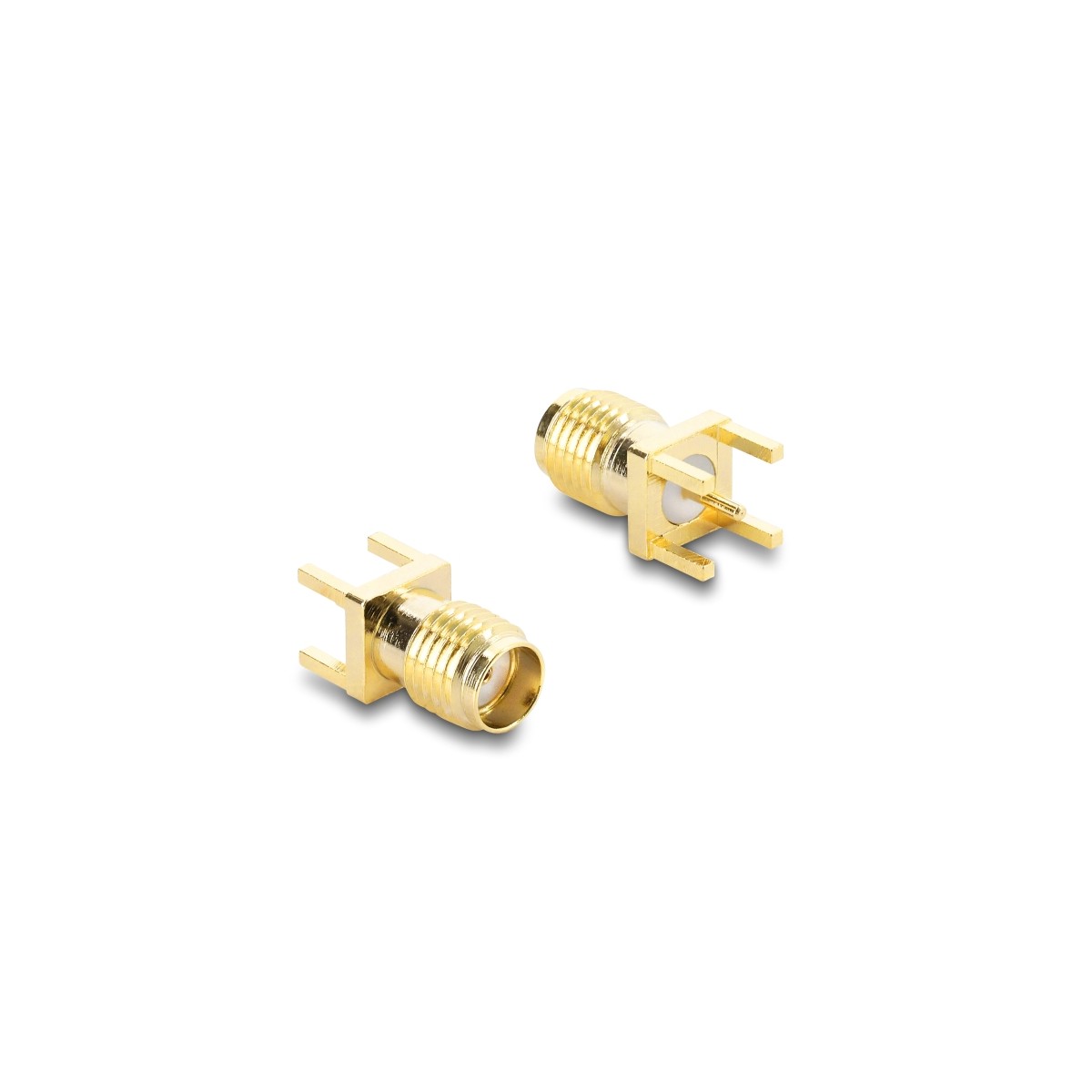

The SMA jack connector by Delock is suitable for soldering on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.
Specification
• Connector: 1 x SMA jack
• Frequency range: DC - 6 GHz
• Housing: copper gold plated
• Impedance: 50 Ohm
• VSWR: < 1.3
• Insulator: PTFE
• Insulation resistance: > 500 MOhm
• Mating Cycles: > 500
• Withstanding voltage: 750 V / 50 Hz
• Mounting type: through-hole mounting
• Soldering: 5 solder points
• Operating temperature: -55 °C ~ 165 °C
• Insertion loss: < 0.1 dB / GHz
• Thread type: 1/4" - 36 UNS - 2A
• Thread length: 5 mm
• Dimensions (LxWxH): ca. 13.5 x 6.5 x 6.5 mm
System requirements
Package content
• SMA Jack
The SMA jack connector by Delock is suitable for soldering on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.
Specification
• Connector: 1 x SMA jack
• Frequency range: DC - 6 GHz
• Housing: copper gold plated
• Impedance: 50 Ohm
• VSWR: < 1.3
• Insulator: PTFE
• Insulation resistance: > 500 MOhm
• Mating Cycles: > 500
• Withstanding voltage: 750 V / 50 Hz
• Mounting type: through-hole mounting
• Soldering: 5 solder points
• Operating temperature: -55 °C ~ 165 °C
• Insertion loss: < 0.1 dB / GHz
• Thread type: 1/4" - 36 UNS - 2A
• Thread length: 5 mm
• Dimensions (LxWxH): ca. 13.5 x 6.5 x 6.5 mm
System requirements
Package content
• SMA Jack
4043619674114
