Description

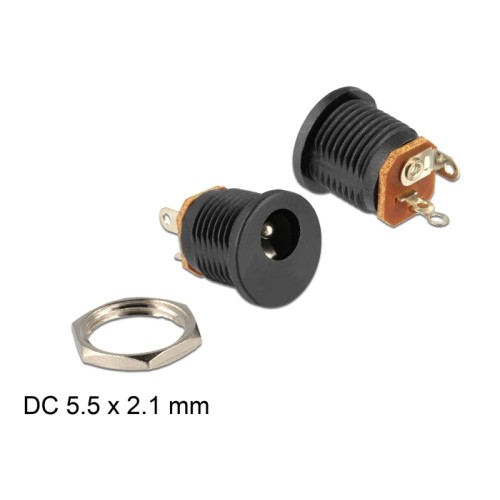

This DC installation nut by Delock can be installed in e.g. a housing or device and connect it by wire to supply it with power.
Specification
• Connector:
1 x DC 2.1 x 5.5 mm female
3 x solder connector for cable (1 x voltage, 2 x ground)
• Voltage: max. 30 V
• Current: max. 0.5 A
• Thread type: M12
• Housing: plastic
• Dimension (LxD): ca. 19 x 14 mm
System requirements
Package content
• DC installation port
• Metal nut
This DC installation nut by Delock can be installed in e.g. a housing or device and connect it by wire to supply it with power.
Specification
• Connector:
1 x DC 2.1 x 5.5 mm female
3 x solder connector for cable (1 x voltage, 2 x ground)
• Voltage: max. 30 V
• Current: max. 0.5 A
• Thread type: M12
• Housing: plastic
• Dimension (LxD): ca. 19 x 14 mm
System requirements
Package content
• DC installation port
• Metal nut
