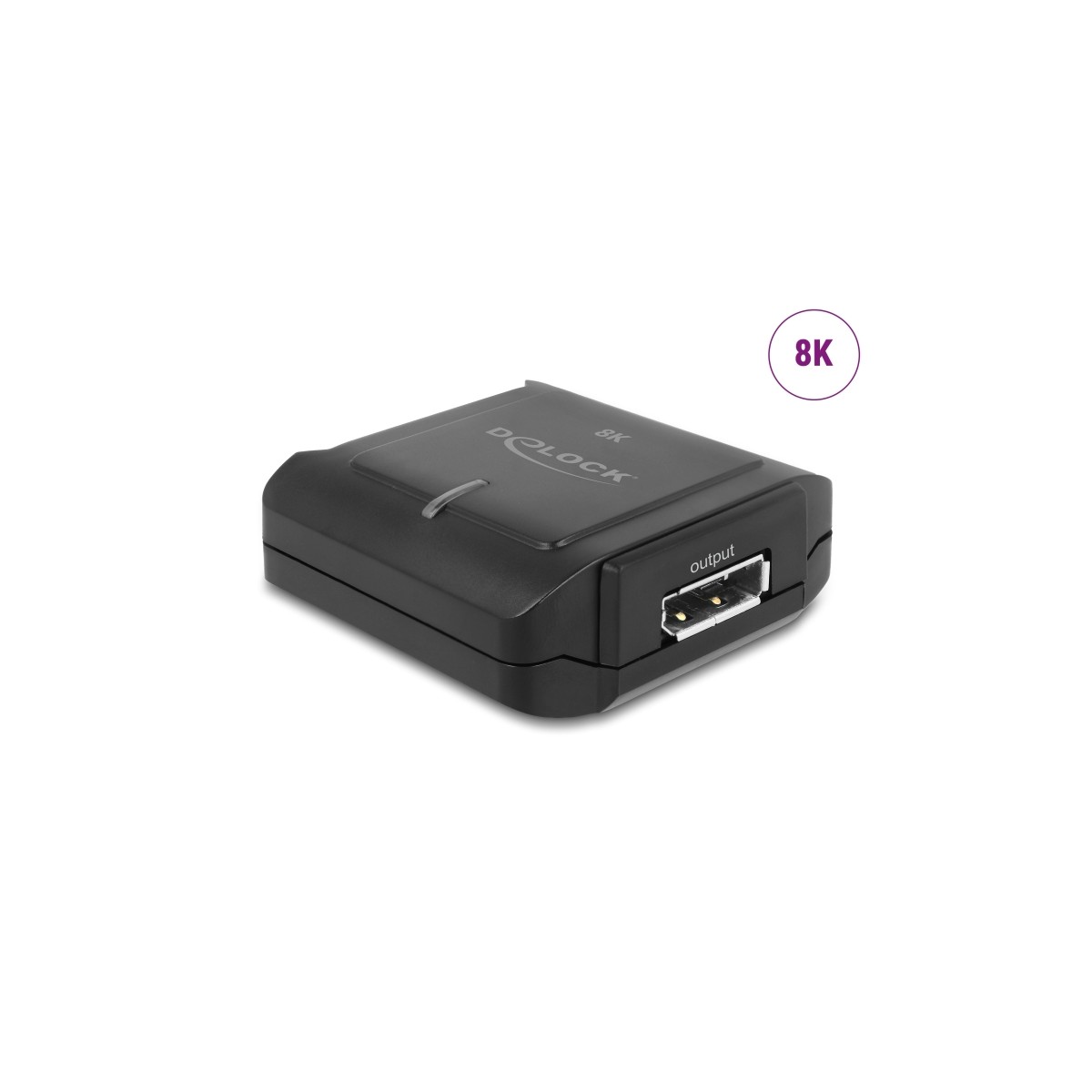

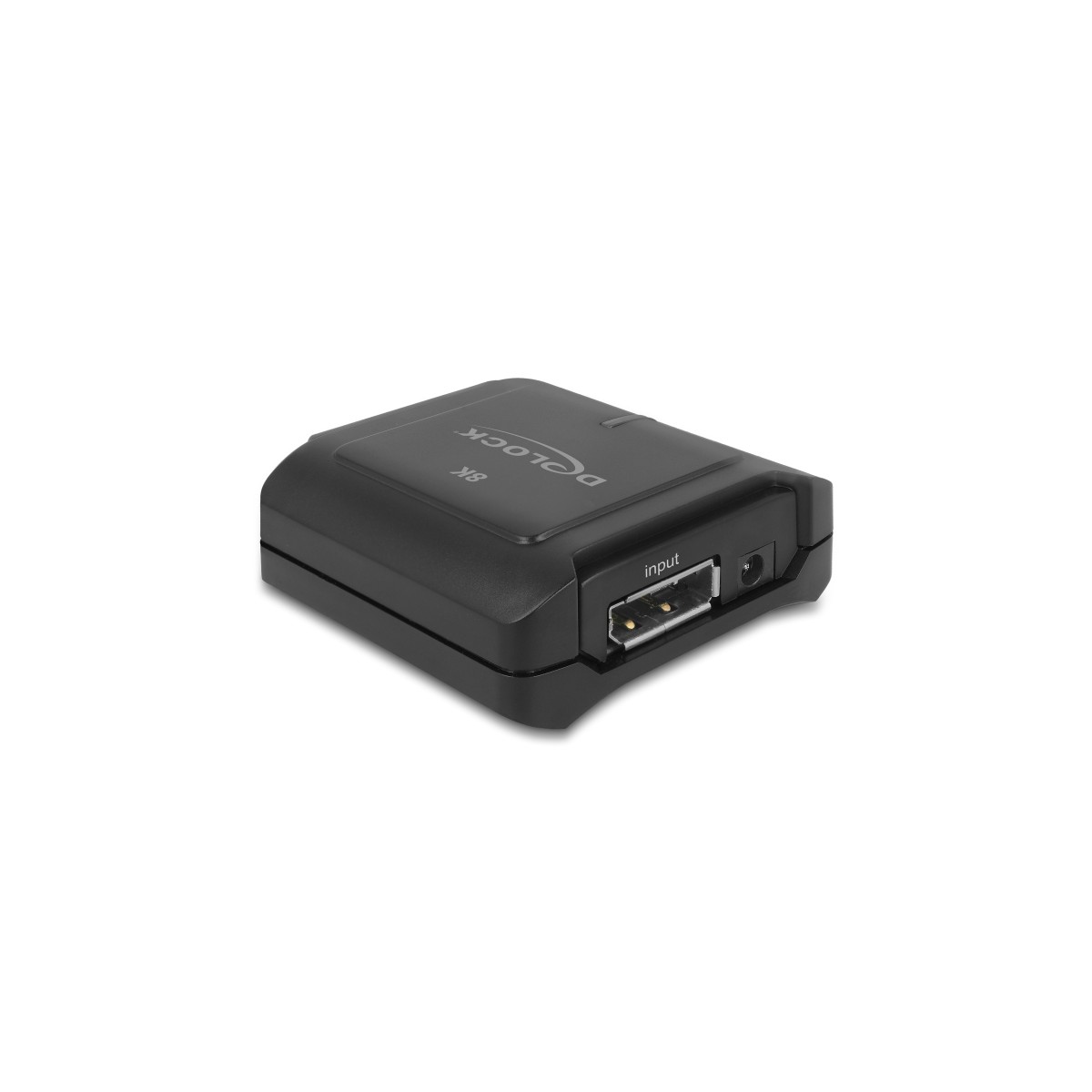

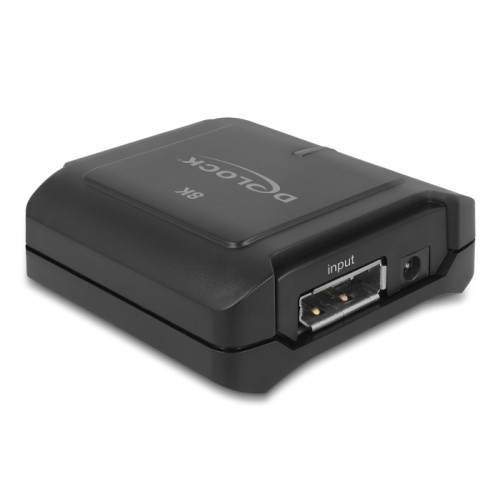

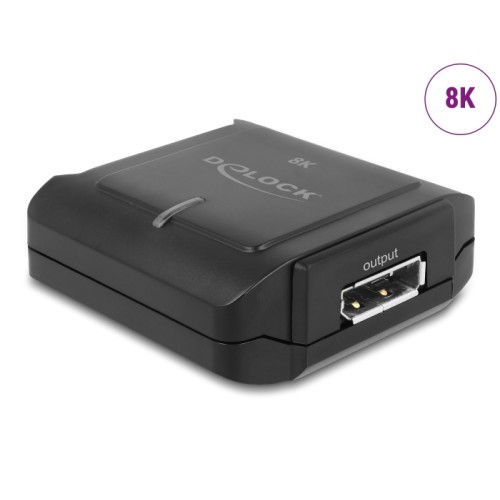

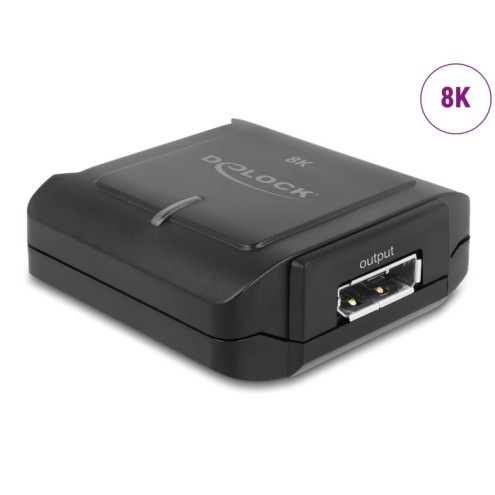

Delock DisplayPort 1.4 Repeater 8K 30 Hz

Description
This DisplayPort repeater by Delock can be used for signal enhancement of a DisplayPort connection up to 12 m. An up to 2 m long cable can be connected from a PC or laptop to the input port of the repeater, and on the other side an up to 10 m long cable to the output port of the repeater, which is then connected to a display or TV.

Specification
• Connectors:
Input:
1 x DisplayPort 20 pin female
1 x DC 5 V power connector
Output:
1 x DisplayPort 20 pin female
• DisplayPort 1.4 specification
• Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
• Supports HBR3 (8.1 Gbps) data rate
• Transmission of audio and video signals
• Data transfer rate up to 32.4 Gb/s
• Resolution up to:
7680 x 4320 @ 30 Hz
(depending on the system and the connected hardware)
• Resolution and maximum cable length:
7680 x 4320 @ 30 Hz / 2 m in, 10 m out
• Daisy Chain (cascadable)
• Colour: black
• Dimensions (LxWxH): ca. 55 x 54 x 20 mm

Power supply specification

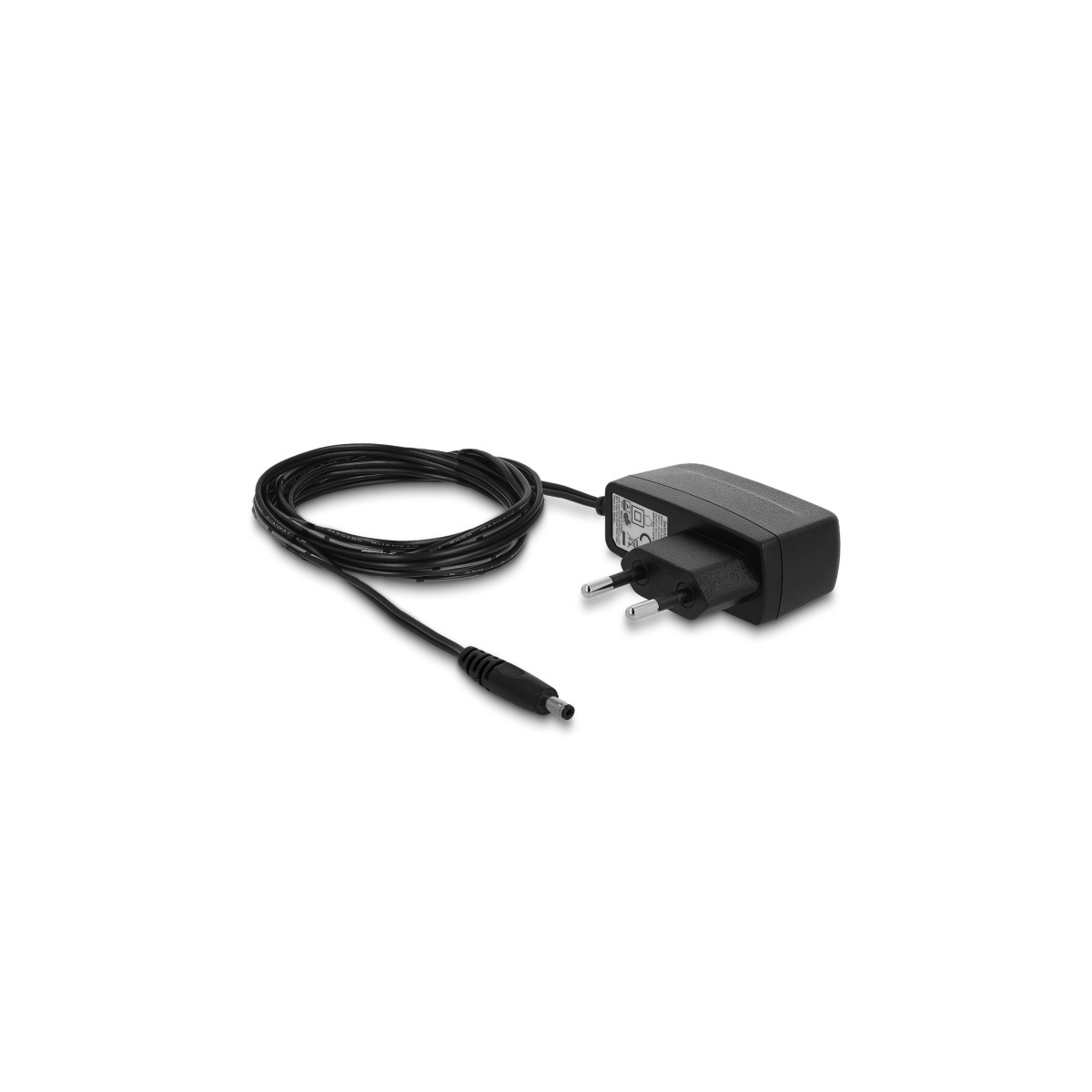

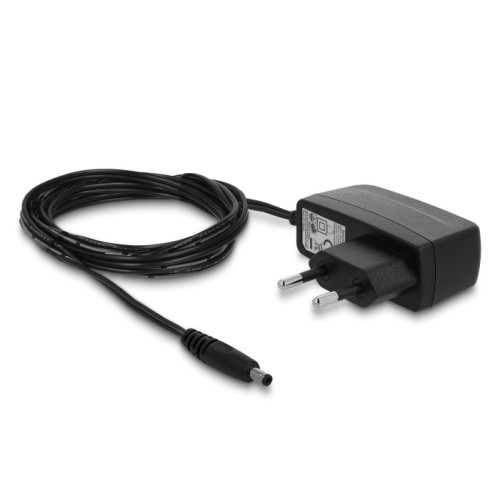

• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.2 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.35 mm
outside: ø ca. 3.5 mm
length: ca. 7.0 mm

System requirements
• A free DisplayPort port on your system and display
• DisplayPort connection cables

Package content
• DisplayPort repeater
• External power supply
• User manual
