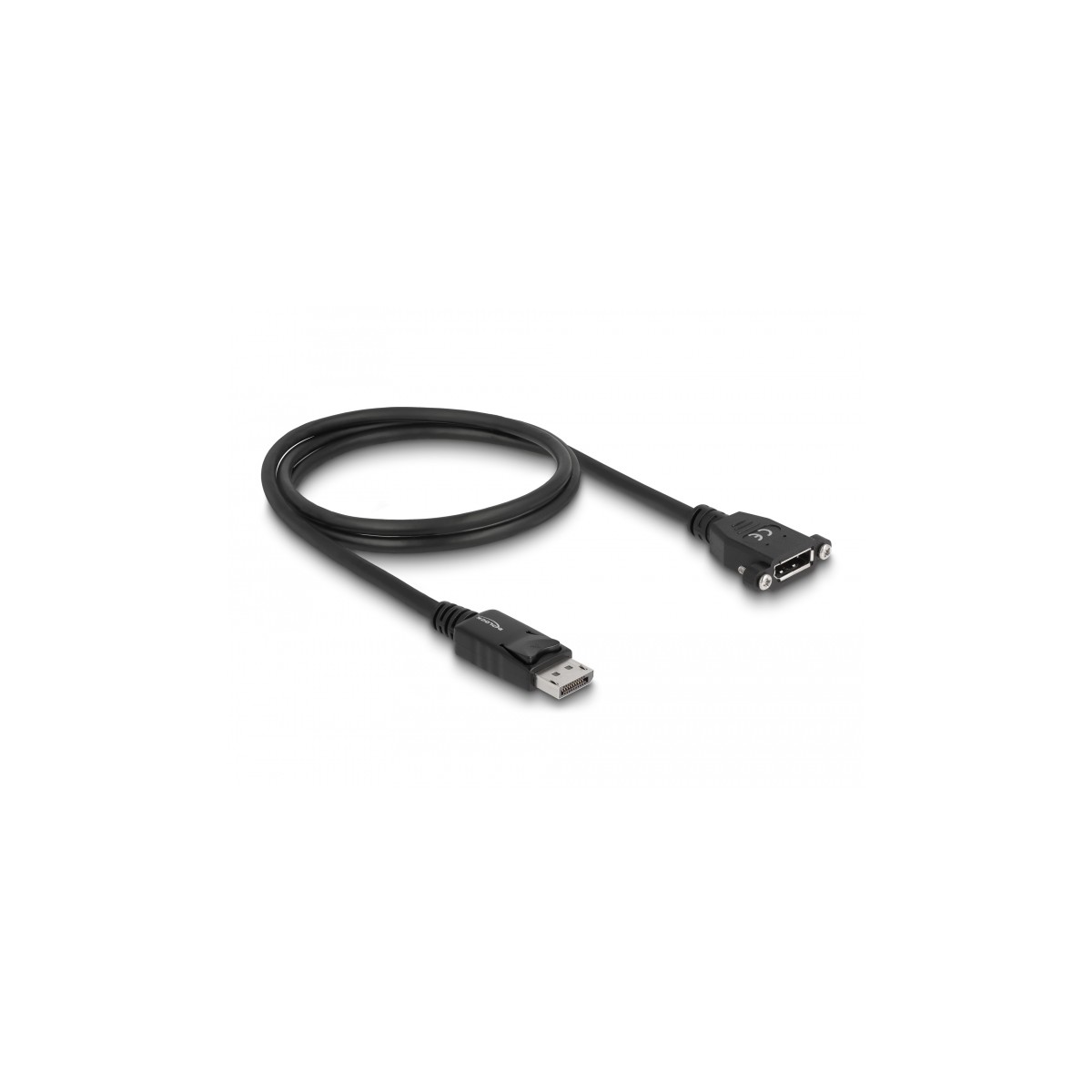

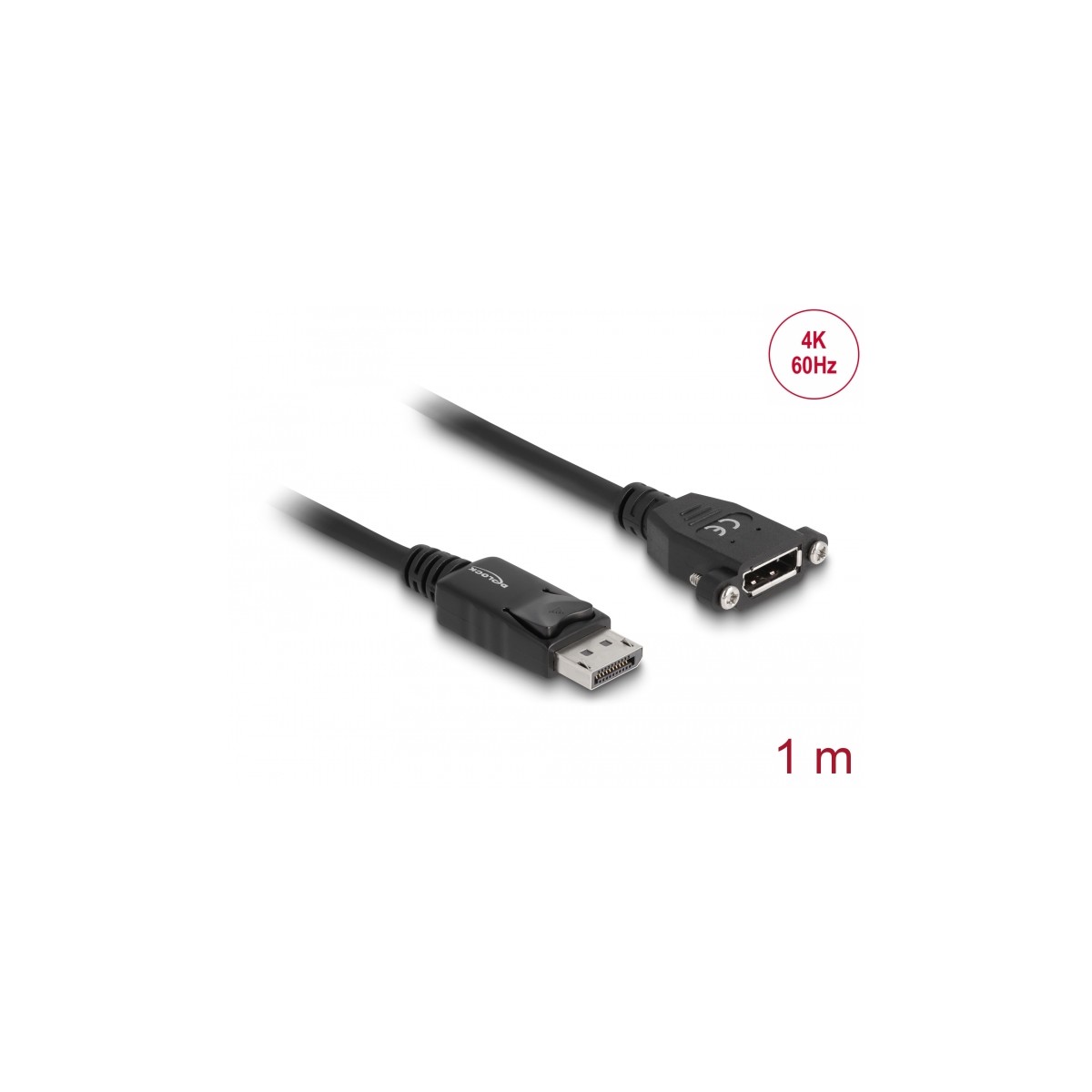

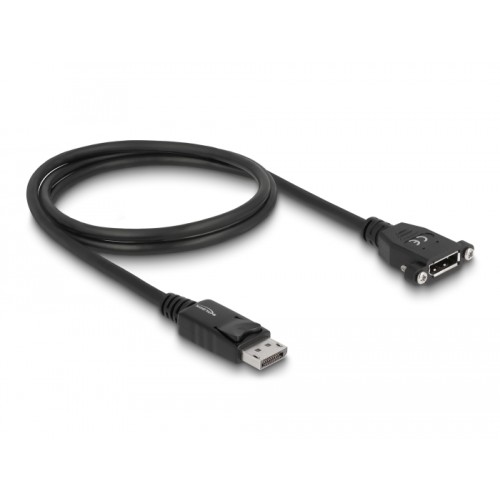

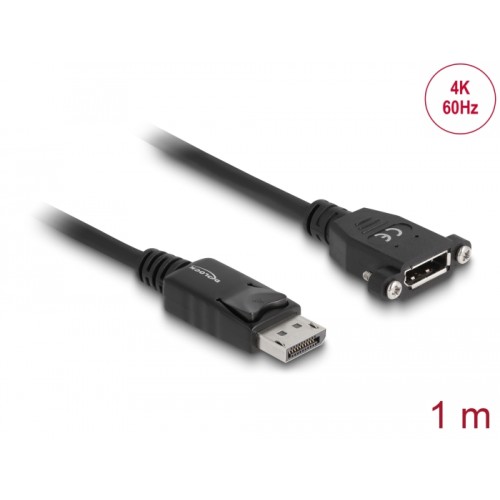

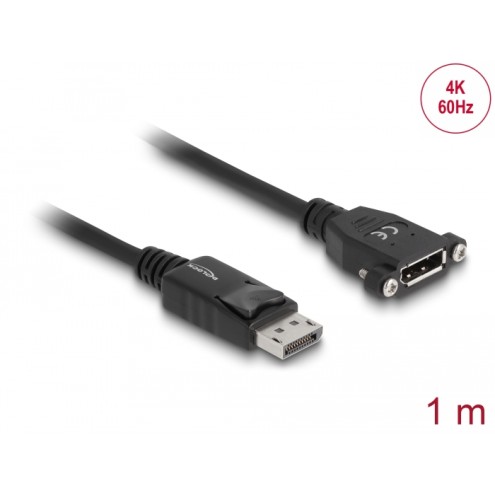

Delock Cable DisplayPort 1.2 male DisplayPort female panel-mount 4K 60 Hz 1 m
85114
Nuovo
Description
This cable by Delock can be used to extend an DisplayPort connection and to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. In this way, it is possible to install a DisplayPort connector in an easily accessible position.
Specification
• Connectors:
1 x DisplayPort 20 pin male >
1 x DisplayPort 20 pin female panel-mount
• DisplayPort 1.2 specification
• Pin 20 is connected (supports 3.3 V)
• Screw type: #4-40 UNC
• Mounting hole: ca. 18 x 7 mm, screw hole pitch ca. 27 mm
• Cable gauge: 30 AWG
• Cable diameter: ca. 6 mm
• Gold-plated connectors
• Transfer of audio and video signals
• Data transfer rate up to 21.6 Gb/s
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected
hardware)
• Colour: black
• Length incl. connectors: ca. 1 m
System requirements
• A free DisplayPort interface
Package content
• DisplayPort panel-mount cable
• 2 screws
This cable by Delock can be used to extend an DisplayPort connection and to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. In this way, it is possible to install a DisplayPort connector in an easily accessible position.
Specification
• Connectors:
1 x DisplayPort 20 pin male >
1 x DisplayPort 20 pin female panel-mount
• DisplayPort 1.2 specification
• Pin 20 is connected (supports 3.3 V)
• Screw type: #4-40 UNC
• Mounting hole: ca. 18 x 7 mm, screw hole pitch ca. 27 mm
• Cable gauge: 30 AWG
• Cable diameter: ca. 6 mm
• Gold-plated connectors
• Transfer of audio and video signals
• Data transfer rate up to 21.6 Gb/s
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected
hardware)
• Colour: black
• Length incl. connectors: ca. 1 m
System requirements
• A free DisplayPort interface
Package content
• DisplayPort panel-mount cable
• 2 screws
Nuovo
4043619851140
