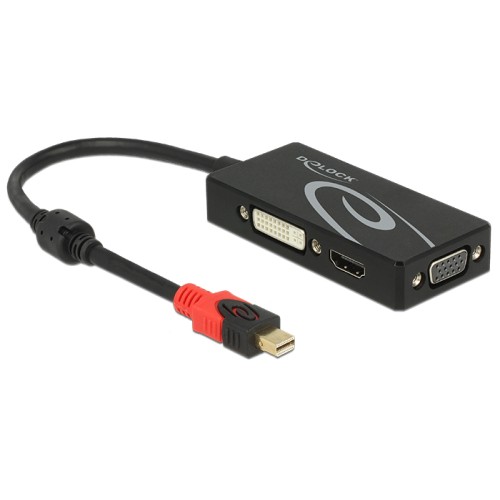

Delock Adapter mini DisplayPort 1.2 male VGA / HDMI / DVI female 4K Passive black
62855
Nuovo
Description
With this mini DisplayPort adapter by Delock, the system can be extended by a VGA, HDMI or DVI interface and various devices such as TV, beamer, monitor etc. can be connected. Only one monitor can be used on the adapter.
Specification

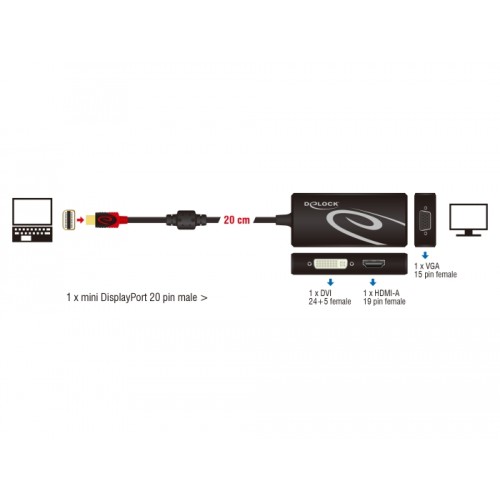

• Connectors:
1 x mini DisplayPort 20 pin male >
1 x VGA 15 pin female
1 x HDMI-A 19 pin female
1 x DVI-D (Single Link) 24+1 female
• Chipset: 2 x Parade PS8339 (HDMI + DVI), 1 x Analogix ANX9833 (VGA)
• DisplayPort 1.2 and High Speed HDMI with Ethernet (HEC) specification
• DVI-D (Single Link) 24+1 port with nuts (VGA not wired)
• Passive converter (level shifter), suitable only for graphics cards with DP++ output
• Only 1 monitor to the adapter available
• Audio signal is transmitted only over HDMI
• HDMI / DVI specification:
• Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the connected
hardware)
• Supports 3D displays (1080p @ 60 Hz)
• VGA specification:
• Resolution up to WUXGA 1920 x 1200 @ 60 Hz (depending on the system and the
connected hardware)
• 1 x ferrite core
• Cable length without connectors: ca. 20 cm
• Colour: black
• OS independent, no driver installation necessary
System requirements
• One free mini DisplayPort DP++ female
Package content
• Adapter mini DisplayPort to VGA / HDMI / DVI
