Description

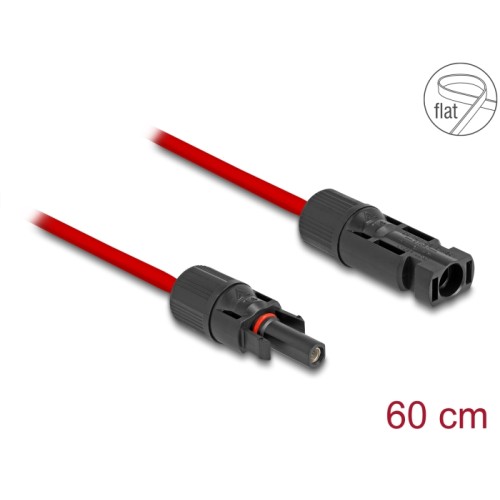

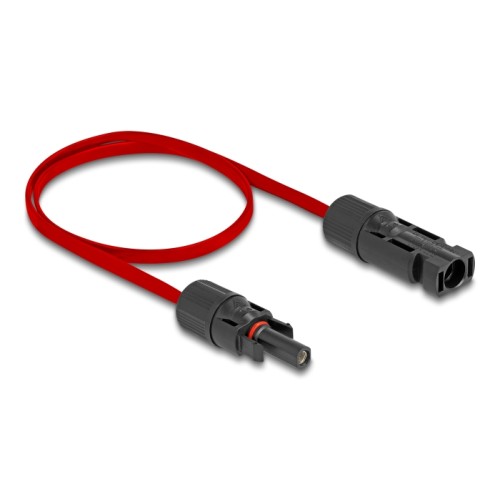

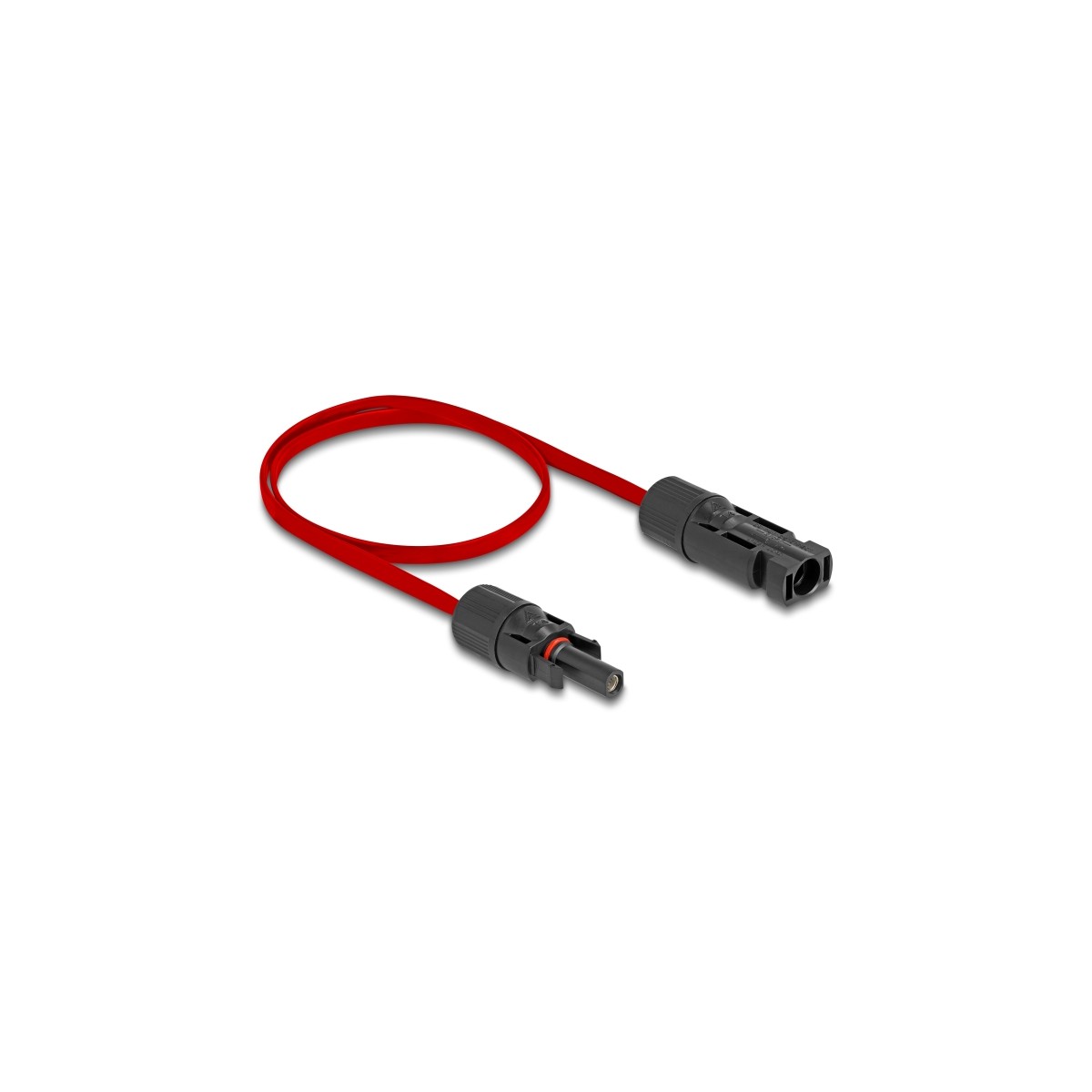

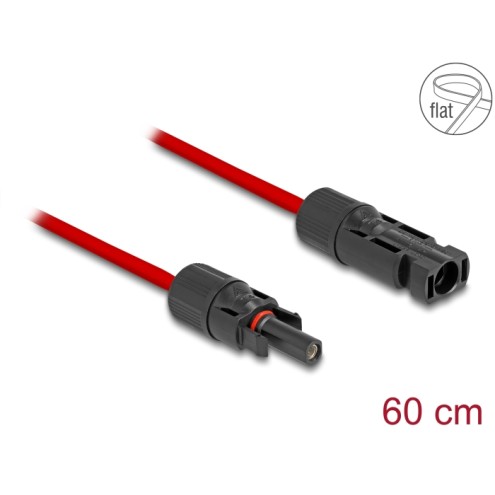

This DL4 solar flat cable by Delock can be used to transmit power obtained from a photovoltaic system.

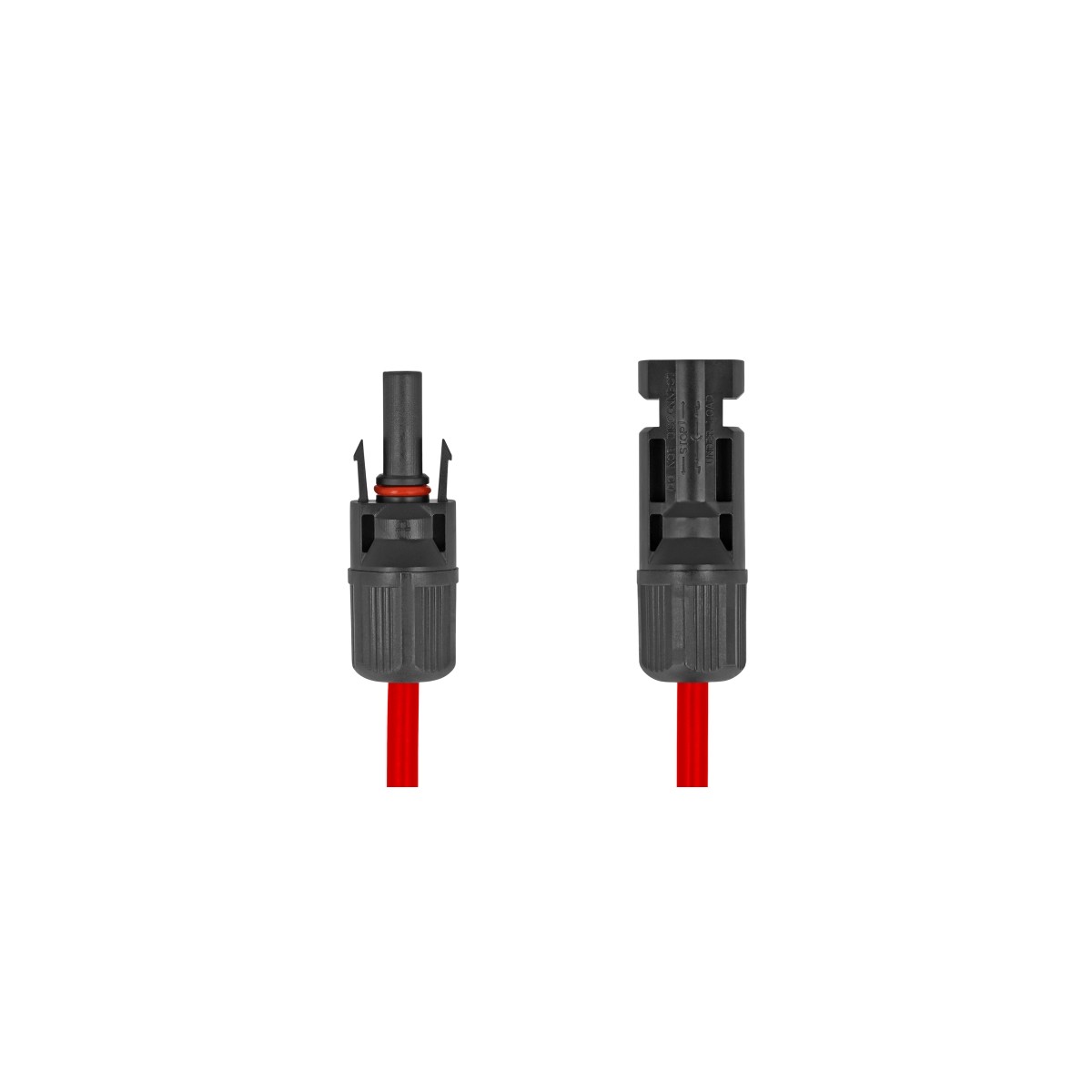

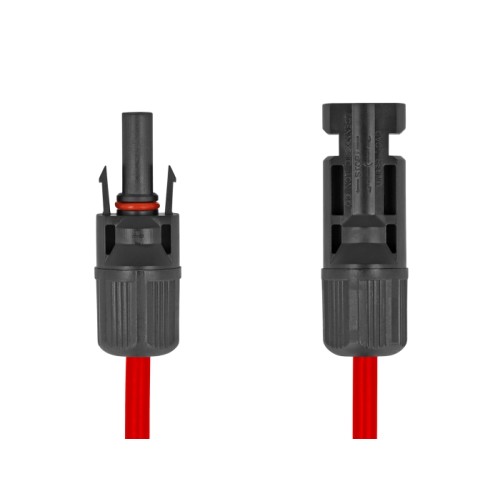

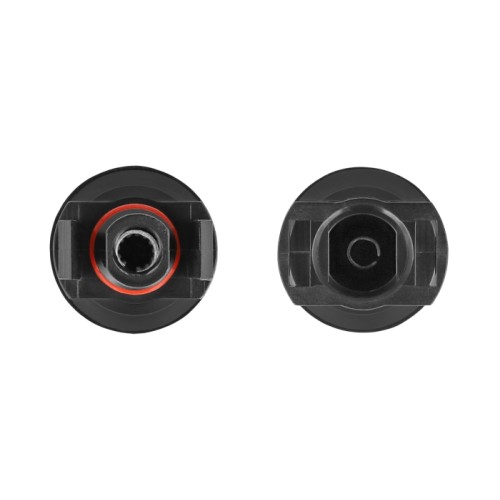

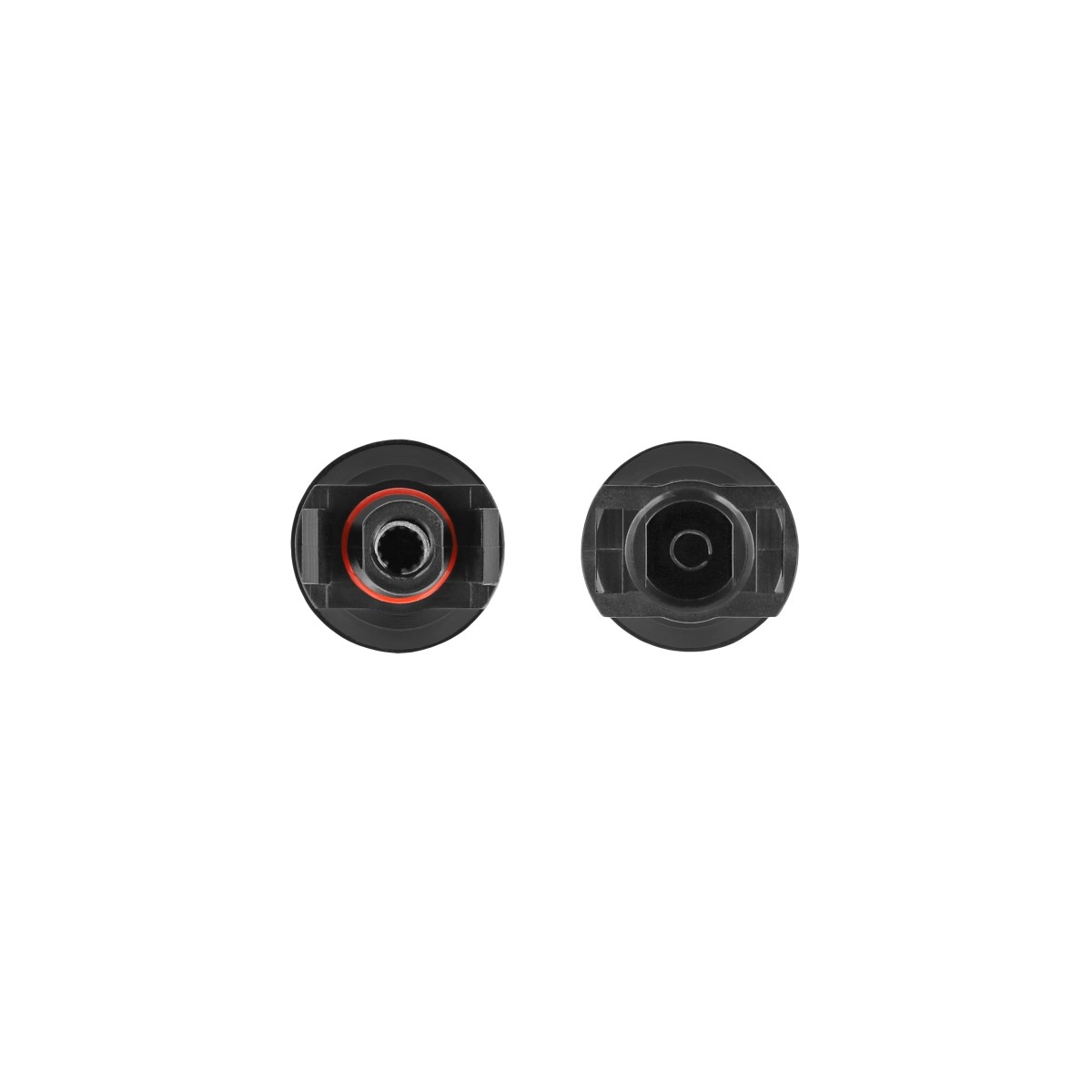

DL4 connectors
The DL4 plugs and sockets have a snap-in function, which avoids unwanted interruptions and ensures a secure connection. The connection can be released again with the appropriate tool.
The DL4 solar cable is protected from dirt and moisture.
Super flexible and flat
The solar flat cable is ideal for laying in a window bushing. The material of the cable sheath is flexible and makes the cable very resistant to strain.
Specification
• Connectors:
1 x DL4 male
1 x DL4 female
• Cable cross section: ca. 3.3 mm²
• Compatible with MC4, TS4, QC4
• Operating temperature: -40 °C ~ 90 °C
• Cable size: ca. 10.0 x 2.0 mm
• Protection class: IP67
• Voltage: max. 1000 V
• Colour: red
• Length incl. connectors: ca. 60 cm
System requirements
• A free DL4 port
Package content
• DL4 cable
This DL4 solar flat cable by Delock can be used to transmit power obtained from a photovoltaic system.
DL4 connectors
The DL4 plugs and sockets have a snap-in function, which avoids unwanted interruptions and ensures a secure connection. The connection can be released again with the appropriate tool.
The DL4 solar cable is protected from dirt and moisture.
Super flexible and flat
The solar flat cable is ideal for laying in a window bushing. The material of the cable sheath is flexible and makes the cable very resistant to strain.
Specification
• Connectors:
1 x DL4 male
1 x DL4 female
• Cable cross section: ca. 3.3 mm²
• Compatible with MC4, TS4, QC4
• Operating temperature: -40 °C ~ 90 °C
• Cable size: ca. 10.0 x 2.0 mm
• Protection class: IP67
• Voltage: max. 1000 V
• Colour: red
• Length incl. connectors: ca. 60 cm
System requirements
• A free DL4 port
Package content
• DL4 cable
