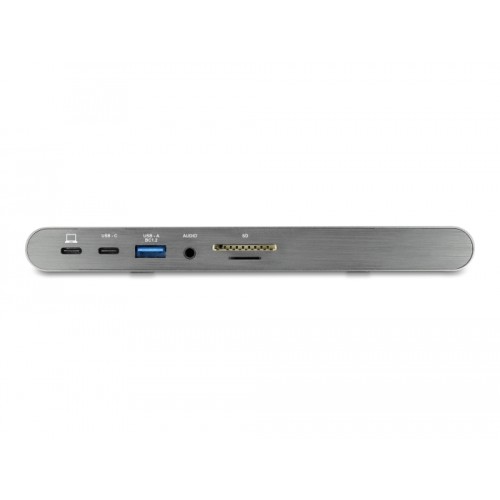

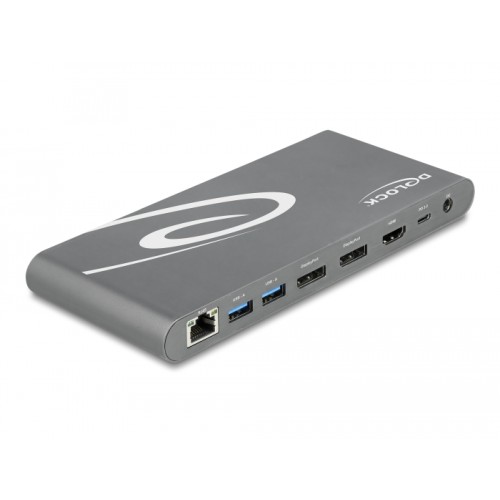

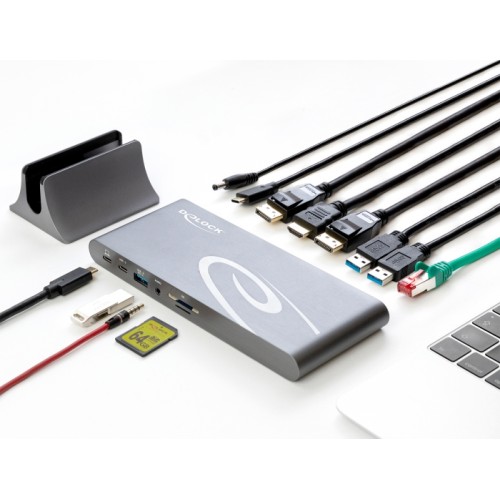

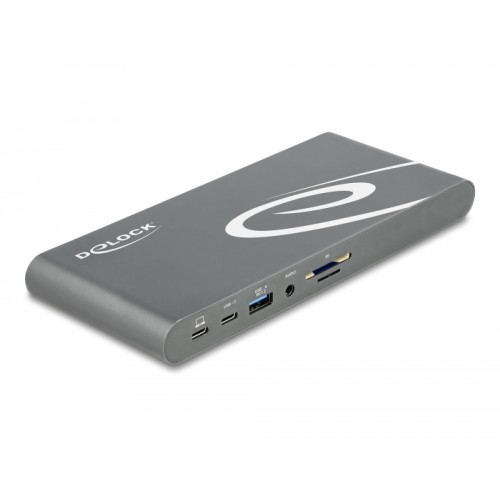

Delock USB Type-C™ DP 1.4 Docking Station Triple 4K Display - HDMI / DisplayPort / USB / LAN / SD / PD 3.0
87772
Nuovo
Description
This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. Up to three monitors can be operated simultaneously at the DisplayPort and HDMI outputs. Four built-in USB ports allow the use of peripherals, connections for headset and Gigabit network, as well as SD and Micro SD slot complete the features.
Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. The maximum resolution for simultaneous playback on two or three monitors depends on the system and connected hardware.
USB Power Delivery (USB PD 3.0) support up to 85 watt
The docking station has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it.

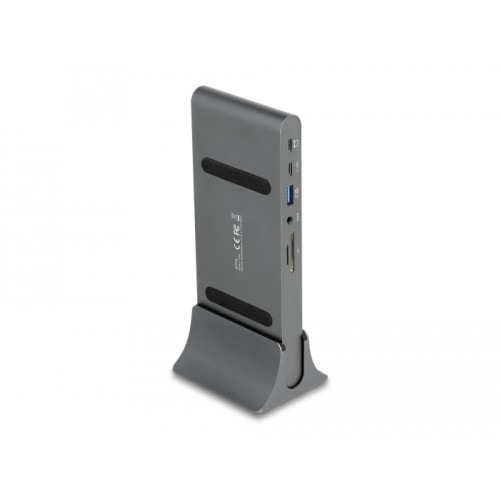

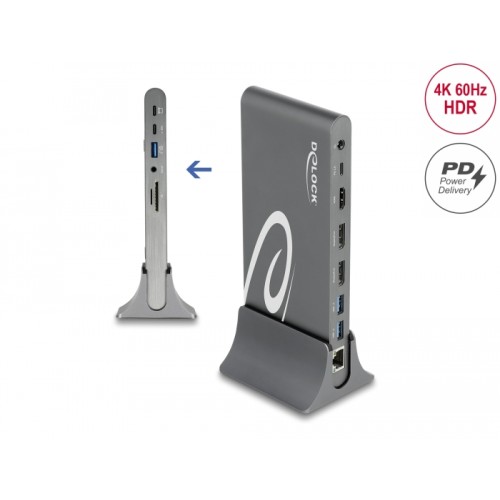

Stand
The Delock docking station can be operated either horizontally or vertically. A stand is included for vertical operation.
Delock USB Type-C™ DP 1.4 Docking Station Triple 4K Display
Please Note
If the docking station is connected to a USB-C™ DP Alt Mode port with DP 1.2, not all display functions are available. Therefore, the connection to DP 1.4 is recommended.
Under Windows, only one display can be duplicated to the main screen, the other displays can either be expanded or duplicated with each other as an extension to the main screen.
Specification
1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ female
1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female - Battery Charging
specification BC1.2
2 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
1 x HDMI-A female
2 x DisplayPort female
1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
1 x Headset 3.5 mm 4 pin jack
1 x SD slot
1 x Micro SD slot
1 x DC jack
with DSC:
without DSC:
Power supply specification
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.8 A
• Output: 12 V / 2 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.5 mm
outside: ø ca. 5.5 mm
length: ca. 10 mm
System requirements
• Android 9.0 or above
• iPad Pro (2018)
• Mac OS 10.15.5 or above
• Windows 8.1/8.1-64/10/10-64/11
• Device with a free USB Type-C™ port and DisplayPort alternate mode or with a free
Thunderbolt™ 3 port

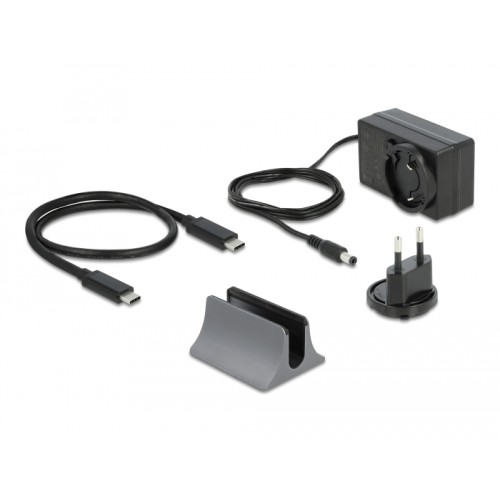

Package content
• USB-C™ docking station
• Cable USB-C™ male to USB-C™ male, length ca. 50 cm
• Stand
• Power supply
• User manual
This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. Up to three monitors can be operated simultaneously at the DisplayPort and HDMI outputs. Four built-in USB ports allow the use of peripherals, connections for headset and Gigabit network, as well as SD and Micro SD slot complete the features.
Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. The maximum resolution for simultaneous playback on two or three monitors depends on the system and connected hardware.
USB Power Delivery (USB PD 3.0) support up to 85 watt
The docking station has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it.
Stand
The Delock docking station can be operated either horizontally or vertically. A stand is included for vertical operation.
Delock USB Type-C™ DP 1.4 Docking Station Triple 4K Display
Please Note
If the docking station is connected to a USB-C™ DP Alt Mode port with DP 1.2, not all display functions are available. Therefore, the connection to DP 1.4 is recommended.
Under Windows, only one display can be duplicated to the main screen, the other displays can either be expanded or duplicated with each other as an extension to the main screen.
Specification
- Connectors:
1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ female
1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female - Battery Charging
specification BC1.2
2 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
1 x HDMI-A female
2 x DisplayPort female
1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
1 x Headset 3.5 mm 4 pin jack
1 x SD slot
1 x Micro SD slot
1 x DC jack

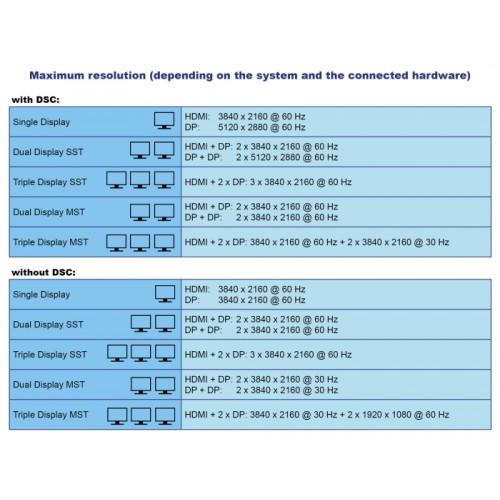

- Maximum resolution (depending on the system and the connected hardware):
with DSC:
| Single Display | HDMI: 3840 x 2160 @ 60 Hz DP: 5120 x 2880 @ 60 Hz |
| Dual Display SST | HDMI + DP: 2 x 3840 x 2160 @ 60 Hz DP + DP: 2 x 5120 x 2880 @ 60 Hz |
| Triple Display SST | HDMI + 2 x DP: 3 x 3840 x 2160 @ 60 Hz |
| Dual Display MST | HDMI + DP: 2 x 3840 x 2160 @ 60 Hz DP + DP: 2 x 3840 x 2160 @ 60 Hz |
| Triple Display MST | HDMI + 2 x DP: 3840 x 2160 @ 60 Hz + 2 x 3840 x 2160 @ 30 Hz |
without DSC:
| Single Display | HDMI: 3840 x 2160 @ 60 Hz DP: 3840 x 2160 @ 60 Hz |
| Dual Display SST | HDMI + DP: 2 x 3840 x 2160 @ 60 Hz DP + DP: 2 x 3840 x 2160 @ 60 Hz |
| Triple Display SST | HDMI + 2 x DP: 3 x 3840 x 2160 @ 60 Hz |
| Dual Display MST | HDMI + DP: 2 x 3840 x 2160 @ 30 Hz DP + DP: 2 x 3840 x 2160 @ 30 Hz |
| Triple Display MST | HDMI + 2 x DP: 3840 x 2160 @ 30 Hz + 2 x 1920 x 1080 @ 60 Hz |
- Transmission of audio and video signals
- Functions: Mirrored or Extended (depending on the operating system)
- Supports HDCP 1.4
- Supports HDR
- Output power for host: max. 85 W
- Colour: grey
- Dimensions (LxWxH): ca. 180 x 77 x 18 mm
Power supply specification
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.8 A
• Output: 12 V / 2 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.5 mm
outside: ø ca. 5.5 mm
length: ca. 10 mm
System requirements
• Android 9.0 or above
• iPad Pro (2018)
• Mac OS 10.15.5 or above
• Windows 8.1/8.1-64/10/10-64/11
• Device with a free USB Type-C™ port and DisplayPort alternate mode or with a free
Thunderbolt™ 3 port
Package content
• USB-C™ docking station
• Cable USB-C™ male to USB-C™ male, length ca. 50 cm
• Stand
• Power supply
• User manual
