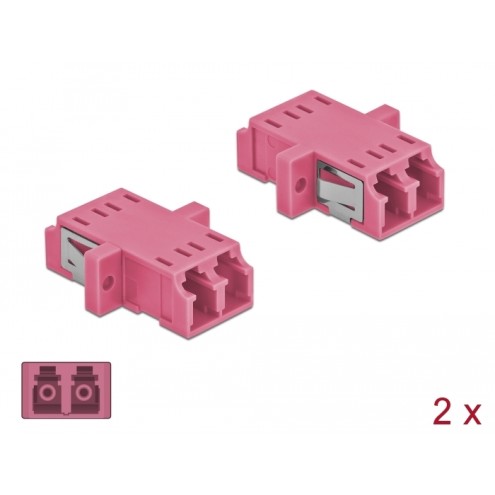

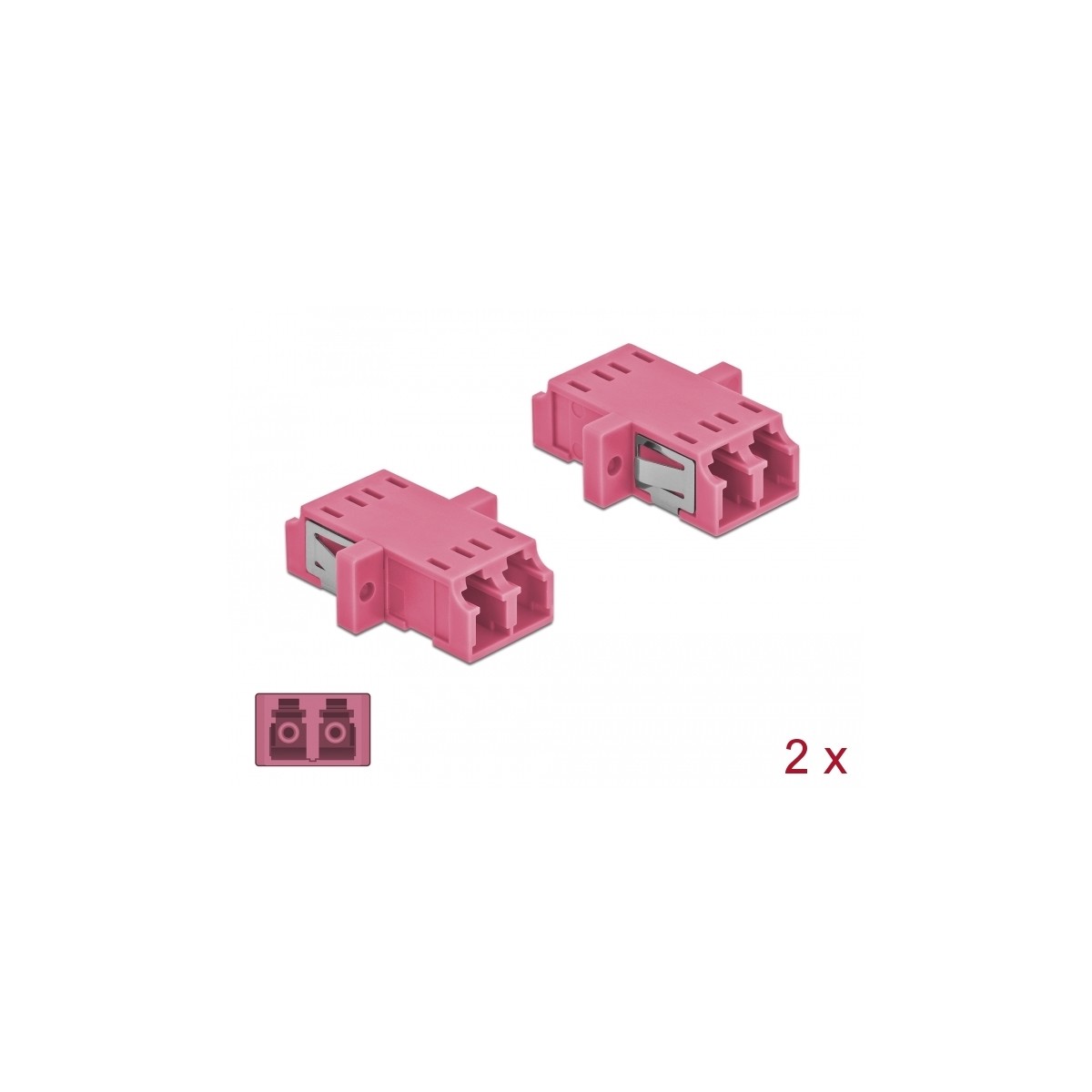

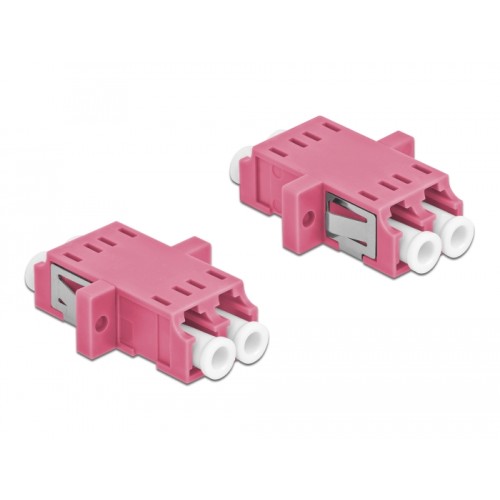

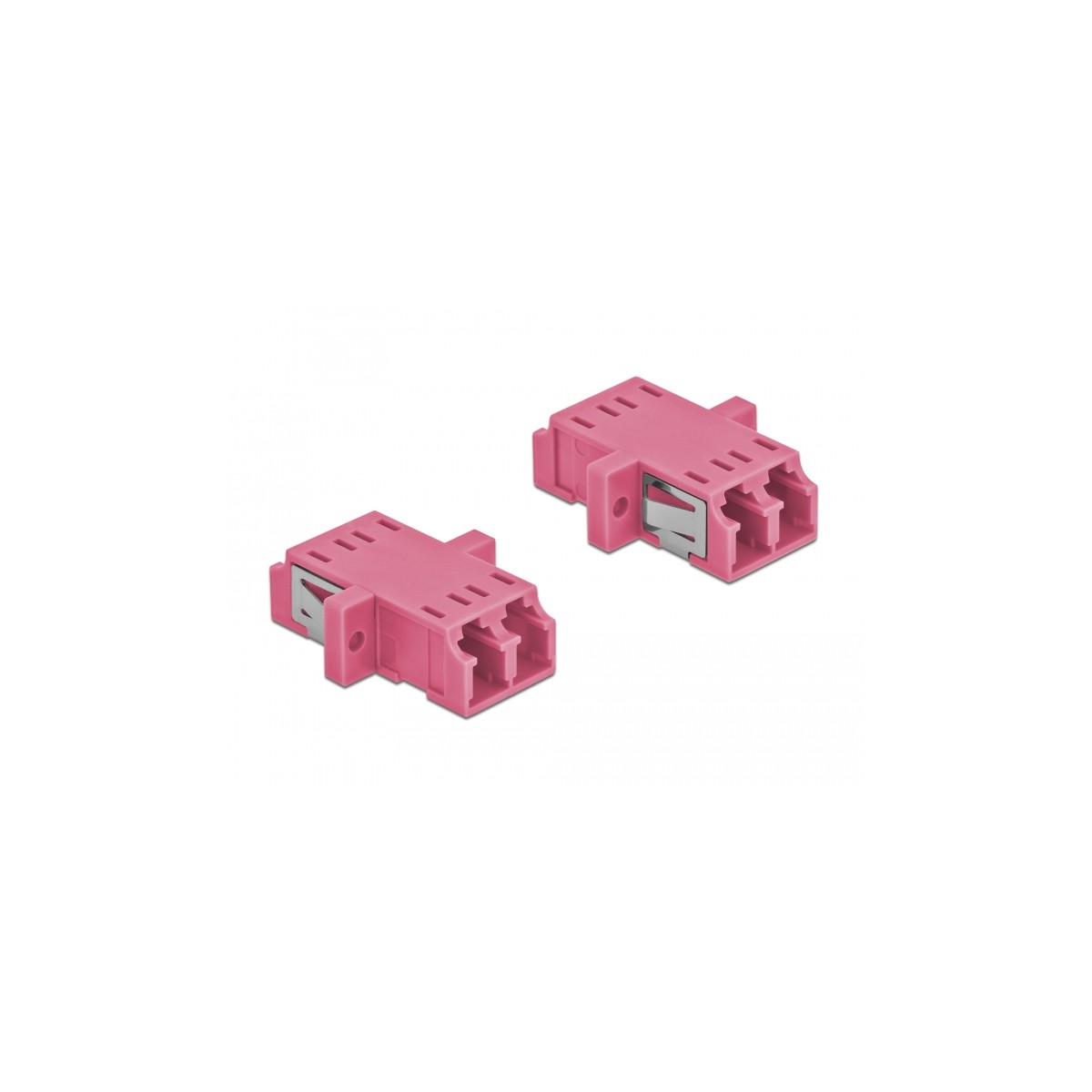

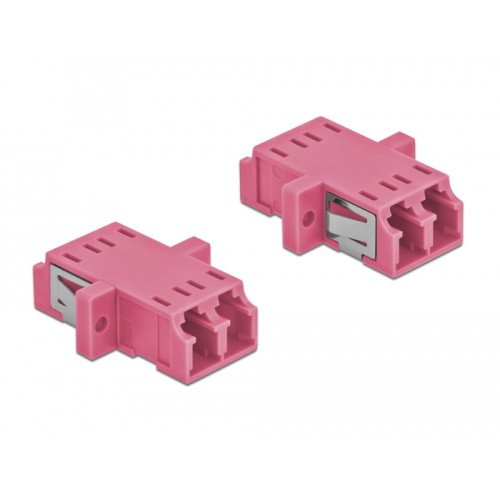

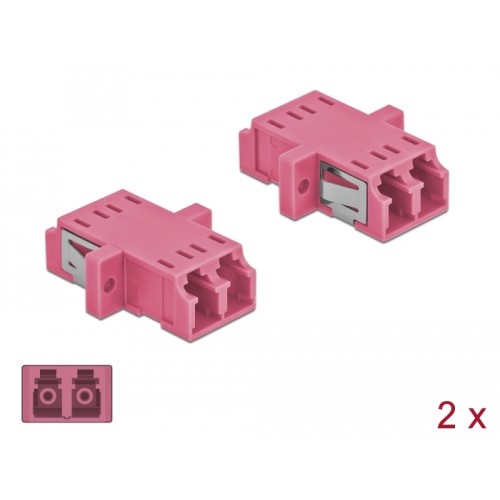

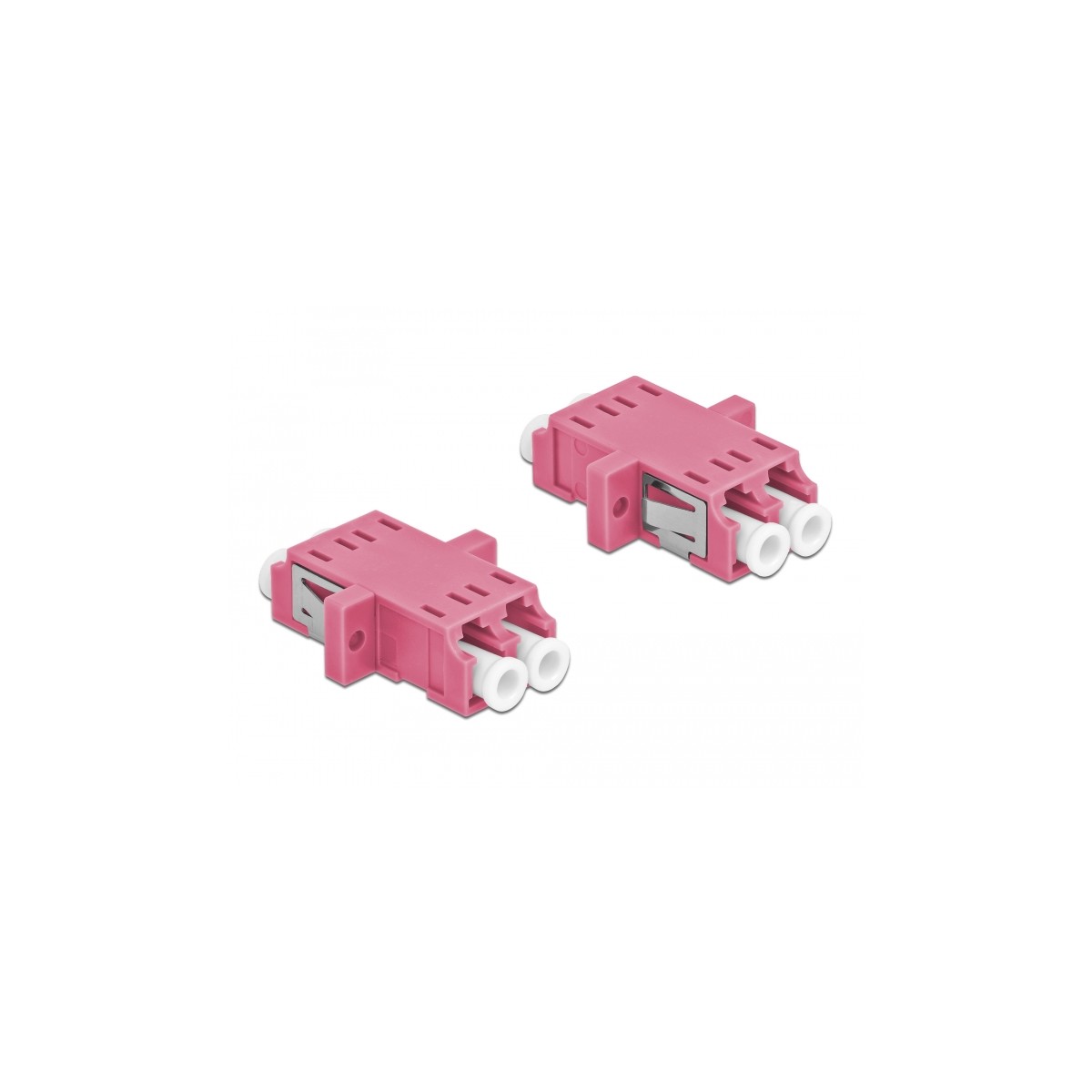

Delock Optical Fiber Coupler LC Duplex female to LC Duplex female Multi-mode 2 pieces violet
86537
Nuovo
Description
With this LC Duplex coupling by Delock, optical fiber male connectors can be easily connected to each other. The coupling enables a direct connection to the optical fiber cable and is suitable for simple mounting in optical fiber connection boxes, cabinets and patch panels.
Protection by dust cover
The coupling is equipped with an appropriate cap to protect the sleeve from dust and to keep it clean.
Specification
• Connectors:
1 x LC Duplex female >
1 x LC Duplex female
• For multi-mode fiber OM4
• Ceramic sleeve
• With dust cover
• Mounting via metal holder or screws
• 2 x mounting holes
• Mounting hole diameter: 2.3 mm
• Pitch of screw hole: ca. 18 mm
• Panel cut-out (WxH): ca. 13.4 x 9.5 mm
• Operating temperature: -20 °C ~ 70 °C
• Material: plastic
• Colour: violet
• Dimensions (LxWxH): ca. 29.2 x 12.7 x 9.3 mm
System requirements
• A free LC Duplex plug
Package content
• 2 x LC Duplex coupler
With this LC Duplex coupling by Delock, optical fiber male connectors can be easily connected to each other. The coupling enables a direct connection to the optical fiber cable and is suitable for simple mounting in optical fiber connection boxes, cabinets and patch panels.
Protection by dust cover
The coupling is equipped with an appropriate cap to protect the sleeve from dust and to keep it clean.
Specification
• Connectors:
1 x LC Duplex female >
1 x LC Duplex female
• For multi-mode fiber OM4
• Ceramic sleeve
• With dust cover
• Mounting via metal holder or screws
• 2 x mounting holes
• Mounting hole diameter: 2.3 mm
• Pitch of screw hole: ca. 18 mm
• Panel cut-out (WxH): ca. 13.4 x 9.5 mm
• Operating temperature: -20 °C ~ 70 °C
• Material: plastic
• Colour: violet
• Dimensions (LxWxH): ca. 29.2 x 12.7 x 9.3 mm
System requirements
• A free LC Duplex plug
Package content
• 2 x LC Duplex coupler
