Description

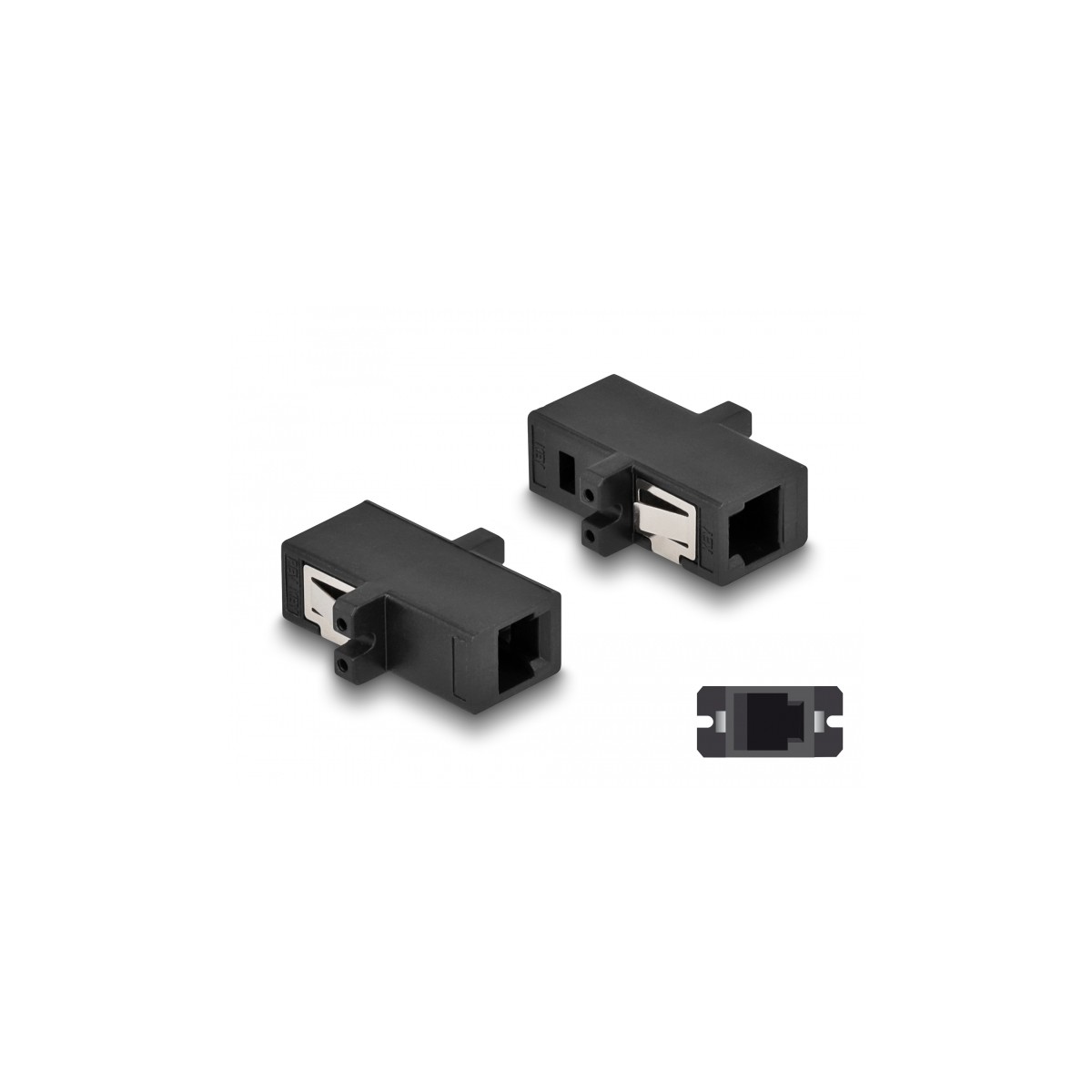

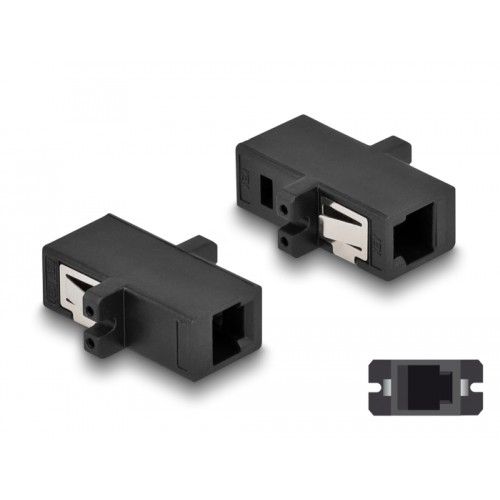

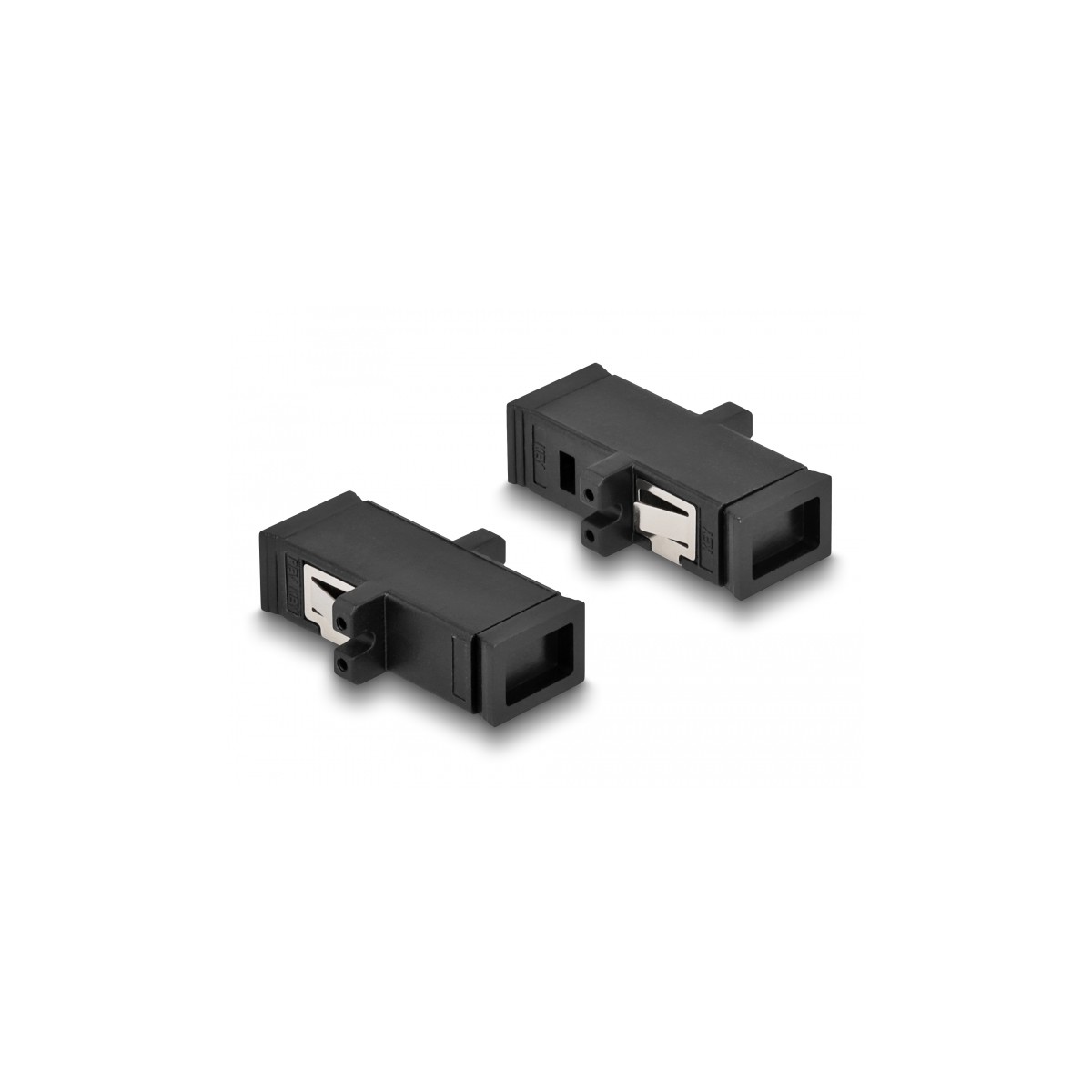

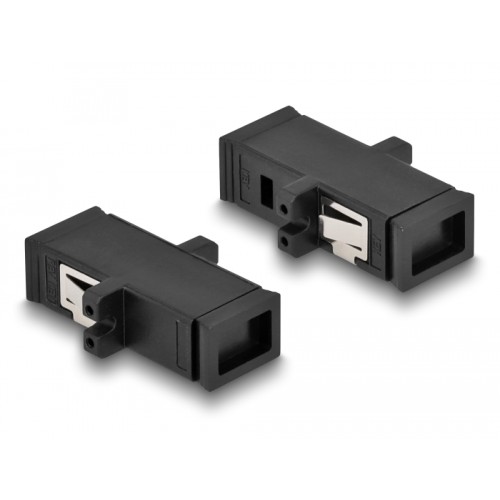

With this MTRJ coupling by Delock, two MTRJ male connectors can be easily connected to each other. The coupling enables a direct connection with the MTRJ optical fiber cables and is suitable for simple mounting in optical fiber connection boxes, cabinets, HD cassettes and patch panels.
Protection by dust cover
The coupling is equipped with an appropriate cap to protect the sleeve from dust and to keep it clean.
Specification
• Connectors:
1 x MTRJ female
1 x MTRJ female
• Key-up to key-up direction
• With dust cover
• Mounting via metal holder or screws
• 2 x mounting holes
• Mounting hole diameter: ca. 2 mm
• Pitch of screw hole: ca. 18 mm
• Panel cut-out (WxH): ca. 12.8 x 9.3 mm
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Material: plastic
• Dimensions (LxWxH): ca. 28.0 x 22.0 x 9.3 mm
System requirements
• A free MTRJ male port
Package content
• MTRJ coupler
With this MTRJ coupling by Delock, two MTRJ male connectors can be easily connected to each other. The coupling enables a direct connection with the MTRJ optical fiber cables and is suitable for simple mounting in optical fiber connection boxes, cabinets, HD cassettes and patch panels.
Protection by dust cover
The coupling is equipped with an appropriate cap to protect the sleeve from dust and to keep it clean.
Specification
• Connectors:
1 x MTRJ female
1 x MTRJ female
• Key-up to key-up direction
• With dust cover
• Mounting via metal holder or screws
• 2 x mounting holes
• Mounting hole diameter: ca. 2 mm
• Pitch of screw hole: ca. 18 mm
• Panel cut-out (WxH): ca. 12.8 x 9.3 mm
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Material: plastic
• Dimensions (LxWxH): ca. 28.0 x 22.0 x 9.3 mm
System requirements
• A free MTRJ male port
Package content
• MTRJ coupler
