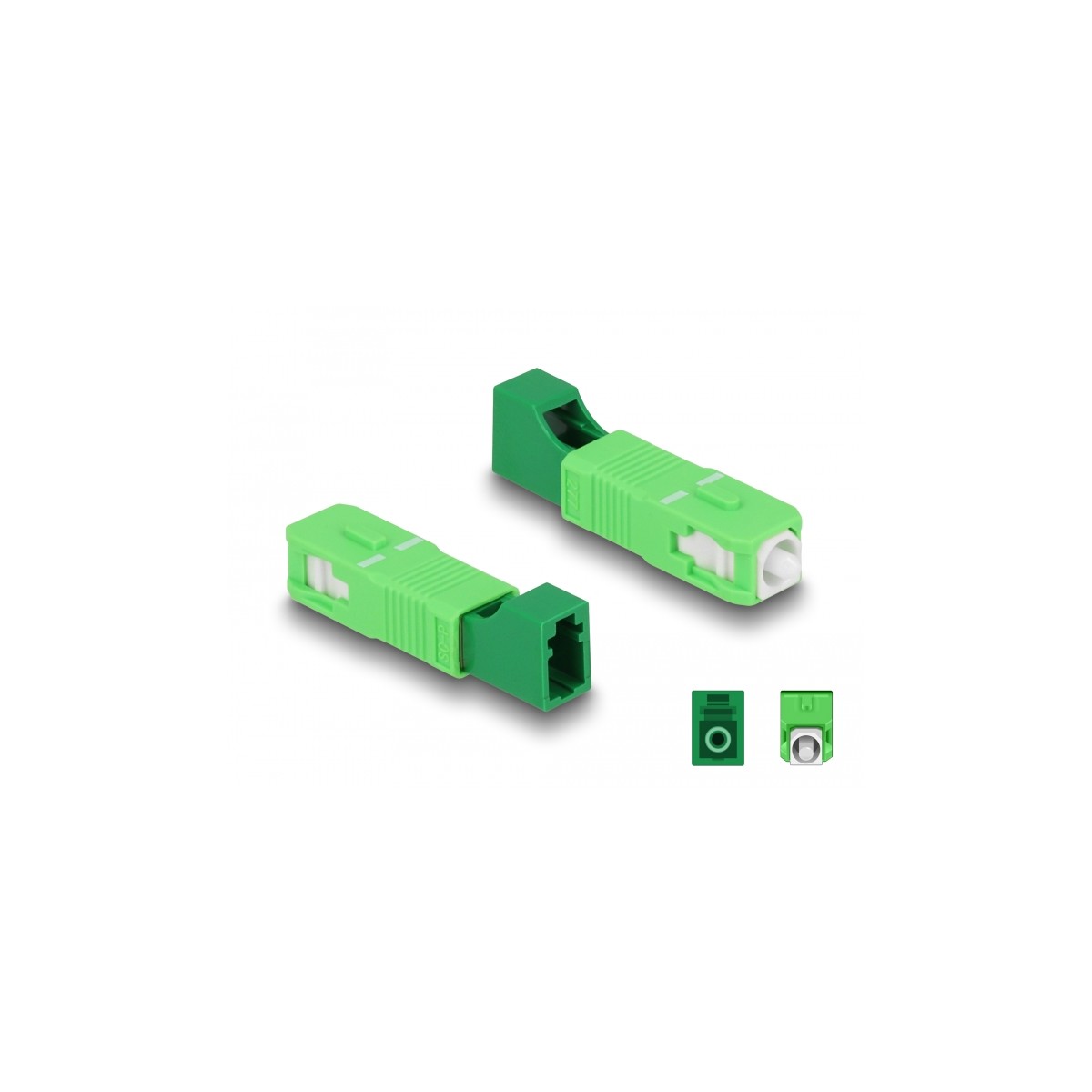

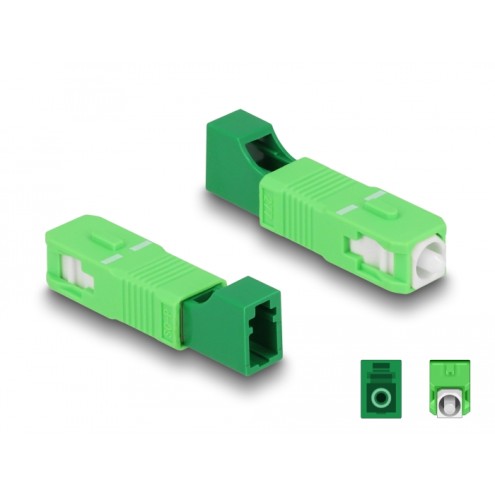

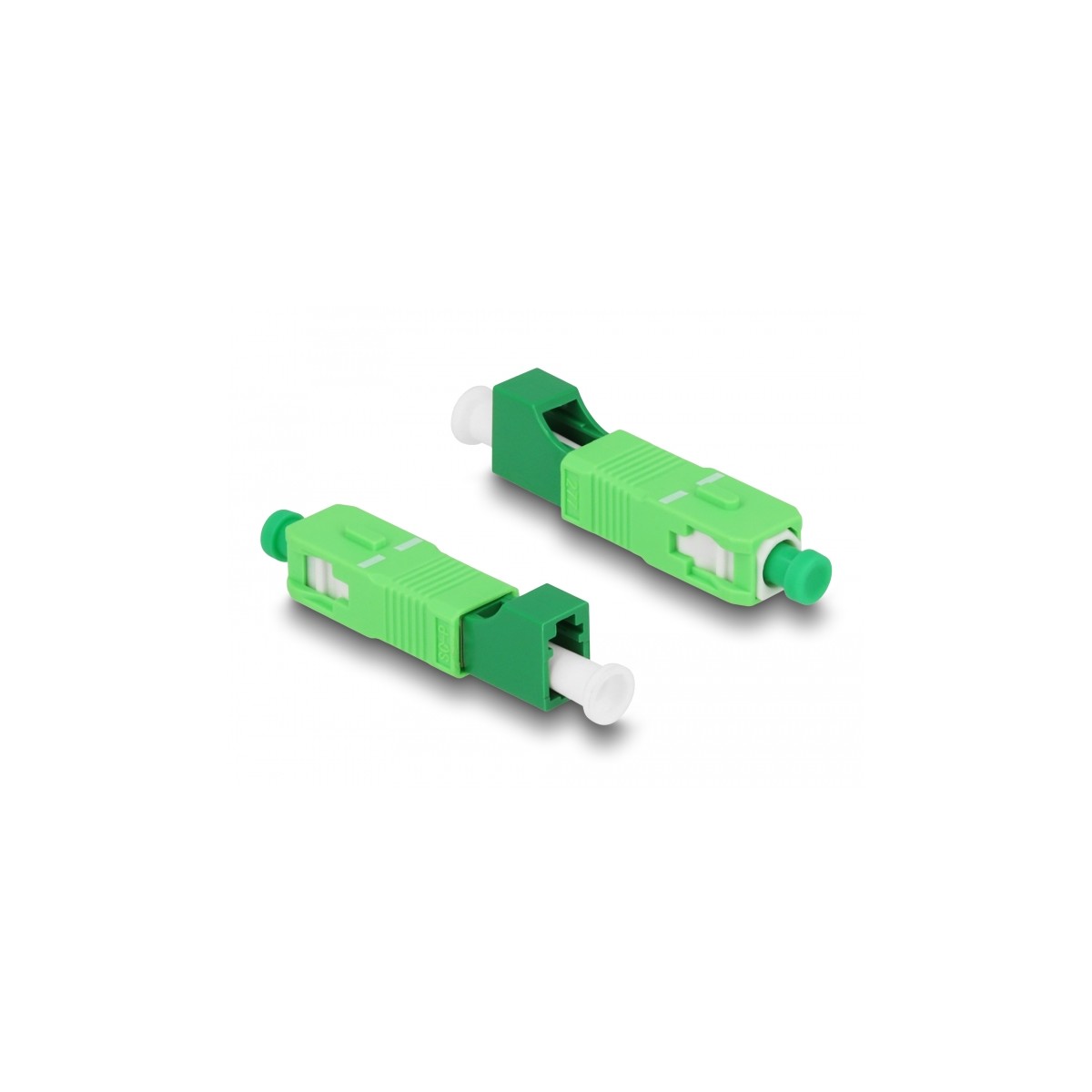

Delock Optical Fiber Hybrid Coupler SC Simplex male to LC Simplex female green
87940
Nuovo
Description
This SC Simplex to LC Simplex hybrid coupling by Delock enables the conversion from one connector type to the other. This means that SC and LC optical fiber cables can be easily connected to each other.
Protection by dust cover
The coupling is equipped with an appropriate cap to protect the sleeve from dust and to keep it clean.
Specification
• Connectors:
1 x SC Simplex male
1 x LC Simplex female
• Insertion loss < 0.3 dB
• Return loss > 50 dB
• Ceramic sleeve
• With dust cover
• Operating temperature: -40 °C ~ 75 °C
• Colour: green
• Material: plastic
• Dimensions (LxWxH): ca. 45.9 x 9.5 x 8.9 mm
System requirements
• A free SC Simplex female port
• A free LC Simplex male port
Package content
• Optic fiber coupler
This SC Simplex to LC Simplex hybrid coupling by Delock enables the conversion from one connector type to the other. This means that SC and LC optical fiber cables can be easily connected to each other.
Protection by dust cover
The coupling is equipped with an appropriate cap to protect the sleeve from dust and to keep it clean.
Specification
• Connectors:
1 x SC Simplex male
1 x LC Simplex female
• Insertion loss < 0.3 dB
• Return loss > 50 dB
• Ceramic sleeve
• With dust cover
• Operating temperature: -40 °C ~ 75 °C
• Colour: green
• Material: plastic
• Dimensions (LxWxH): ca. 45.9 x 9.5 x 8.9 mm
System requirements
• A free SC Simplex female port
• A free LC Simplex male port
Package content
• Optic fiber coupler
