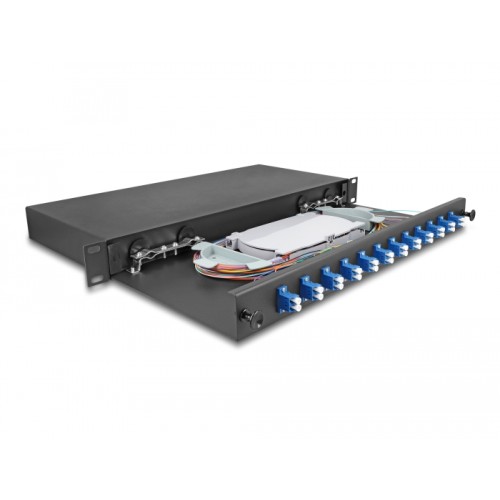

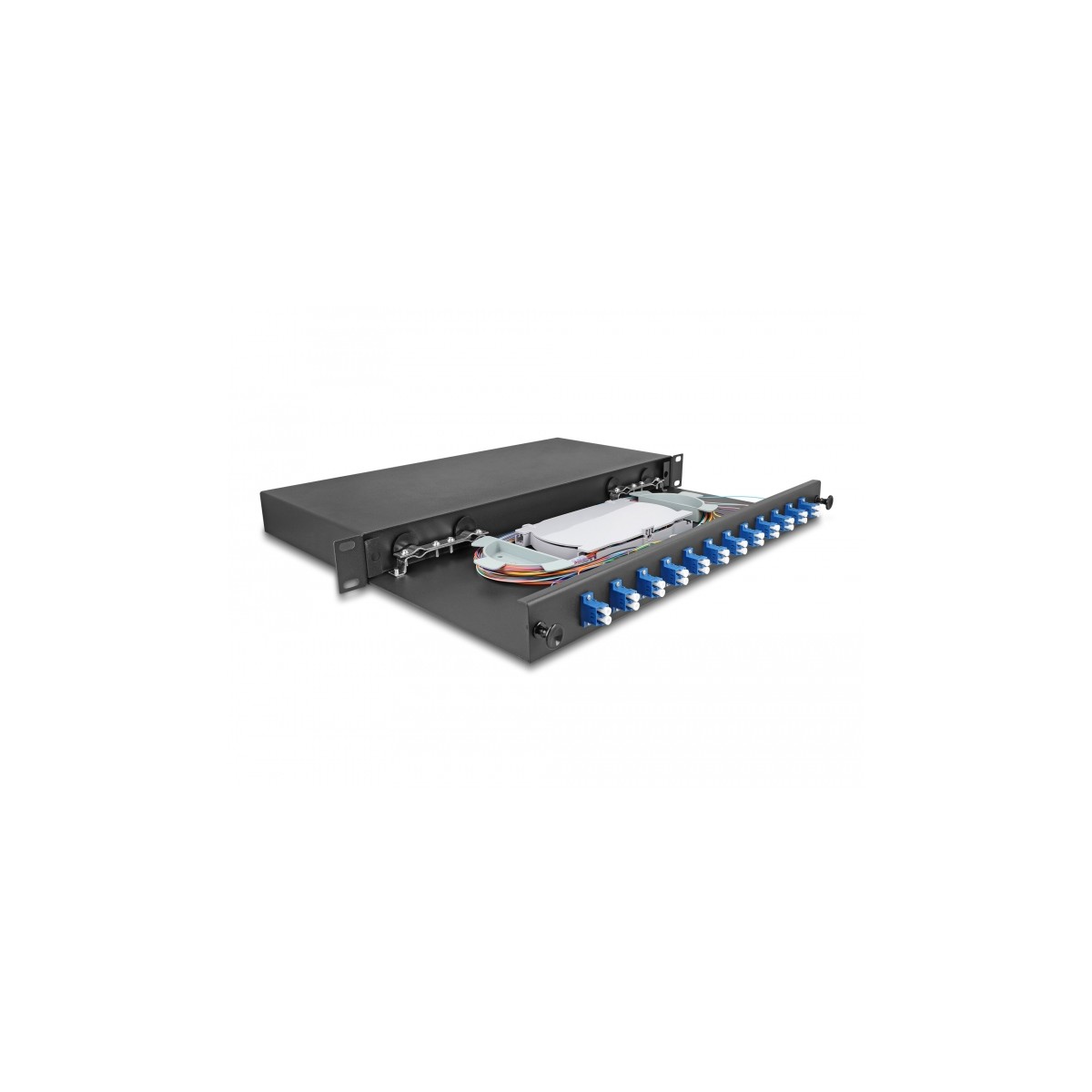

Delock 19″ Optical Fiber Splice Box 12 x LC Duplex OS2 1U complete assembled
67003
Nuovo
Description
This pre-assembled optical fiber splice box by Delock can be mounted in a 19″ rack and is ideal for quickly and securely setting up the fiber optic network in buildings.
Complete assembled
The optical fiber box is equipped with 12 LC Duplex couplers and fitted with 24 pigtails, which are already inserted in the splice cassette.
With drawer
The front panel can be pulled out, making it possible to work on both sides of the couplers without removing the cover.
Please Note
The pigtails are not ready for splicing.
Specification
• For mounting in 19″ racks, 1U

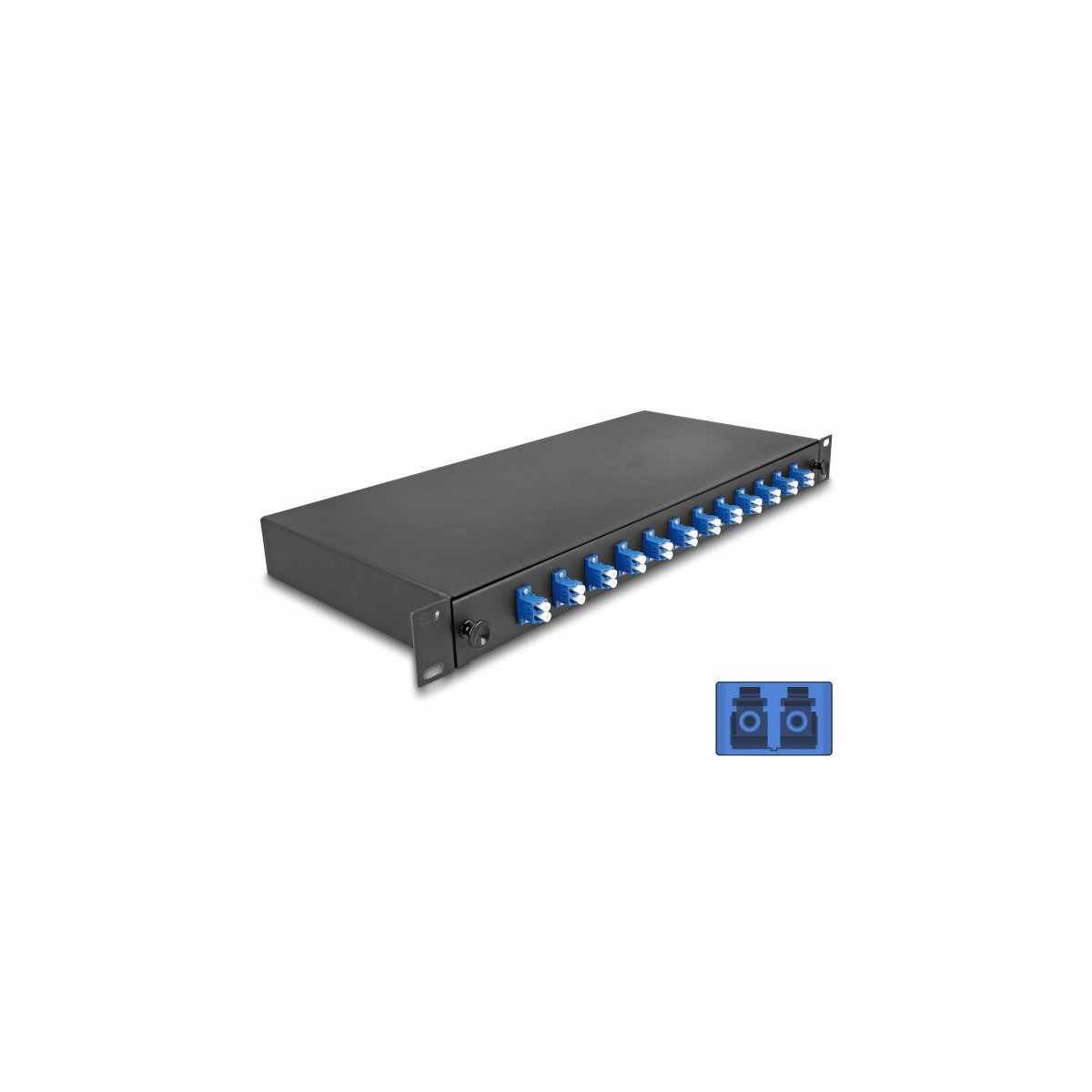

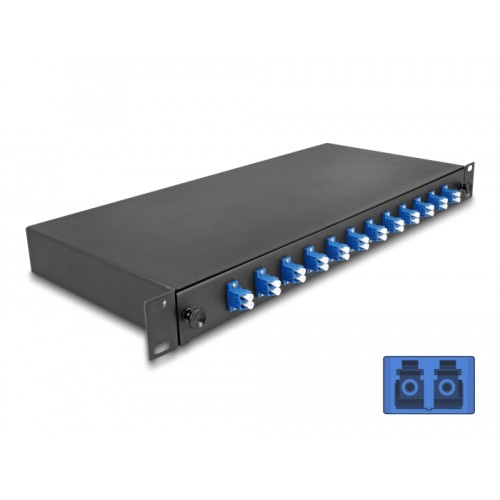

• Splice box with 12 x LC Duplex couplers
• Extendable tray
• With splice cassette
• Fiber pigtails are coloured in accordance with TIA/EIA-598
• OS2 pigtails
• Fibre: 9/125 µm
• Cable jacket material: LSOH
• Cable length: ca. 1.5 m
• Housing colour: black
• Housing material: metal
• Dimensions (LxWxH): ca. 482 x 220 x 44 mm
System requirements

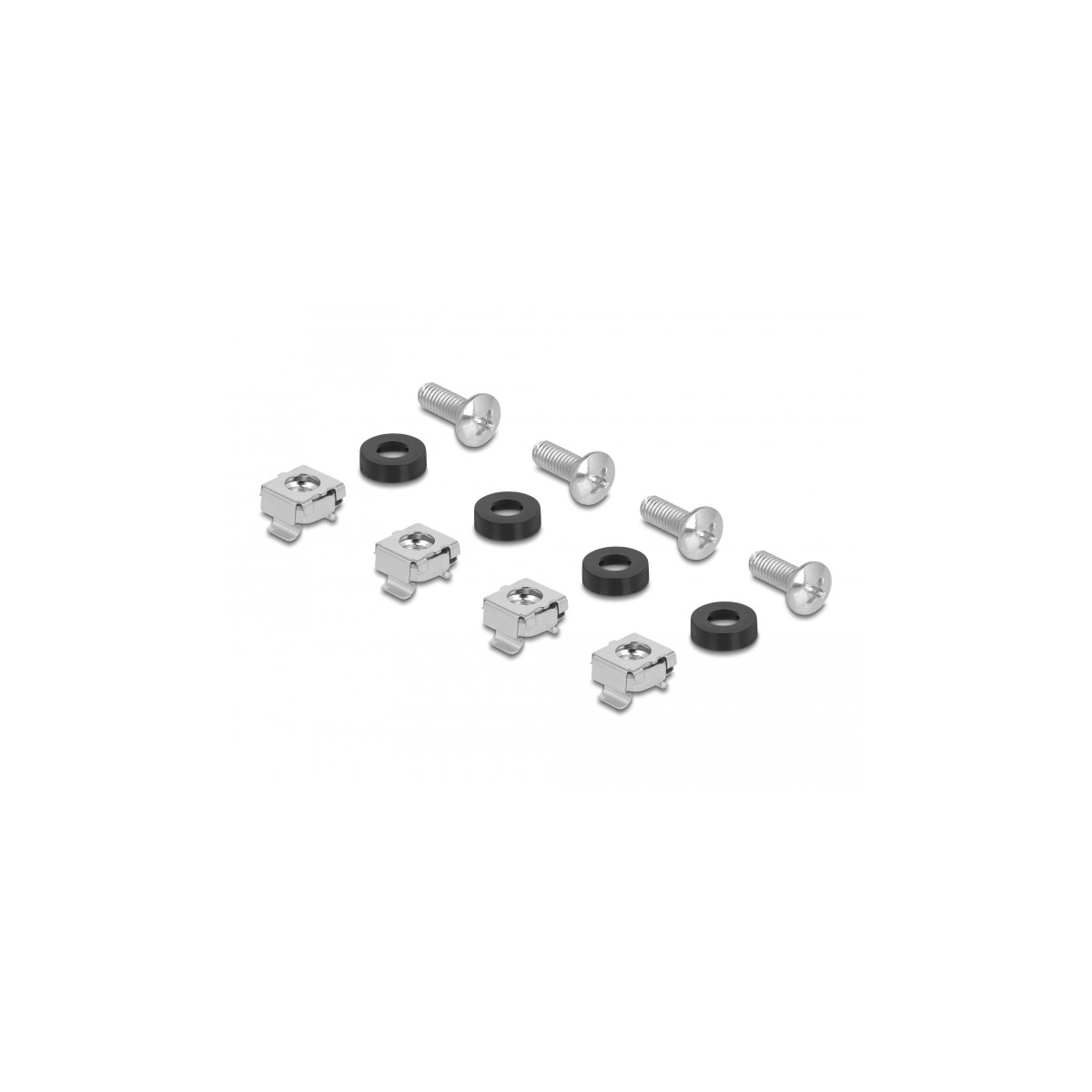

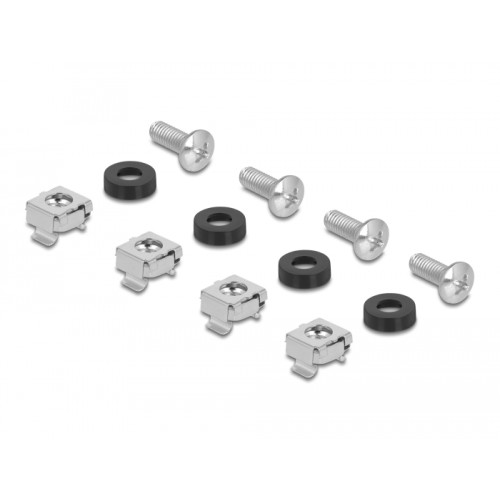

Package content
• 19″ optical fiber splice box
• 4 x screw
• 4 x caged nut
• 4 x washer
This pre-assembled optical fiber splice box by Delock can be mounted in a 19″ rack and is ideal for quickly and securely setting up the fiber optic network in buildings.
Complete assembled
The optical fiber box is equipped with 12 LC Duplex couplers and fitted with 24 pigtails, which are already inserted in the splice cassette.
With drawer
The front panel can be pulled out, making it possible to work on both sides of the couplers without removing the cover.
Please Note
The pigtails are not ready for splicing.
Specification
• For mounting in 19″ racks, 1U
• Splice box with 12 x LC Duplex couplers
• Extendable tray
• With splice cassette
• Fiber pigtails are coloured in accordance with TIA/EIA-598
• OS2 pigtails
• Fibre: 9/125 µm
• Cable jacket material: LSOH
• Cable length: ca. 1.5 m
• Housing colour: black
• Housing material: metal
• Dimensions (LxWxH): ca. 482 x 220 x 44 mm
System requirements
Package content
• 19″ optical fiber splice box
• 4 x screw
• 4 x caged nut
• 4 x washer
