Description

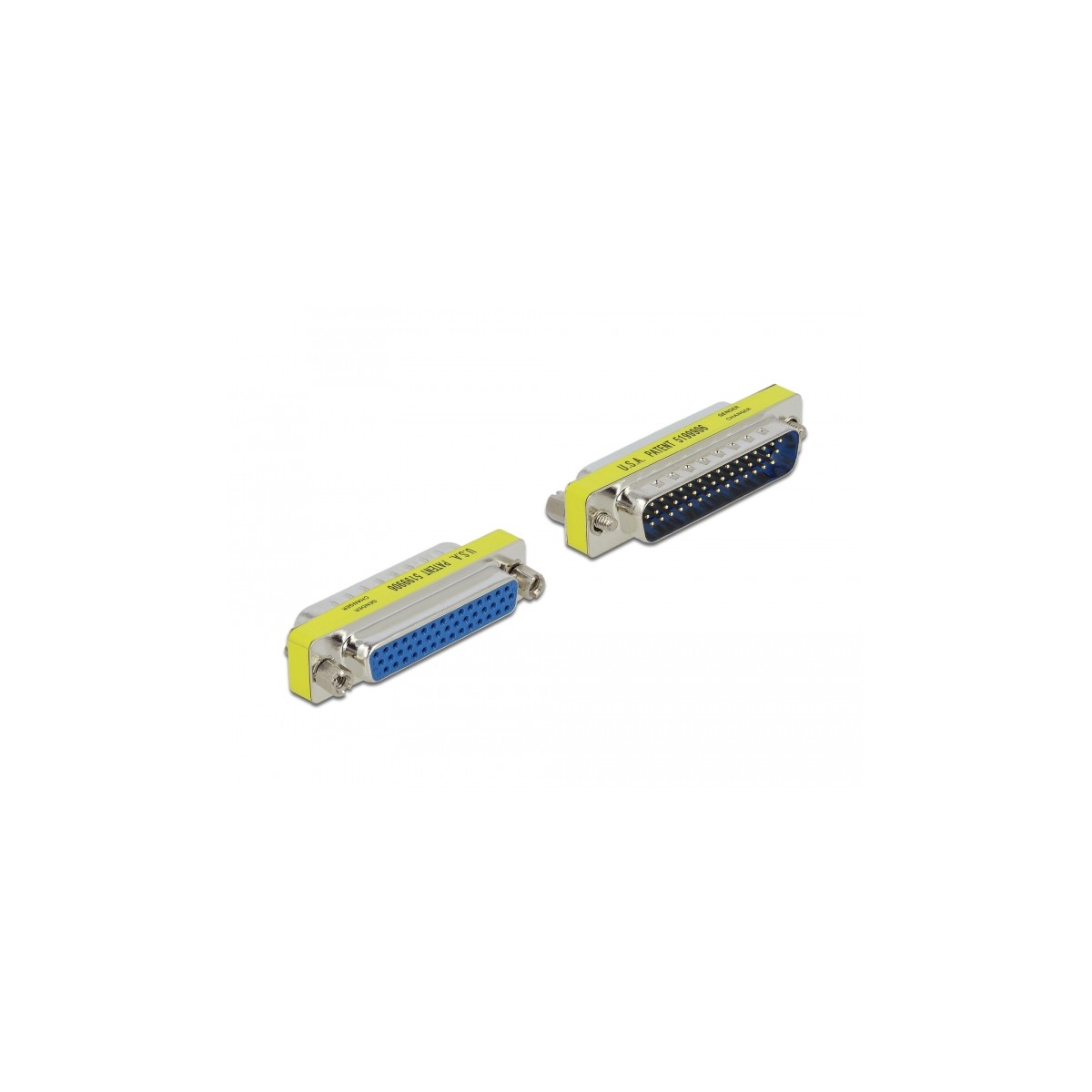

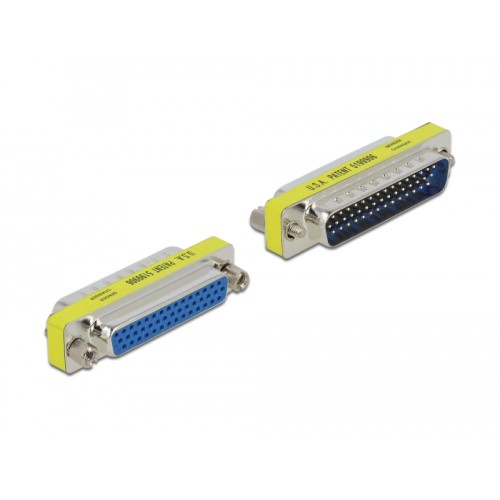

This adapter by Delock can be connected to the D-Sub 44 pin port of the device or system. Thus it prevents the interface from damage when it is under usage for high contact durability. Furthermore this adapter can also be used for special application as mechanical extension of the D-Sub 44 port.
Specification
• Connectors:
1 x D-Sub 44 pin male >
1 x D-Sub 44 pin female with screws
• Pin assignment: 1:1
• Screw type: #4-40 UNC
• Screw distance: 61 mm
• Contacts gold-plated
• Dimensions (LxWxH): ca. 53.1 x 12.50 x 17.90 mm
System requirements
• A free D-Sub 44 pin interface
Package content
• Adapter
This adapter by Delock can be connected to the D-Sub 44 pin port of the device or system. Thus it prevents the interface from damage when it is under usage for high contact durability. Furthermore this adapter can also be used for special application as mechanical extension of the D-Sub 44 port.
Specification
• Connectors:
1 x D-Sub 44 pin male >
1 x D-Sub 44 pin female with screws
• Pin assignment: 1:1
• Screw type: #4-40 UNC
• Screw distance: 61 mm
• Contacts gold-plated
• Dimensions (LxWxH): ca. 53.1 x 12.50 x 17.90 mm
System requirements
• A free D-Sub 44 pin interface
Package content
• Adapter
Nuovo
4043619651146
