Description
This adapter by Delock is suitable for connecting components of electronic technology and electronic in vehicles.
Power over HSD (PoH)
With +2 power pins this HSD connector has an additional power supply. Power over HSD is a concept developed by Rosenberger for remote power supply of e.g. cameras, displays or similar devices. In addition to the data signal the power is transmitted on separate conductors (power pins) to supply the terminal device with power.
Specification

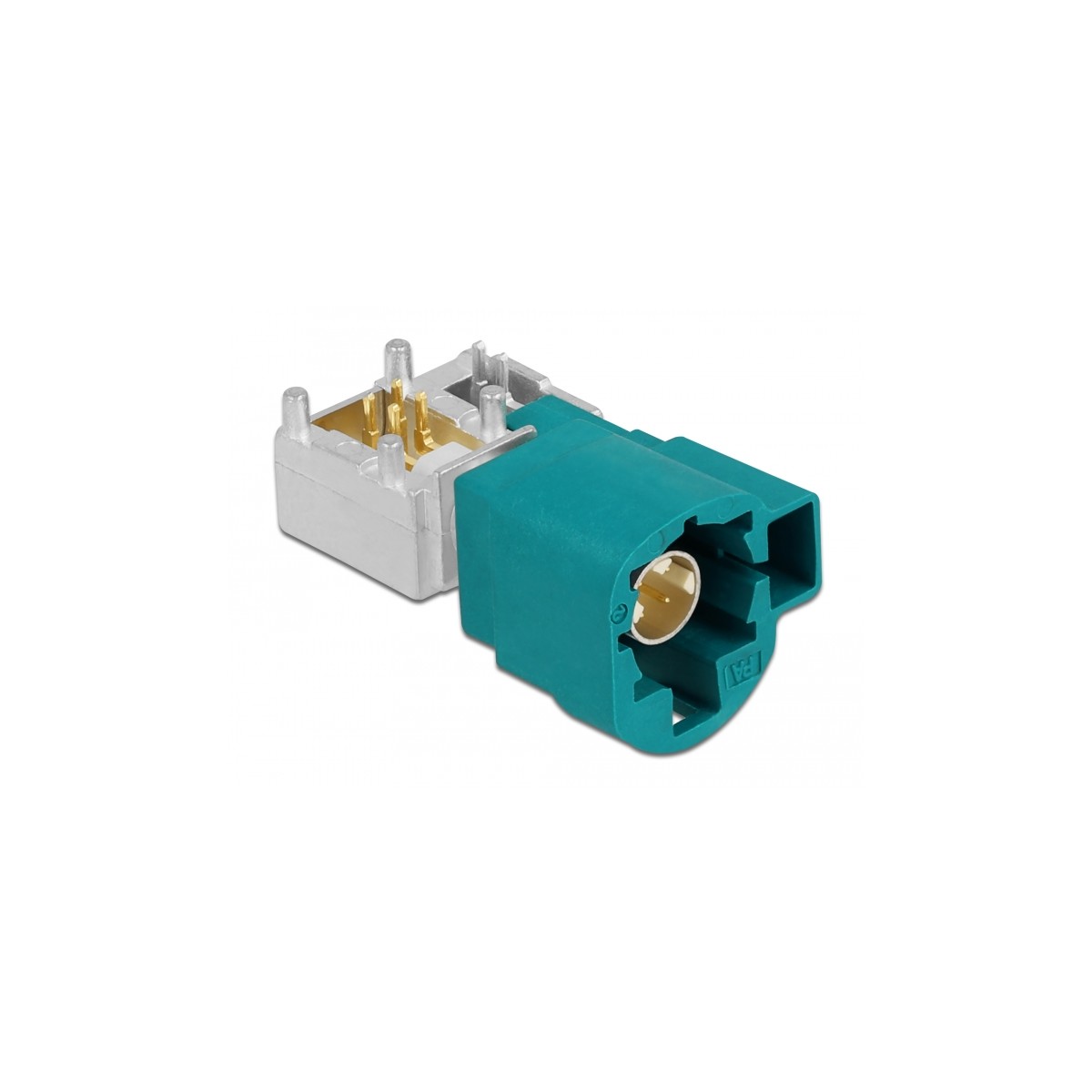

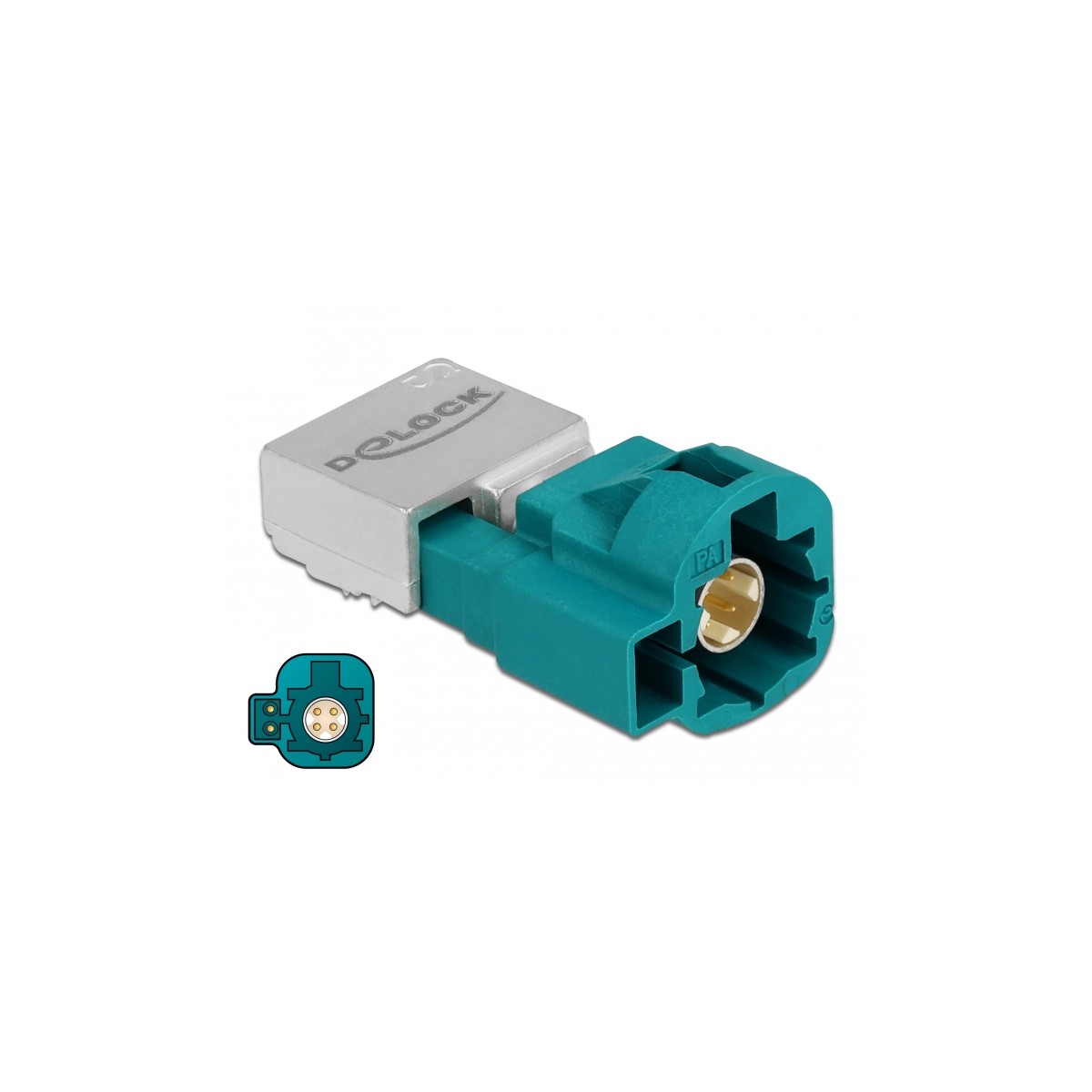

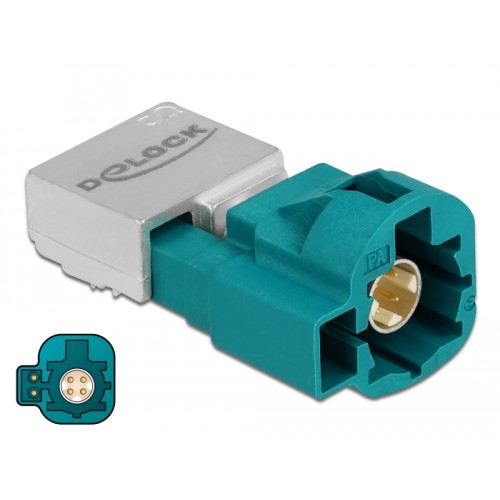

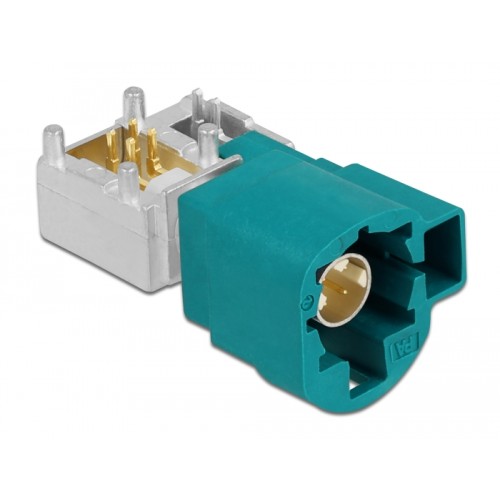

• Connector: 1 x HSD +2 Z male 90° PCB
• HSD Z: RAL 5021 Water blue
• Pin: phosphorus bronze gold plated
• Insulator: LCP
• Housing: brass
• Plastic shell: PA46
• Dimensions (LxWxH): ca. 28 x 15 x 14 mm
System requirements
• Suitable board for mounting the HSD connector
Package content
• 1 x HSD Z male
This adapter by Delock is suitable for connecting components of electronic technology and electronic in vehicles.
Power over HSD (PoH)
With +2 power pins this HSD connector has an additional power supply. Power over HSD is a concept developed by Rosenberger for remote power supply of e.g. cameras, displays or similar devices. In addition to the data signal the power is transmitted on separate conductors (power pins) to supply the terminal device with power.
Specification
• Connector: 1 x HSD +2 Z male 90° PCB
• HSD Z: RAL 5021 Water blue
• Pin: phosphorus bronze gold plated
• Insulator: LCP
• Housing: brass
• Plastic shell: PA46
• Dimensions (LxWxH): ca. 28 x 15 x 14 mm
System requirements
• Suitable board for mounting the HSD connector
Package content
• 1 x HSD Z male
Nuovo
4043619903580
