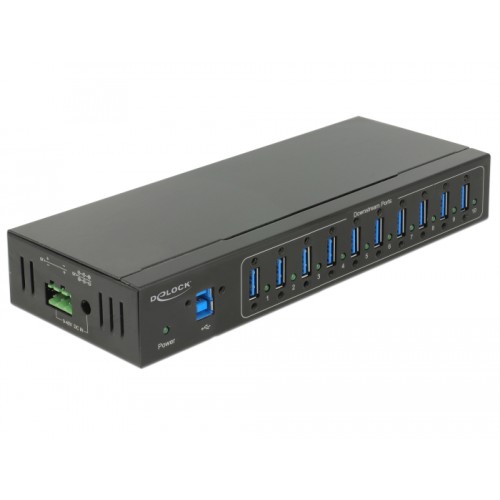

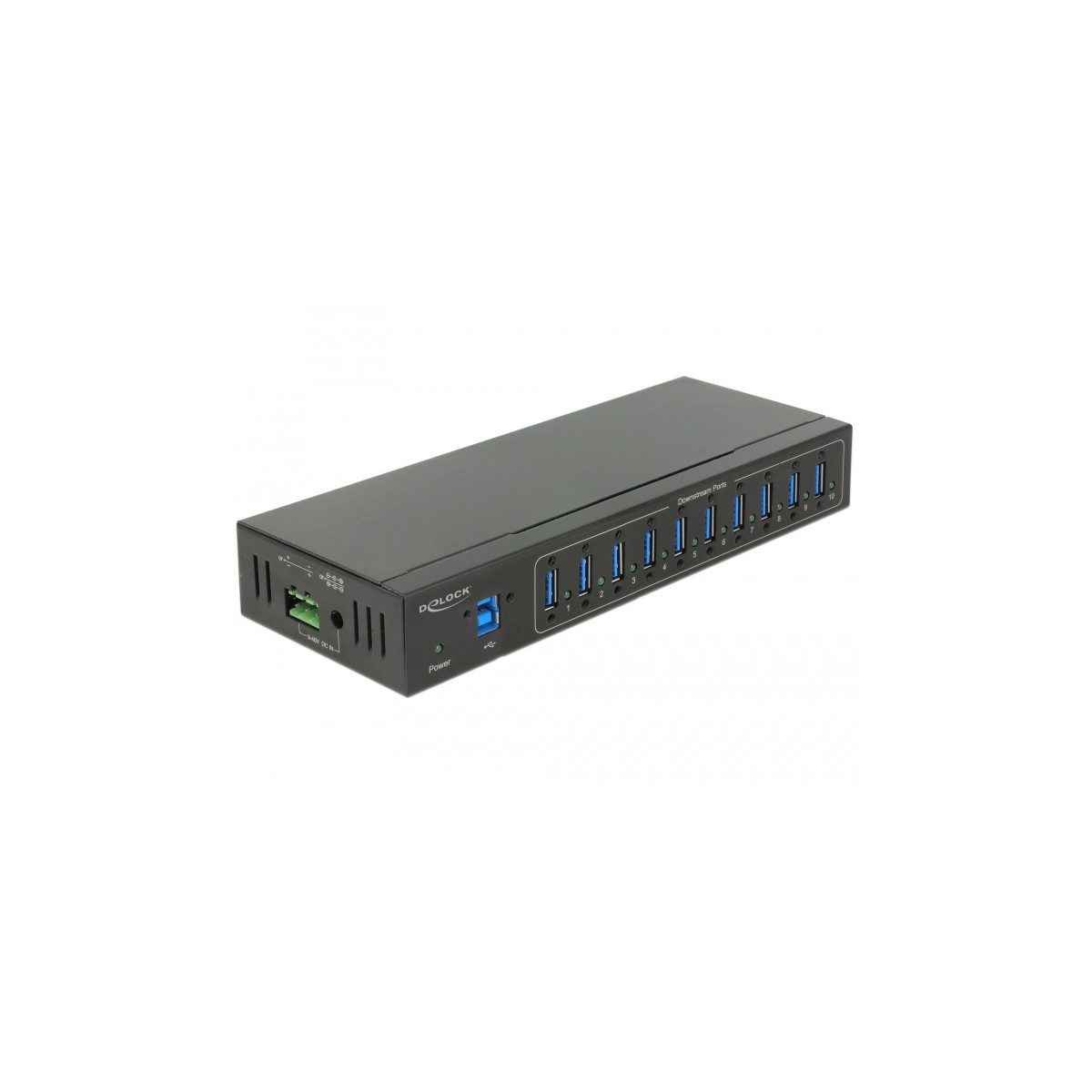

Delock External Industry Hub 10 x USB 3.0 Type-A with 20 kV ESD protection

Description
This solid industry capable USB hub by Delock can be connected to a computer via the USB Type-A interface. It expands the computer by ten USB Type-A connectors. If necessary, an optional power supply or an optional power cable can be connected to the power socket.

Specification

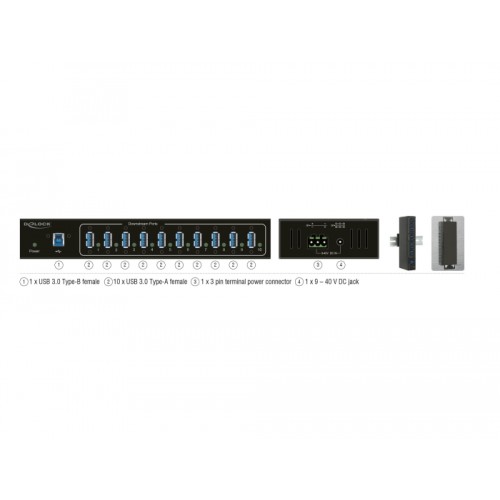

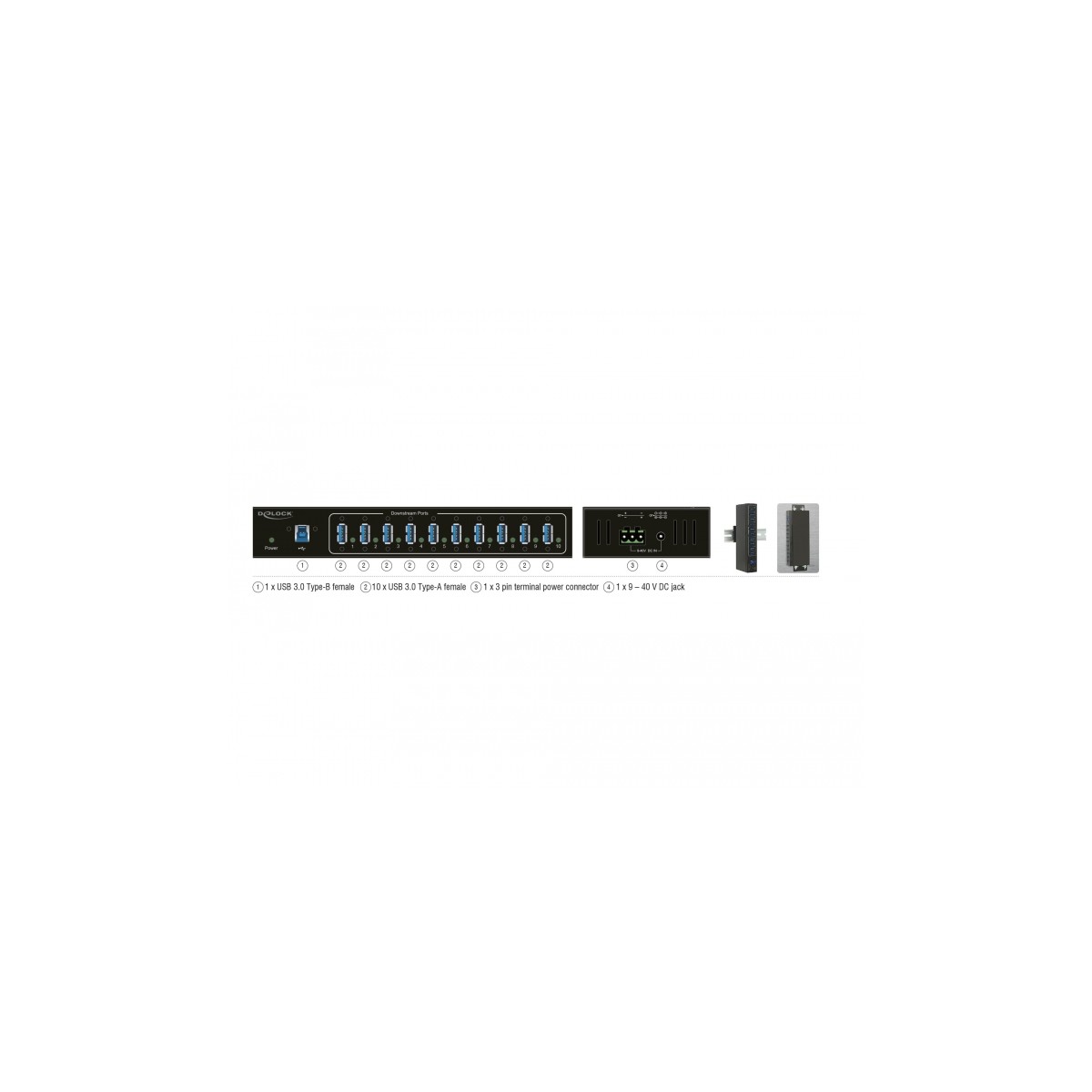

• Connectors:
1 x USB 3.0 Type-B female >
10 x USB 3.0 Type-A female
1 x 9 – 40 V DC jack
1 x 3 pin terminal power connector
• Chipset: VIA VL817
• Data transfer rate up to:
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• 11 x LED indicator
• USB ports with screw holes
• Robust metal housing

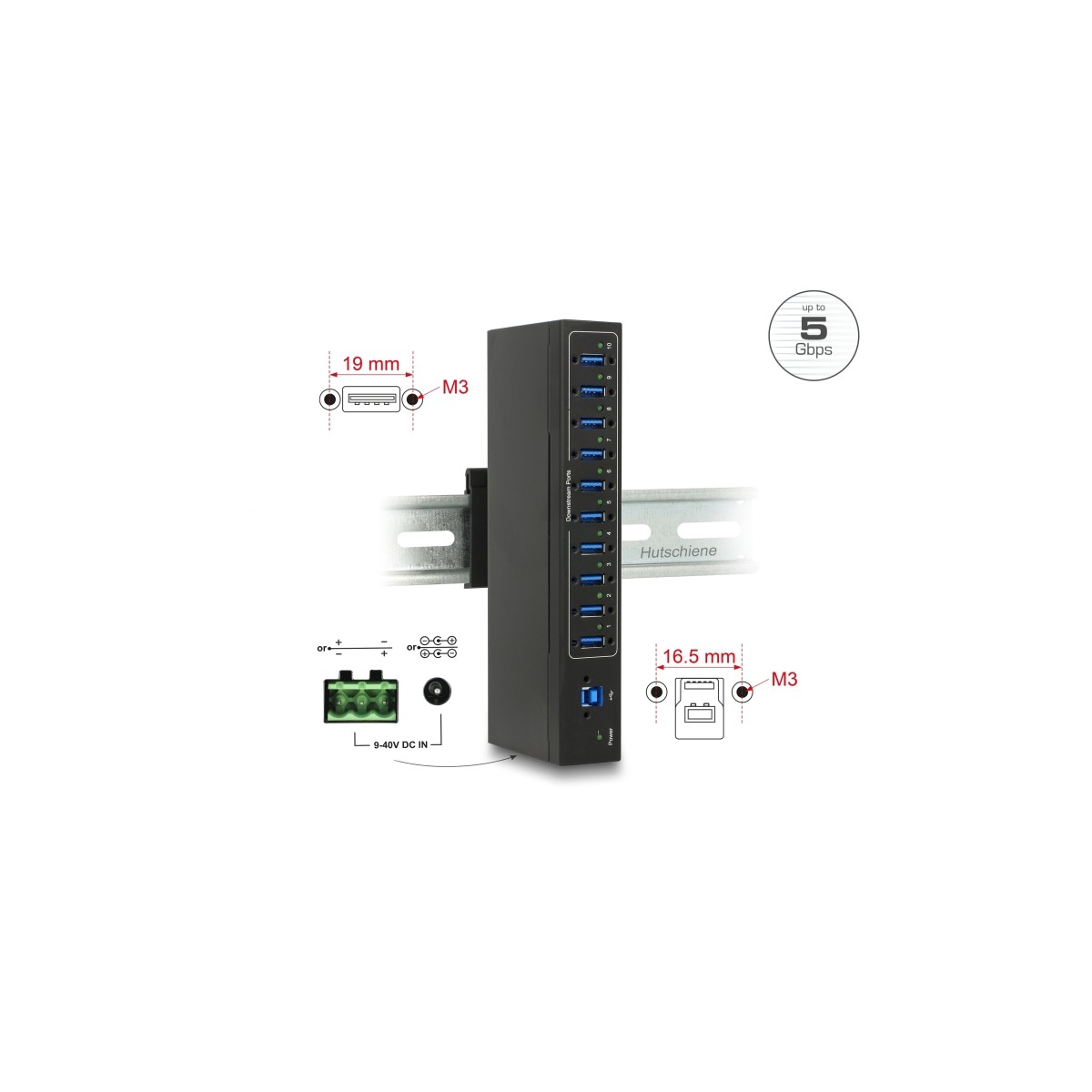

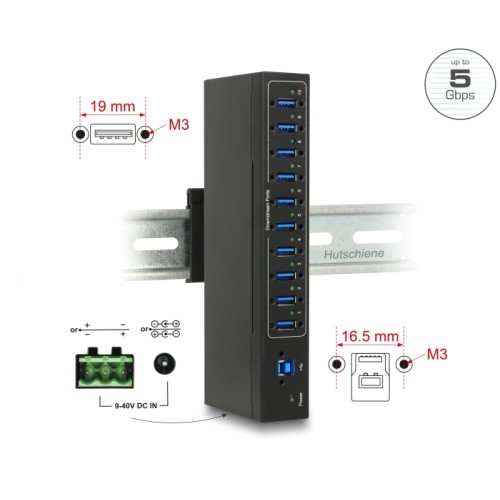

• Pitch of screw hole USB Type-A: ca. 19 mm
• Pitch of screw hole USB Type-B: ca. 16.5 mm
• Thread size: M3

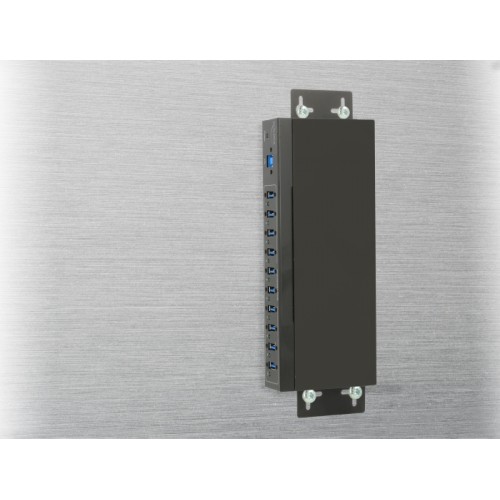

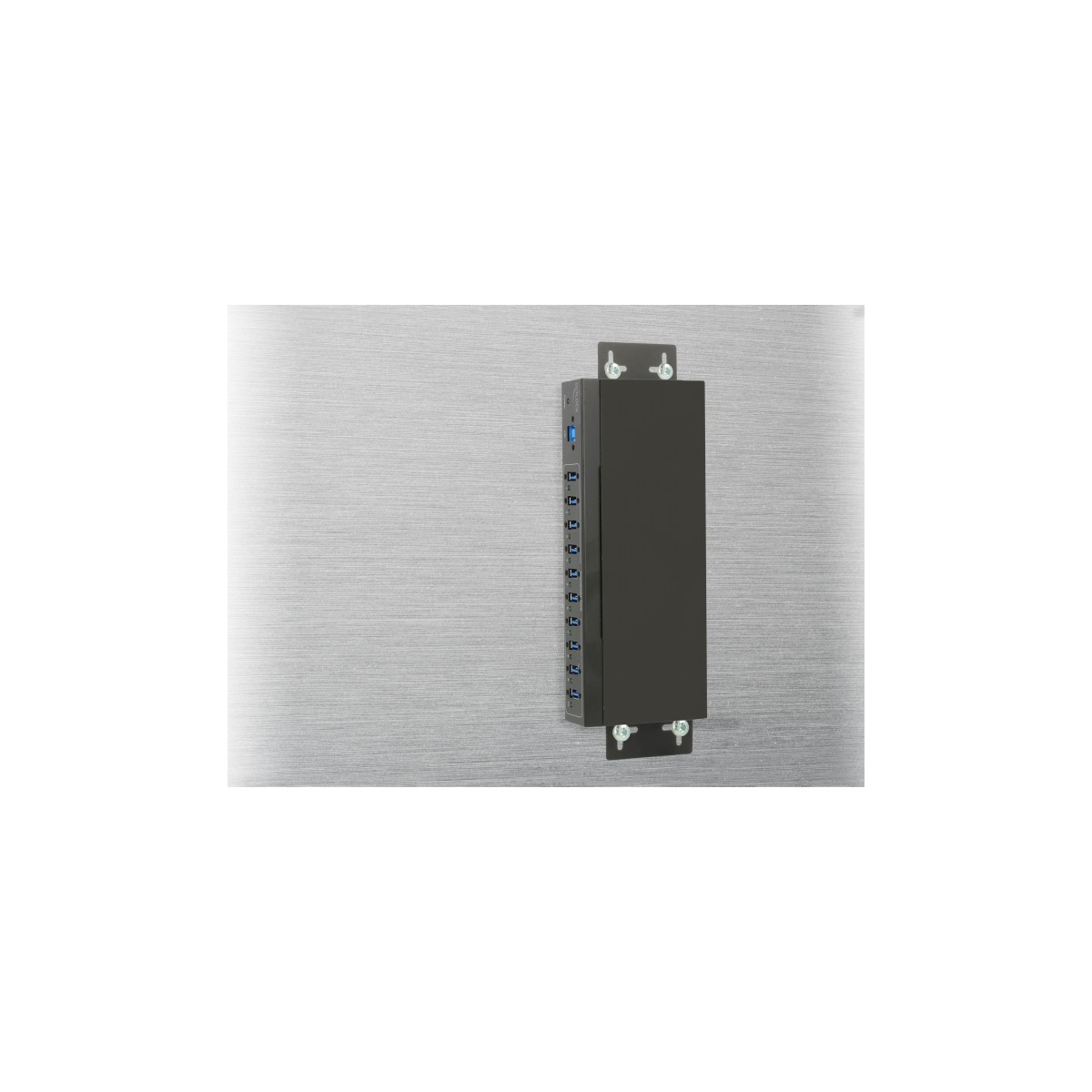

• Removable wall-mount brackets
• Power supply: Bus-powered or Self-powered
• Flexible power supply with 9 V to 40 V
• Automatic detection of the input polarity of the power connectors
• ESD protection up to 20 kV for all ports
• Dimensions (LxWxH): ca. 202 x 80 x 32 mm
• Colour: black
• Plug & Play

Specification of power connector
• 9 - 40 V
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm

System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.16.x, Mac ex OS 10.9
• PC or laptop with a free USB Type-A port

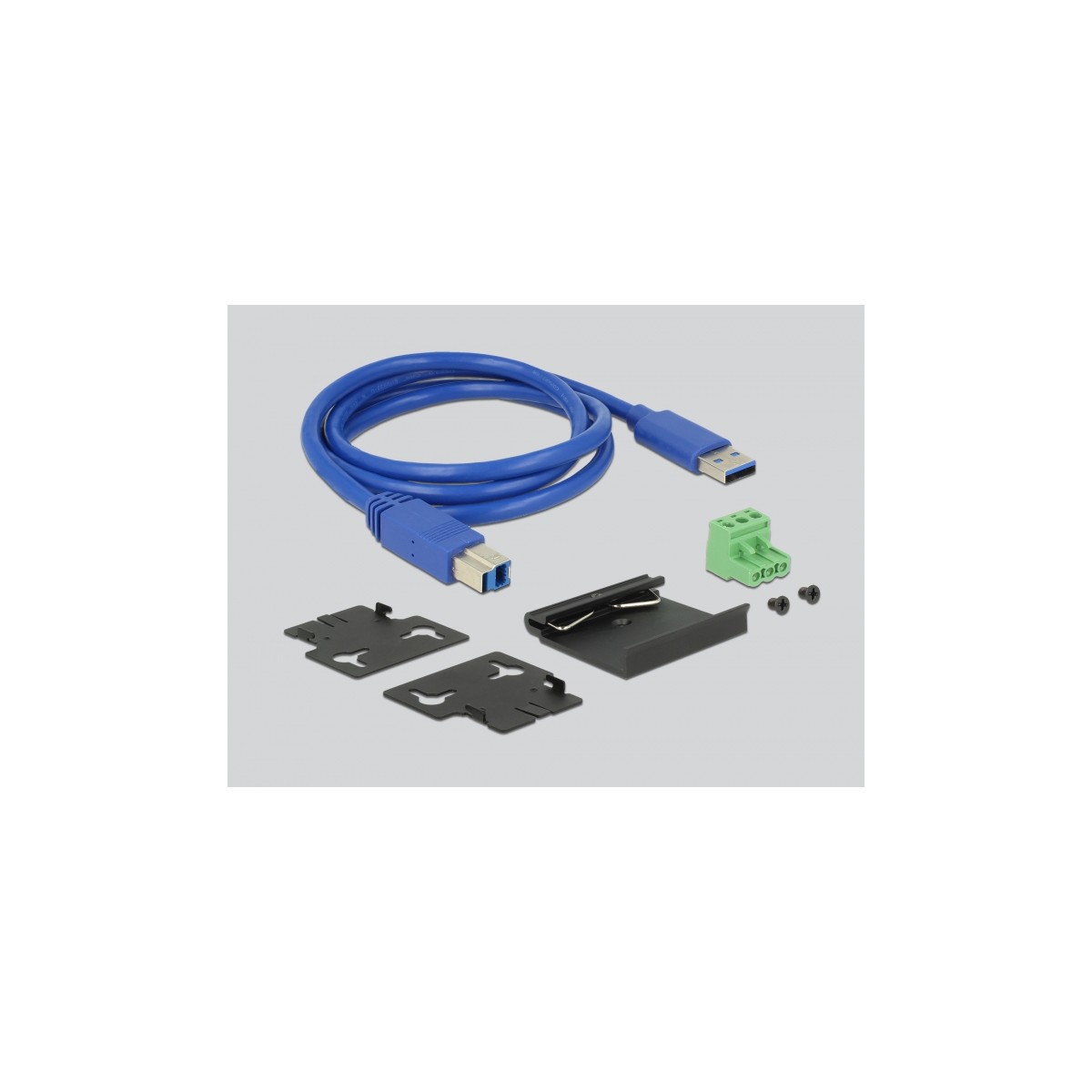

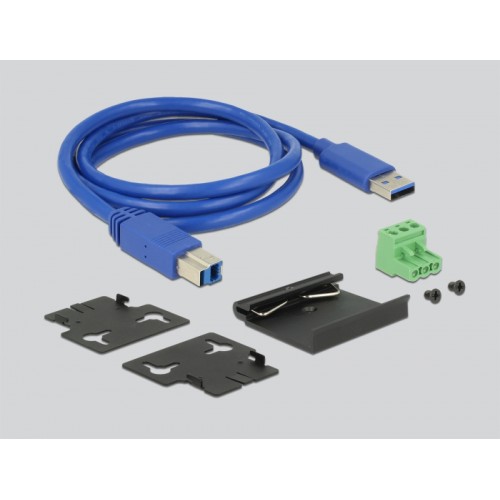

Package content
• Hub USB
• 1 x cable USB A male to USB B male, length ca. 1 m
• 2 x wall mounting brackets
• 1 x mounting for 35 mm DIN rail
• 1 x 3 pin terminal block
• User manual
