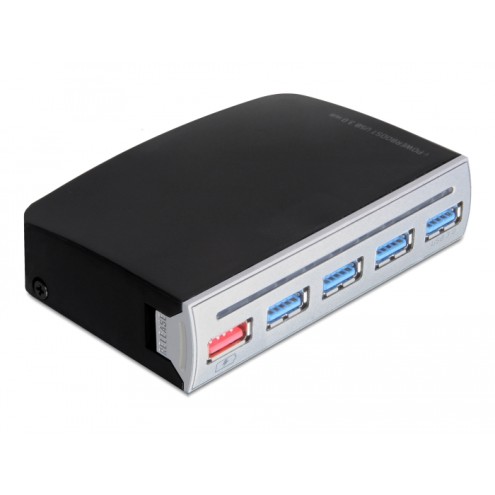

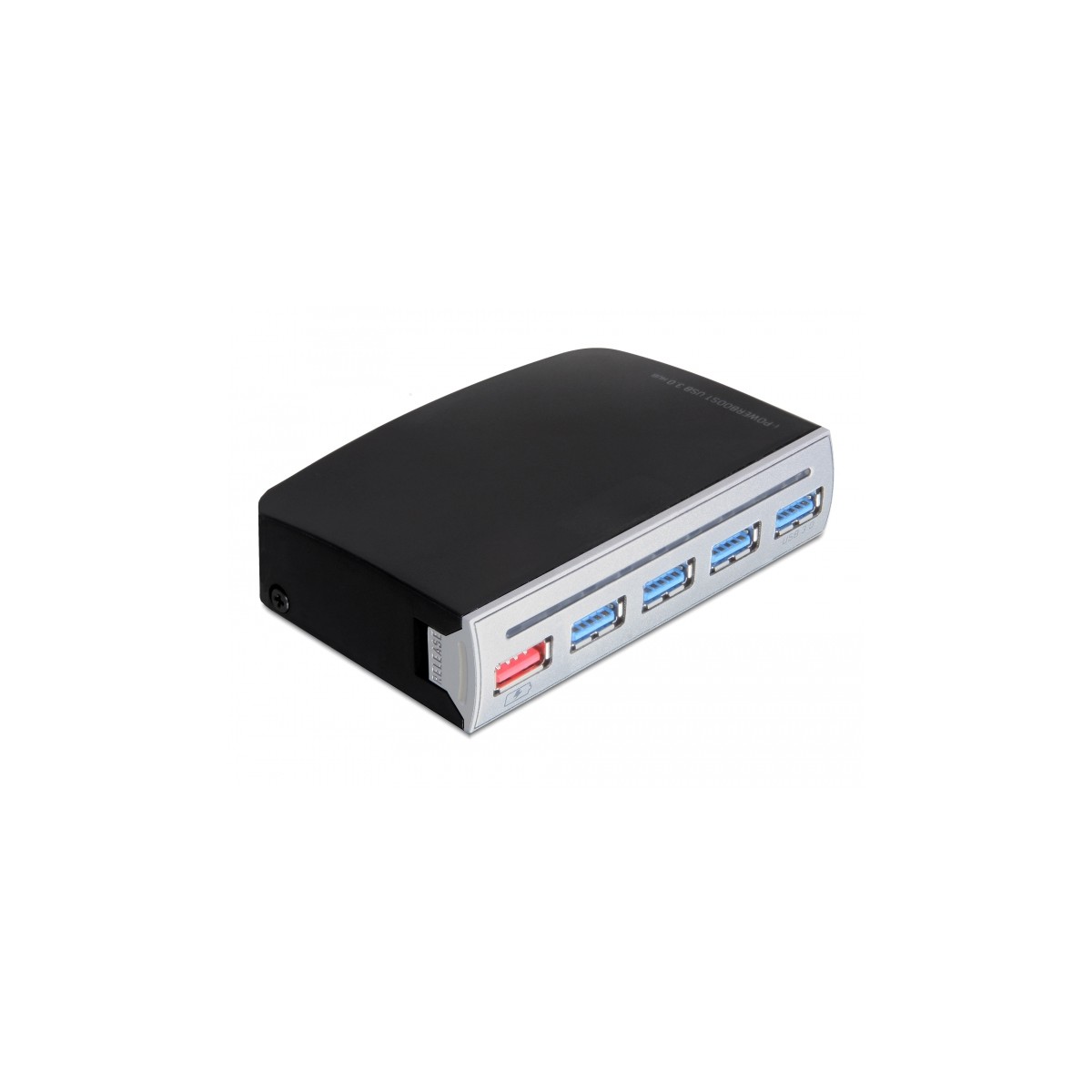

Delock 4 Port USB 5 Gbps Hub, 1 port USB power internal / external

Description
This Delock USB 5 Gbps Hub expands your PC or laptop by four additional USB 5 Gbps ports as well as one USB port, which can be used as power supply for your USB devices. The Hub can be used either externally with the included power supply or internally in a 3.5″ bay of your PC. Just connect the power cable of your PC power supply to the Hub and lead the USB 5 Gbps cable outside. You will also find three different panels in black, silver and beige included in delivery, in order to change the colour of the front part.

Specification
• Connectors:
front side:
1 x USB Type-A charging port max. 2 A
4 x USB 5 Gbps Type-A female

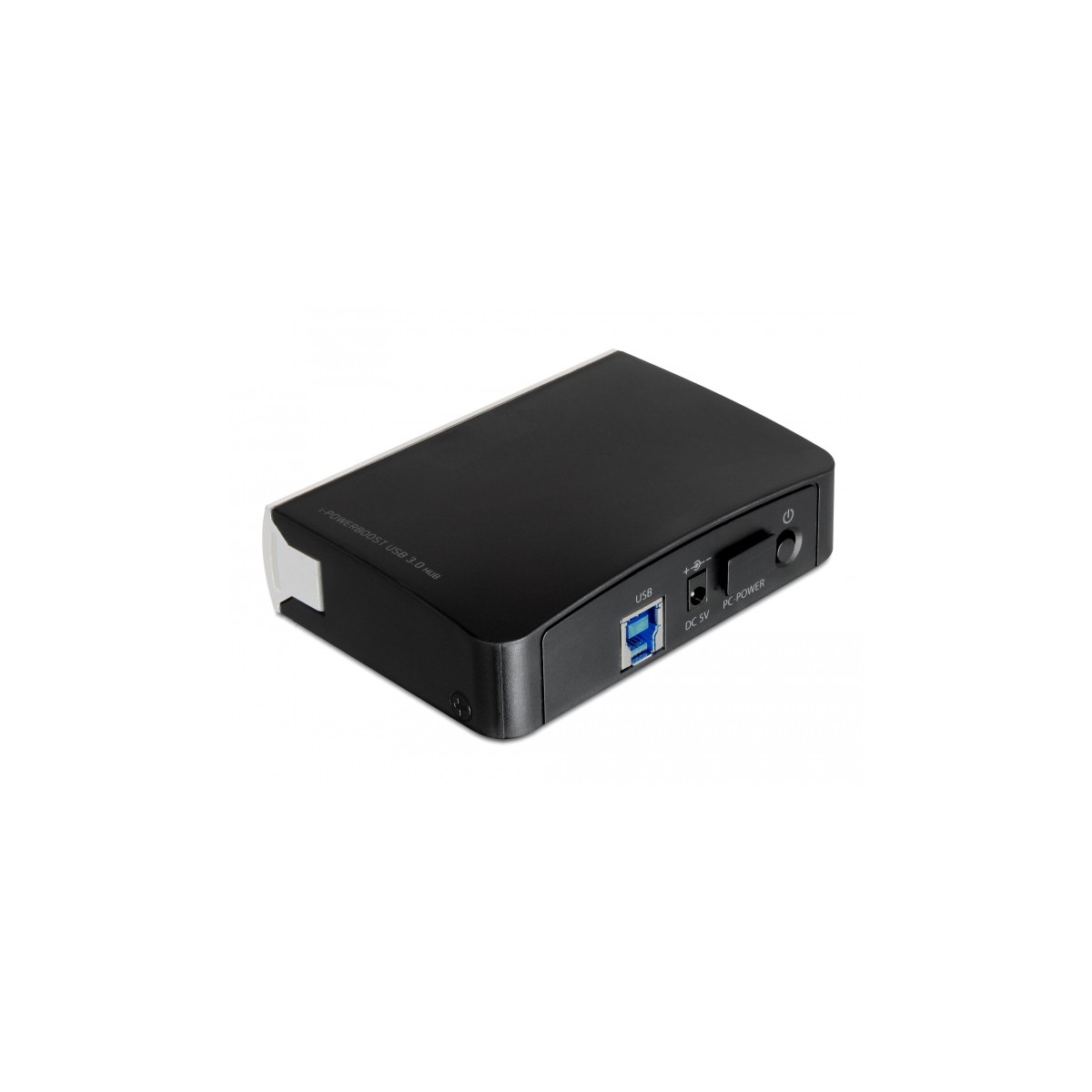

back side:
1 x USB 5 Gbps Type-B downstream port
1 x DC 5 V power connector
1 x 4 pin power connector
1 x On / Off switch (only for external use)
• Data transfer rate up to 5 Gbps
• For external connection or installation into a 3.5″ bay
• Use as self-powered (with power supply) or bus-powered (without power supply)
• LED indicator for power and access
• Dimensions (LxWxH): ca. 101.4 x 70.0 x 25.9 mm
• Hot Plug, Plug & Play

Power supply specification
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 5.0 V / 3.0 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.35 mm
outside: ø ca. 3.5 mm
length: ca. 10.5 mm

System requirements
• Linux Kernel 2.6 or above
• Mac OS 10.5 or above
• Windows Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64/11
• External use: PC or laptop with a free USB port
• Internal use: PC with one free 3.5″ bay, one 4 pin power cable and one free USB Type-A port

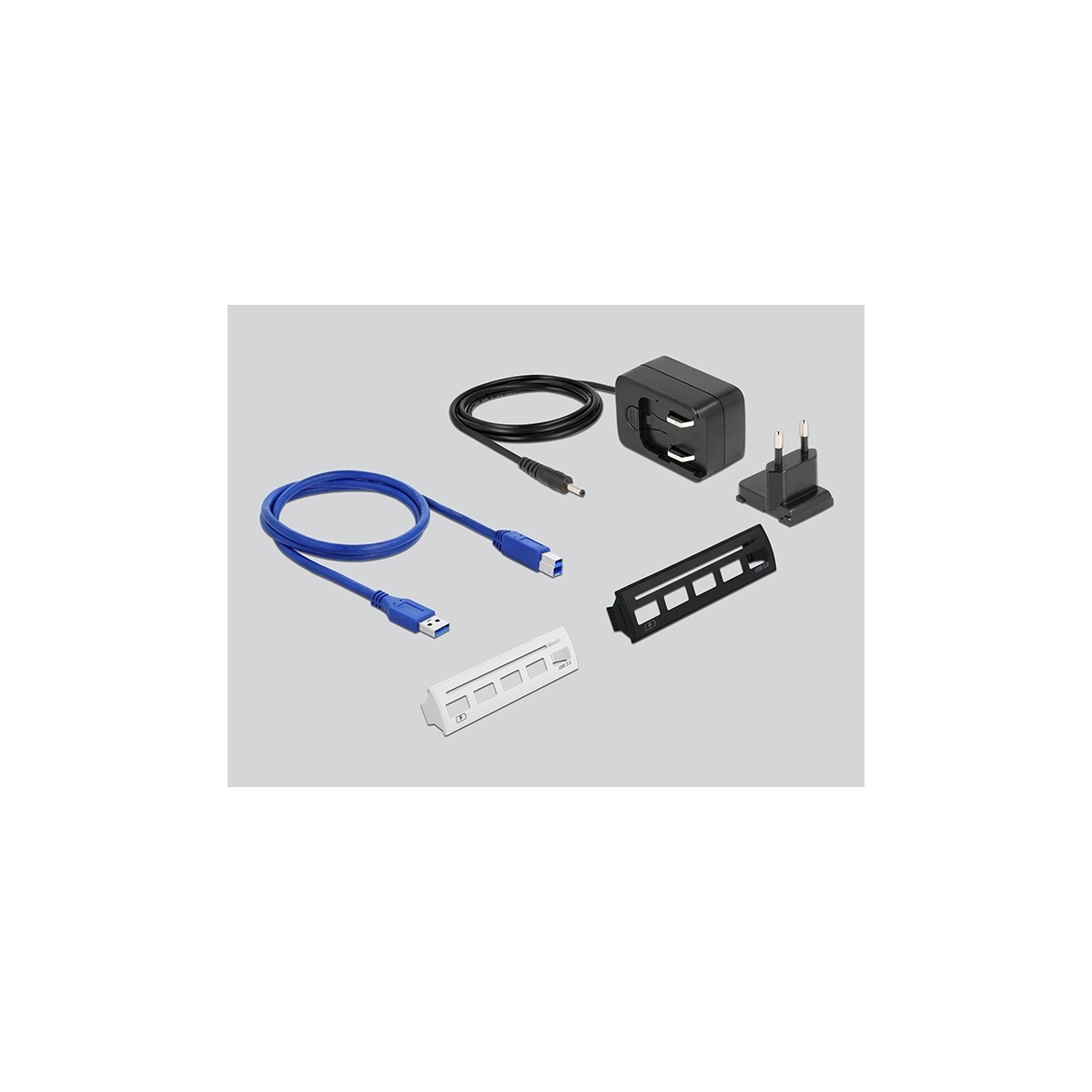

Package content
• Hub USB 5 Gbps
• USB 5 Gbps cable
• Panel black, silver, beige
• External power supply 5.0 V / 3.0 A
• User manual
