Easy to Integrate

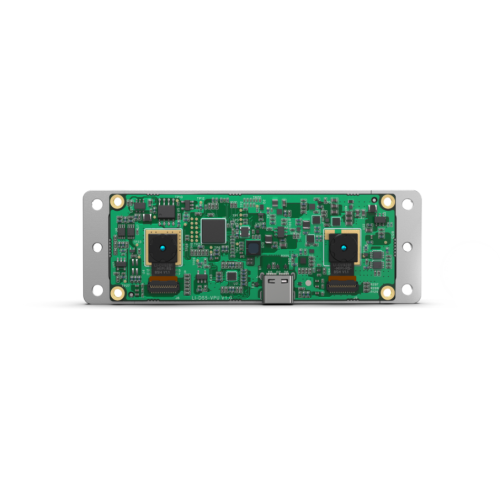

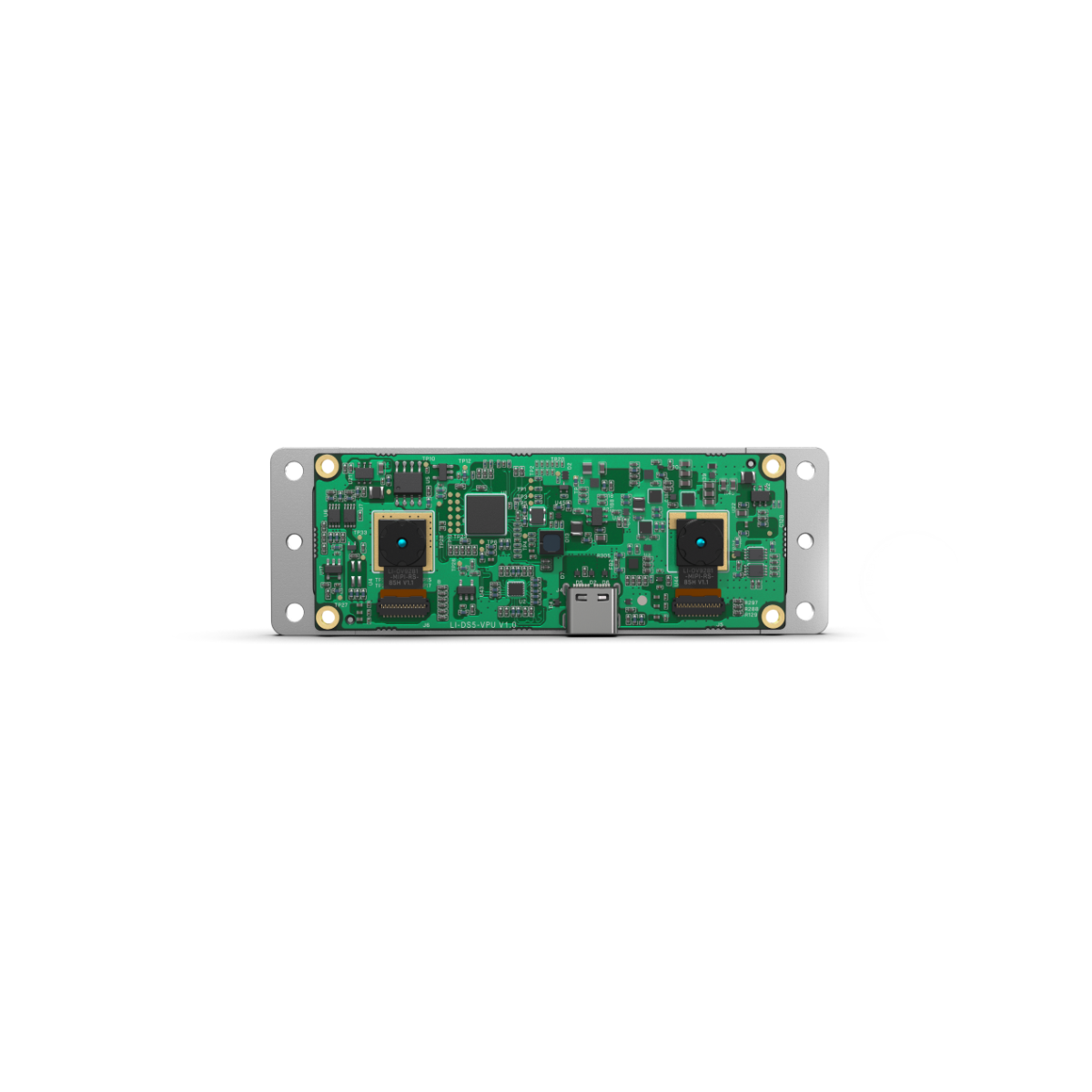

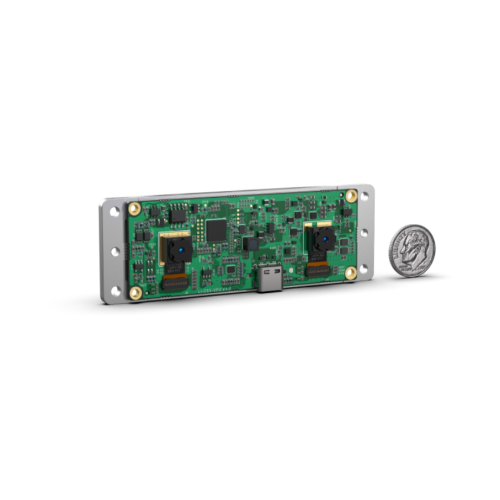

Plug-and-play functionality and the integrated single board with the module and the D4 vision processor ensure easy setup and compatibility with popular development frameworks. Intel RealSense Depth Module D421 is supported by the Intel RealSense SDK 2.0 and compatible with a wide range of platforms and operating systems, including Windows, Linux, and Android.
Versatile Vision-based AI Applications
Intel RealSense 3D Stereo technology is an integral part of any vision-based AI solution. Seeing the world in 3D allows for faster machine learning and lowers the time to deployment for automated solutions. D421 is equipped with 1MP global shutter depth sensors, and advanced depth-sensing algorithms for high-speed depth applications.
Best for Moving Robots and more
Lightweight, low-power, and easy-to-use depth cameras give robots the ability to navigate landscapes, avoid obstacles, and recognize objects, people, and more. With its compact size, ease of use, and high-performance depth-sensing capabilities, this module opens up a world of possibilities for applications ranging from 3D scanning to 3D glasses to toys and fast-moving consumer robots.
Tech Specs:
Features
Use environment:
Indoor/Outdoor
Image sensor technology:
Global Shutter
Recommended Range:
.2 m to over 2 m (varies with lighting conditions)
Operating Ambient temperature:
0°C to 35°C
Depth
Depth technology:
Stereoscopic
Minimum Depth Distance (Min-Z)
~20 cm
Depth Accuracy:
<4% at 2 m
Depth Field of View (FOV):
75°±3° × 50°±3°
Depth output resolution:
Up to 1280 × 720
Depth frame rate:
Up to 60 fps
Filter
Depth Filter:
IR Band Pass Filter
Physical
Form factor:
Camera Module
Length × Height × Depth:
95 mm × 32 mm × 10.18 mm
Connectors:
USB-C
