A Powerful, Full‑featured Depth Camera

The Intel® RealSense™ depth camera D435 is a stereo solution, offering quality depth for a variety of applications. It's wide field of view is perfect for applications such as robotics or augmented and virtual reality, where seeing as much of the scene as possible is vitally important. With a range up to 10m, this small form factor camera can be integrated into any solution with ease, and comes complete with our Intel RealSense SDK 2.0 and cross-platform support.

Combined Solution for Development & Productization

The D435 continues our commitment to developing cutting-edge vision sensing products. Combining an Intel module and vision processor together into a small form factor yields a solution ideal for both development and rapid product creation. Paired with highly customizable software, the D435 provides a low cost solution that is lightweight and powerful, enabling development of next-generation sensing solutions that can understand and interact with their surroundings.

Ideal for Low Light and Wide Field of View

The combination of a wide field of view and global shutter sensor on the D435 make it the preferred solution for applications such as robotic navigation and object recognition. The global shutter sensors provide great low‑light sensitivity allowing robots to navigate spaces with the lights off.

Complete Suite for Simple Integration

Depth camera D435 is part of the Intel® RealSense™

D400 series of cameras, a lineup that takes Intel’s latest depth‑sensing hardware and software packages them into easy‑to‑integrate products. Perfect for developers, makers, and innovators looking to bring depth sensing to devices, Intel® RealSense™ D400 series cameras offer simple out‑of‑the‑box integration and enable a whole new generation of intelligent vision‑equipped devices.

Tech Specs

Features

Use environment:

Indoor/Outdoor

Ideal range:

.3 m to 3 m

Depth

Depth technology:

Stereoscopic



Minimum depth distance

(Min‑Z) at max resolution:

~28 cm



Depth Accuracy:

<2% at 2 m



Image sensor technology:

Global Shutter

Depth Field of View (FOV):

87° × 58°



Depth output resolution:

Up to 1280 × 720



Depth frame rate:

Up to 90 fps

RGB

RGB frame resolution:

1920 × 1080



RGB frame rate:

30 fps



RGB sensor technology:

Rolling Shutter

RGB sensor FOV (H × V):

69° × 42°



RGB sensor resolution:

2 MP

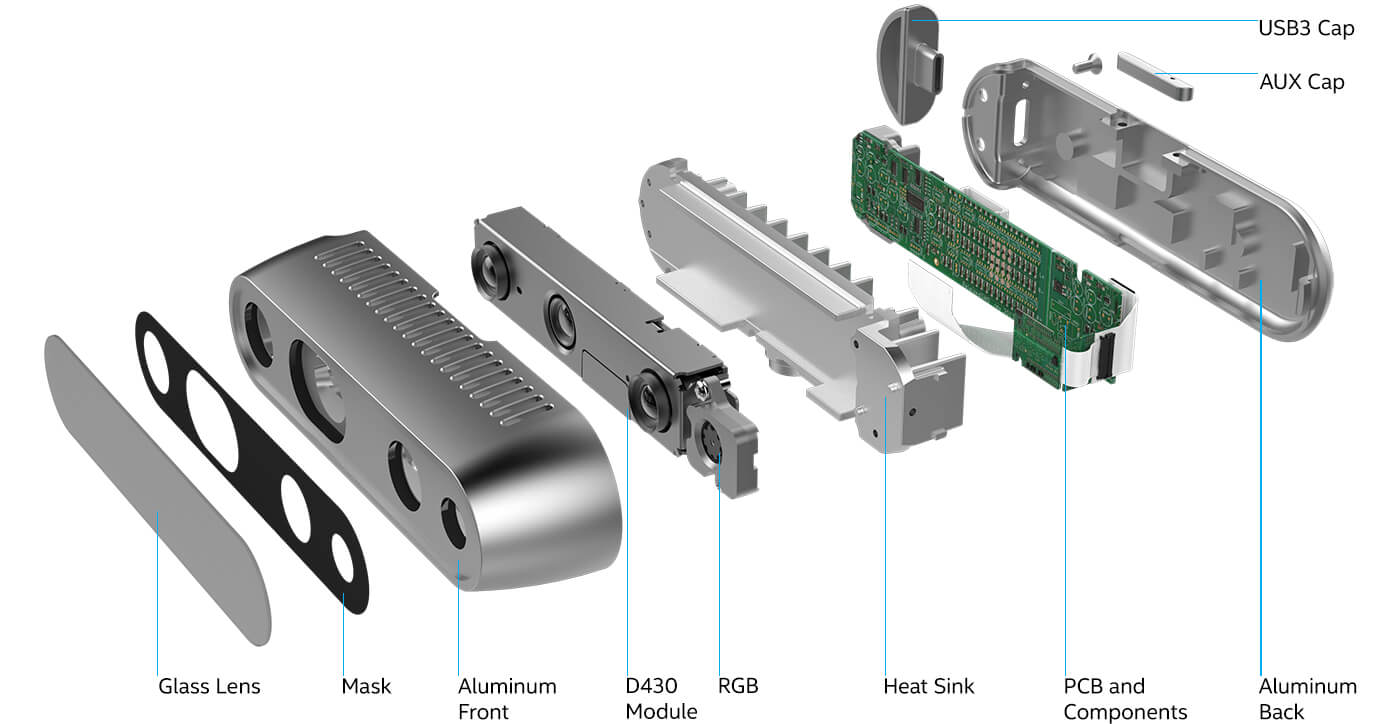

Major Components

Camera module:

Intel RealSense Module D430 + RGB Camera

Vision processor board:

Intel RealSense Vision Processor D4

Physical

Form factor:

Camera Peripheral



Length × Depth × Height:

90 mm × 25 mm × 25 mm

Connectors:

USB‑C* 3.1 Gen 1*



Mounting mechanism:

– One 1/4‑20 UNC thread mounting point.

– Two M3 thread mounting points.
