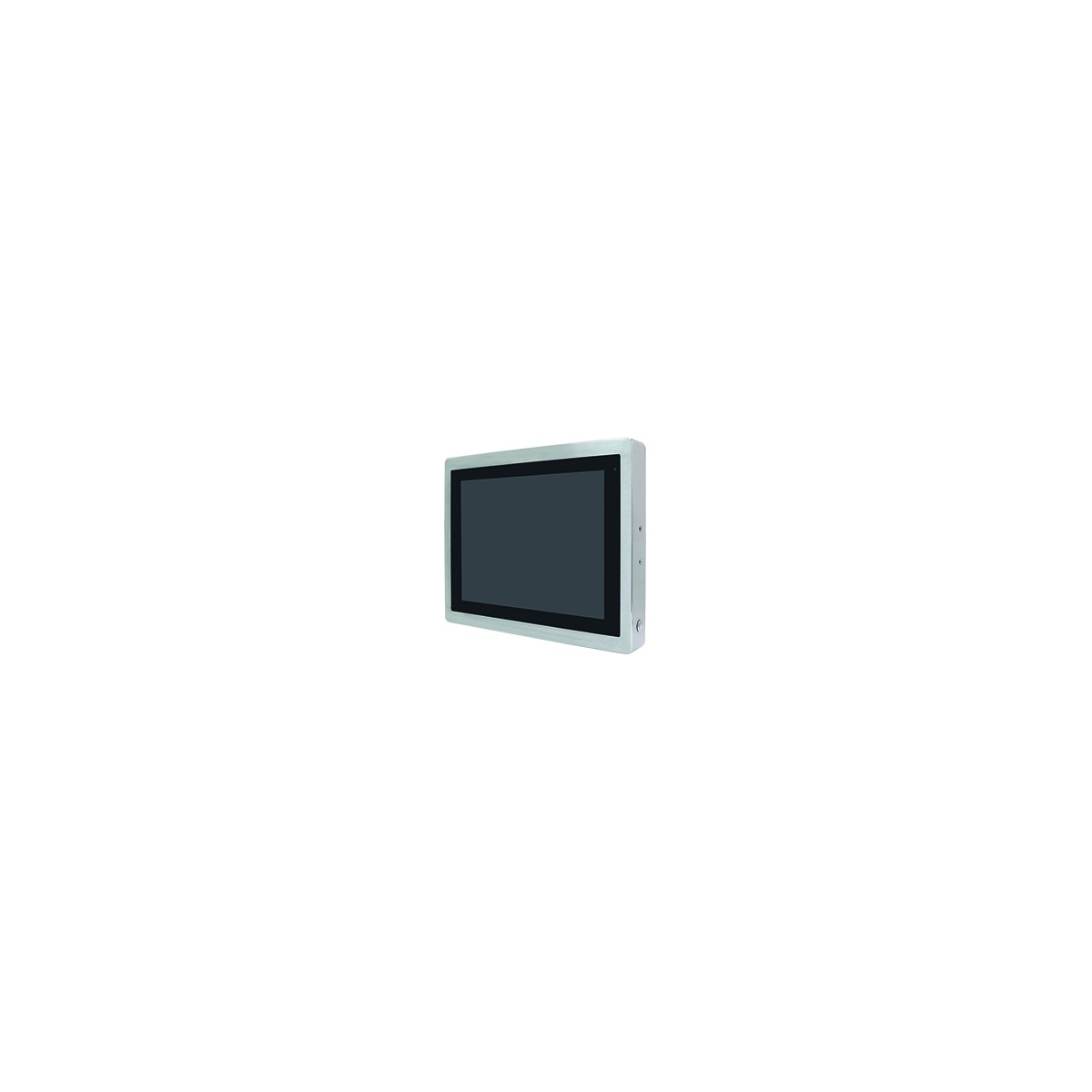

Panel PC 7" / 10" / 12" / 15" / 17" / 19" / 21" IP66 / IP69K frontale in acciaio inox, CPU Celeron 1,8Ghz, touchscreen opzionale
Nuovo
Specifications
System
CPU: Onboard Intel Celeron N2930 Processor (2M Cache, 1.83GHz)
System Chipset: SoC
System Memory: Onboard 4GB DDR3L SDRAM
External I/O
USB: 2 x USB 3.0 type A
Serial / Parallel: 1 x RS-232/422/485 DB-9, default RS-232(COM1)1 x RS-232 DB-9(COM2)
Audio: 1 x Line 0ut
LAN: 2 x GbE LAN RJ-45
Power: 1 x 3-pin terminal block connector, 1 x 2-pin Power Switch connector
Storage Space
HDD/SSD: 1 x 2.5” SATA HDD space (Easily Accessible)
Others: 1 x internal SD slot onboard
Expansion
On board expansion bus1 x Mini-PCIe (full size)
Display
LCD Size: 17" TFT-LCD
Max. resolution: 1280 x 1024
Max. color: 16.7M
Luminance(cd/m²): 350
Viewangle(H°/V°): 160/ 140
Backlight lifetime(hrs): 50,000
Touch Screen(Option)
Touch Type: Without Touch, Only Glass with Anti-Reflection Coating
Light transmission(%): over 90%
Power
Power inputDC 9~36V
Mechanical
Construction: 304(default)/316(option) Stainless steel front bezel, Aluminum back cover
IP rating: IP66/IP69K compliant front bezel
Mounting: Panel mounting, VESA 100 x 100
Environment
Operating temperature(°C): 0~50°C (-20~60 option)
Storage temperature(°C): -30~70°C
Storage humidity: 10 to 90%@ 40˚C, non-condensing
Certification: CE / FCC Class A / EN 1672-2
Operating System Support: Windows embedded 7Windows embedded 8.1Windows 10 IoT ENT LTSB
