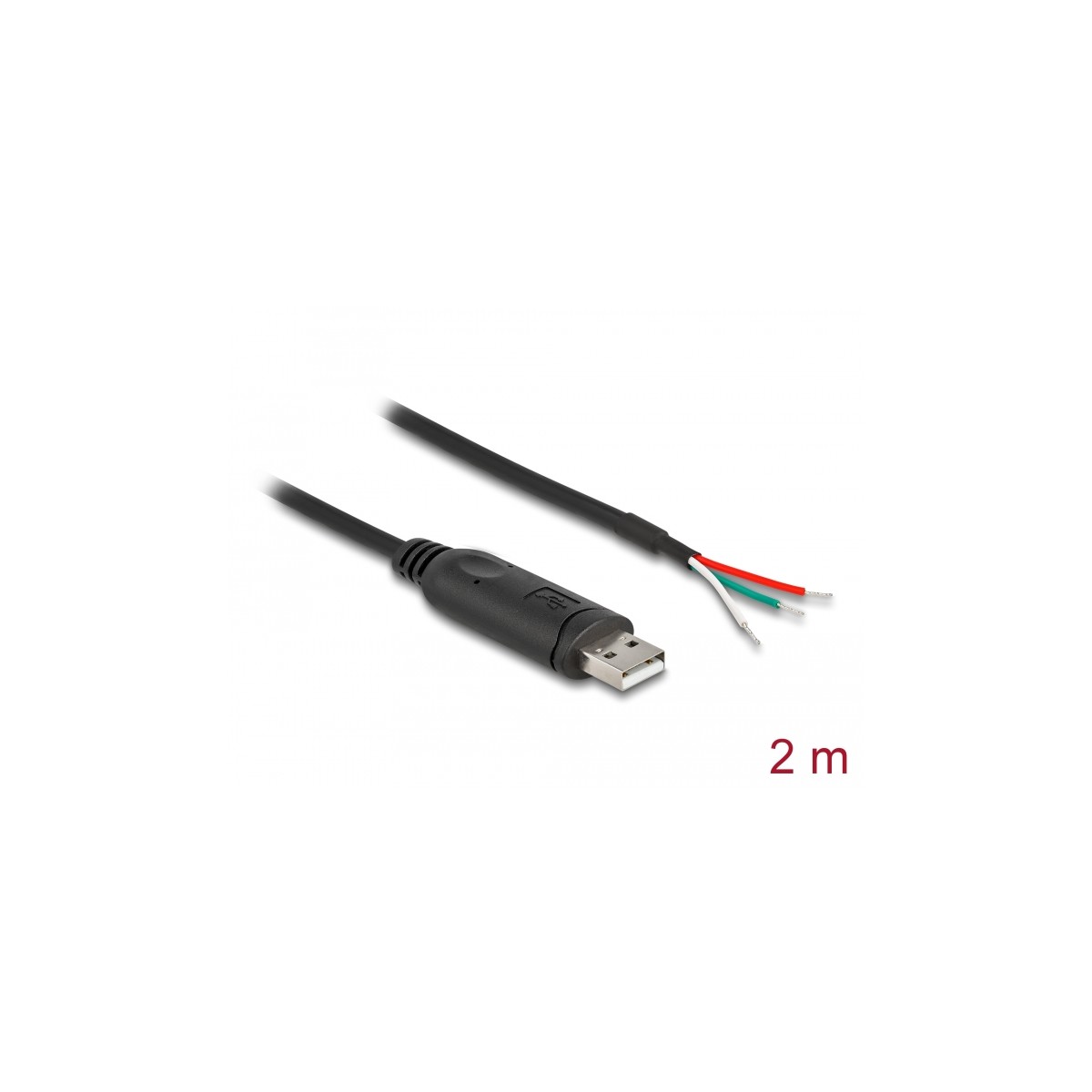

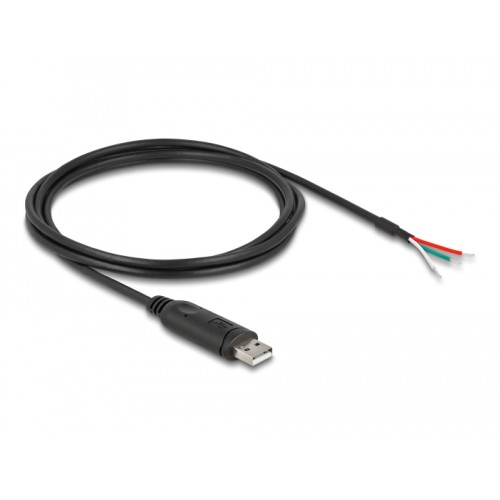

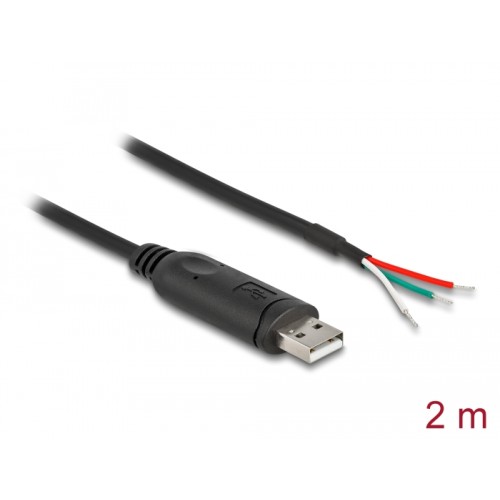

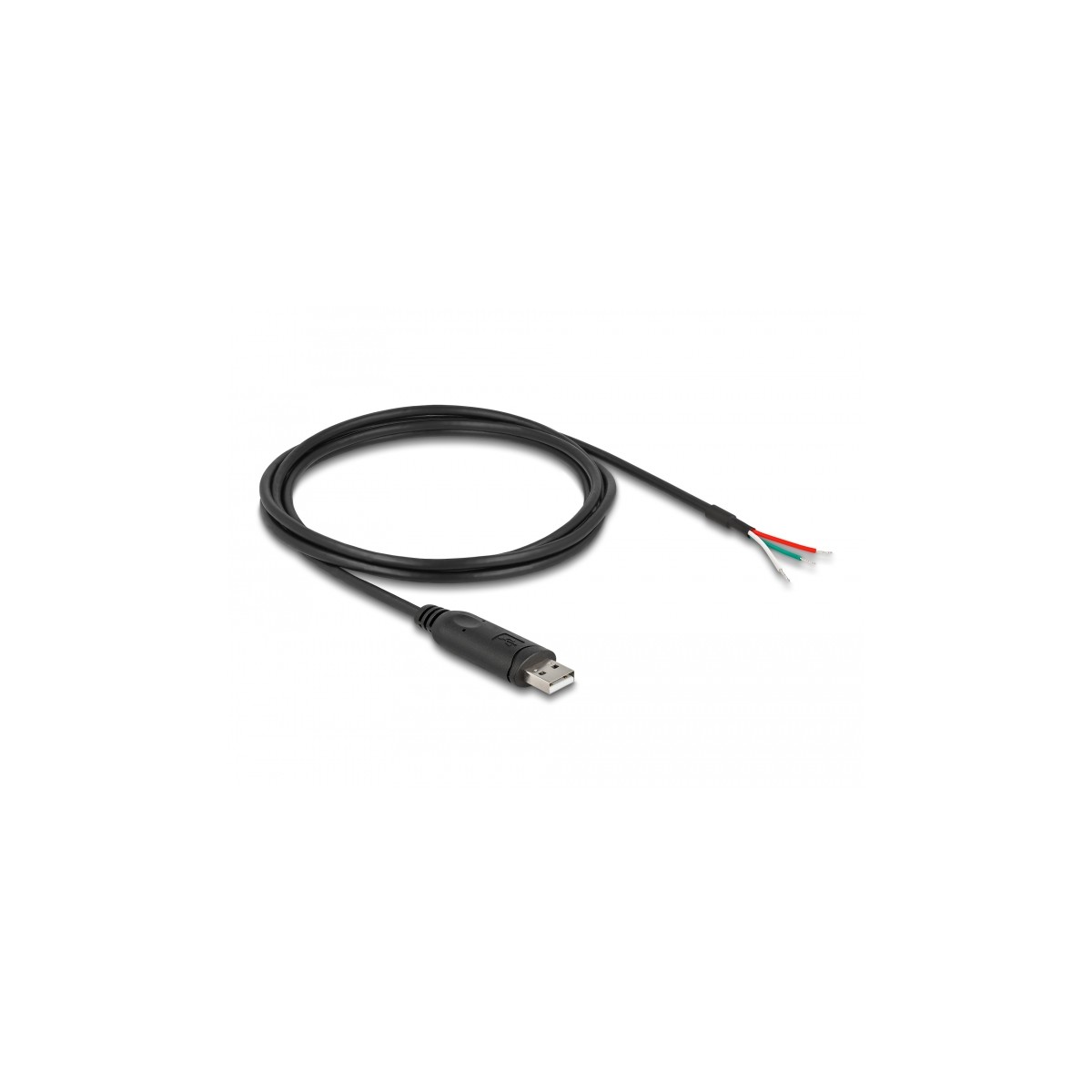

Delock Adapter Cable USB 2.0 Type-A to Serial RS-485 with 3 x open wire ends 2 m
63509
Nuovo
Description
The RS-485 adapter cable by Delock supports data transmission between devices with USB 2.0 and devices with RS-485 interfaces. The RS-485 connections of the adapter are suitable for smart meters, PV inverters, measuring devices, etc.
Open wire ends
With the tinned open wire ends, the connection can be made directly to an RS-485 device port.
Specification
• Connectors:
1 x USB Type-A male
1 x Serial RS-485 3 x open wire ends (tinned)
• Chipset: FTDI FT232R
• Compatible to UHCI / OHCI / EHCI controller
• Data transfer rate up to 921.6 Kbps
• Pin assignment: T/R (A+) red, T/R (B-) white, GND green
• Cable diameter: ca. 5 mm
• Conductor: stranded copper wire
• Insulator: PVC
• Cable length incl. connectors: ca. 2 m
• Colour: black
System requirements
• Linux Kernel 5.19 or above
• Windows 10/10-64/11
• PC or laptop with a free USB Type-A port
Package content
• USB Type-A to RS-485 adapter
The RS-485 adapter cable by Delock supports data transmission between devices with USB 2.0 and devices with RS-485 interfaces. The RS-485 connections of the adapter are suitable for smart meters, PV inverters, measuring devices, etc.
Open wire ends
With the tinned open wire ends, the connection can be made directly to an RS-485 device port.
Specification
• Connectors:
1 x USB Type-A male
1 x Serial RS-485 3 x open wire ends (tinned)
• Chipset: FTDI FT232R
• Compatible to UHCI / OHCI / EHCI controller
• Data transfer rate up to 921.6 Kbps
• Pin assignment: T/R (A+) red, T/R (B-) white, GND green
• Cable diameter: ca. 5 mm
• Conductor: stranded copper wire
• Insulator: PVC
• Cable length incl. connectors: ca. 2 m
• Colour: black
System requirements
• Linux Kernel 5.19 or above
• Windows 10/10-64/11
• PC or laptop with a free USB Type-A port
Package content
• USB Type-A to RS-485 adapter
