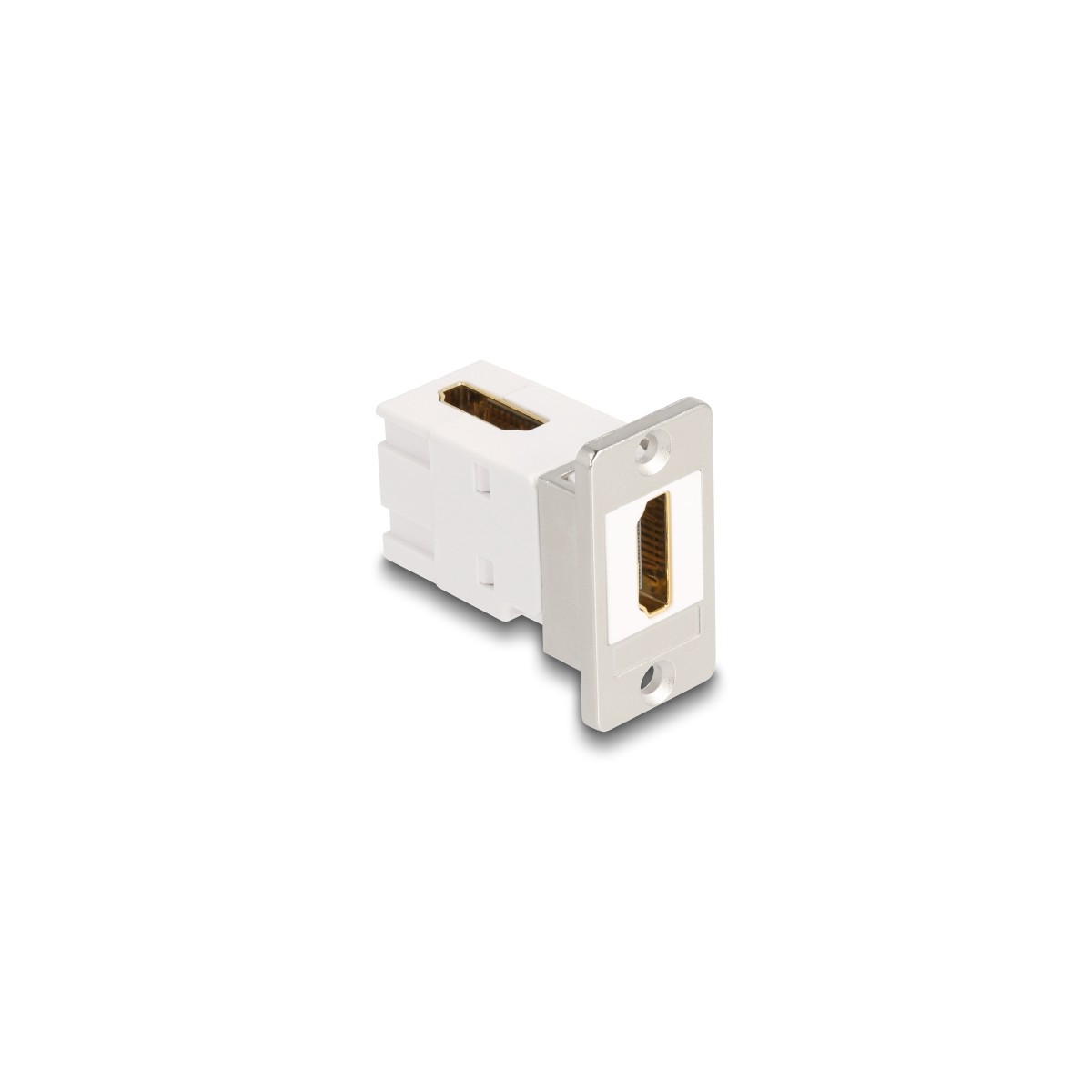

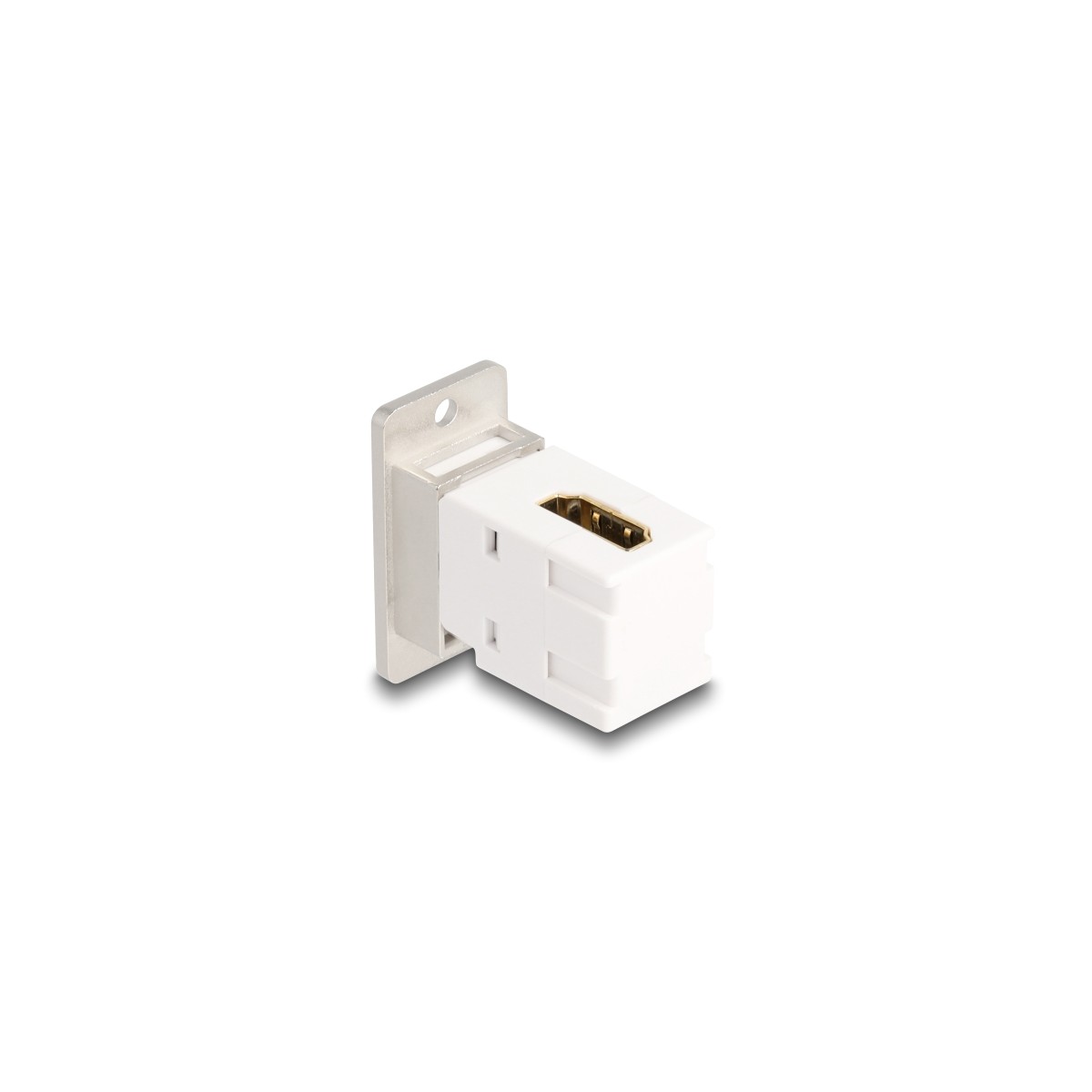

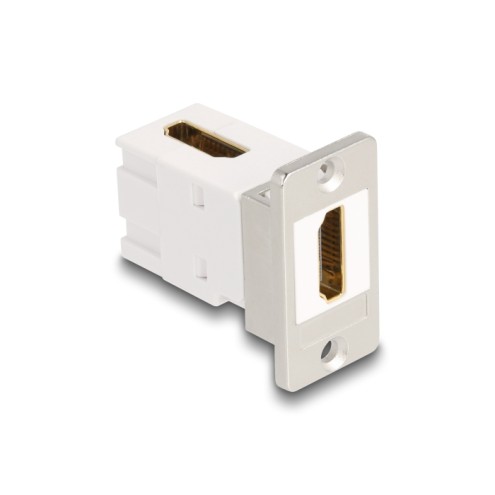

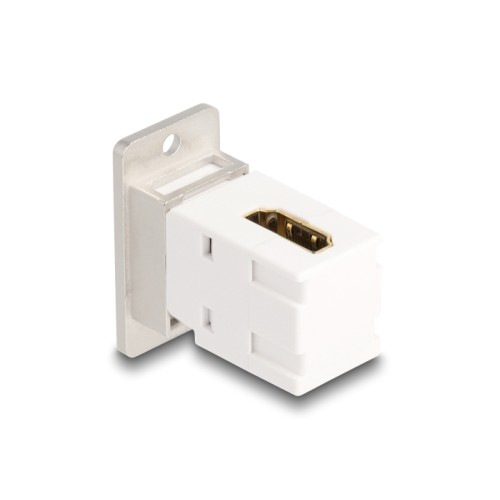

Delock Panel Mount Keystone Module HDMI female to female 90° angled 8K 60 Hz conical
67167
Nuovo
Description
This Keystone module with mounting holder by Delock can be used to extend HDMI cables and is suitable for installation in housings or switch cabinets.
Specification
• Connectors:
1 x HDMI female
1 x HDMI female 90° angled
• Resolution up to 7680 x 4320 @ 60 Hz (depending on the system and the connected hardware)
• With Keystone holder for panel mount
• Integrated name plate
• Panel cut-out (WxH): ca. 16.8 x 22.3 mm
• Countersink for conical screws, distance ca. 28.9 mm
• Mounting hole diameter: ca. 3.3 mm
• Screw type: #4-40 UNC
• Operating temperature: -10 °C ~ 60 °C
• Material: zinc diecast / plastic
• Colour: silver / white
• Dimensions (LxWxH): ca. 36.7 x 19.2 x 35.5 mm
System requirements
Package content
• HDMI Keystone module with holder

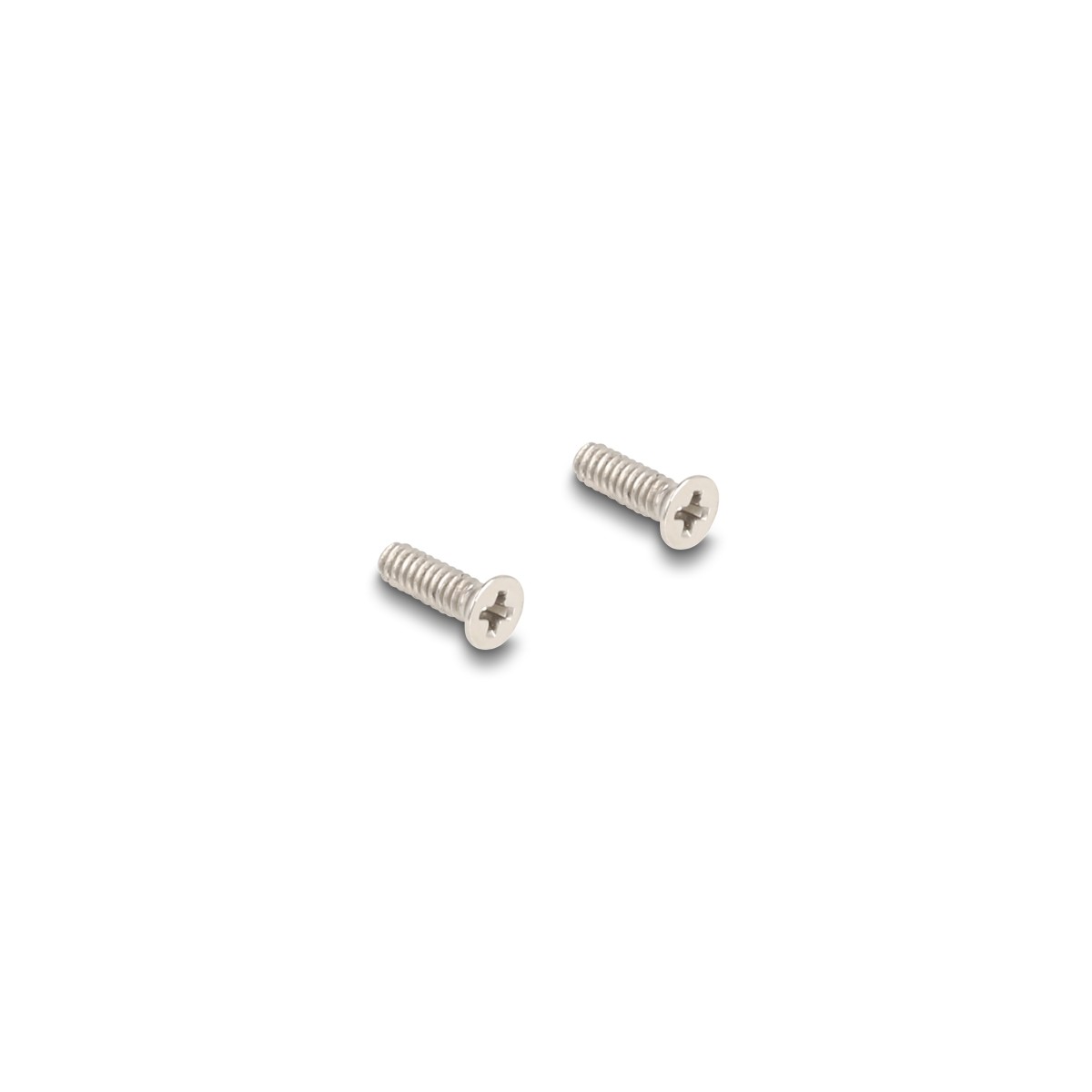

• 2 x screws
This Keystone module with mounting holder by Delock can be used to extend HDMI cables and is suitable for installation in housings or switch cabinets.
Specification
• Connectors:
1 x HDMI female
1 x HDMI female 90° angled
• Resolution up to 7680 x 4320 @ 60 Hz (depending on the system and the connected hardware)
• With Keystone holder for panel mount
• Integrated name plate
• Panel cut-out (WxH): ca. 16.8 x 22.3 mm
• Countersink for conical screws, distance ca. 28.9 mm
• Mounting hole diameter: ca. 3.3 mm
• Screw type: #4-40 UNC
• Operating temperature: -10 °C ~ 60 °C
• Material: zinc diecast / plastic
• Colour: silver / white
• Dimensions (LxWxH): ca. 36.7 x 19.2 x 35.5 mm
System requirements
Package content
• HDMI Keystone module with holder
• 2 x screws
Nuovo
4043619671670
