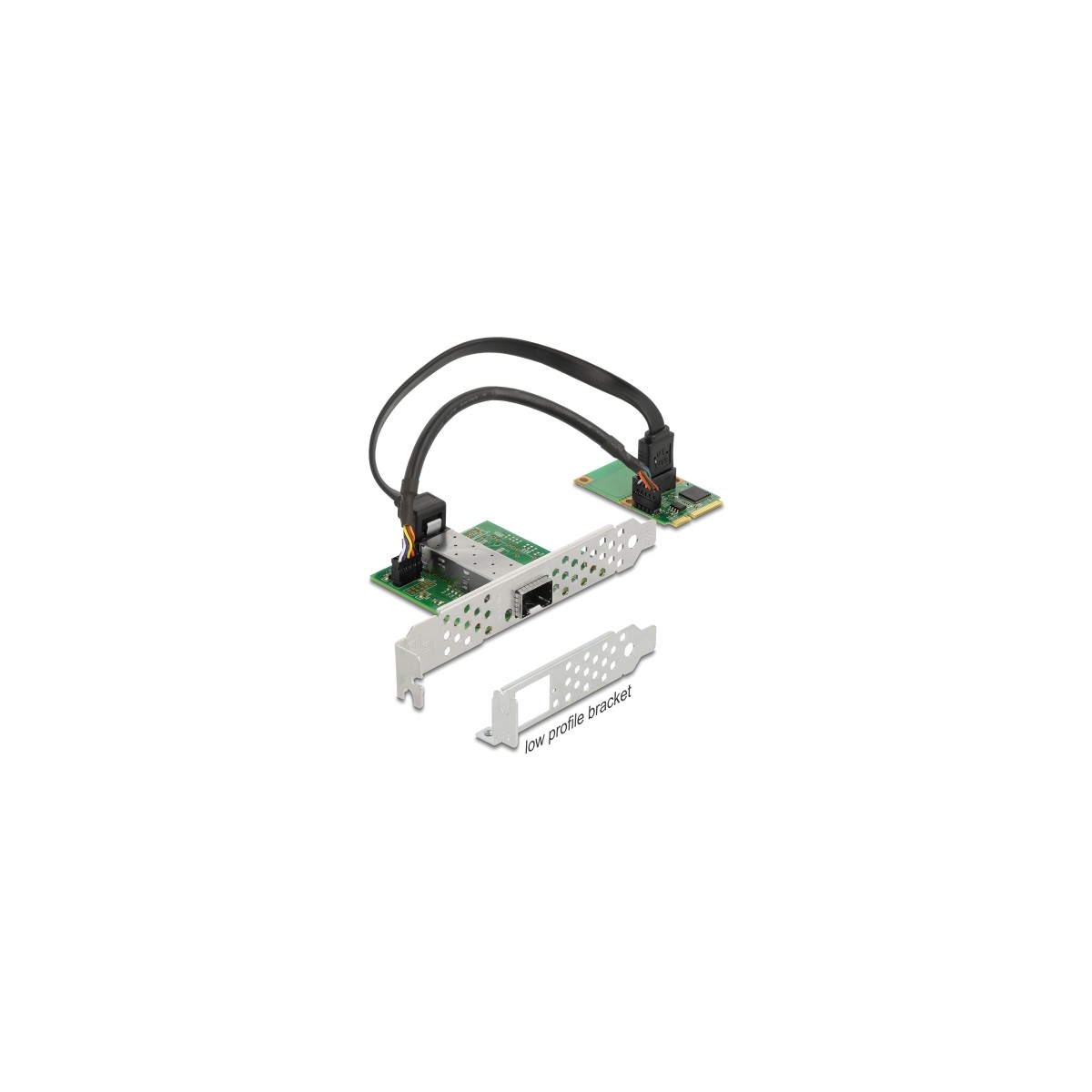

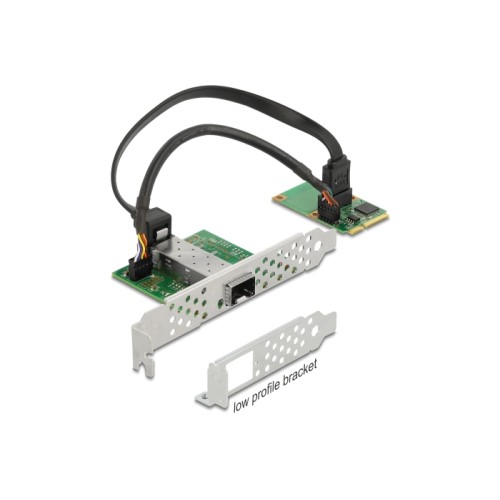

Delock Mini PCIe I/O PCIe full size 1 x SFP Gigabit LAN

Description
This Mini PCIe module by Delock expands a system by one Gigabit LAN SFP interface, which can be lead out via the slot bracket.
With the perforation, the length can be shortened from full size to half size.

Specification
• Connectors:
internal:
1 x Mini PCIe male
external:
1 x SFP slot for 1 Gbps SFP module
• Chipset: Intel i210
• Form factor: Mini PCIe full size / half size
• Interface: PCI Express revision 2.1
• Data transfer rate:
Ethernet up to 10 Mbps
Fast Ethernet up to 100 Mbps
Gigabit Ethernet up to 1000 Mbps
PCI Express x1 up to 4 Gbps
• Supports IEEE 802.3 / 802.3u / 802.3z / 802.3ab
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports 9k Jumbo Frames
• Supports PXE
• Operating temperature: 0 °C ~ 55 °C
• Storage temperature: -40 °C ~ 70 °C
• Cable length with connectors: ca. 18 cm

System requirements
• Linux Kernel 2.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• Motherboard with a free Mini PCIe slot with a PCIe interface
• PC with one free slot
• SFP module

Package content
• Mini PCIe module
• 2 connecting cable
• Slot bracket
• Low profile bracket
• User manual
