Delock Barcode Scanner Module 1D and 2D - German Version

Description

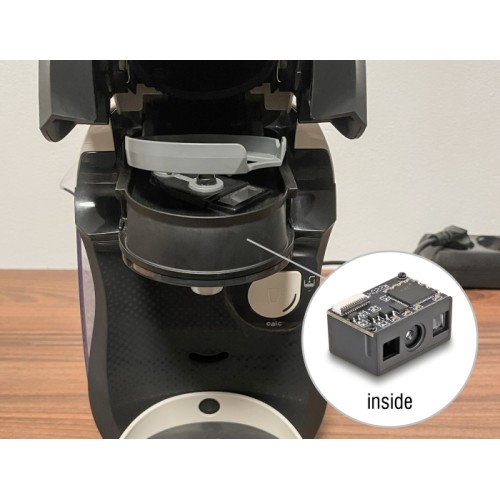

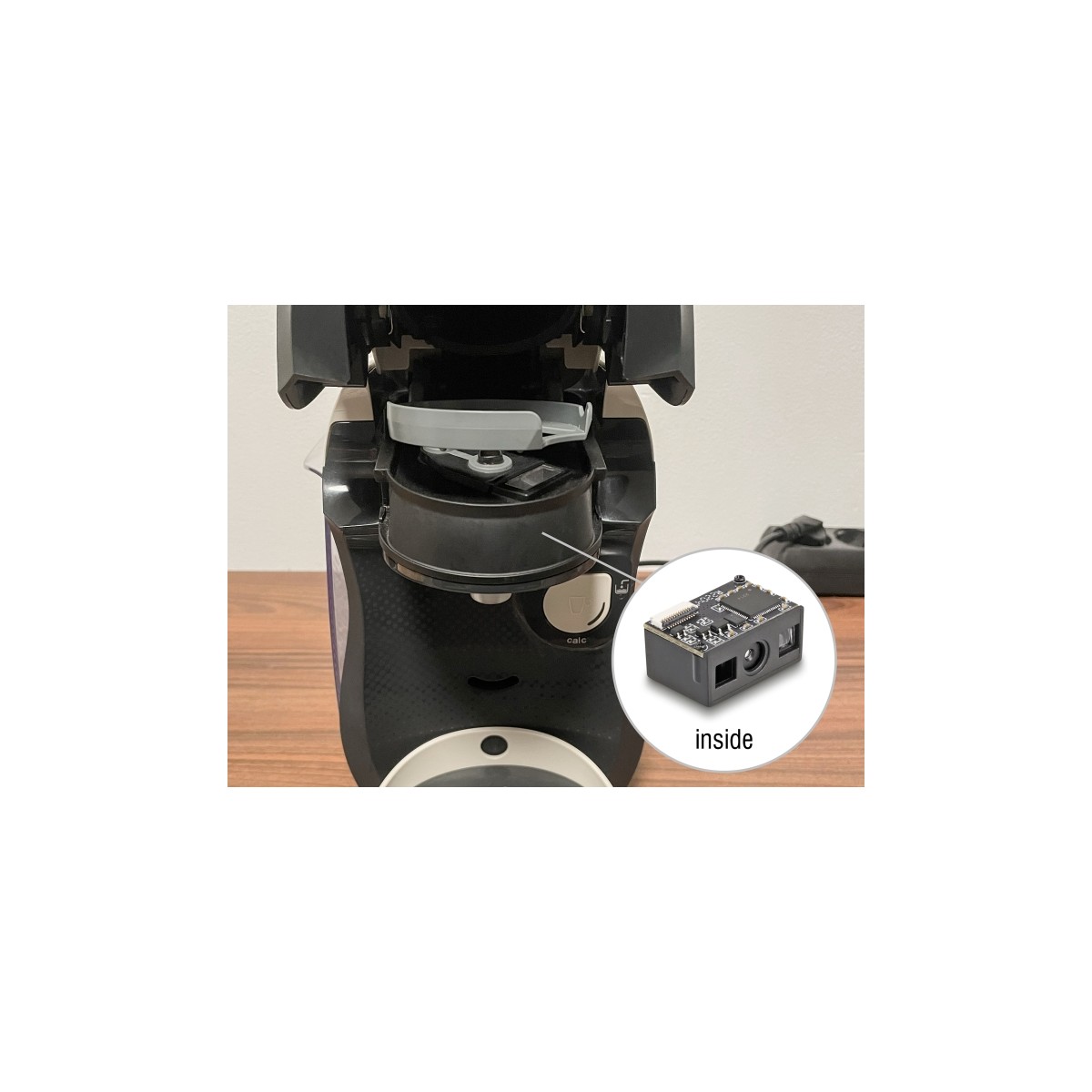

This barcode scanner module by Delock can be used for installation in any housing.

Small but powerful

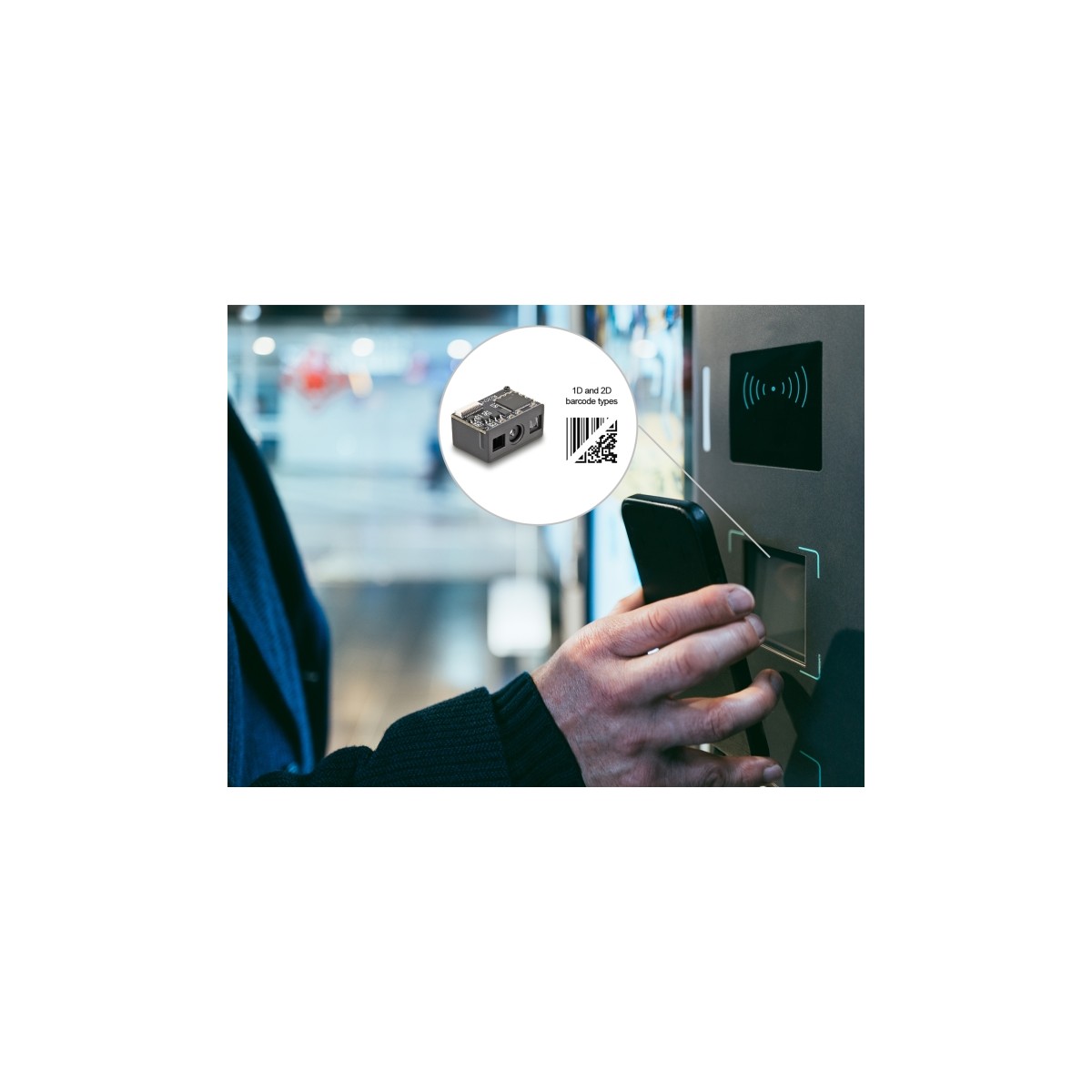

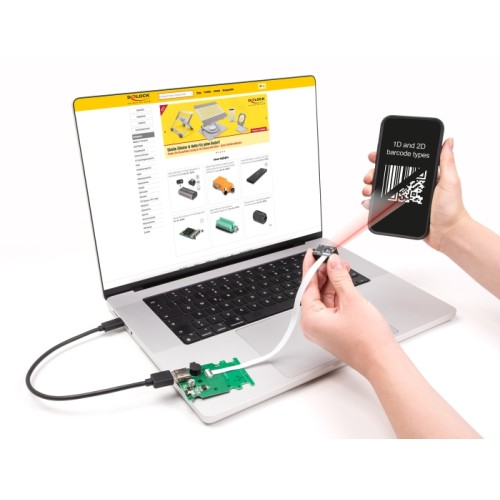

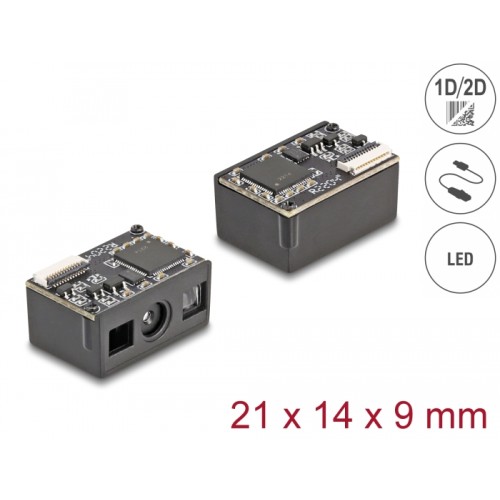

The module convinces with a size of 21 x 14 x 9 mm. All common 1D and 2D barcode types can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.

Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 30 scans per second under optimal lighting conditions.
In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.

Please Note
This module is intended exclusively for the output of the German keyboard.

Specification

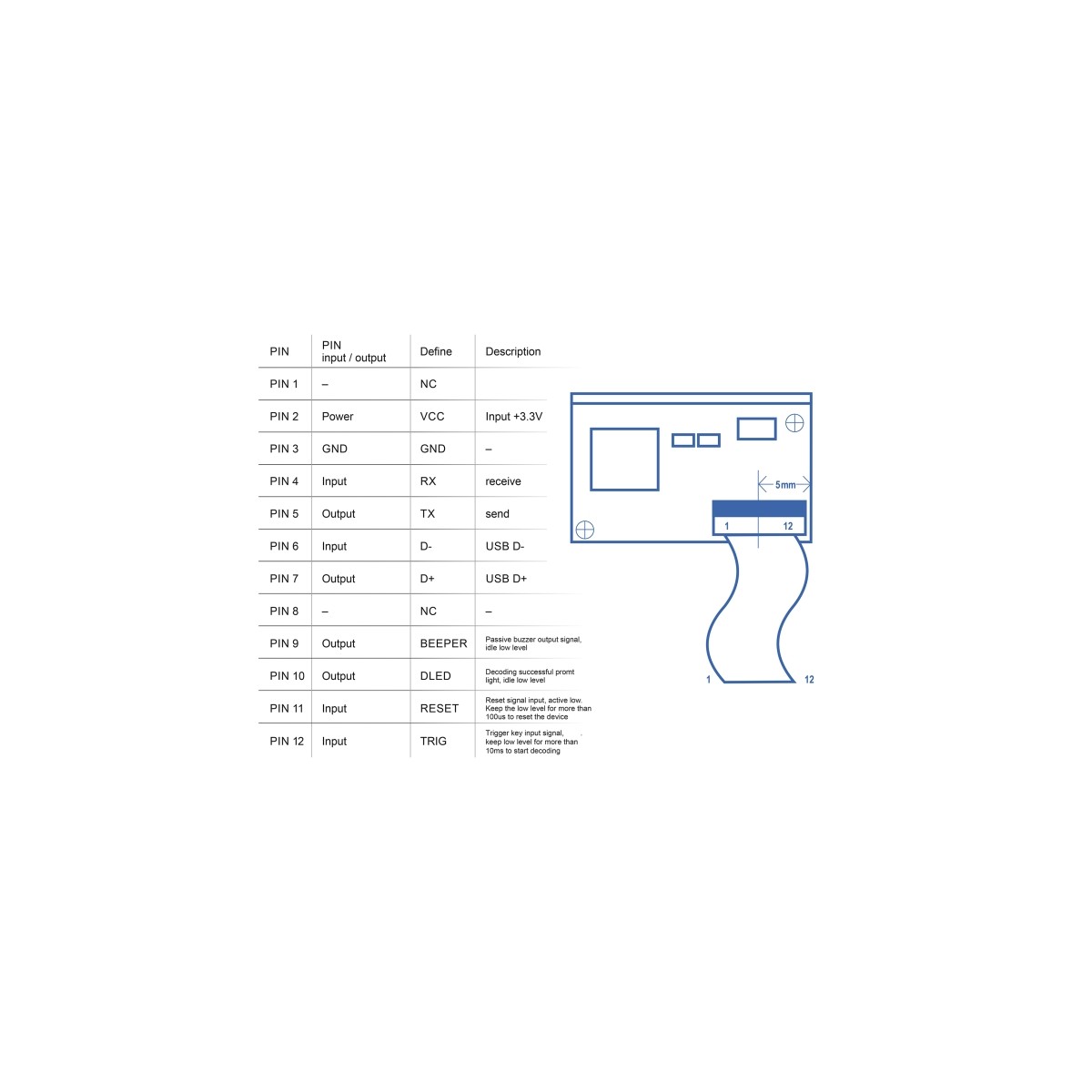

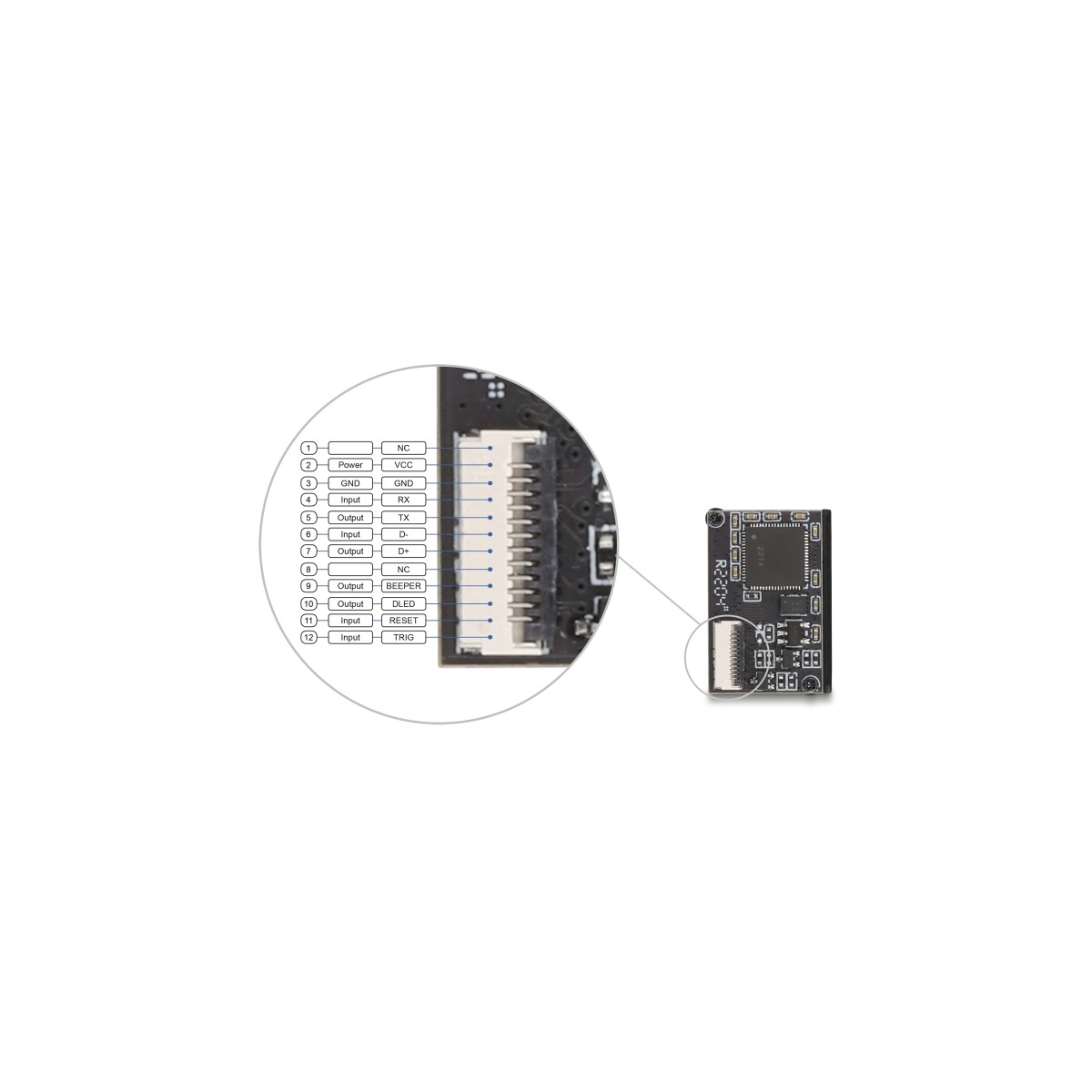

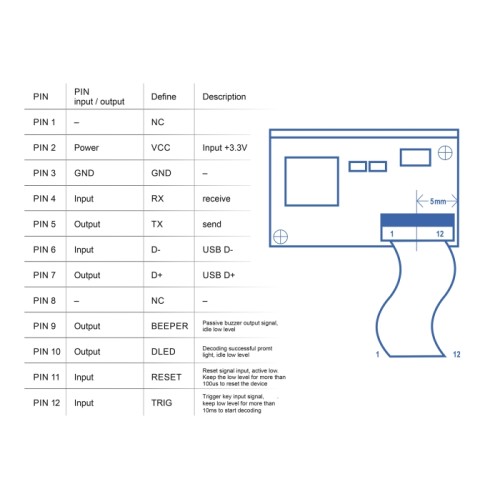

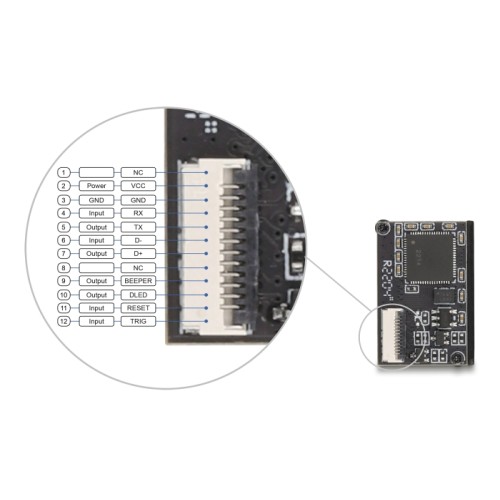

• Connector: 1 x FPC 12 pin female
• Decoding chip: ARM Cortex 32 Bit
• Resolution: max. 640 x 480
• Reading distance: ca. 30 mm to 350 mm
• Reading accuracy: 4 mil
• Light colour: visible LED red
• Compensation light: LED white
• Sensor: CMOS image sensor
• Scan rate: up to 30 scans per second
• Scan angle: 44°
• Surrounding brightness: max. 100000 Lux
• Input voltage: 3.3 V
• Current consumption:
operation: max. 110 mA
standby: max. 60 mA
• Operating temperature: -20 °C ~ 60 °C
• Storage temperature: -40 °C ~ 80 °C
• Relative humidity: 0 - 95 % (non condensing)
• Colour: black
• Weight: ca. 2 g

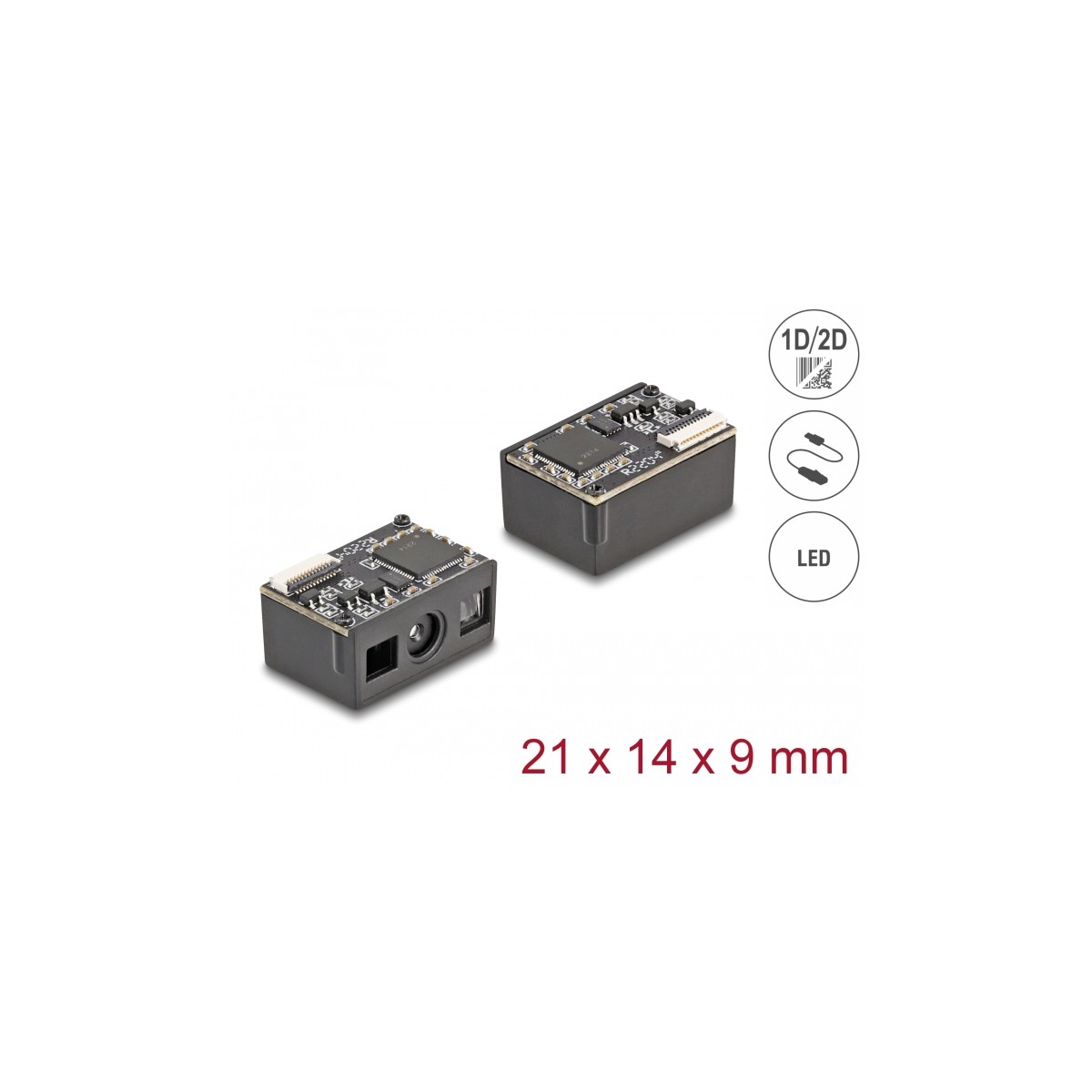

• Dimensions (LxWxH): ca. 21 x 14 x 9 mm
• Scancodes:
Code 128
Code 39
Interleaved 2 of 5
EAN-8 / EAN-13
ISBN - 13
Data Matrix
PDF417
QR Code

System requirements
• Android 11.0 or above
• iPad Pro (2018)
• Linux Kernel 5.15 or above
• Mac OS 12.4 or above
• Windows 8.1/8.1-64/10/10-64/11

Package content
• Barcode scanner module

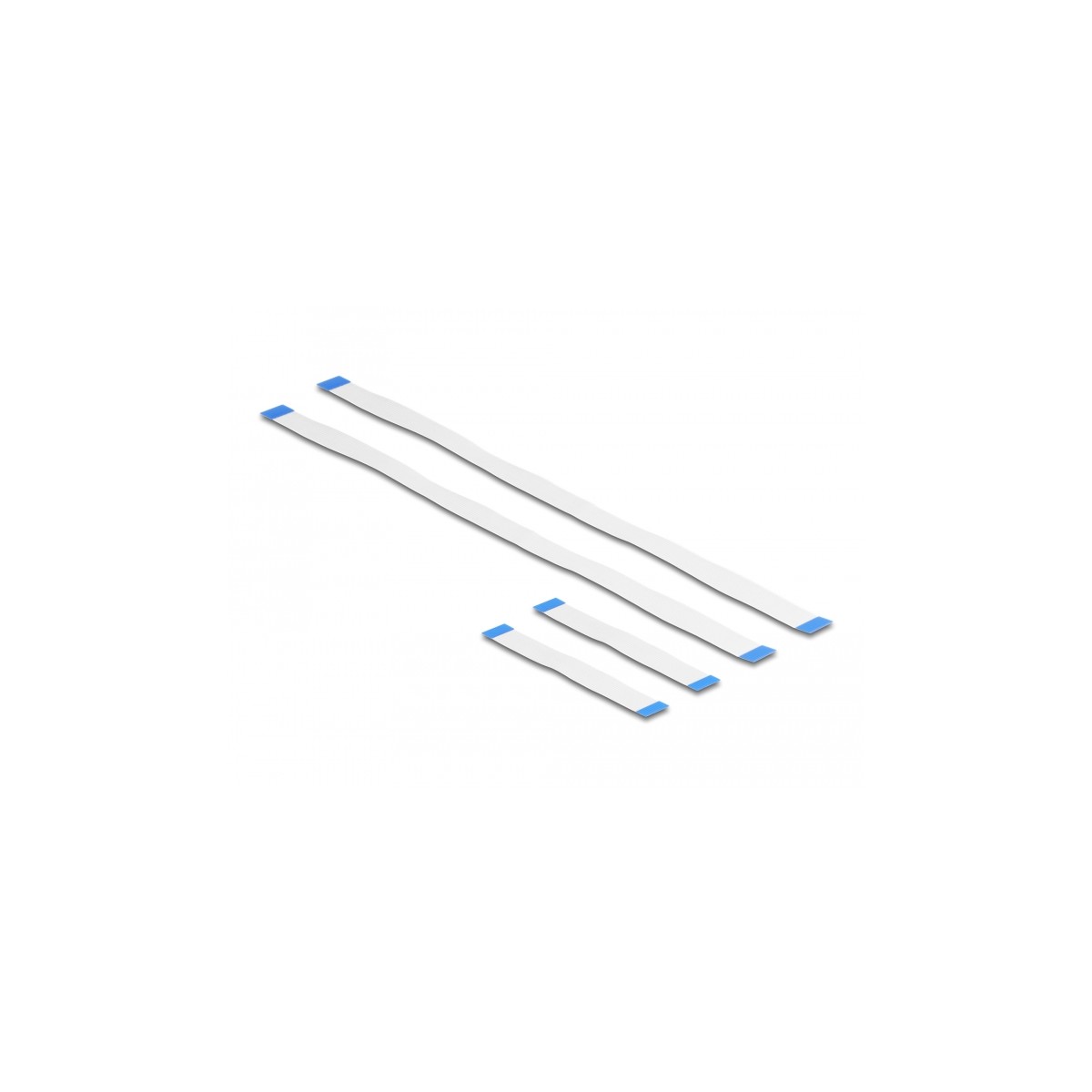

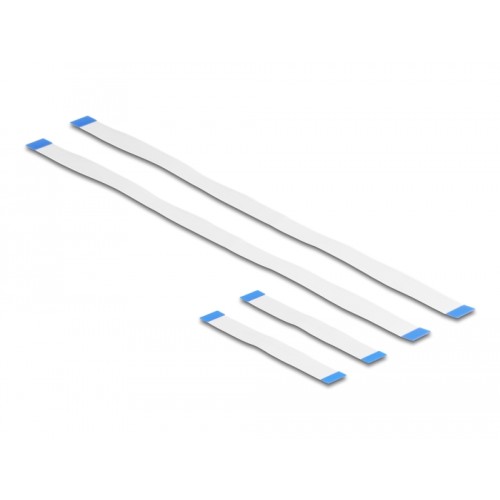

• 2 x FPC 12 pin flat ribbon cable, length ca. 6 cm
• 2 x FPC 12 pin flat ribbon cable, length ca. 20 cm
• User manual
