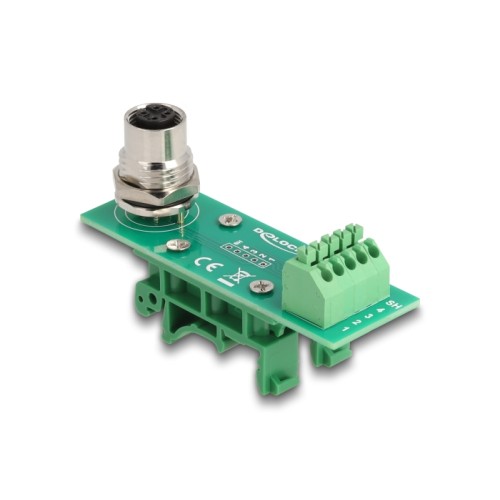

Delock M12 Transfer Module Adapter A-coded 4 pin female to 5 pin terminal block for DIN rail
60658
Nuovo
Description
The M12 adapter by Delock enables a simple and secure connection between devices with M12 connectors and electrical circuits that use terminal blocks.
Various areas of application
The adapter offers a flexible solution for various applications in industry, automation technology, building automation and other areas where a reliable connection is required.

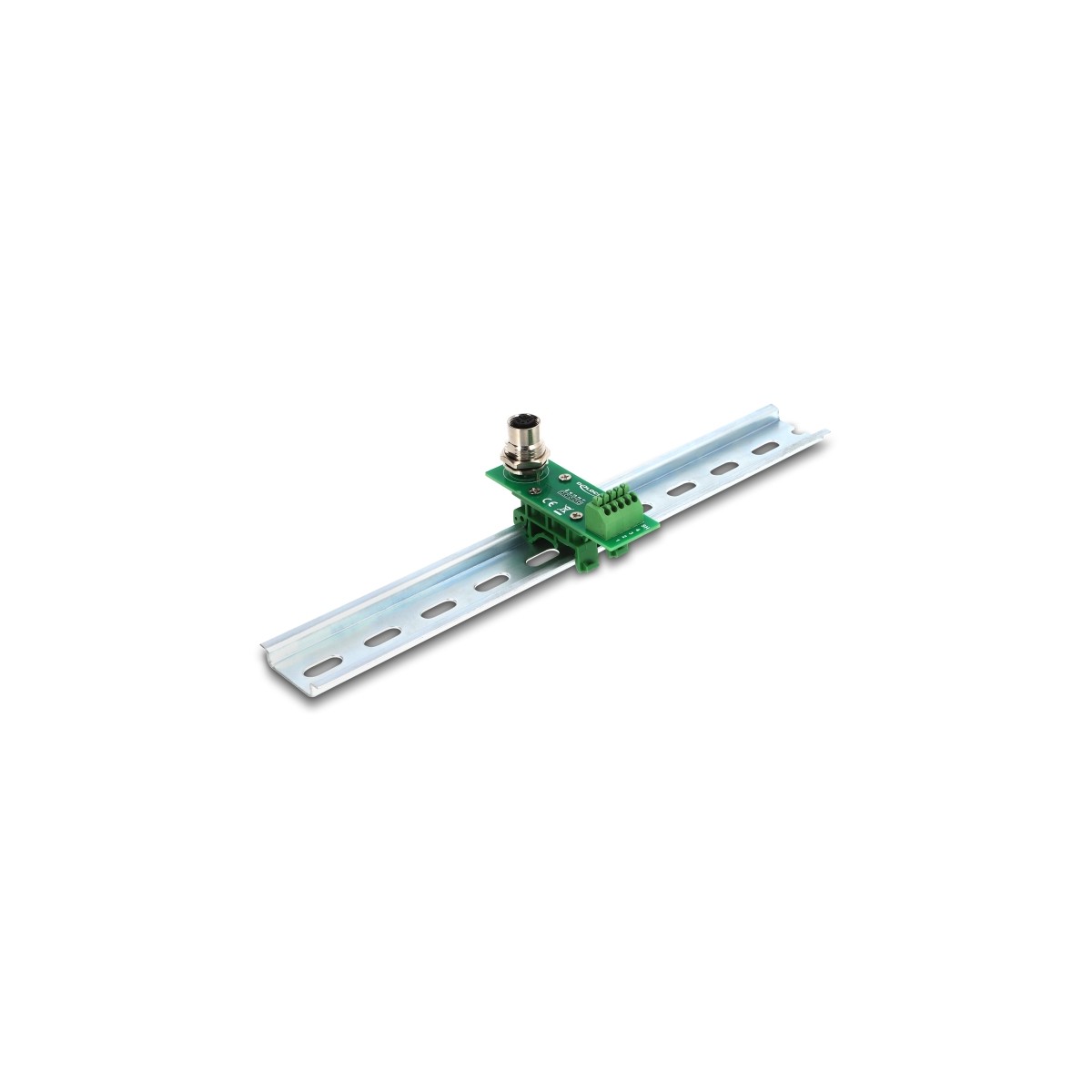

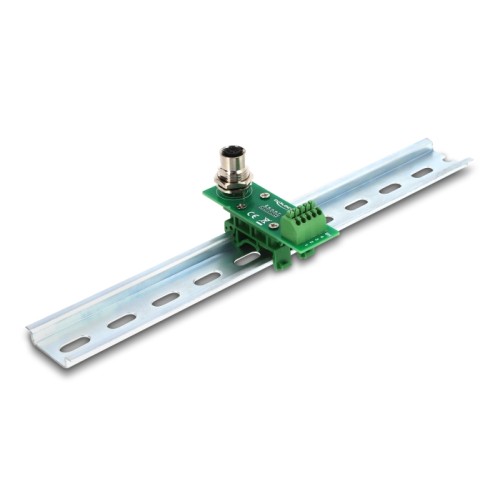

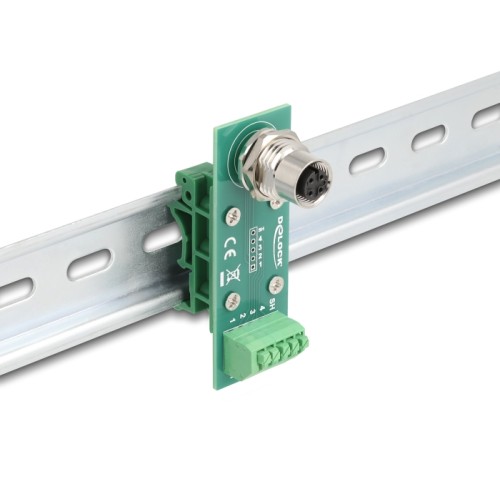

DIN rail mounting
With the clips included in the delivery content, the adapter can be attached to a 15 mm or 35 mm wide DIN rail.
Specification
• Connectors:
1 x M12 female A-coded 4 pin
1 x 5 pin terminal block
• DIN rail mounting: 15 mm and 35 mm
• M16 external thread
• Cable gauge: 24 - 20 AWG
• Pin assignment: 1:1
• Pitch: 3.50 mm
• Operating temperature: -40 °C ~ 80 °C
• Dimensions (LxWxH): ca. 76.2 x 43.0 x 25.4 mm
System requirements
Package content
• M12 adapter
• 2 x DIN rail clip
• 4 x screw
