Description

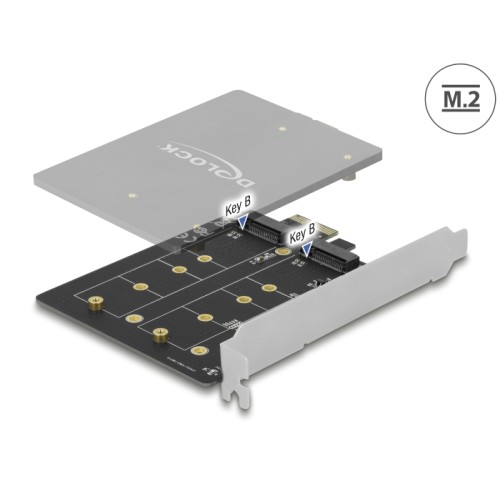

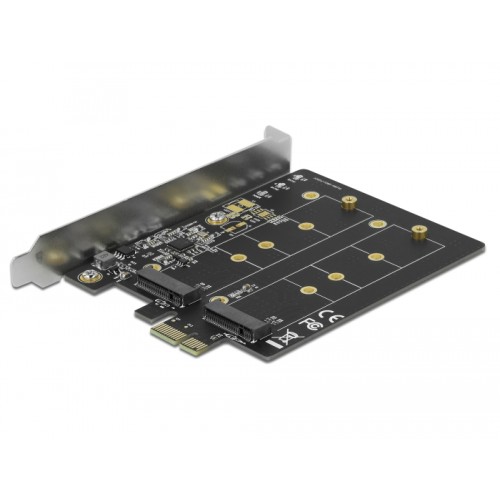

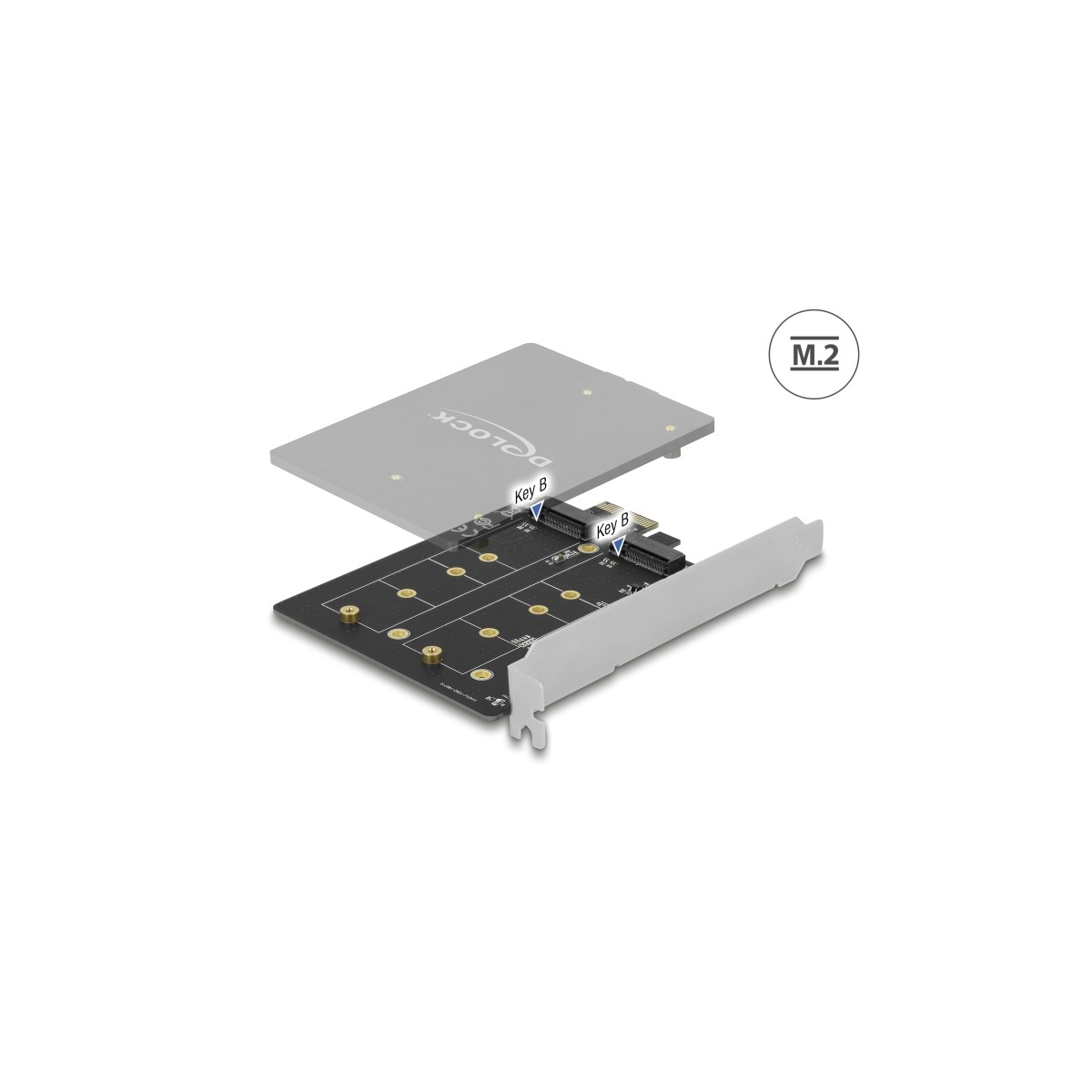

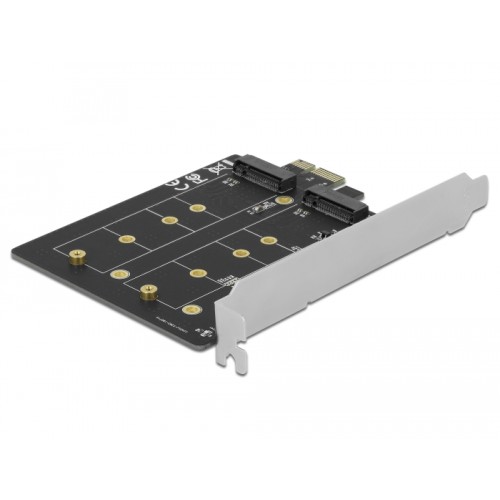

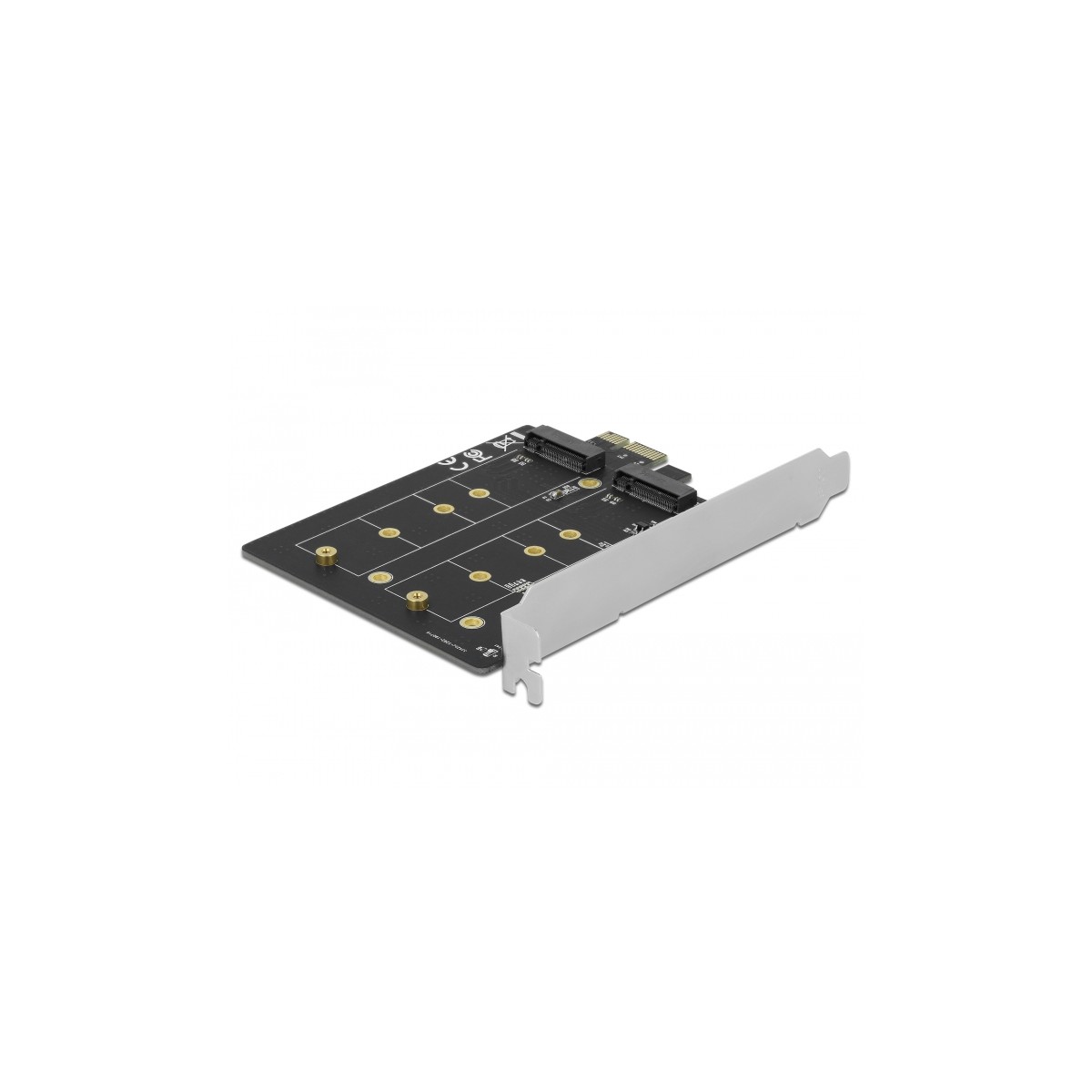

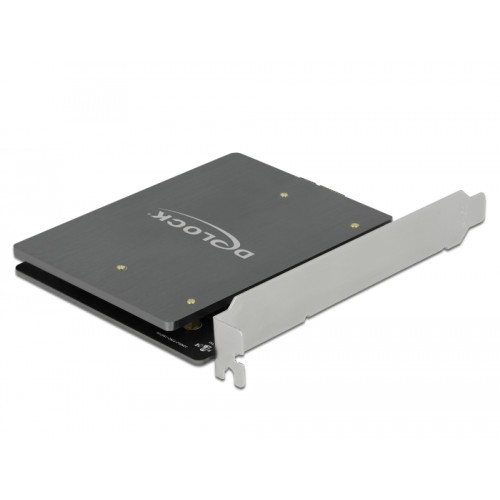

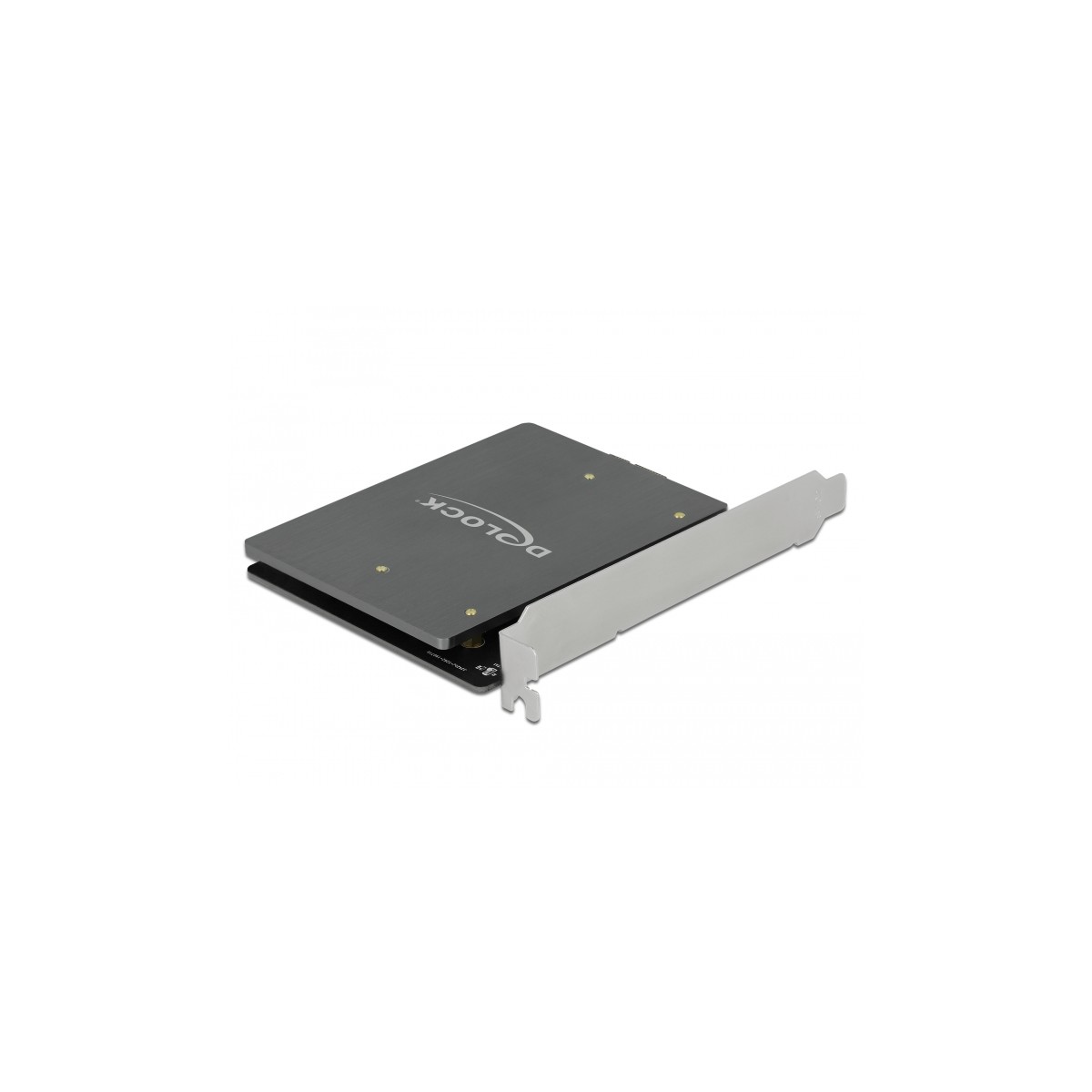

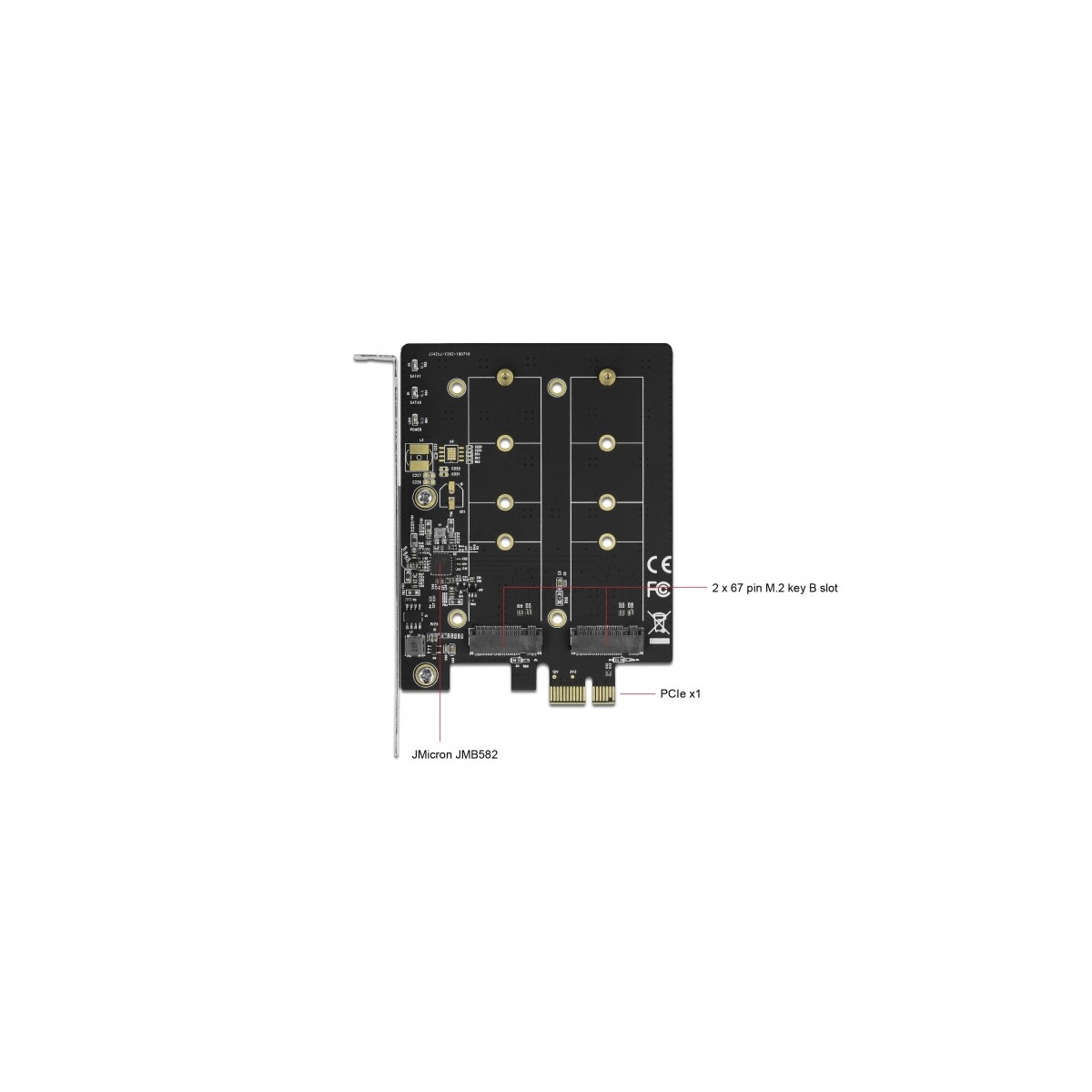

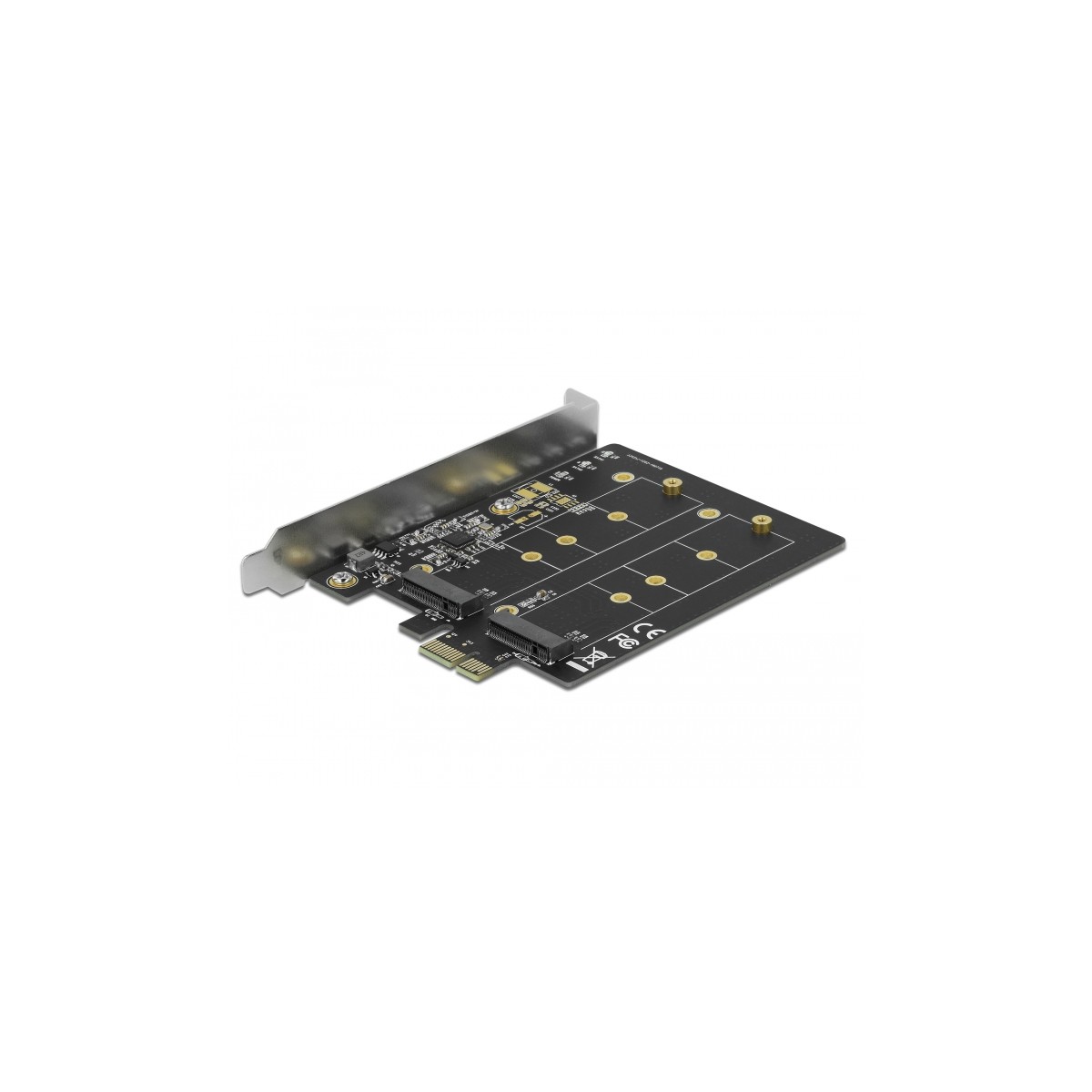

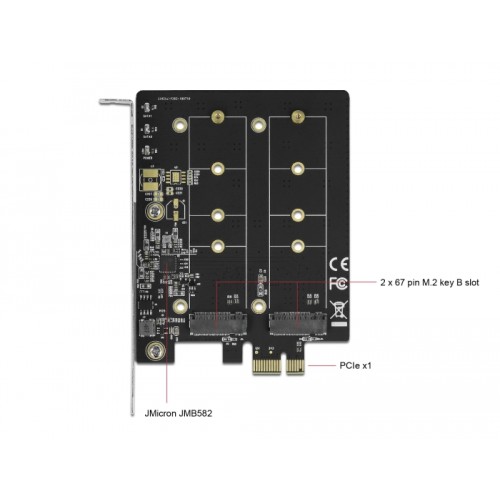

This PCI Express card by Delock expands the PC by two M.2 slots. Up to two M.2 SATA modules can be connected in format 2280, 2260, 2242, 2230 with this card. With the help of the large heat sink sufficient cooling of the M.2 modules is guaranteed.
Specification
• Connectors:
internal:
2 x 67 pin M.2 key B slot
1 x PCI Express x1, V3.0
• Chipset: JMicron JMB582
• 3 x LED indicator
• Interface: SATA
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M
based on SATA
• Maximum height of the components on the module: 1.5 mm, application of double-
sided assembled modules supported
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap
• Bootable
System requirements
• Linux Kernel 3.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot

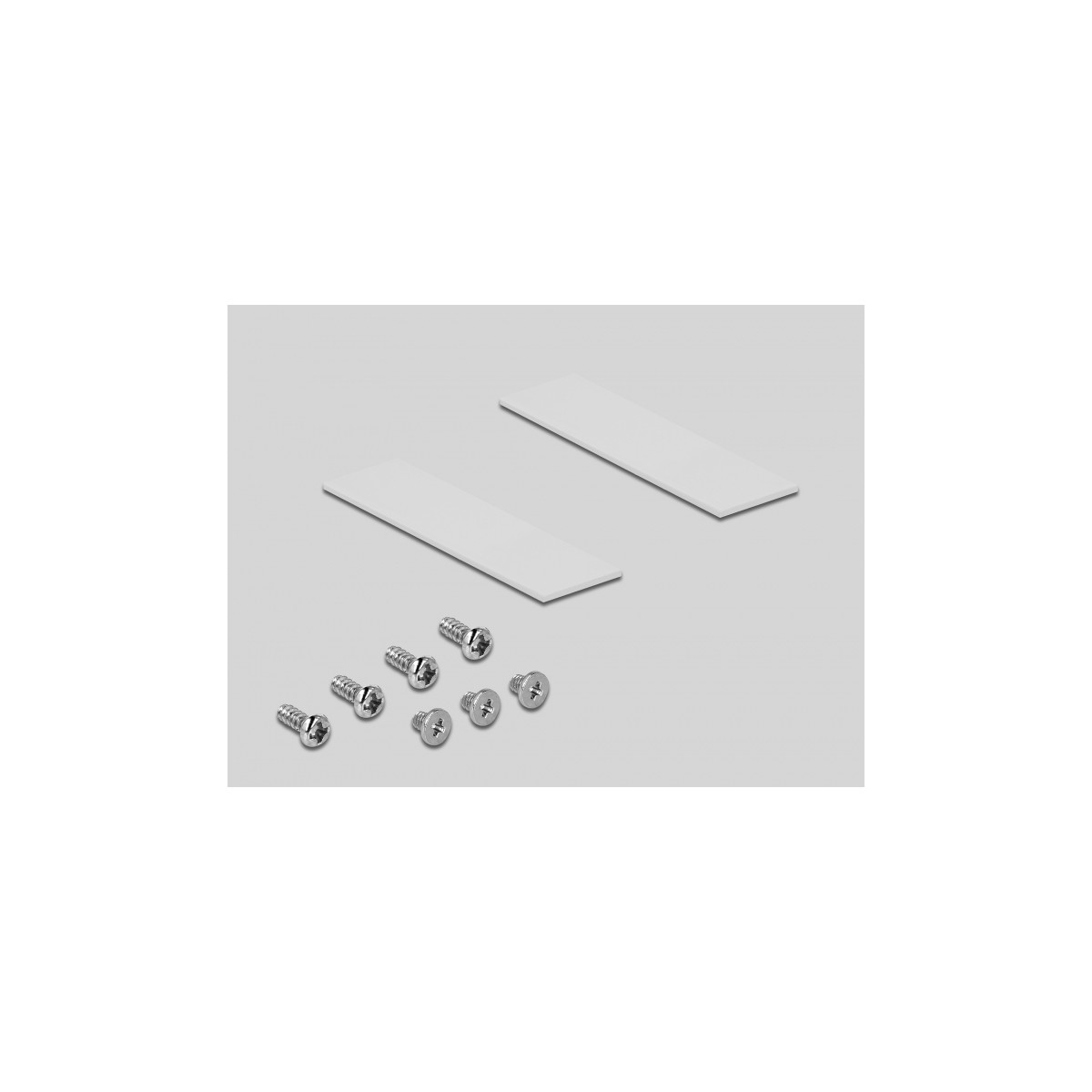

Package content
• PCI Express card
• Heat sink
• 2 x thermal pad
• M.2 mounting material
• User manual
This PCI Express card by Delock expands the PC by two M.2 slots. Up to two M.2 SATA modules can be connected in format 2280, 2260, 2242, 2230 with this card. With the help of the large heat sink sufficient cooling of the M.2 modules is guaranteed.
Specification
• Connectors:
internal:
2 x 67 pin M.2 key B slot
1 x PCI Express x1, V3.0
• Chipset: JMicron JMB582
• 3 x LED indicator
• Interface: SATA
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M
based on SATA
• Maximum height of the components on the module: 1.5 mm, application of double-
sided assembled modules supported
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap
• Bootable
System requirements
• Linux Kernel 3.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
Package content
• PCI Express card
• Heat sink
• 2 x thermal pad
• M.2 mounting material
• User manual
