Description

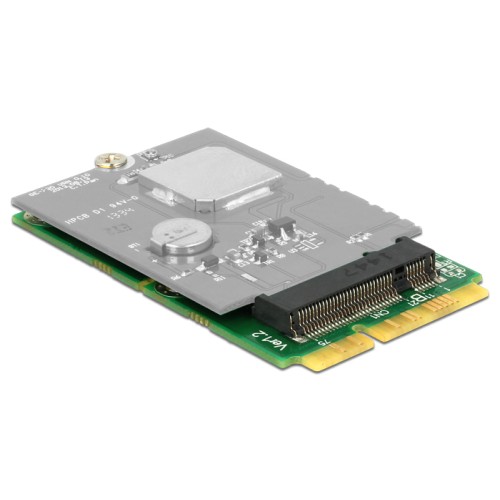

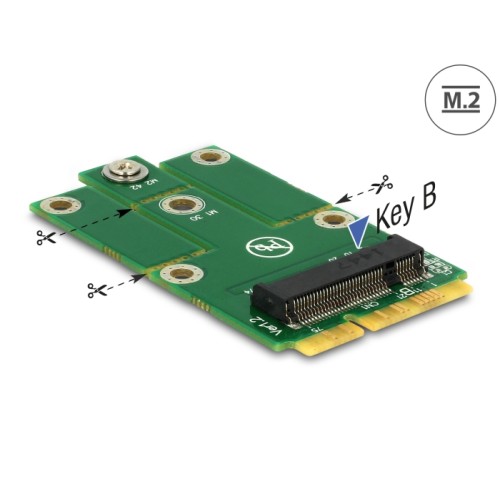

This Delock adapter enables you to connect a M.2 NGFF module in 2242, 2230, 3042 or 3030 format. The adapter can be installed into your system through a Mini PCIe interface. Through the predetermined breaking point you can shorten the length from full size to half size.
Specification
• Connector:
MiniPCIe male >
67 pin M.2 NGFF key B slot
• Interface: USB 2.0
• Form factor: MiniPCIe full size / half size
• Supports M.2 NGFF modules in format 2242, 2230, 3042 and 3030
with key B based on USB
• Maximum height of the components on the module: 1.35 mm application of
double-sided assembled modules supported
• Dimensions (LxW): ca. 54 x 30 mm
• OS independent, no driver installation necessary
System requirements
• Mainboard with a free MiniPCIe slot with a PCIe interface
Package content
• Adapter
• Mounting material
This Delock adapter enables you to connect a M.2 NGFF module in 2242, 2230, 3042 or 3030 format. The adapter can be installed into your system through a Mini PCIe interface. Through the predetermined breaking point you can shorten the length from full size to half size.
Specification
• Connector:
MiniPCIe male >
67 pin M.2 NGFF key B slot
• Interface: USB 2.0
• Form factor: MiniPCIe full size / half size
• Supports M.2 NGFF modules in format 2242, 2230, 3042 and 3030
with key B based on USB
• Maximum height of the components on the module: 1.35 mm application of
double-sided assembled modules supported
• Dimensions (LxW): ca. 54 x 30 mm
• OS independent, no driver installation necessary
System requirements
• Mainboard with a free MiniPCIe slot with a PCIe interface
Package content
• Adapter
• Mounting material
