Description

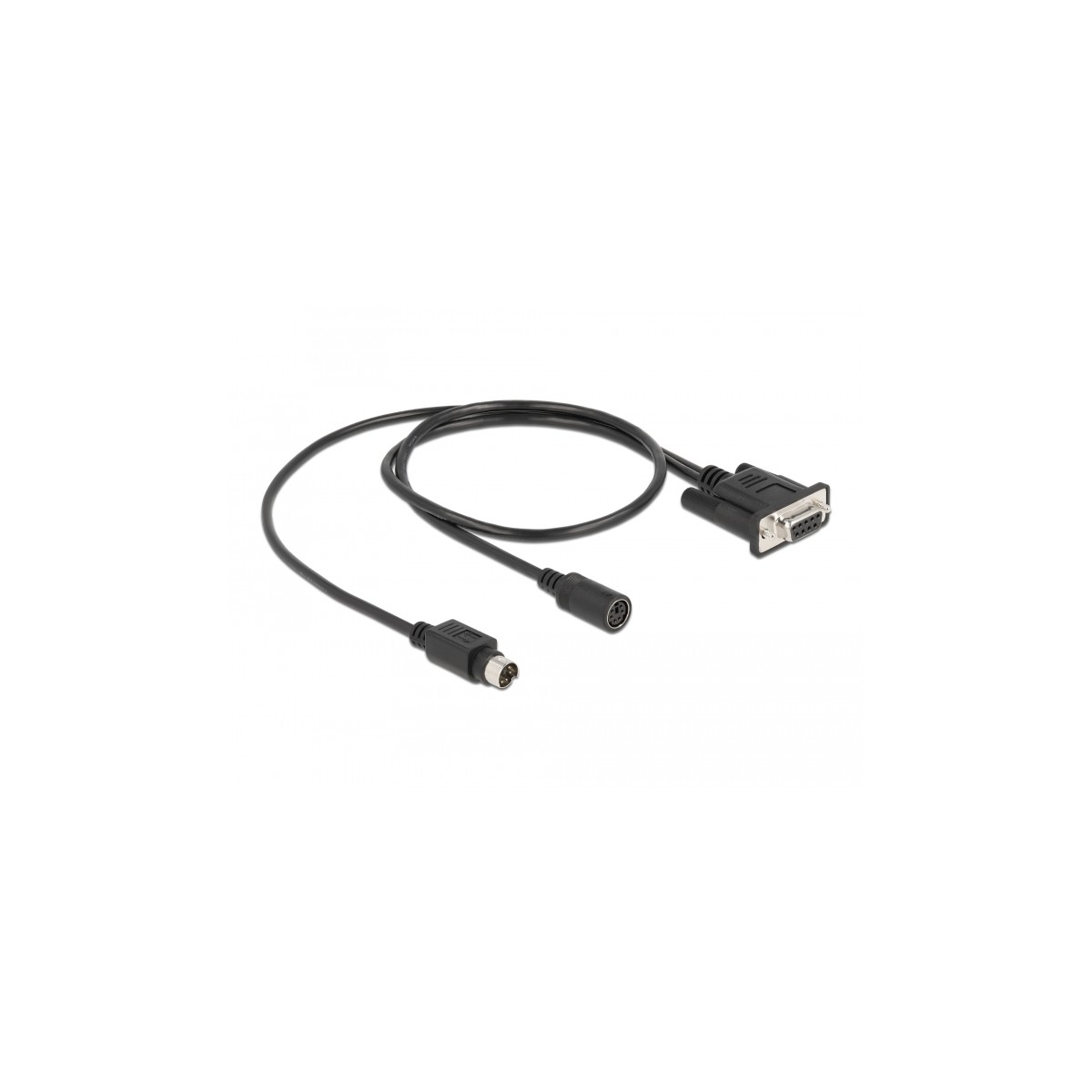

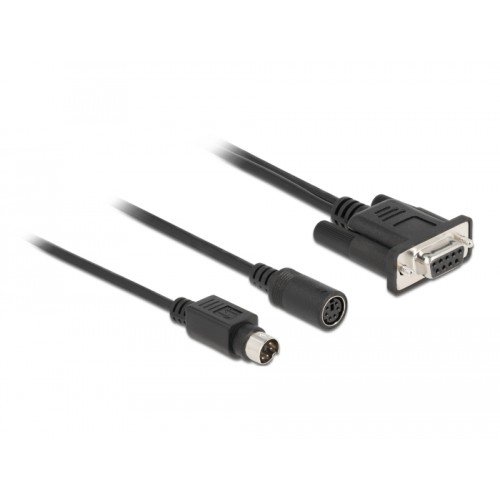

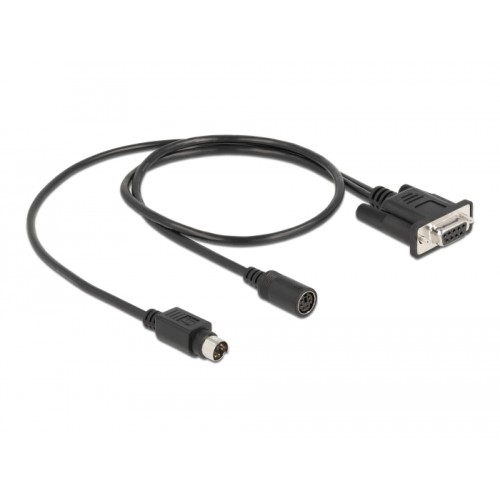

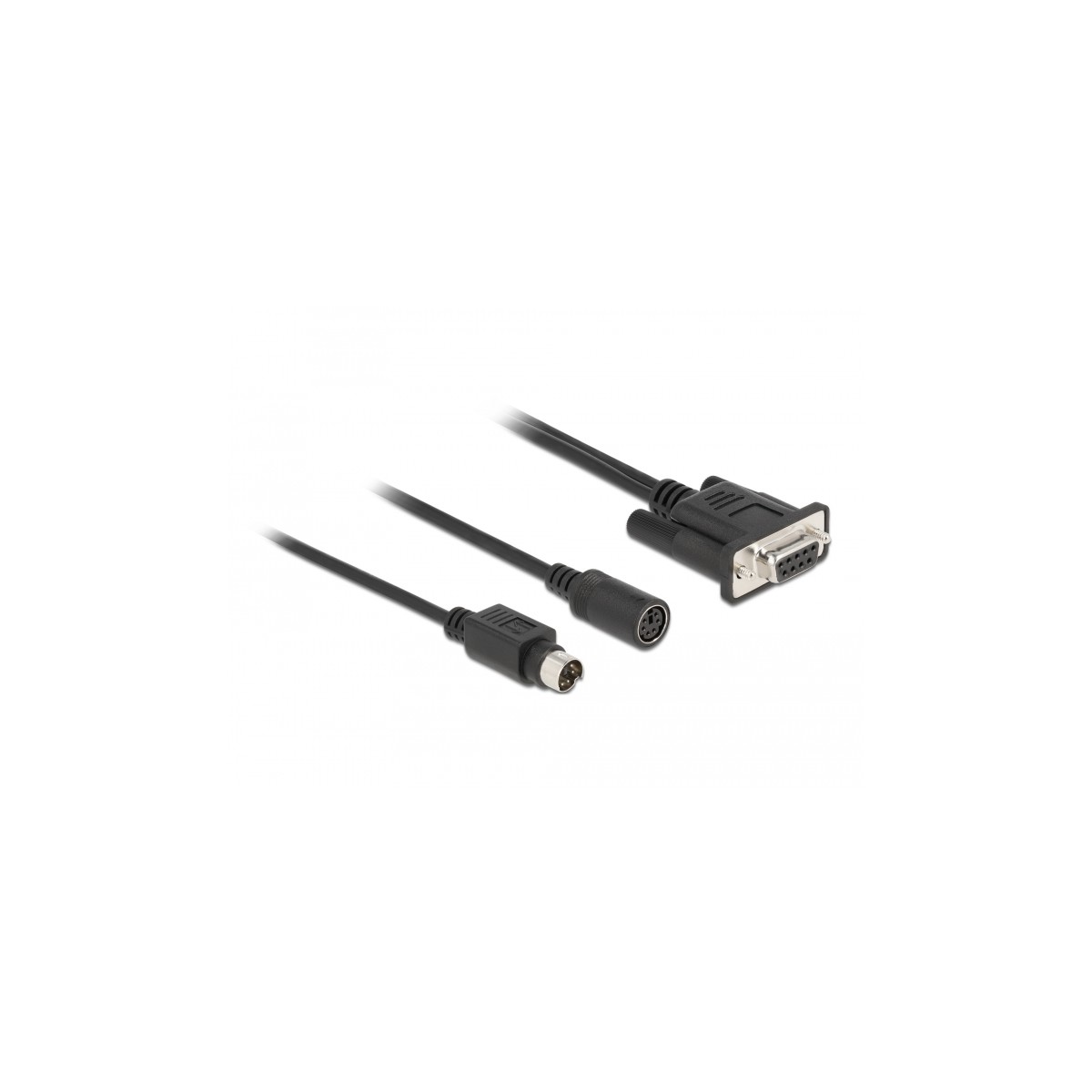

Navilock GNSS receiver possess an MD6 universal connector. The pin assignment of this connector is identical with chipsets by u-blox, Sony, GLONASS and SiRF. In order to connect the GNSS receiver to a serial port you need this specific connecting cable. It will be connected to the PS2 jack of your notebook, or tablet PC for power supply. The PS2 connector is only a power supply connection and does not transfer a data channel. The data protocol will be provided by the D-Sub9 plug.
Specification
• Connector:
1 x MD6 jack
1 x D-SUB 9 jack
1 x PS/2 plug
• Power supply via PS2
• Length incl. connectors:
6 pin connecting cable ca. 59 cm
PS/2 cable: ca. 39 cm
System requirements
• Navilock serial MD6 GNSS receiver with a free D-Sub9 plug
Package content
• Connection cable for GNSS Receiver
Navilock GNSS receiver possess an MD6 universal connector. The pin assignment of this connector is identical with chipsets by u-blox, Sony, GLONASS and SiRF. In order to connect the GNSS receiver to a serial port you need this specific connecting cable. It will be connected to the PS2 jack of your notebook, or tablet PC for power supply. The PS2 connector is only a power supply connection and does not transfer a data channel. The data protocol will be provided by the D-Sub9 plug.
Specification
• Connector:
1 x MD6 jack
1 x D-SUB 9 jack
1 x PS/2 plug
• Power supply via PS2
• Length incl. connectors:
6 pin connecting cable ca. 59 cm
PS/2 cable: ca. 39 cm
System requirements
• Navilock serial MD6 GNSS receiver with a free D-Sub9 plug
Package content
• Connection cable for GNSS Receiver
Nuovo
4043619612659
