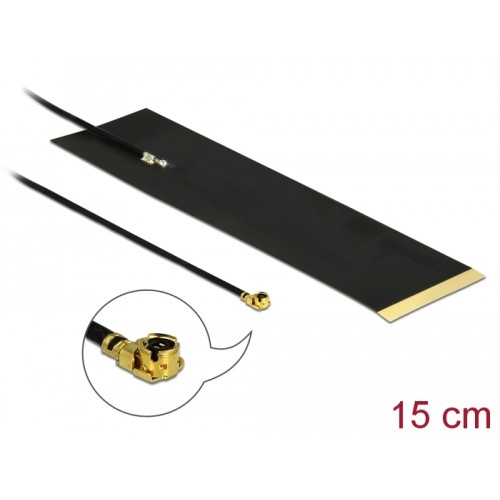

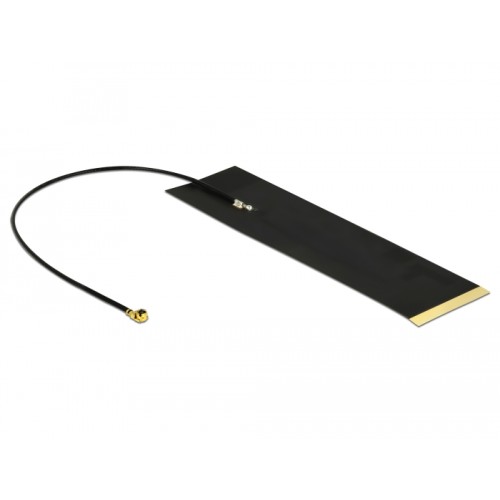

Delock LTE Antenna I-PEX Inc., MHF® I plug 1.9 - 3.9 dBi 1.13 15 cm FPC internal self adhesive
12612
Nuovo
Description
This LTE antenna by Delock allows the usage of different LTE bands inside. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
Specification
• Connector: 1 x I-PEX Inc., MHF® I plug
• GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2,4 GHz, Bluetooth, ISM, DECT,
LoRa
• Frequency range:
698 MHz - 791 MHz
824 MHz - 960 MHz
1710 MHz - 2170 MHz
2300 MHz - 2700 MHz
• Antenna gain: 1.9 - 3.9 dBi
• VSWR: 2.0 - 4.5
• Impedance: 50 Ohm
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Housing material: FPC
• Colour: black
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxW): ca. 90.0 x 25.0 mm
• Cable length incl. connector: ca. 15 cm
System requirements
• Device with one free I-PEX Inc., MHF® I port
Package content
• Antenna
This LTE antenna by Delock allows the usage of different LTE bands inside. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
Specification
• Connector: 1 x I-PEX Inc., MHF® I plug
• GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2,4 GHz, Bluetooth, ISM, DECT,
LoRa
• Frequency range:
698 MHz - 791 MHz
824 MHz - 960 MHz
1710 MHz - 2170 MHz
2300 MHz - 2700 MHz
• Antenna gain: 1.9 - 3.9 dBi
• VSWR: 2.0 - 4.5
• Impedance: 50 Ohm
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Housing material: FPC
• Colour: black
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxW): ca. 90.0 x 25.0 mm
• Cable length incl. connector: ca. 15 cm
System requirements
• Device with one free I-PEX Inc., MHF® I port
Package content
• Antenna
