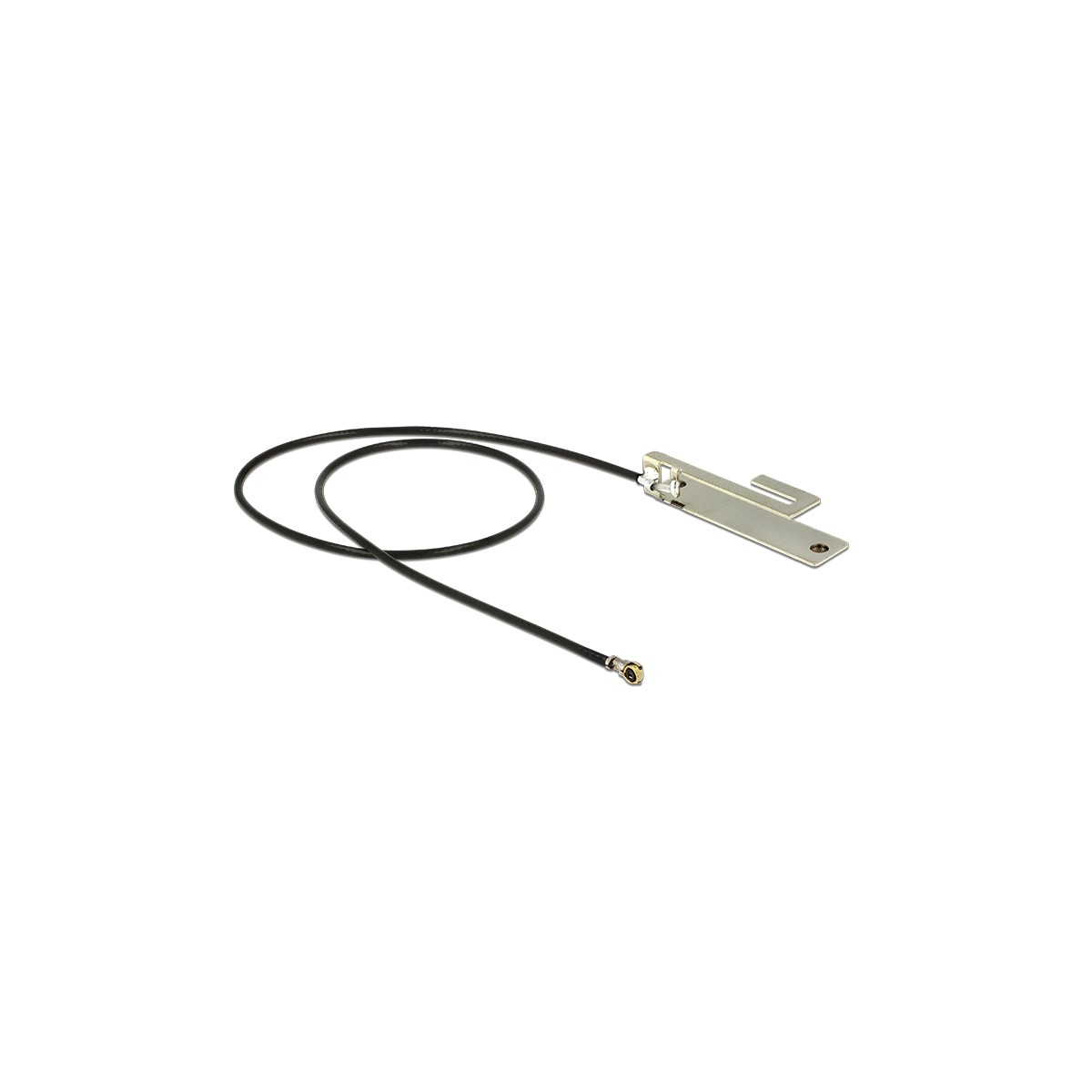

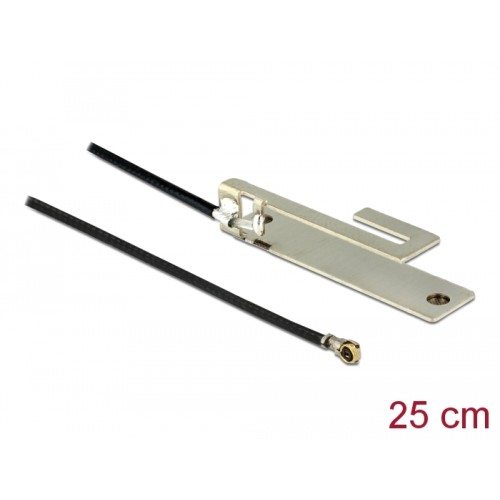

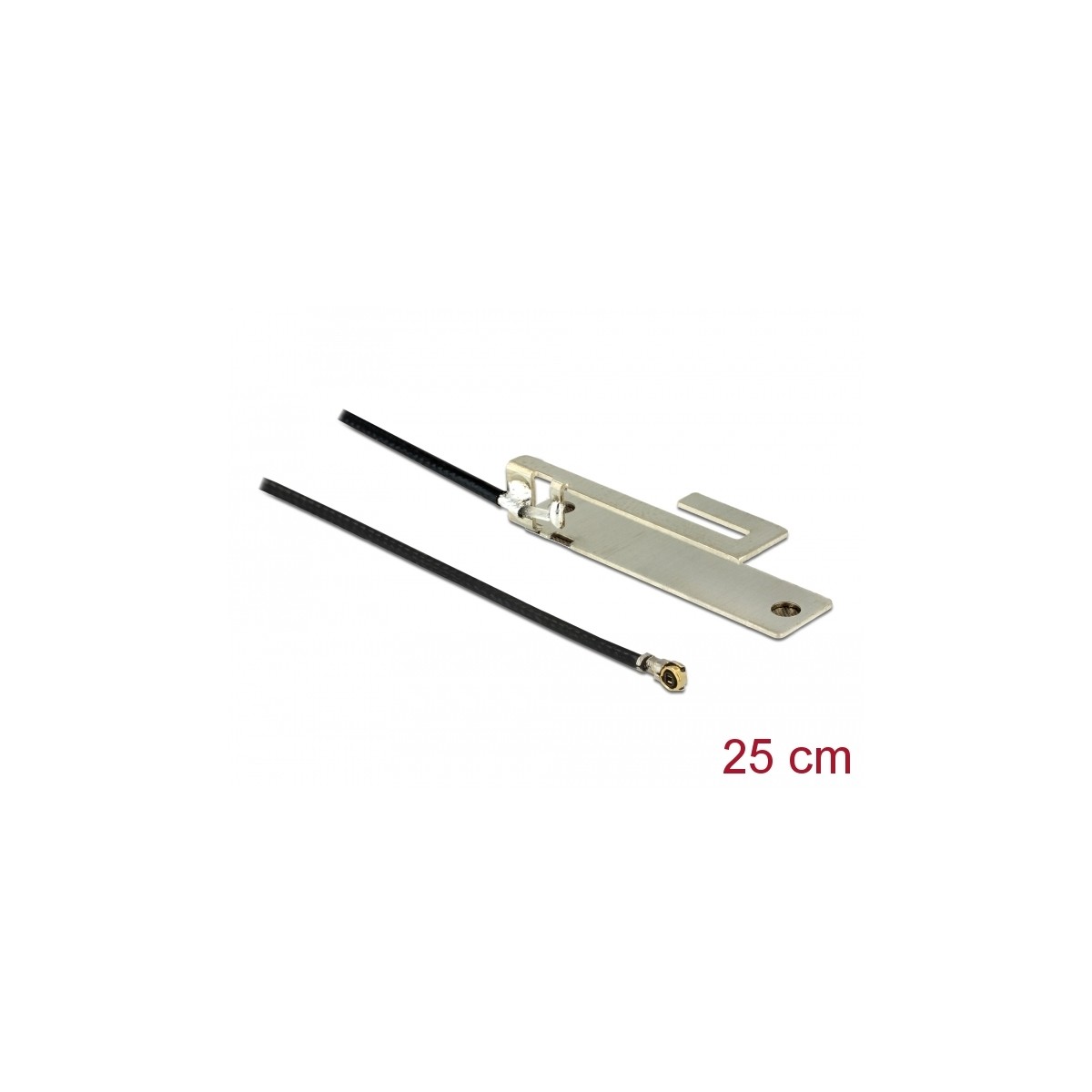

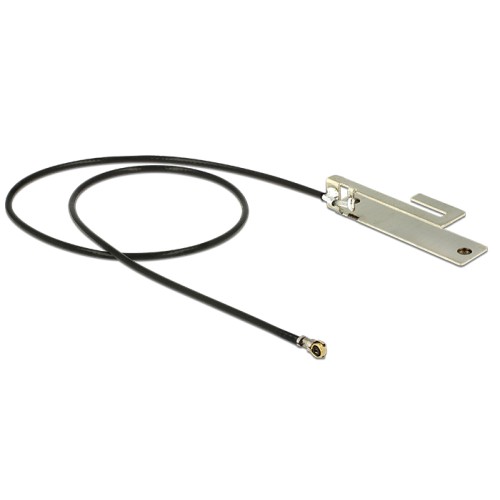

Delock WLAN 802.11 b/g/n Antenna I-PEX Inc., MHF® 4L plug 3 dBi 25 cm PIFA internal
86183
Nuovo
Description
This antenna by Delock allows the usage of the 2.4 GHz WLAN bands indoors.
PIFA antennas (Planar Inverted F-Shaped Antenna) are particularly very flat antennas that can be integrated directly on the PCB.
Specification
• Connector: 1 x I-PEX Inc., MHF® 4L plug
• Frequency range:
2400 - 2500 MHz
• Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM
• Antenna gain: 3 dBi
• VSWR: 2.0
• Impedance: 50 Ohm
• Operating temperature: -10 °C ~ 55 °C
• Colour: black
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxWxH): ca. 25 x 6 x 5 mm
• Length incl. connectors (L): ca. 25 cm
System requirements
• Device with one free I-PEX Inc., MHF® 4L port
Package content
• Antenna
This antenna by Delock allows the usage of the 2.4 GHz WLAN bands indoors.
PIFA antennas (Planar Inverted F-Shaped Antenna) are particularly very flat antennas that can be integrated directly on the PCB.
Specification
• Connector: 1 x I-PEX Inc., MHF® 4L plug
• Frequency range:
2400 - 2500 MHz
• Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM
• Antenna gain: 3 dBi
• VSWR: 2.0
• Impedance: 50 Ohm
• Operating temperature: -10 °C ~ 55 °C
• Colour: black
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxWxH): ca. 25 x 6 x 5 mm
• Length incl. connectors (L): ca. 25 cm
System requirements
• Device with one free I-PEX Inc., MHF® 4L port
Package content
• Antenna
