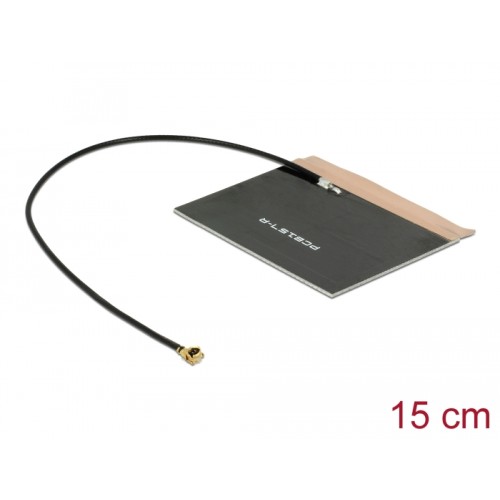

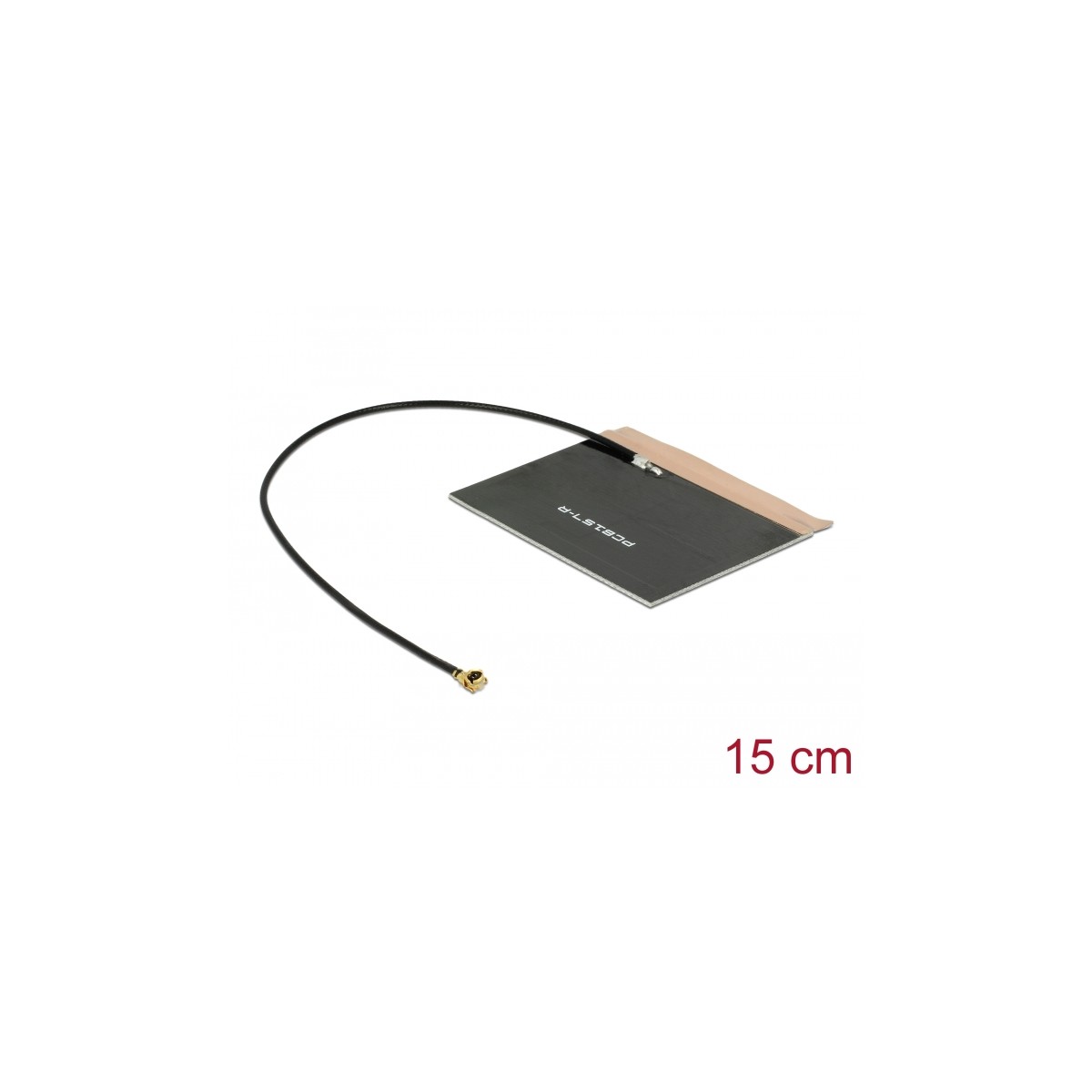

Delock LTE Antenna I-PEX Inc., MHF® I plug 2.0 - 3.5 dBi 1.13 15 cm PCB internal self adhesive
88981
Nuovo
Description
This LTE antenna by Delock allows the usage of different LTE bands inside and outside. It is completely compatible to GSM, UMTS, LTE, LoRa, NB-IoT, ISM, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.
Specification
• Connector: 1 x I-PEX Inc., MHF® I plug
• Frequency range:
791 - 960 MHz
1710 - 2170 MHz
2500 - 2700 MHz
• GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, LoRa
• Antenna gain: 2.0 - 3.5 dBi
• Impedance: 50 Ohm
• VSWR: 3.5
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Cable length incl. connectors: ca. 15 cm
• Dimensions (LxW): ca. 45 x 33 mm
System requirements
• Device with one free I-PEX Inc., MHF® I port
Package content
• Antenna
This LTE antenna by Delock allows the usage of different LTE bands inside and outside. It is completely compatible to GSM, UMTS, LTE, LoRa, NB-IoT, ISM, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.
Specification
• Connector: 1 x I-PEX Inc., MHF® I plug
• Frequency range:
791 - 960 MHz
1710 - 2170 MHz
2500 - 2700 MHz
• GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, LoRa
• Antenna gain: 2.0 - 3.5 dBi
• Impedance: 50 Ohm
• VSWR: 3.5
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Cable length incl. connectors: ca. 15 cm
• Dimensions (LxW): ca. 45 x 33 mm
System requirements
• Device with one free I-PEX Inc., MHF® I port
Package content
• Antenna
