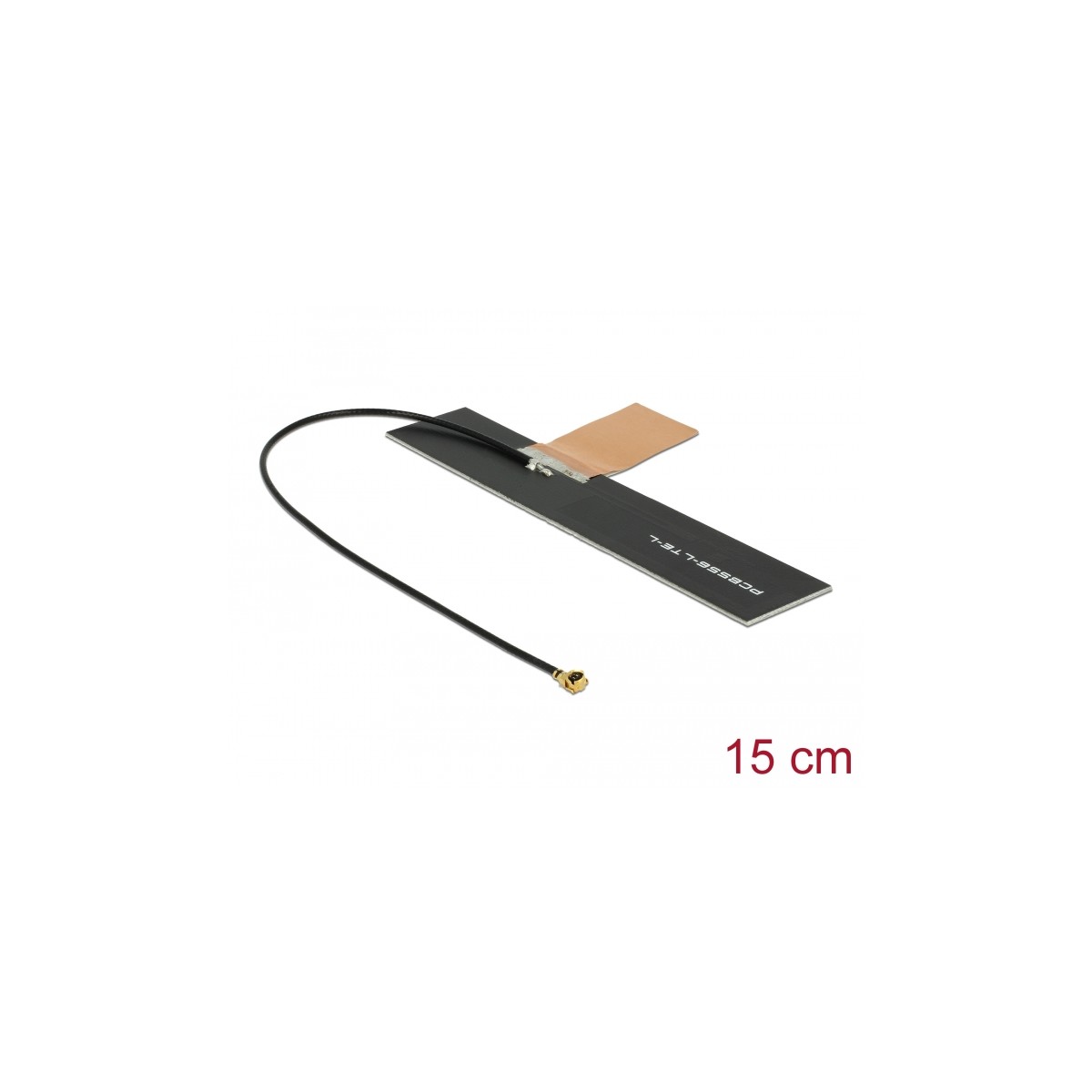

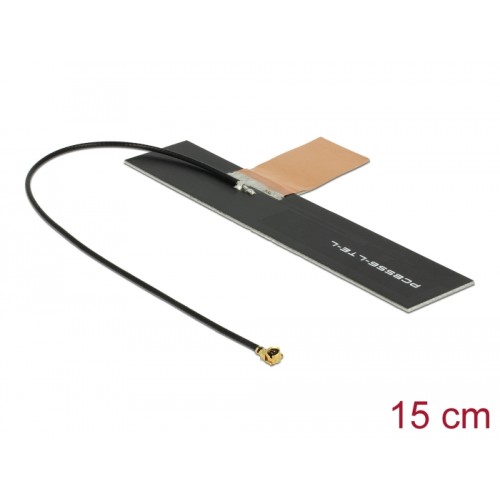

Delock LTE Antenna I-PEX Inc., MHF® I plug 0.5 - 2.0 dBi 1.13 15 cm PCB internal self adhesive
88982
Nuovo
Description
This LTE antenna can be connected to a device with I-PEX Inc., MHF® I interface, in order to send and receive signals.
Specification
• Connector: 1 x I-PEX Inc., MHF® I plug

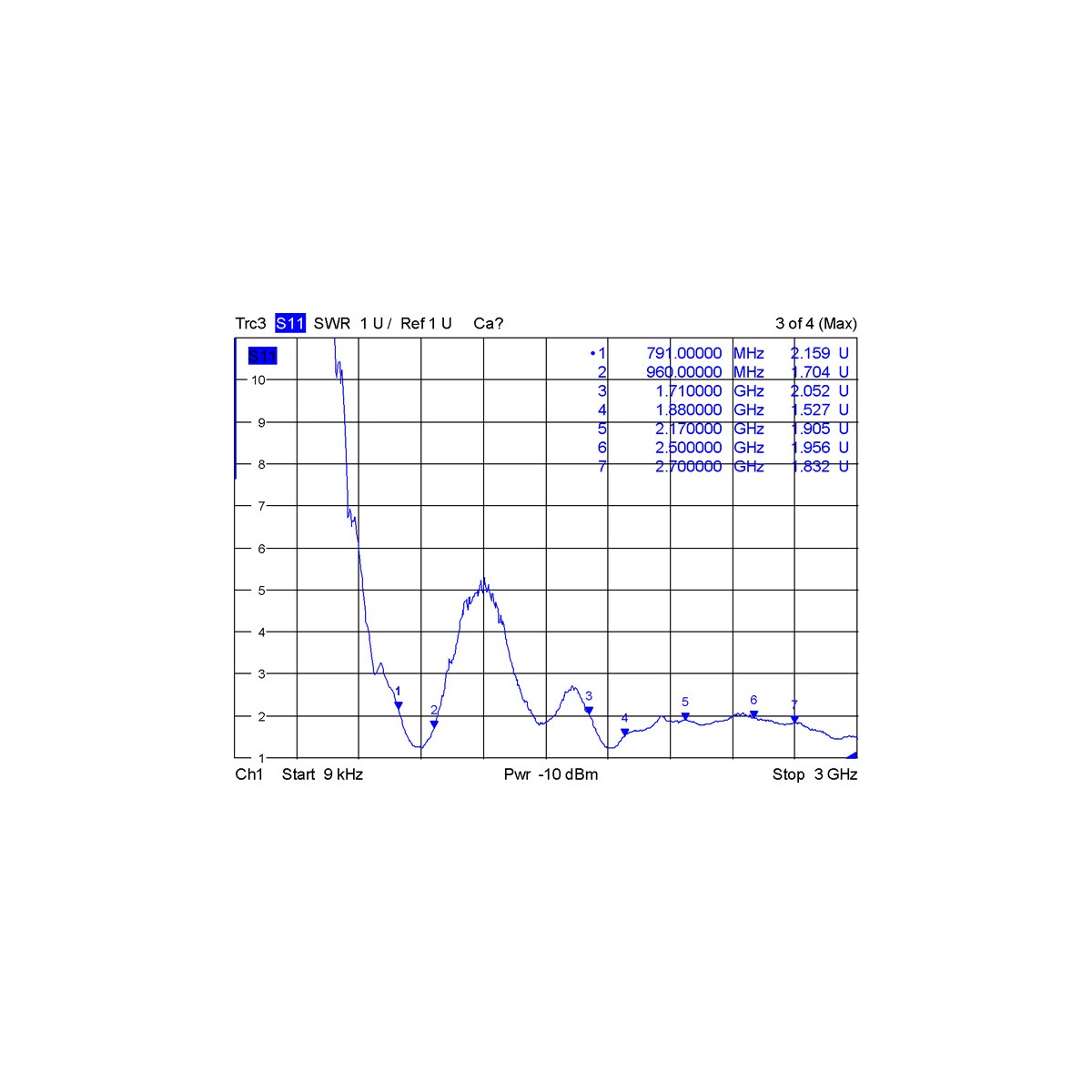

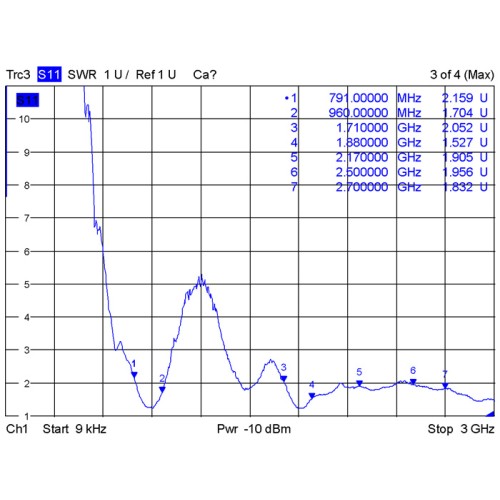

• Frequency range:

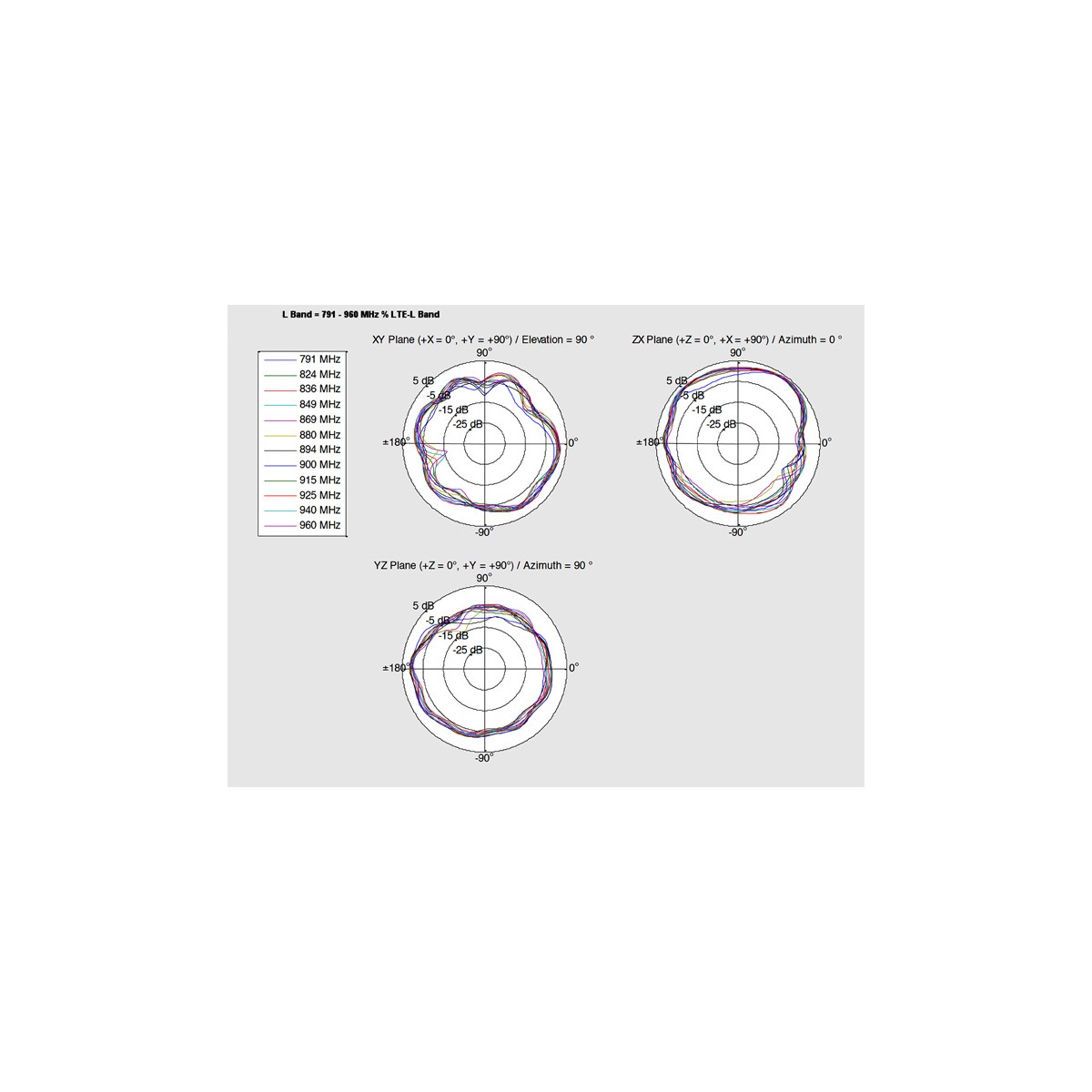

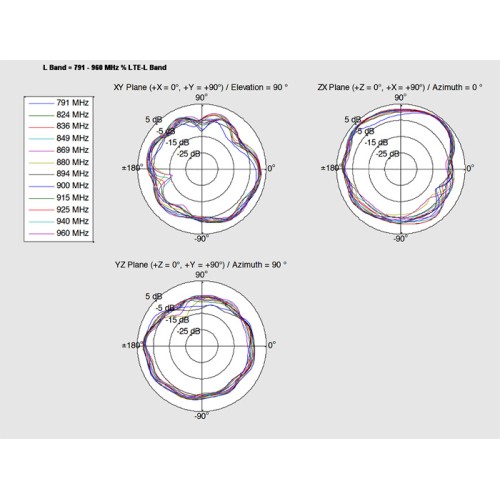

791 - 960 MHz

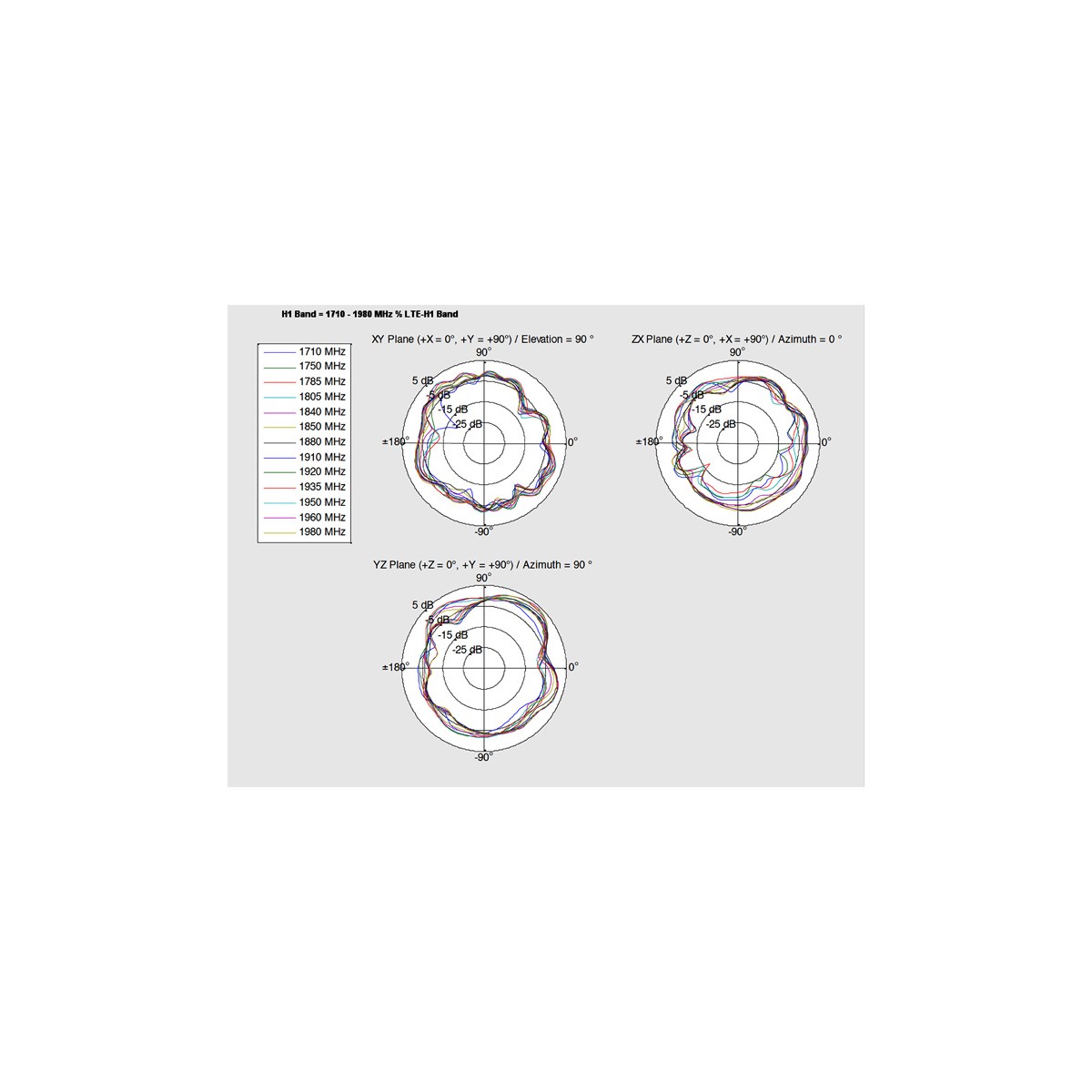

1710 - 2170 MHz

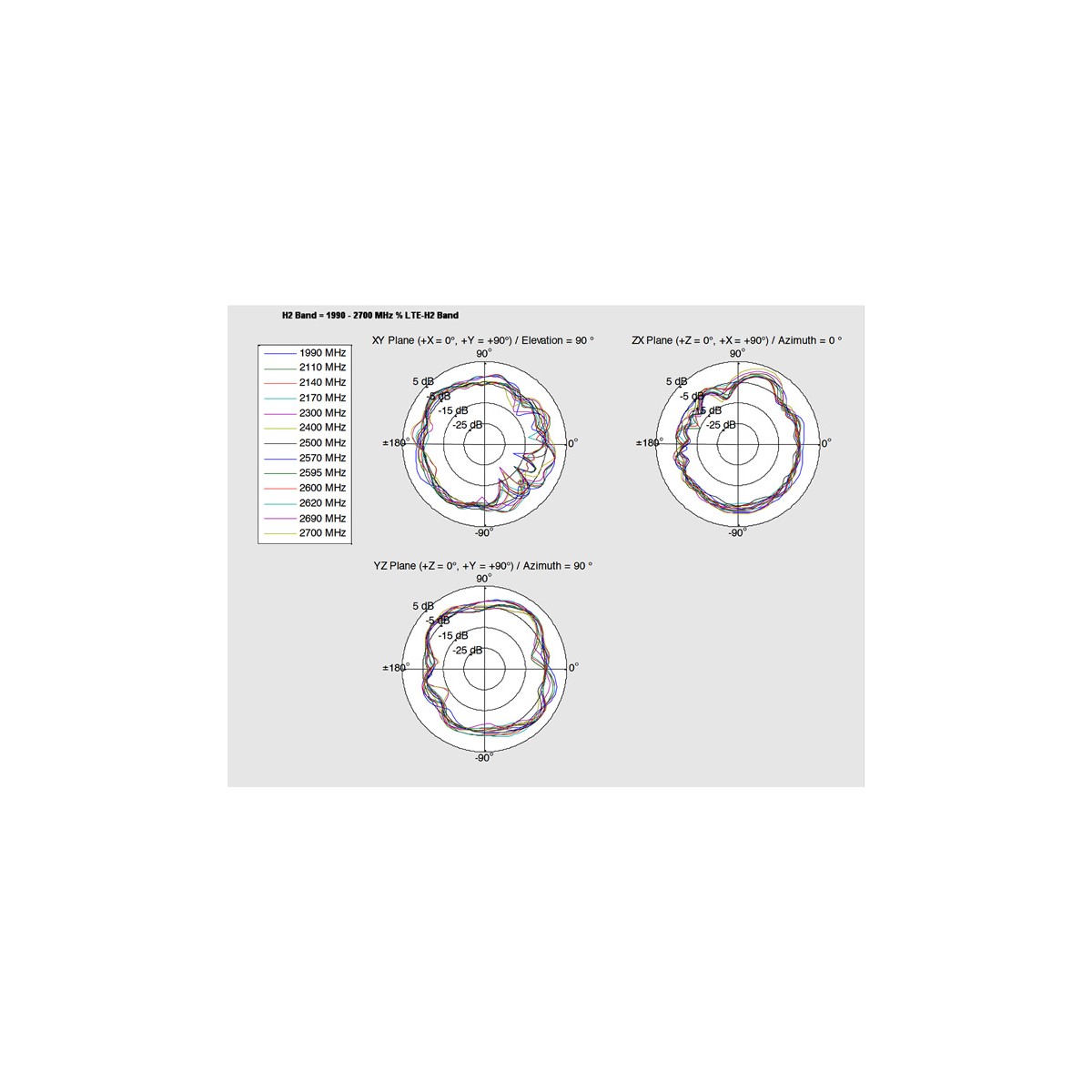

2500 - 2700 MHz
• GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, LoRa

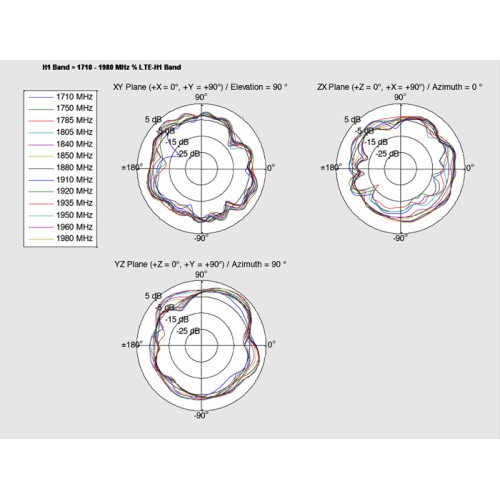

• Antenna gain: 0.5 - 2.0 dBi
• Impedance: 50 Ohm
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm

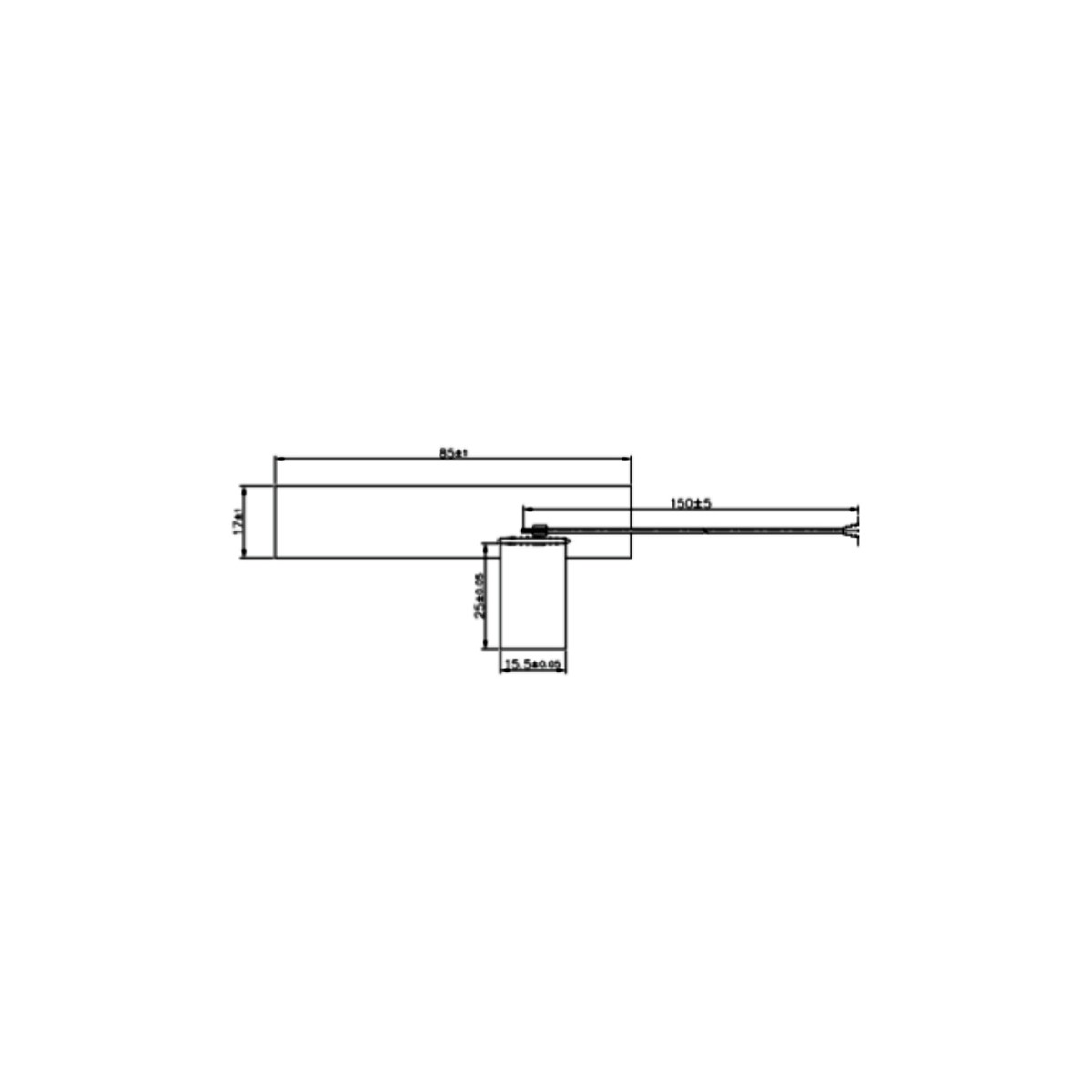

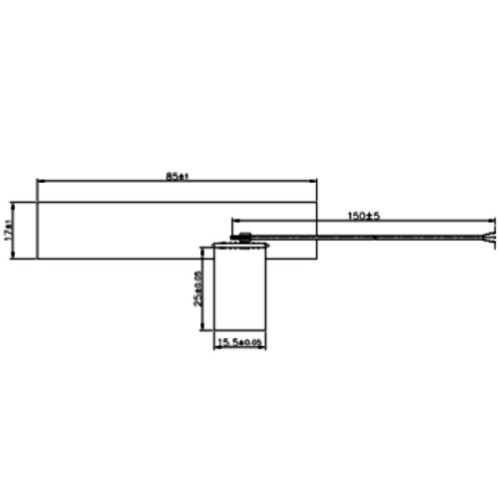

• Dimensions (LxWxH): ca. 85.0 x 17.0 x 0.8 mm
System requirements
• Device with one free I-PEX Inc., MHF® I port
Package content
• Antenna
This LTE antenna can be connected to a device with I-PEX Inc., MHF® I interface, in order to send and receive signals.
Specification
• Connector: 1 x I-PEX Inc., MHF® I plug
• Frequency range:
791 - 960 MHz
1710 - 2170 MHz
2500 - 2700 MHz
• GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, LoRa
• Antenna gain: 0.5 - 2.0 dBi
• Impedance: 50 Ohm
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxWxH): ca. 85.0 x 17.0 x 0.8 mm
System requirements
• Device with one free I-PEX Inc., MHF® I port
Package content
• Antenna
Nuovo
4043619889822
