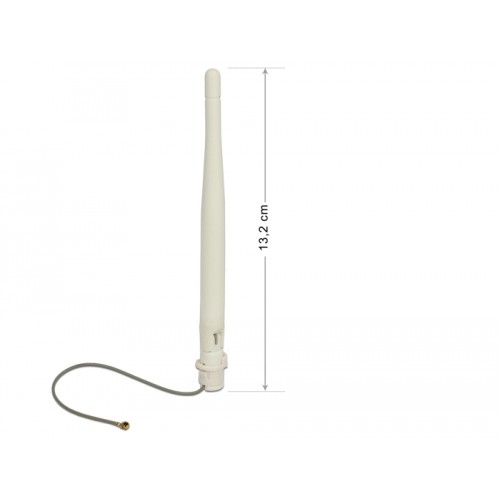

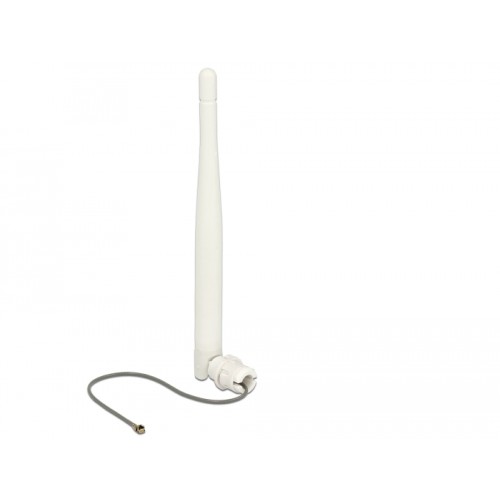

Delock WLAN 802.11 b/g/n Antenna I-PEX Inc., MHF® I plug 3 dBi omnidirectional 1.13 12 cm flexibel clip white
89619
Nuovo
Description
This antenna by Delock allows the usage of the 2.400 GHz band indoors and outdoors. It is completely compatible to Bluetooth, WLAN 2.400 GHz, ZigBee 2.400 GHz and ISM 2.400 GHz.
Specification
• Connector: 1 x I-PEX Inc., MHF® I plug
• Bluetooth, WLAN 2.400 GHz, ZigBee 2.400 GHz, ISM 2.400 GHz
• Frequency range: 2.400 - 2.500 GHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear, vertical
• Operating temperature: -10 °C ~ 60 °C
• Colour: white
• Cable: coaxial
• Cable type: 1.13
• Cable colour: grey
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Cable length incl. connectors: ca. 12 cm
• Antenna length: ca. 13.2 cm
System requirements
• Device with a free I-PEX Inc., MHF® I jack
Package content
• Antenna
This antenna by Delock allows the usage of the 2.400 GHz band indoors and outdoors. It is completely compatible to Bluetooth, WLAN 2.400 GHz, ZigBee 2.400 GHz and ISM 2.400 GHz.
Specification
• Connector: 1 x I-PEX Inc., MHF® I plug
• Bluetooth, WLAN 2.400 GHz, ZigBee 2.400 GHz, ISM 2.400 GHz
• Frequency range: 2.400 - 2.500 GHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear, vertical
• Operating temperature: -10 °C ~ 60 °C
• Colour: white
• Cable: coaxial
• Cable type: 1.13
• Cable colour: grey
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Cable length incl. connectors: ca. 12 cm
• Antenna length: ca. 13.2 cm
System requirements
• Device with a free I-PEX Inc., MHF® I jack
Package content
• Antenna
Nuovo
4043619896196
