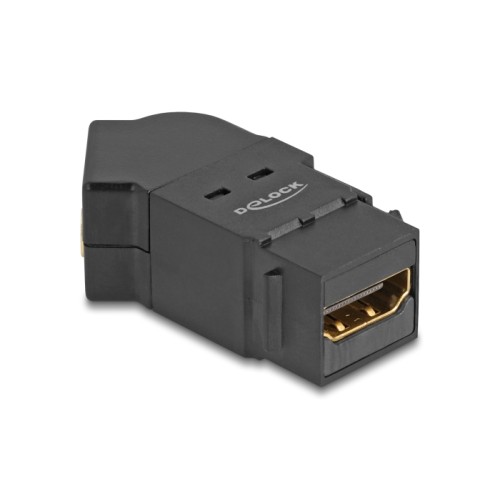

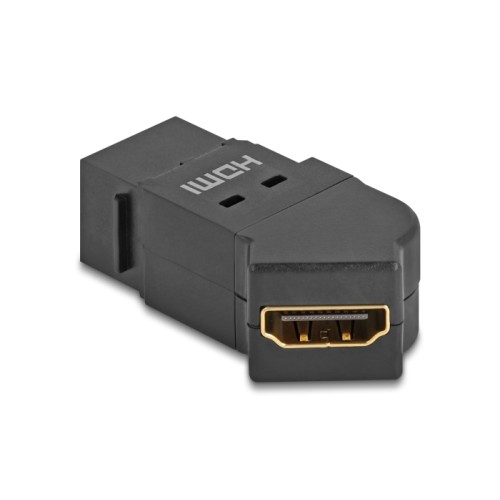

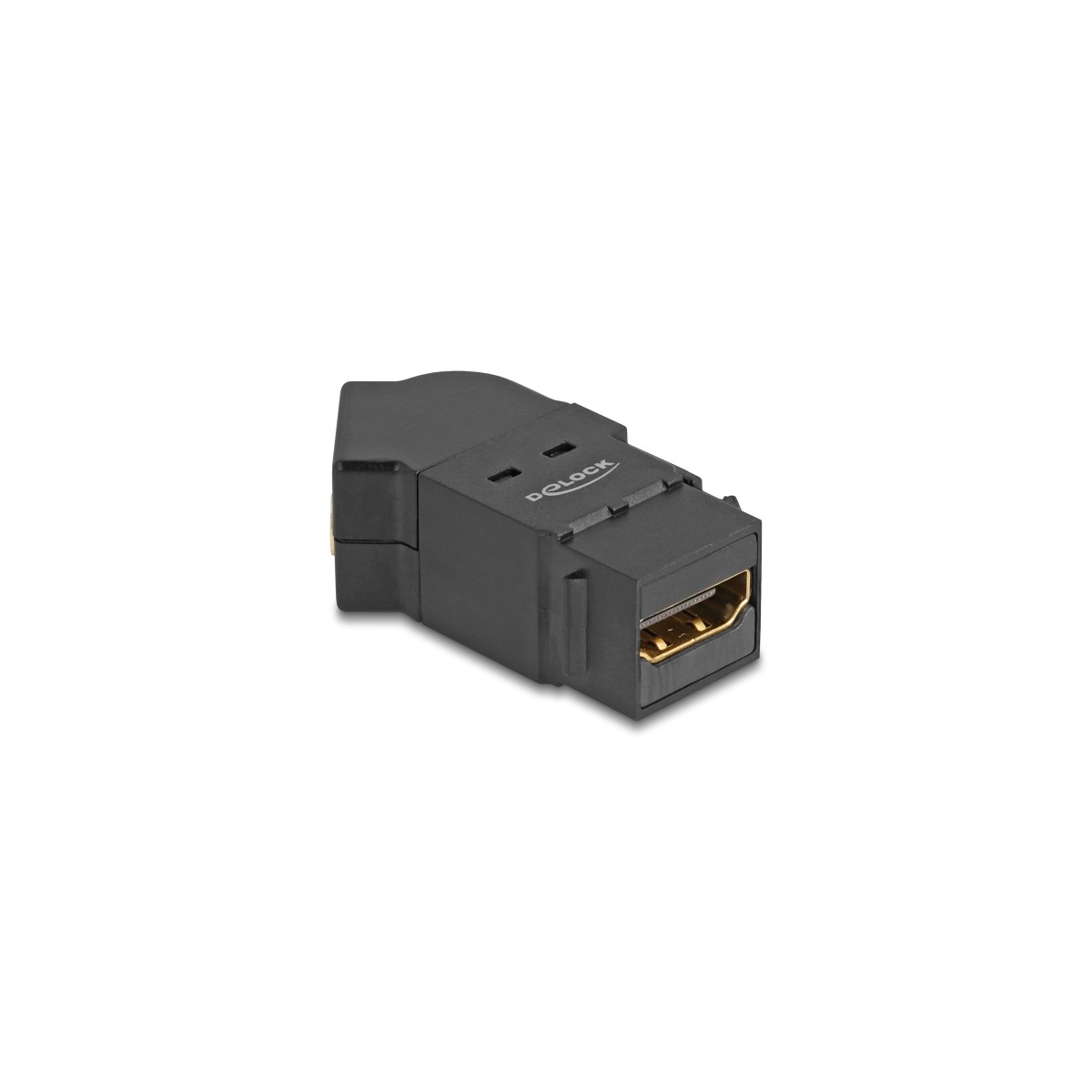

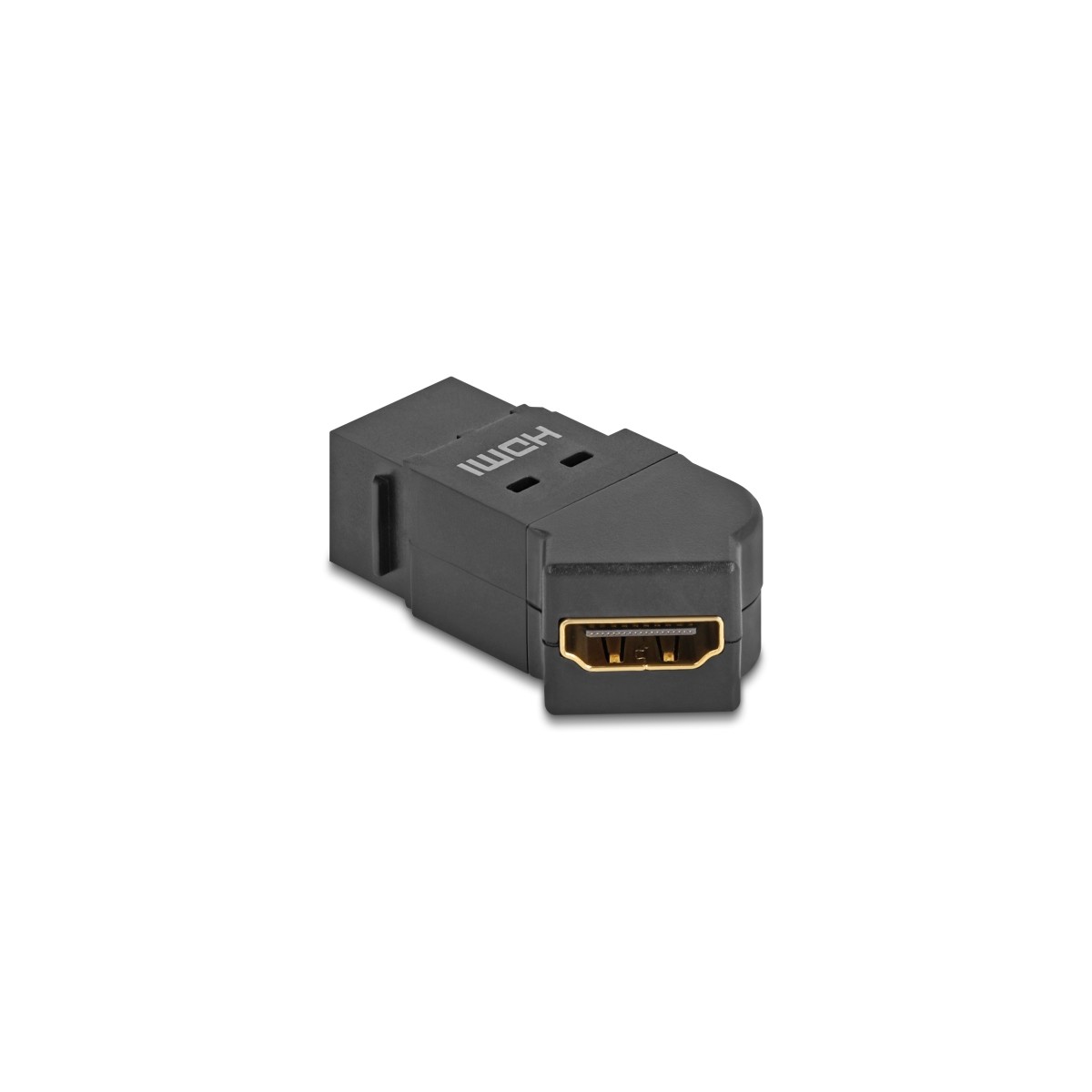

Delock Keystone Module HDMI panel mount female to HDMI female 45° angled 8K 60 Hz black
67156
Nuovo
Description
This module by Delock can be used to extend e.g. a HDMI cable.
With mounting holder for installation
The adapter can be installed e.g. on a panel, in a housing or switch cabinet.
With angled connection
The angled connection enables space-saving installation in tight spaces and hard to reach places in equipment or in cable ducts.
Specification
• Connectors:
1 x HDMI female for installation
1 x HDMI female 45° angled
• Resolution up to 7680 x 4320 @ 60 Hz (depending on the system and the connected hardware)
• Contacts gold-plated
• With mounting holder for installation
• Holder (WxH): ca. 40 x 18 mm
• Mounting hole diameter: ca. 2.2 mm
• Pitch of screw hole: ca. 30 mm
• Screw connection #4-40 UNC
• Material: PC + ABS
• Colour: black
• Dimensions (LxWxH): ca. 46 x 40 x 24 mm
System requirements

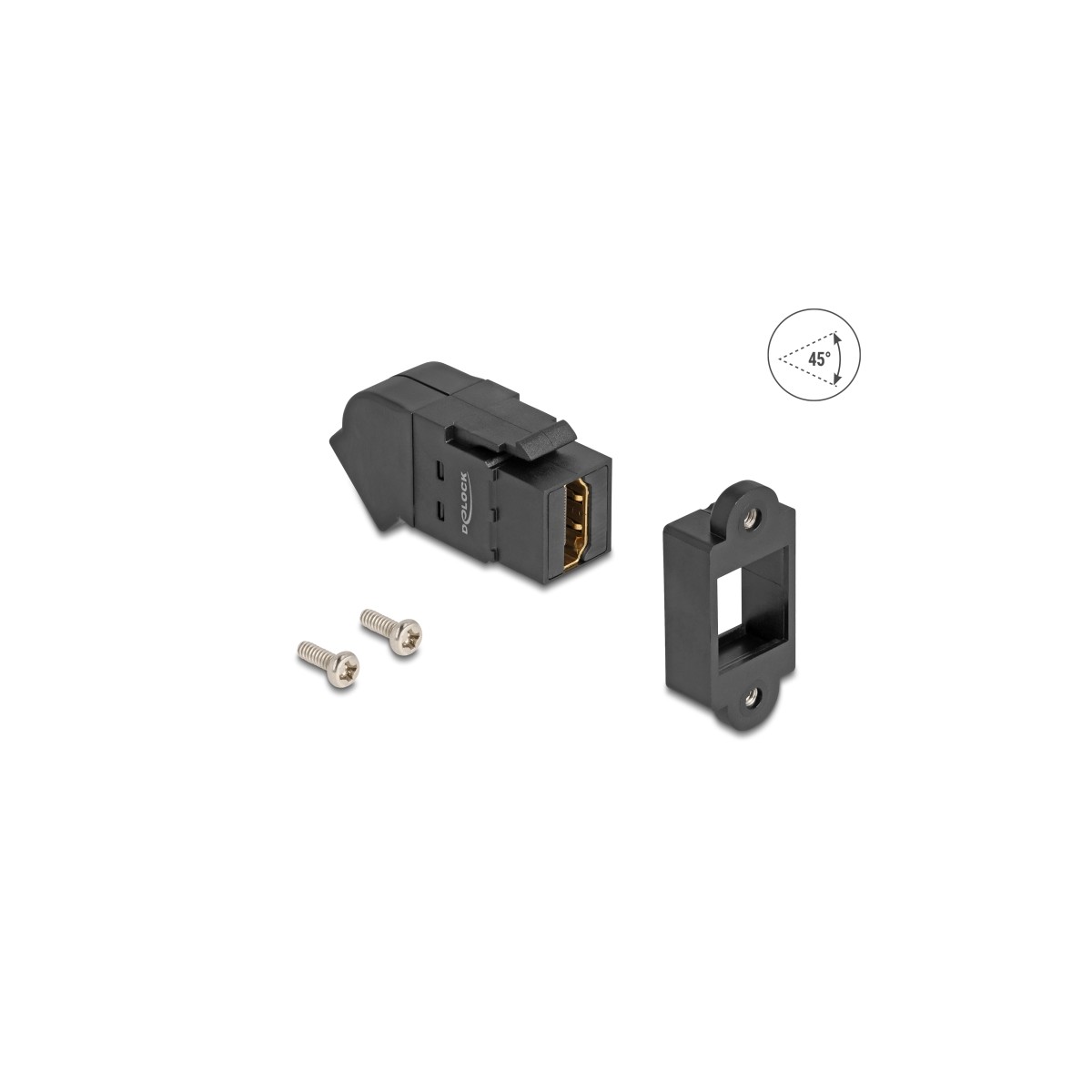

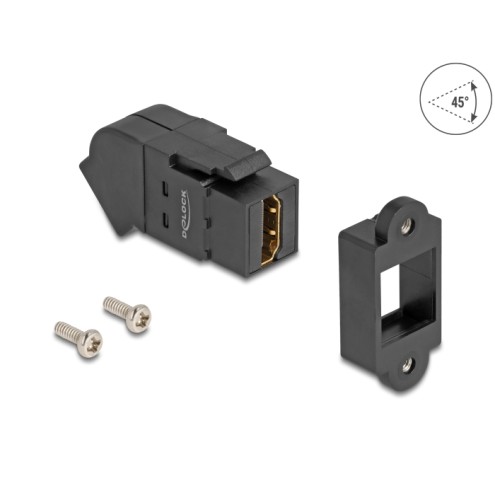

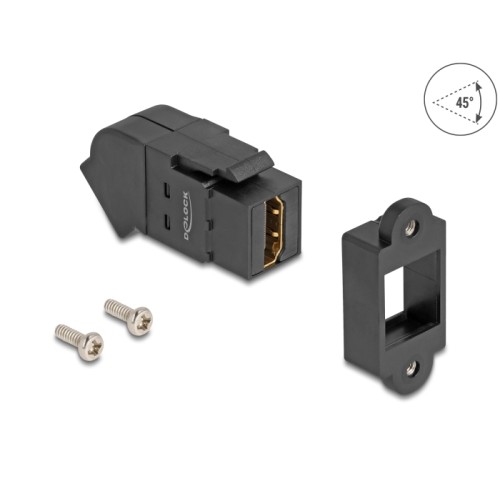

Package content
• HDMI module
• 2 x screw
