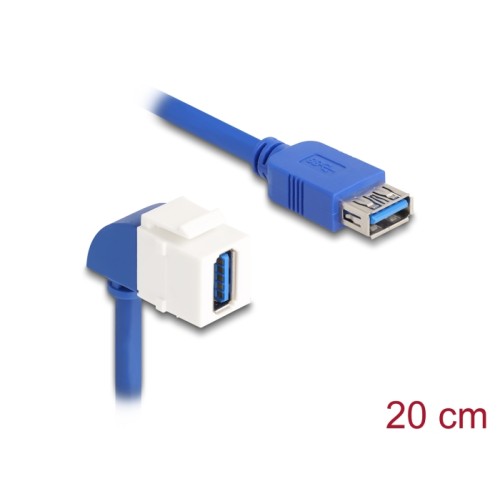

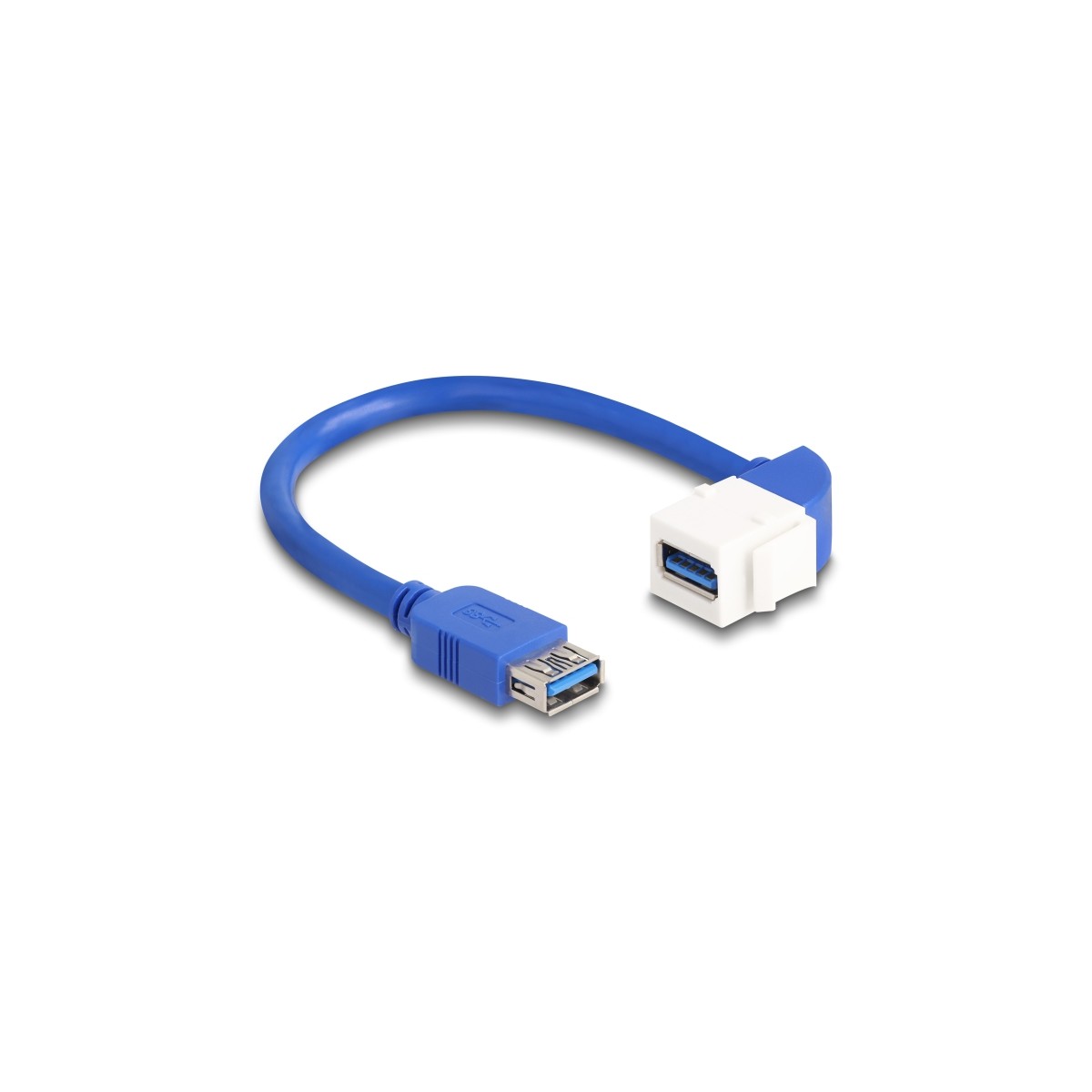

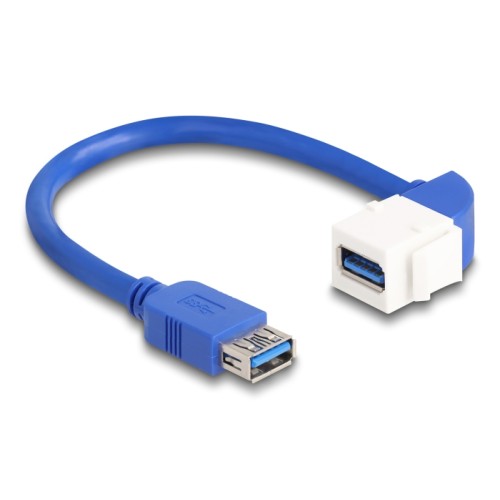

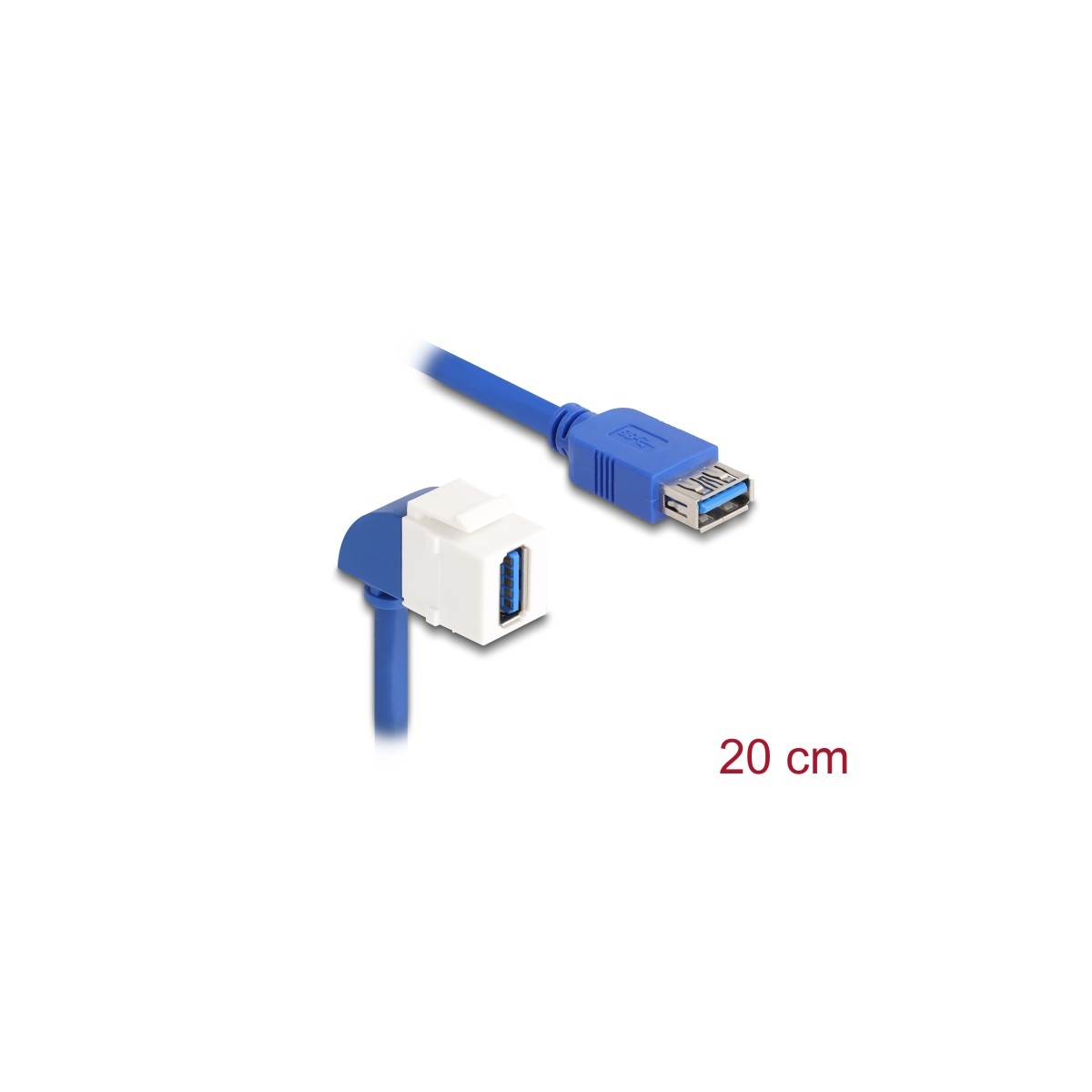

Delock Keystone Module Cable USB 5 Gbps Type-A female to USB Type-A female 90° angled 20 cm blue
86964
Nuovo
Description
This module by Delock can be used to extend e.g. a USB cable. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.
With angled connection
The angled connection enables space-saving installation in tight spaces and hard to reach places in equipment or in cable ducts.
Specification
• Connectors:
1 x USB 5 Gbps Type-A female
1 x USB 5 Gbps Type-A female 90° angled
• Data transfer rate up to 5 Gbps

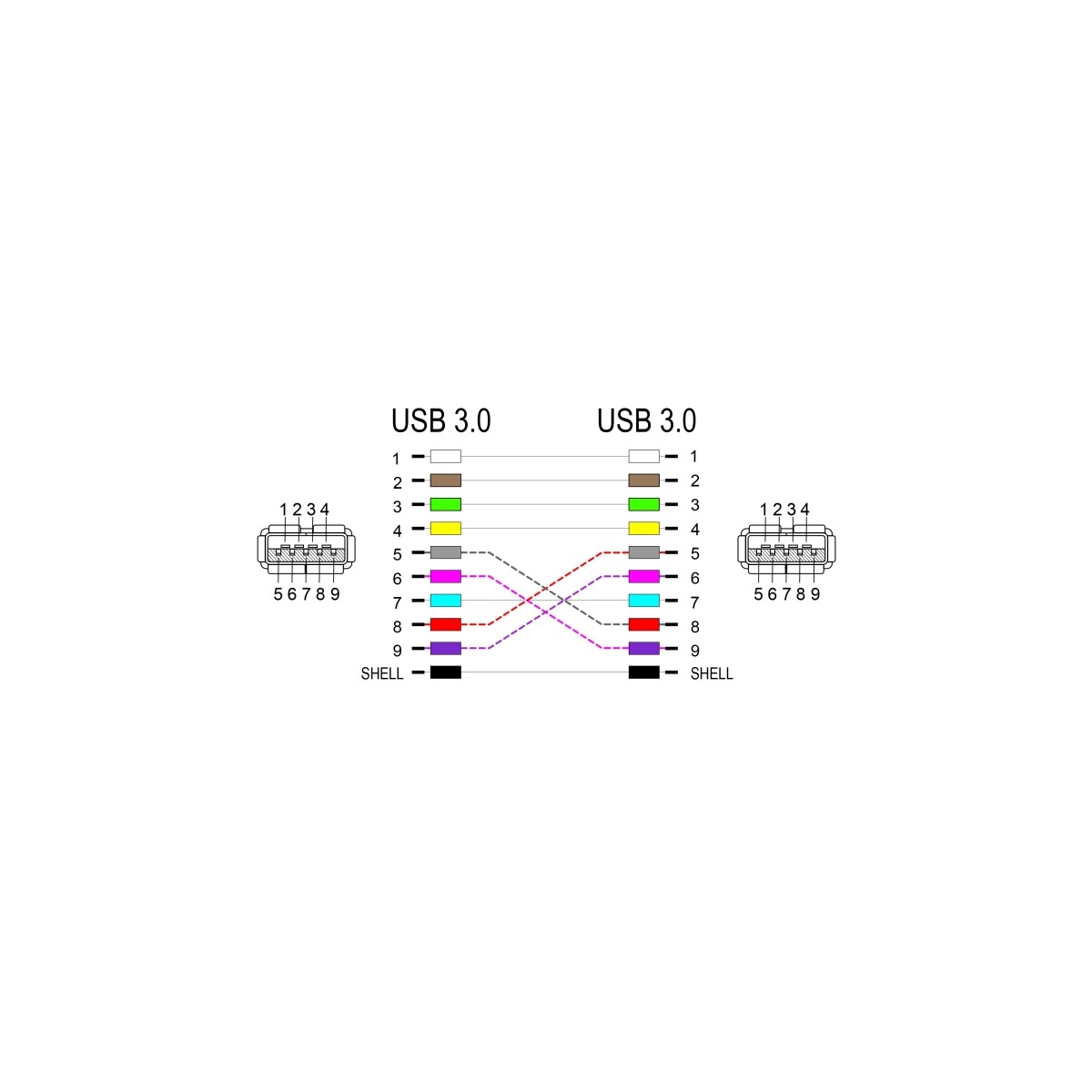

• Pin assignment:
5 SSRX- 8
6 SSRX+ 9
8 SSTX- 5
9 SSTX+ 6
• Cable gauge:
28 AWG data line
24 AWG power line
• For Keystone ports with 19.2 x 14.9 mm
• Cable diameter: ca. 5.5 mm
• Colour: blue / white
• Length incl. connectors: ca. 20 cm
• Dimensions Keystone (LxWxH): ca. 19.0 x 16.4 x 22.2 mm
System requirements
Package content
• Keystone module with cable
