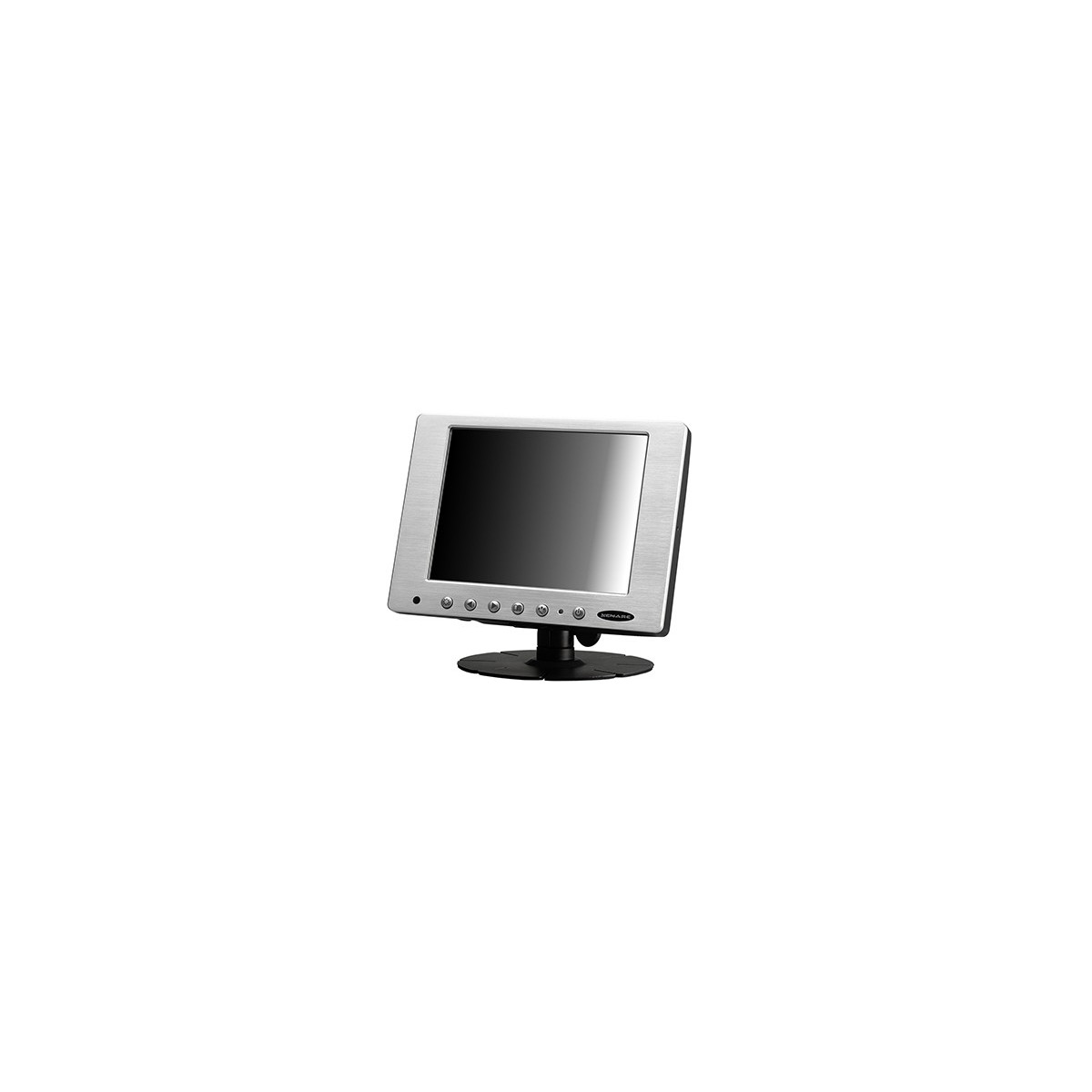

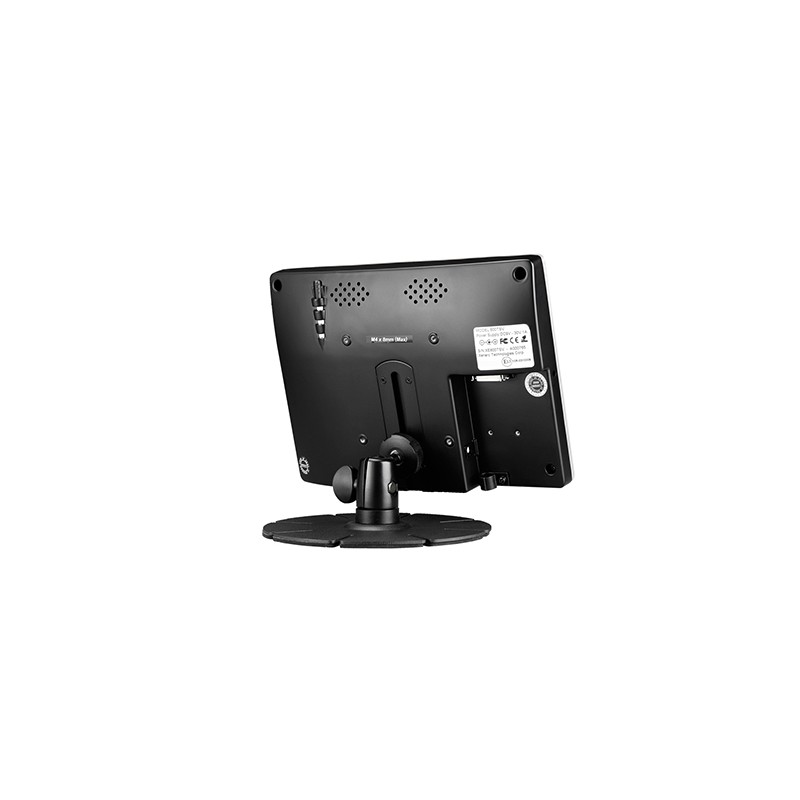

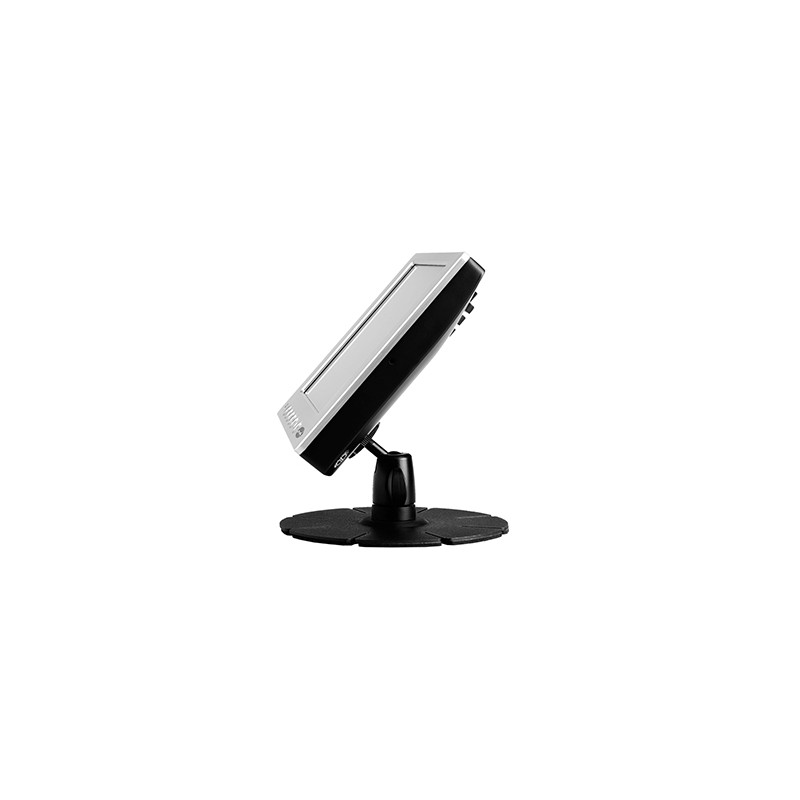

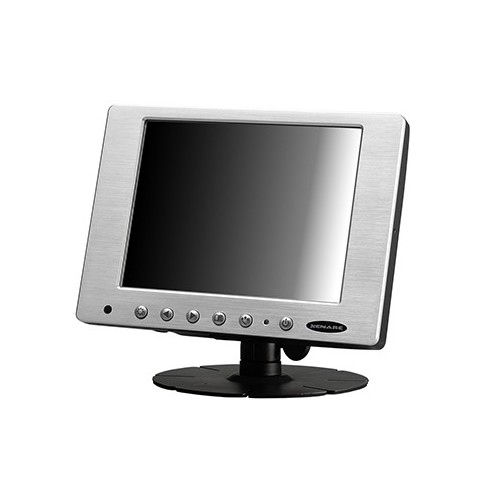

8" LCD Display Monitor con VGA & AV Inputs (touchscreen opzionale)

Piccolo monitor industriale da 8 pollici con case frontale in alluminio adatto ad ambiente industriali, militare, marino e medico.

Disponibile con alta luminosità (1000NIT), permette una chiara lettura anche se sottoposto a luce diretta del sole.

Applicazioni di utilizzo:

• Trasporti: Navale, Avionico, Veicoli Pesanti, Computer di Bordo, Trasporto Pubblico
• Integrazione: Controllo Macchina, Automazione Industriale, Monitoraggio Ambientale, Automazione Domestica, Domotica
• Punti Vendita: Receptions, Digital Signage, Postazioni Self-Service, Totem Esterni

Specifiche:

• Screen Size: Diagonal 8" (4:3)
• Physical Resolution: 800 (H) x 600 (V) SVGA
• Supported Resolution: 640 x 480 ~ 1600 x 1200
• Dot Resolution: 2400 x 600 = 1,440,000 (dots)
• LCD Brightness: 400 cd/m²
• Contrast Ratio: 500:1
• Viewing Angle: 140° Horizontal, 120° Vertical
• Response Time (Tr/Tf): 10/15ms (Typ.)
• Operating Voltage Range: DC 9V ~ 36V
• Power Supply: DC 12V
• Power Consumption: < 14W
• Operating Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
• Storage Temperature: -22°F ~ 176°F (-30°C ~ 80°C)
• MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation
• Dimension (mm): 228W x 164H x 36D
• Weight (kg): 1,2

• 400NIT High Brightness Long Life LED Backlight
• Adjustable LED Backlight for nighttime use
• Anti-Glare Coating
• VGA Input (15 pin D-SUB) x 1 & Video Input x 2
• Audio Input x 3 / Built-In Speaker
• 800x600 Native Resolution, 4x3 Aspect Ratio
• Solid Capacitors for Improved Durability
• High Performance Image and Video Signal Processor
• AISS - Advanced Image-Scaling and Shaping
• Last Input and Power Setting Memory
• IR Remote Control
• Auto Power-On upon signal detection
• Mirror and Vertical Image Flip
• Function to Disable Front Button(s) and On Screen Text
• AV2 Auto Switching for Backup Camera
• 360° Copper Monitor Stand or U-Shape Mount
• VESA 75mm Mounting Holes
• 26-Pin Heavy-Duty Connector with Connector Locking
• Ruggedized Aluminum Casing
• Supports 9V DC ~ 36V DC
• "E" Mark Certified for Automotive use
• FCC, CE, E13 Certification
• ROHS Compliant
