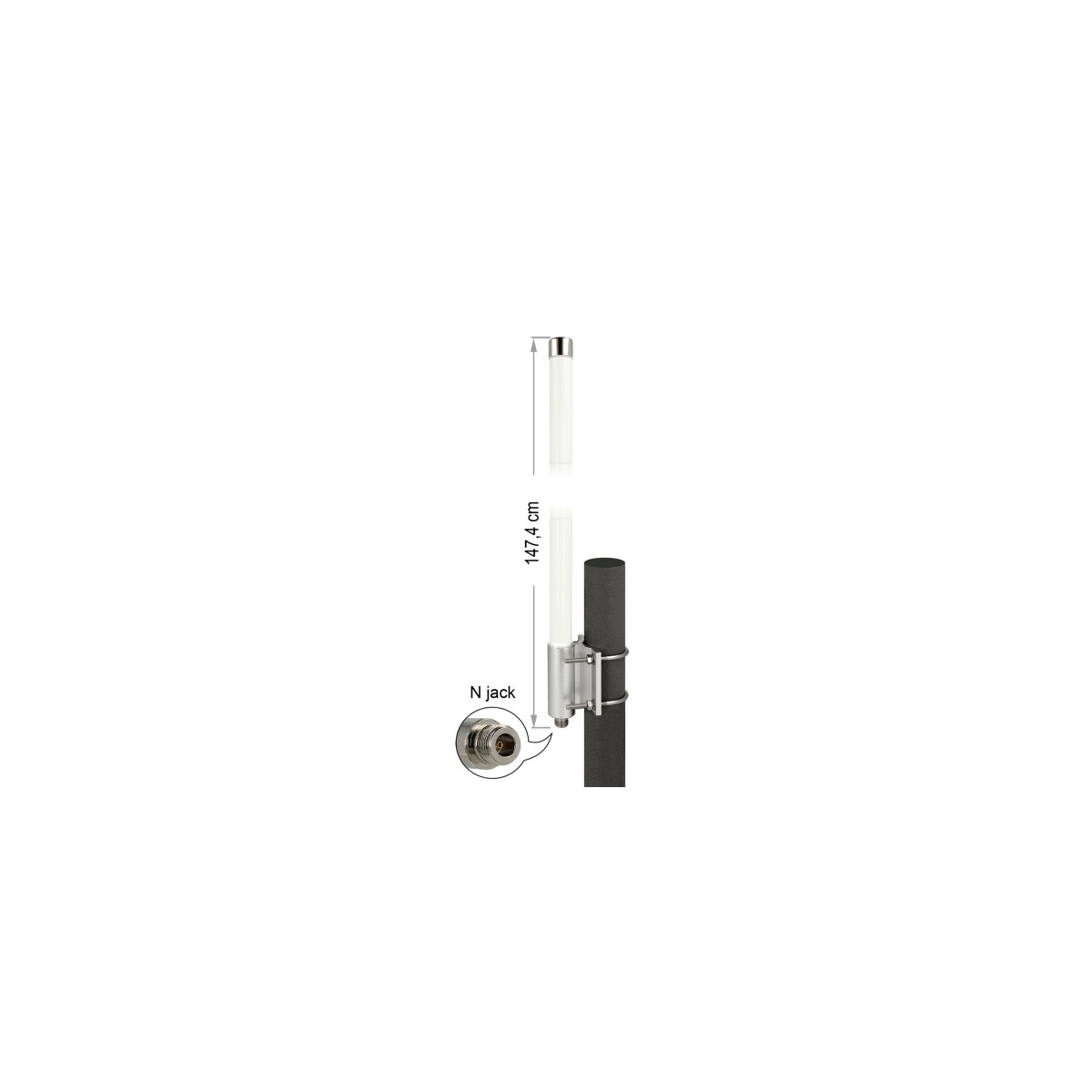

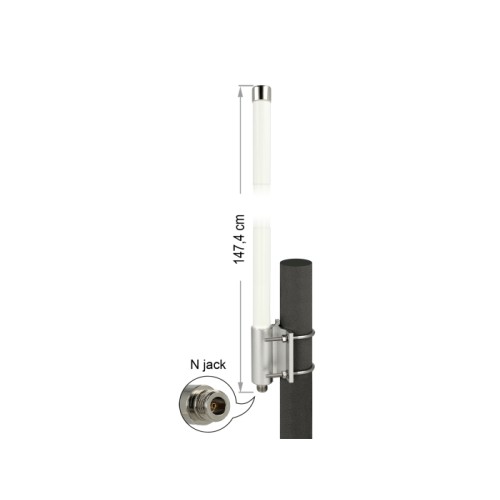

Delock LoRa 868 MHz Antenna N Jack 8 dBi 147.4 cm omnidirectional fixed wall and pole mounting white outdoor
12504
Nuovo
Description
This antenna by Delock allows the usage of 868 MHz band indoors and outdoors.
Specification
• Connector: N jack
• Antenna type: Collinear dipole array
• Frequency range: 860 - 870 MHz
• Antenna gain: 8 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• HBW horizontal beamwidth: 360°
• VBW vertical beamwidth: 17°
• VSWR: 1.5
• Power handling: max. 100 W
• Operating temperature: -40 °C ~ 60 °C
• Body: GFRP UV resistant
• Length: ca. 147.4 cm
• Diameter: ca. 2.6 cm
• Weight:
antenna: ca. 800 g
mounting material: ca. 70 g
System requirements
• Device with a free N connector
Package content
• Antenna

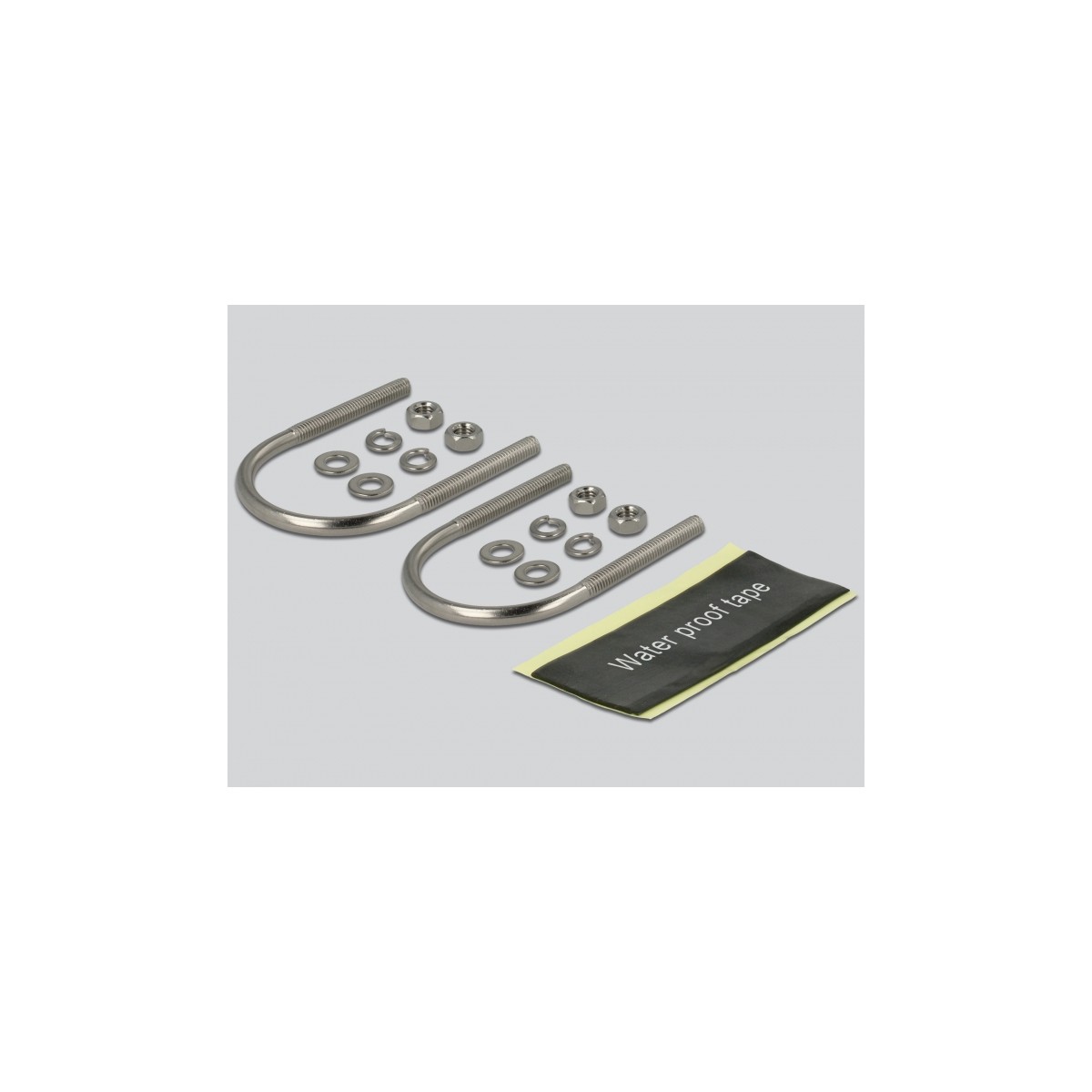

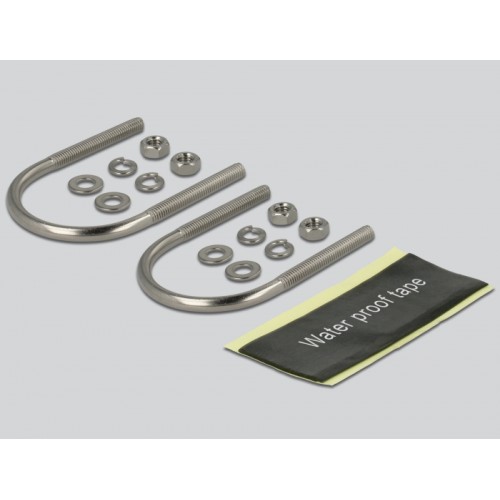

• Mounting material
This antenna by Delock allows the usage of 868 MHz band indoors and outdoors.
Specification
• Connector: N jack
• Antenna type: Collinear dipole array
• Frequency range: 860 - 870 MHz
• Antenna gain: 8 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• HBW horizontal beamwidth: 360°
• VBW vertical beamwidth: 17°
• VSWR: 1.5
• Power handling: max. 100 W
• Operating temperature: -40 °C ~ 60 °C
• Body: GFRP UV resistant
• Length: ca. 147.4 cm
• Diameter: ca. 2.6 cm
• Weight:
antenna: ca. 800 g
mounting material: ca. 70 g
System requirements
• Device with a free N connector
Package content
• Antenna
• Mounting material
