Description

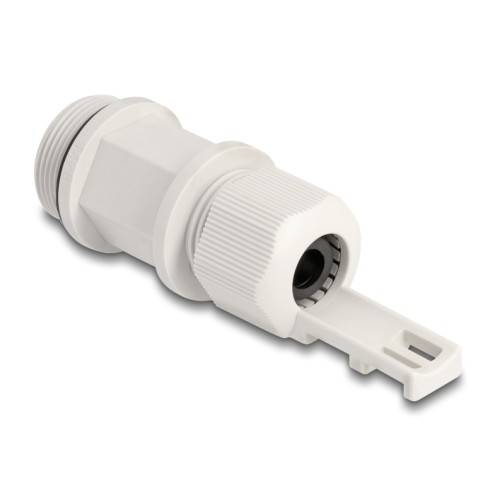

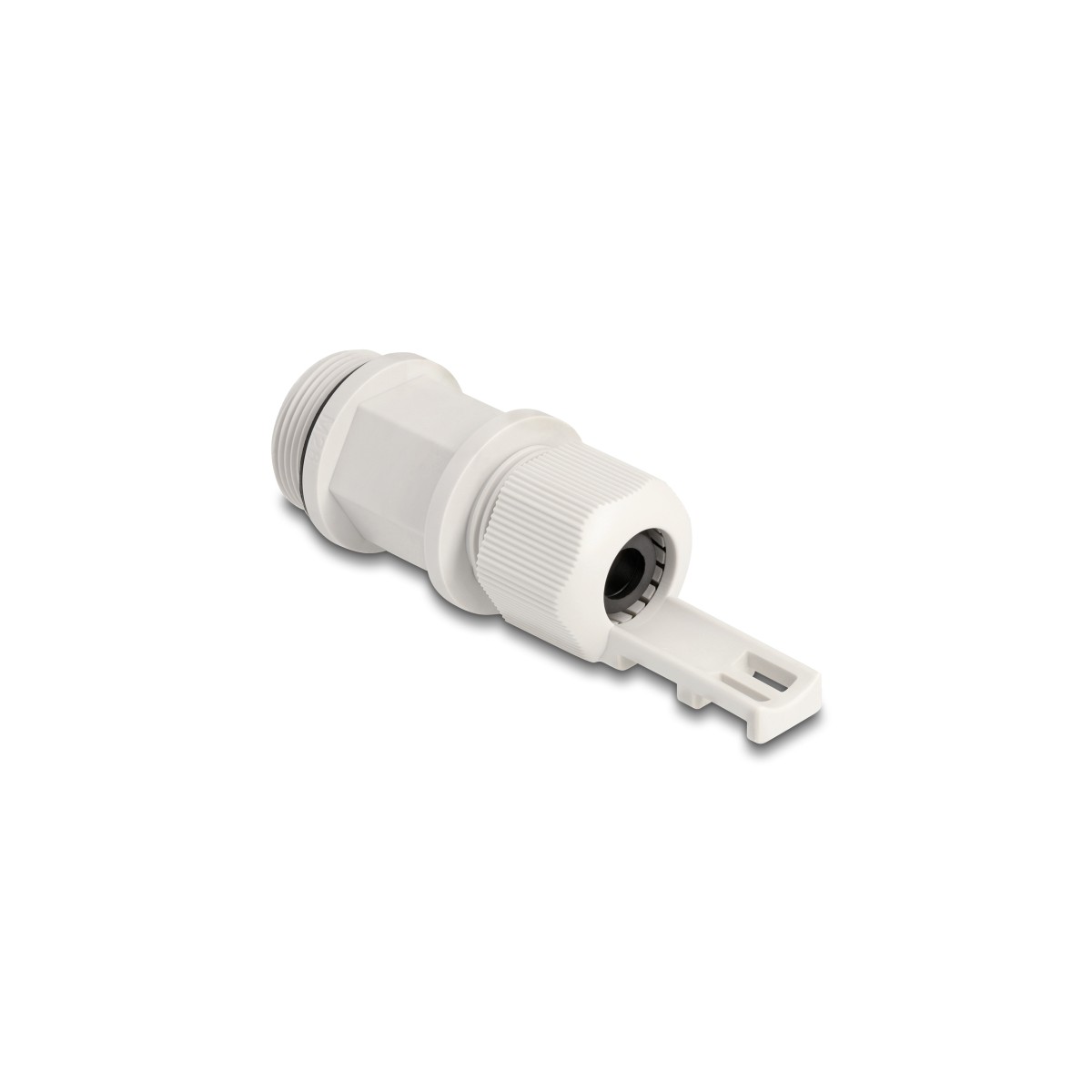

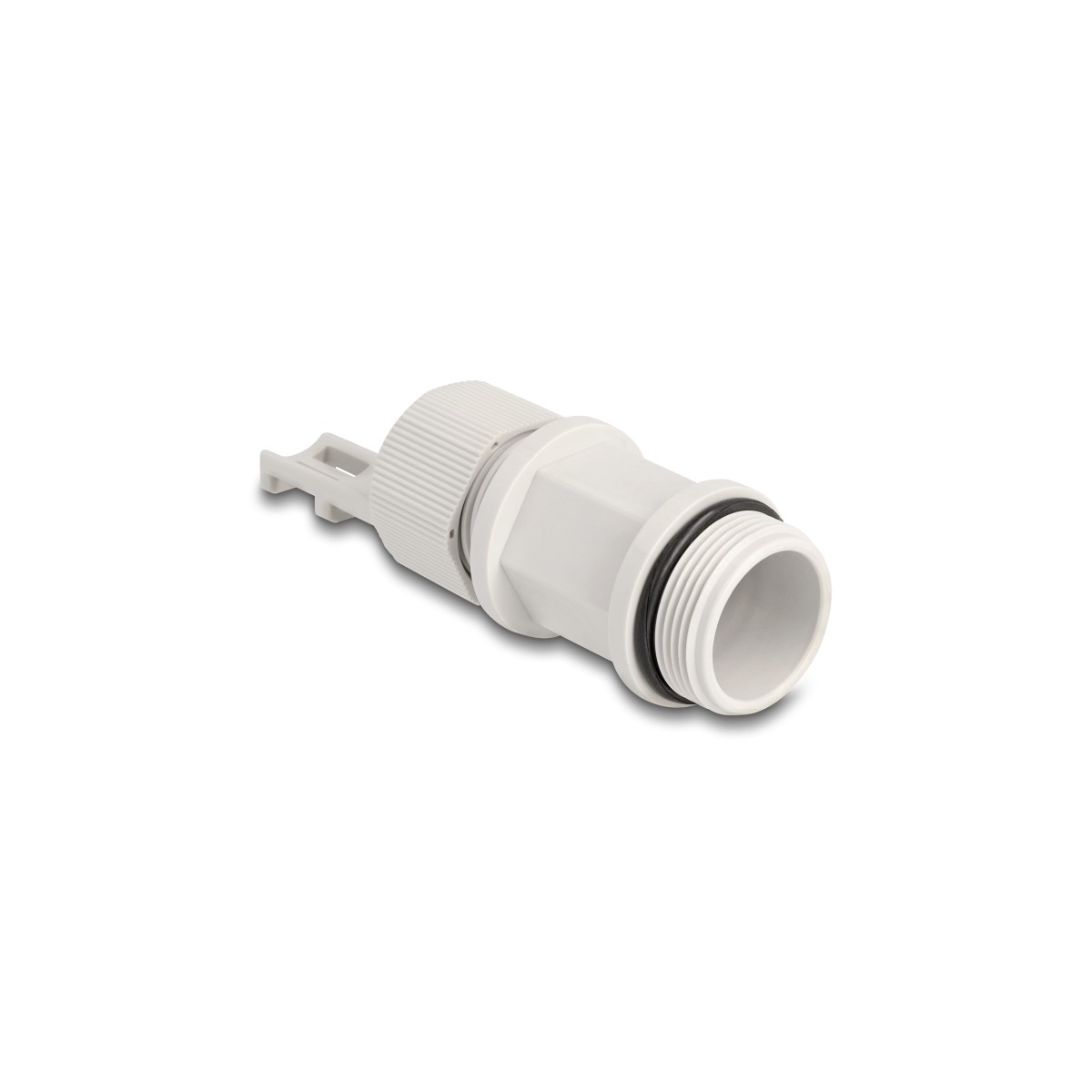

This cable gland by Delock allows a watertight seal to the housing for the lead-through of cables and electrical tubes.
With extension for cable ties

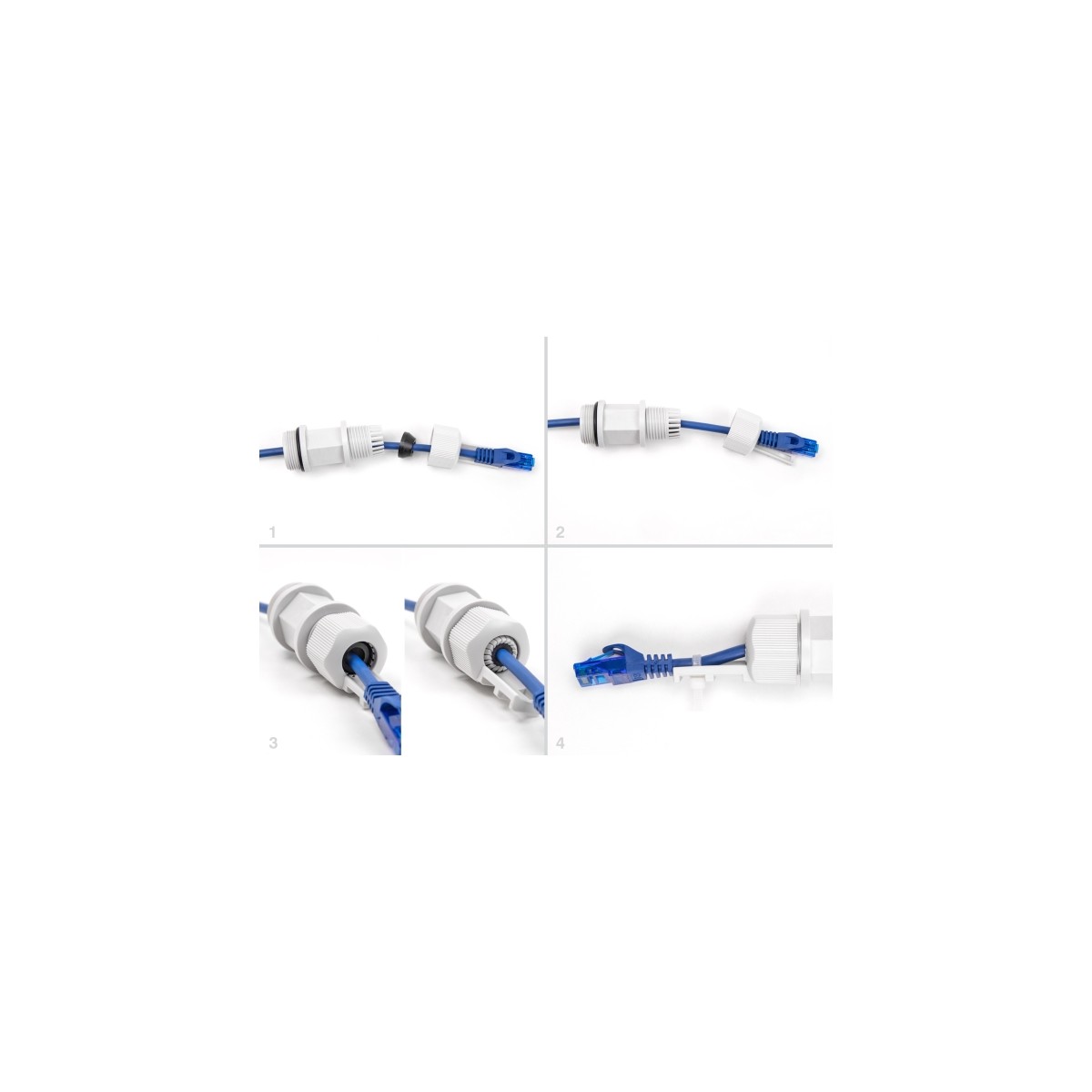

The fixing allows the inserted cable to be securely fixed with a cable tie to prevent it from slipping out or coming loose.
IP68 dust and waterproof
The cable gland also offers increased protection against dirt and moisture.
Multifunctional application
The robust design is ideal for use in automation, the robotics industry and machinery.
Specification
• Thread size: M28 x 1.5 mm
• Thread length: 11.5 mm
• Spanner width: 24 mm
• Protection class: IP68
• Cable diameter:
min.: 6 mm
max.: 9 mm
• With cable tie fastening
• Operating temperature: -40 °C ~ 100 °C
• Material: plastic
• Colour: grey RAL7035
System requirements
Package content
• Cable gland
This cable gland by Delock allows a watertight seal to the housing for the lead-through of cables and electrical tubes.
With extension for cable ties
The fixing allows the inserted cable to be securely fixed with a cable tie to prevent it from slipping out or coming loose.
IP68 dust and waterproof
The cable gland also offers increased protection against dirt and moisture.
Multifunctional application
The robust design is ideal for use in automation, the robotics industry and machinery.
Specification
• Thread size: M28 x 1.5 mm
• Thread length: 11.5 mm
• Spanner width: 24 mm
• Protection class: IP68
• Cable diameter:
min.: 6 mm
max.: 9 mm
• With cable tie fastening
• Operating temperature: -40 °C ~ 100 °C
• Material: plastic
• Colour: grey RAL7035
System requirements
Package content
• Cable gland
