Description

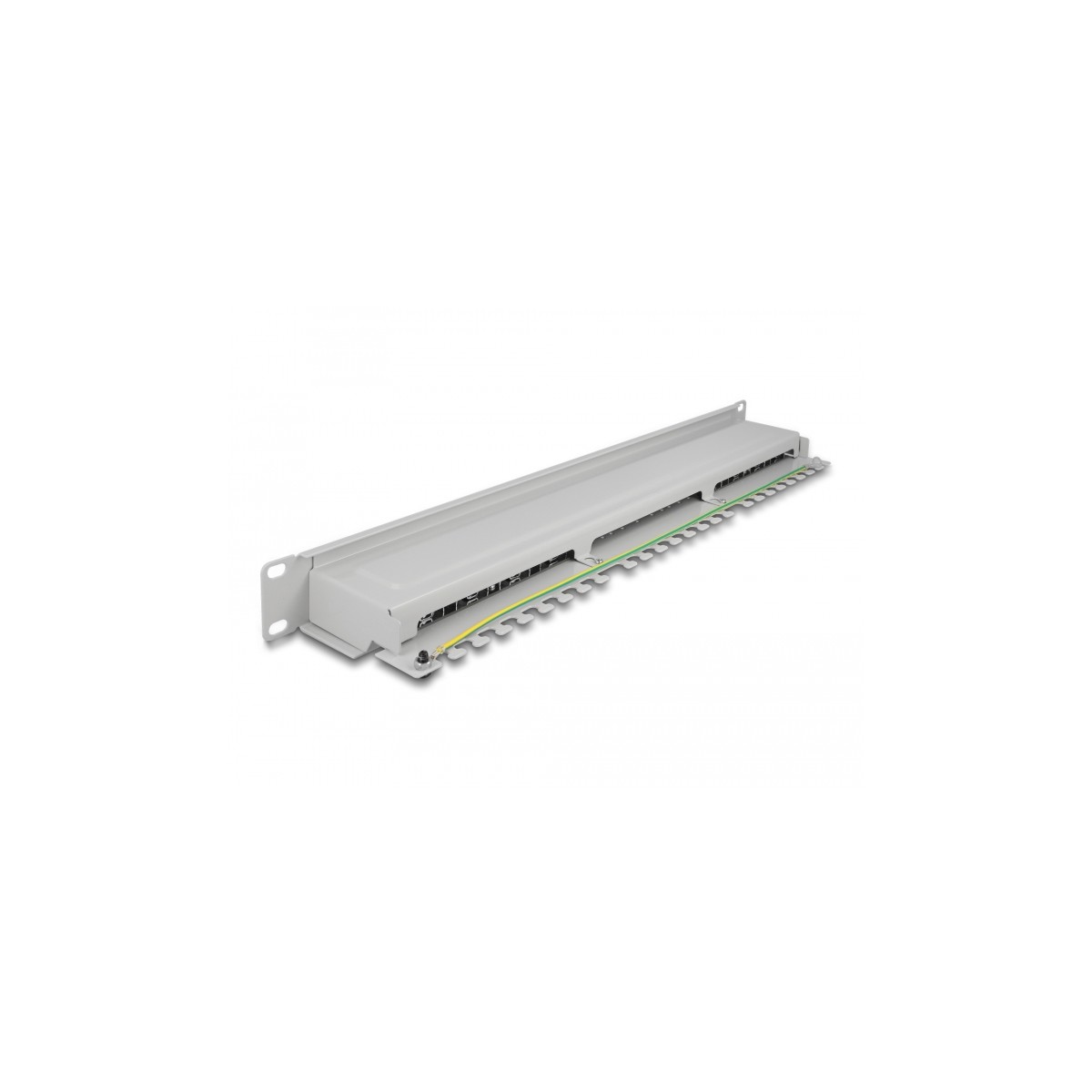

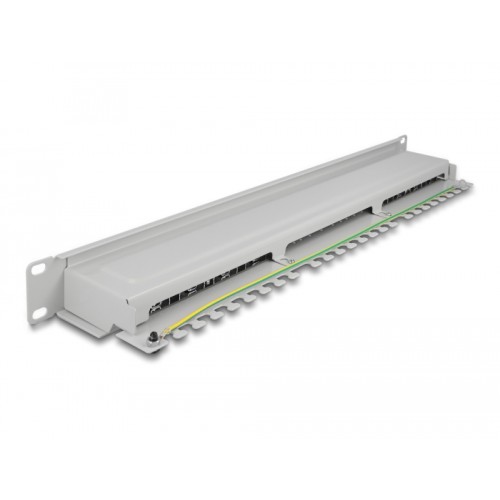

This patch panel by Delock can be mounted in a 19″ cabinet. Up to 16 network cables can be installed at the LSA blocks, using a punch down tool.
Specification
• Connectors:

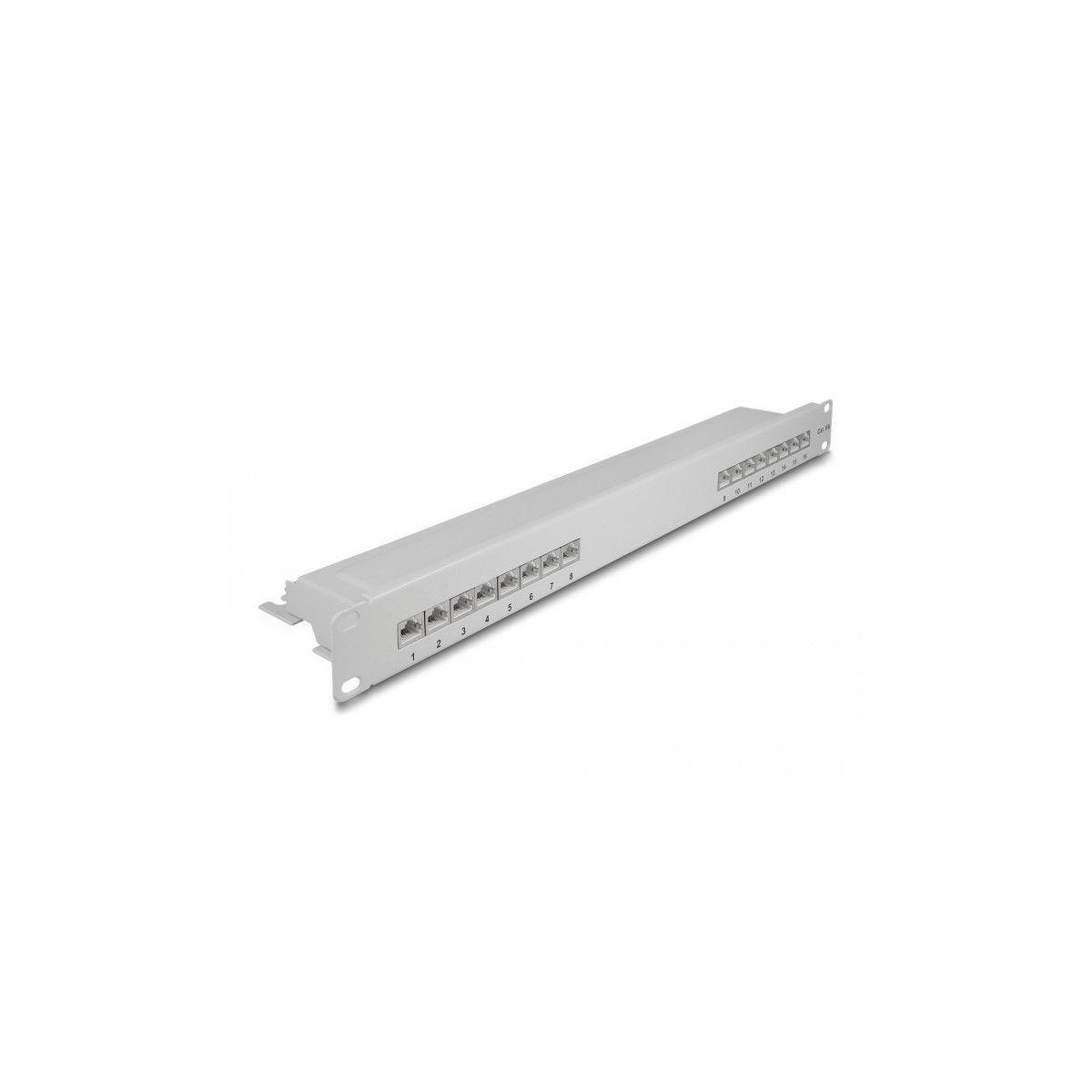

16 x RJ45 jack >

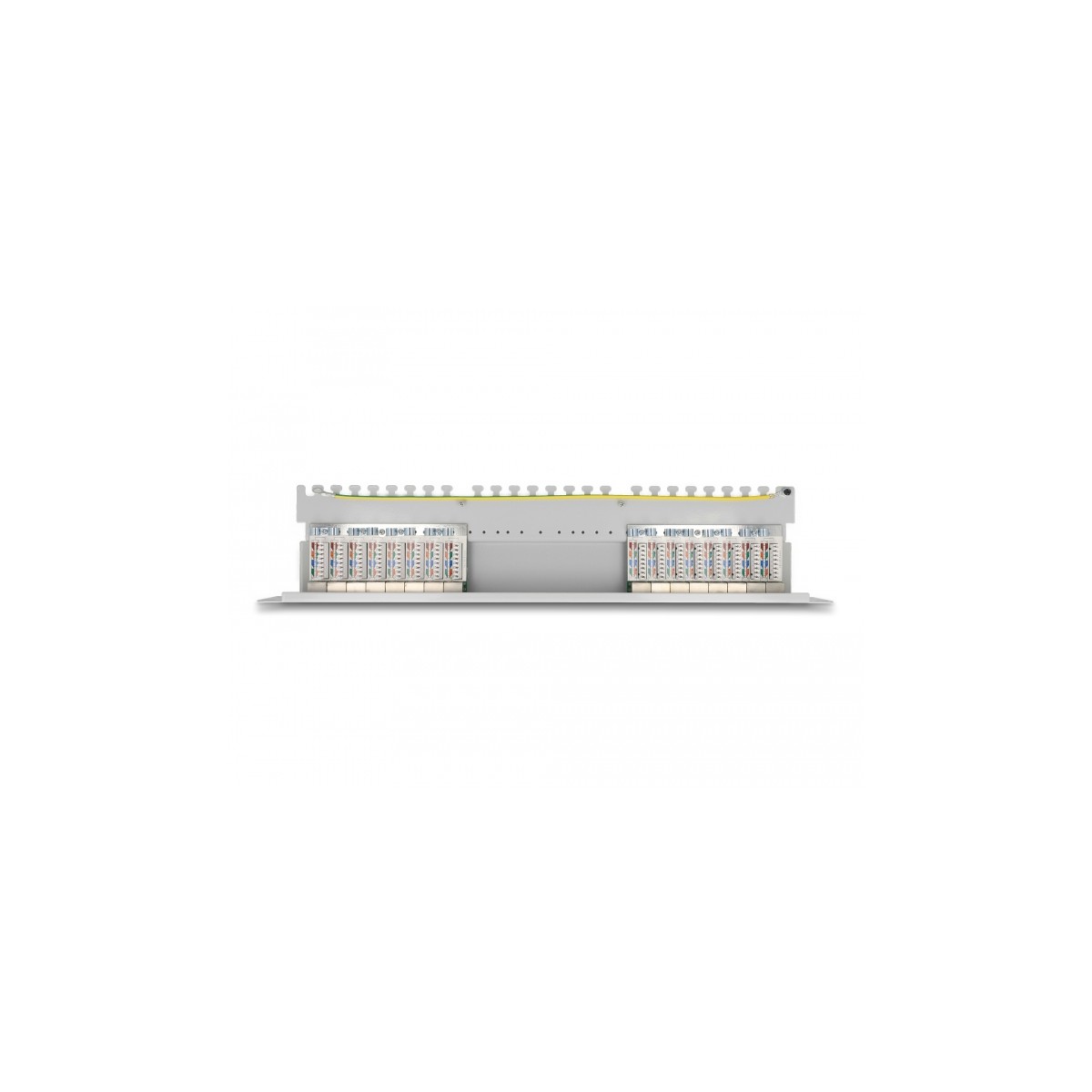

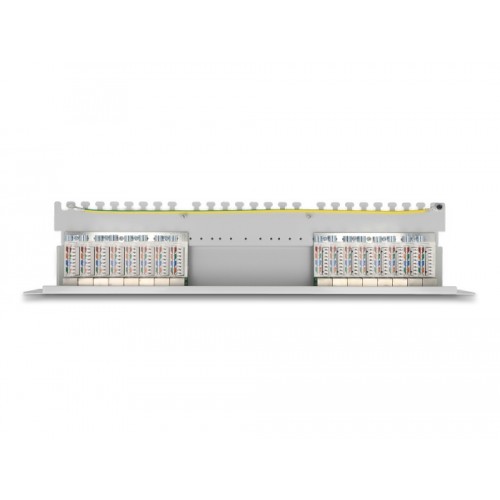

16 x LSA
• For mounting in 19″ network cabinet, 1U
• Compliant with Cat.6A requirements of ANSI/TIA/EIA 568-C.2
• TIA-568A/B pinout
• For solid or stranded wire (26 - 22 AWG)
• Material: metal
• Colour: grey
• Dimensions (LxWxH): ca. 482.6 x 100 x 44.5 mm
System requirements

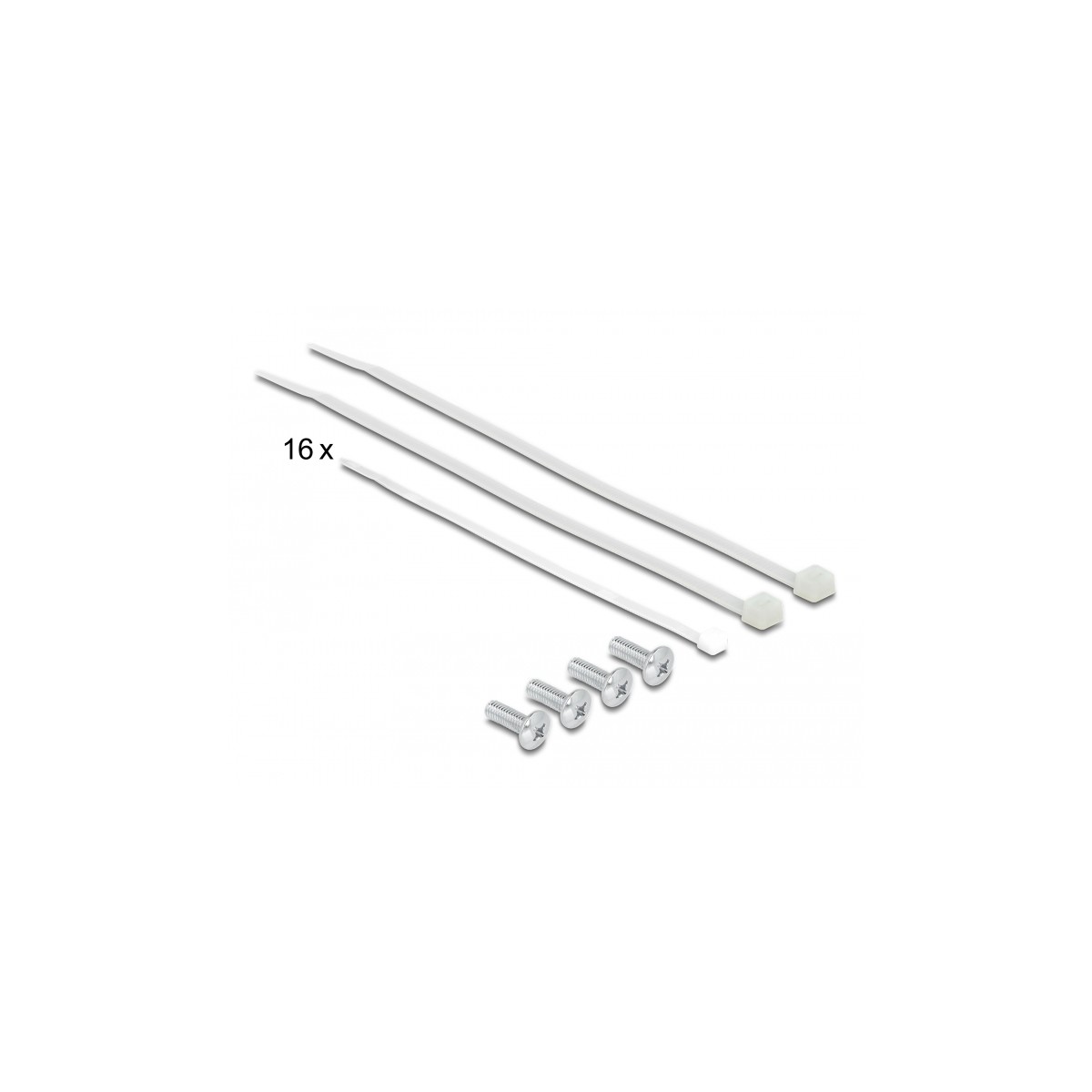

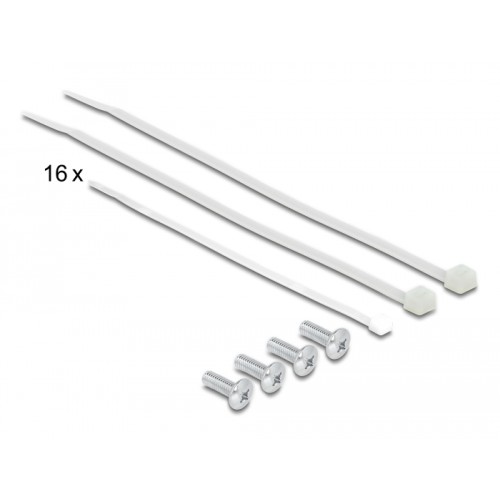

Package content
• 19″ patch panel
• 2 x cable tie 4.7 x 200 mm
• 16 x cable tie 2.4 x 100 mm
• 4 x screw
• Ground wire
This patch panel by Delock can be mounted in a 19″ cabinet. Up to 16 network cables can be installed at the LSA blocks, using a punch down tool.
Specification
• Connectors:
16 x RJ45 jack >
16 x LSA
• For mounting in 19″ network cabinet, 1U
• Compliant with Cat.6A requirements of ANSI/TIA/EIA 568-C.2
• TIA-568A/B pinout
• For solid or stranded wire (26 - 22 AWG)
• Material: metal
• Colour: grey
• Dimensions (LxWxH): ca. 482.6 x 100 x 44.5 mm
System requirements
Package content
• 19″ patch panel
• 2 x cable tie 4.7 x 200 mm
• 16 x cable tie 2.4 x 100 mm
• 4 x screw
• Ground wire
